Ives FB61P Constant Latching Flush Bolt for Wood Doors

The Ives FB61P is used on the inactive leaf of wood fire doors.   The latch remains extend until the active door is opened.   When the active door is opened the latches retract, and extend when the active door is closed.  The bodies measure 1” wide by 8-1/2” tall and 2” deep.  The bolt throw is 3/4” with a 7/8” vertical adjustment, and has a 3/4” backset.   This package comes with the top and bottom flush bolts with screws and strikes.

90 minute UL Rated.

Ives Part # FB61P

Door Finger Protector - Interior Pull Side

These patented door guards fold against the jamb, allowing them to swing completely 180 degrees. The guard is attached to the face of the door and frame with the provided strong adhesive tape. Clear-frosted color to compliment any color scheme. Finger-Gard for use on Interior Doors, on the pull side. Available in 54" or 78" lengths.

Part number GFG3 for 54" length, and GFG4 for the 78" length

4-3/8" long

The SEM7800 LCN Electro Magnetic Door Holder Metal Cover is constructed of a metal die cast. This cover will work on the SEM7830, SEM7840 and SEM7850. Available in aluminum and dark bronze finishes.

LCN Part # SEM7830-72, SEM7840-72 and SEM7850-72

Doromatic EL1490 Lift Bracket

As known as a Falcon EL1490 Lift Bracket. This bracket connects the exit device to the rods. The bracket measures 7-1/4" long by 1" wide.

Dor-o-Matic Falcon Part # PB57 or 4270107495

The LCN Door Closer Hold Open Head And Tube 3048 - 3048L.  As the arm rotates the pivot point threads close on to the mounting bracket face and create a friction catch.  If yours is new, try rotating the mounting plate 180 degrees so the threads tighten as it closes. This replacement part from LCN either breaks or wears out.   The material some times wears out due to the friction of open and closing.  But the biggest issue seems to be the point where the tube mounts to the cast iron connector.

Specify your current closers model number when ordering. Not all of the LCN closers have the same shape spindle on the door closer cylinder. Model Available here are the:

1260-3048
1260-3048L
1460-3048
1460-3048L
4010-3048
4010-3048L
4020-3048
4020-3048L
4040-3048
4040-3048L

Doromatic Door Closer Hold Open Arm Only

Doromatic Door Closer Hold Open Arm. Includes everything is the image. Can be used to convert you regular non hold arm to a Hold Open Door Closer. Arm holds the door open when door is rotated open. The hold open postion is adjustable. This is the hold open arm for the SC61 Hw/PA, SC71 Hw/PA, and the SC81 Hw/PA.

Doromatic Part numbers:
SC60 - SC60-3049/PA , SC70 - SC70-3049/PA , SC80 - SC80-3049/PA

LCN 4630 Low Energy Door Closer

The Von Duprin 8827 Latch Covers 050464 is used on the top and bottom latches of the 8827 Panic Hardware, and the bottom latch of the 8827-F Fire Rated Hardware.  Latch covers come with matching screws

Von Duprin Part # 050464
Old Part # 960548

For Doors Wood or metal. 1-3/4" (44 mm) thick standard.
minimum stile with trim and 3-1/2"
Mounting Supplied standard with wood and machine screws
Chassis Cover Cold drawn brass, bronze or stainless steel
Chassis Nonferrous alloy
Hand Handed. Specify RHRB or LHRB
Dogging Feature Allen-type dogging furnished standard.
Top and Bottom Bolts Brass, stainless steel

Door Holder / Stop Rubber Shoe

Replacement Rubber Shoe
5/8" insert diameter
1" base diameter
7/8" overall height

Ives Part # HRT or FSPART.1075

20 TPI, 9/32" square
4" Long Straight Spindle

The Von Duprin 2227 Top Latch 050091 latch is used on devices shipped before October 1998, see related products for the new style latch if your device is newer. This is usually the problem if your bottom rod is dragging on the floor.  Latch measures:   1-1/16" wide x 4-5/16" long (less latch bolt) x 1-7/8" projection at the highest point.  Includes screws.

Von Duprin Part # 050091

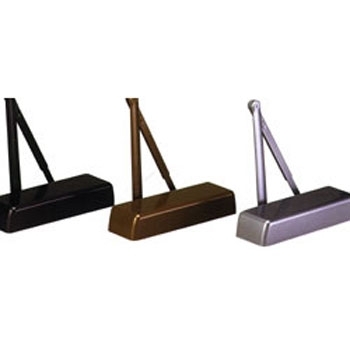

The Cal Royal Products CR441 Door Closer is an inexpensive replacement for the LCN 4040.  The mounting holes on the CR441 matches the 4040, at more than 1/2 the cost.  This closer will work on the left or right, push, pull or top jamb for mounting.   Just like the LCN 4040 it features adjustable spring tension, closing, latching and back check speeds.  It is considered a Grade 1 closer, which is the heaviest rating possible.

Cal Royal CR4040 Catalogue

The Von Duprin Panic Device 55 Right Hand Arm 050136 includes the wedge, wedge ring, wedge tite screw and dog screw.

Von Duprin Part # 050136

Swivel spindle, 4-3/4" long,
plain centers, 20 tpi

The Von Duprin 88 and 55 Cross Bar 967738 has been in use since the 1950's.  The bar is 1" in diameter and is 42" long and can be cut down in the field.  One side of the bar will be cut for the wedge tite screw opening.

Von Duprin Part # 050004
Old Part # 967738

Fabricated from B & S 16 ga. (.050). Standard lengths are 36", 42" and 48". Custom capabilities include variations of all of the above parts including frame protectors and vertical rod protectors.
Custom sizes are available!

Screws included for mounting

Please allow 7-10 for shipment.

Finishes

Dor-o-Matic Falcon 1690/1990 Traveler Assembly PB88

Doromatic 1990/1690 traveler assembly. The Traveler Assembly measures about 4-1/8" long, by 7/8" wide and 1/4" thick.  This bracket connects the rods to the exit device Doromatic Part # 4270100013 or PB88

20 TPI
4-1/2" long
3 pin holes one side

Dor-o-Matic Door Closer Regular Arm Only. This is the standard regular arm for the SC60, SC70, and SC80 Doromatic Door Closers

Doromatic part # SC60 - SC60-3077/PA, SC70 - SC70-3077/PA, SC80 - SC80-3077/PA

Choose Color and Doromatic Falcon Model Number (Function)

The LCN Hold Open Arm Wrench T-1157 is used to adjust LCN Friction Hold Open Arms,  one side if for the 1-1/2" nut and the other is 1-3/16".  Friction Hold Open arm would be part number 3049, with the suffix being the closer model, like 4040-3049, ect..

LCN part # T-1157

Dor-o-matic 1390 PB43 Spring

The Dor-o-matic 1390 Spring PB43 is also known as Part # 4270106635.   This spring was used on the obsolete 1390 exit device to push out the touch pad.  Spring measures 15/16" long by 5/16" by 3/8".

Ives RLPART.1045 RL32 Nylon Roller

This replacement Nylon Roller and Rivet Package is for the Ives RL32 Roller Latches.  The Roller measures 3/4" high by 5/8" diameter.  The Rivet measures 15/16" long and is threaded on one side.

Ives Part # RLPART.1045

The LCN Door Closer 4040SE Track Assy 4040SE-3038 replaces all Sentronic tracks for the 3130SE, 4010SE, 4110SE and 4040SE Closers. Track includes the roller, 4040SE-3034 and new mounting screws. The replacement track measures 21-3/4" on center for the mounting screws, which may be different then the 3130SE, 4010SE, 4110SE and older 4040SE Tracks.  The replacement track is the only way we know of to replace the solenoid.  Specify voltage, and color when ordering.

LCN Part # 4040SE-3038

The Von Duprin 050390 Bottom Mullion Fitting is the Bottom Fitting for the 1654, 4754, 4854, and 4954 Von Duprin Mullions. The 050390 measures 5/8" thick by 2" wide and 3" long excluding the flange the projects out the one end.   We find the number 961040-70  ESE cast right in the fitting.  The mounting holes are 2-1/4" on center.  Mounting Screws included.

Von Duprin Part # 050390

The 4040XP Rw/PA is LCN’s most durable and flexible heavy duty surface mounted closer, designed for institutional and other demanding high traffic applications. The LCN 4040XP Rw/PA sets a new standard for reliability, longevity and value with a better design and extraordinary performance testing that goes far beyond industry requirements. They built the 4040XP from the inside out, combining tougher, bolder construction with proven LCN technology. The result is a closer that’s stronger, smarter and delivers remarkable value in a variety of applications.

The patented green dial on the LCN 4040XP Rw/PA makes spring adjustments fast, easy and foolproof. The all-weather fluid reduces maintenance and ensures consistent performance through every season. High-traffic doors call for heavy-duty closers – closers that won’t let you down no matter how many people go through the door or how hard they kick, push or slam against it, or in the case of public schools the dreaded flying kung-fu kick. And when it comes to heavy-duty closers, no other closer performs like the LCN 4040XP Rw/PA.

The LCN 4040XP Rw/PA features cast iron construction, forged steel arm, double heat treated steel pinion, non-handed, LCN® “Green Dial” spring force indicator, Peel-n-Stick templates, UL and cUL Listed, 3⁄4″ journal diameter pinion, full compliment bearing, and tested and certified under ANSI standard A156.4, Grade 1.

The Ives Wall Mounted Door Stop WS33 is another hold back part from the Glynn-Johnson door stop era.  I can not remember the Glynn-Johnson part #, but when Ives purchased them, they changed it to WS33.  This stop is constructed of cast brass that is then plated to a brushed chrome finish.  It features a replaceable rubber bumper with offset shoulder screws into cavity on body to prevent loss or theft.  And a sloping design that discourages vandalism.The base height is 3" with a width of 2-1/4", and a projection of 3-3/4",  WS33 is furnished with wood screws for drywall mounting.

The LCN Door Closer 1261 Series combines the best features from the previous 1070 and 1370 into a single versatile and economical cast iron closer, with Tri mounting capability. The 1261 is the door closer I would recommend if you are tired of replacing your store front door closers because of leakage.  The 1261 is the most heavy duty standard template closer that is made.  This door closer will work on the push, pull or top jamb, and is non handed.  The 1261 is adjustable spring sizes 1-5 and mounts to the most common commercial footprint. The 1261 also features a complete line of regular and extra duty arms, LCN’s peel-n-stick installation templates, a convenient spring adjust pointer.  The hole spacing is 3/4" x 9-1/16", so it is considered a standard template closer.  LCN also offers a 20 year warranty on this closer. The Brass finish is Painted Brass.

We ship the 1261 Rw/PA

The Von Duprin 050053 5547 Top Rod Kit 6'8"-8' Door is for the 5547 Concealed Vertical Rod.  The kit include the rod, and latch for a door height of 6'8" to 8' tall.

Von Duprin Part # 050053
Old Von Duprin Part # 104759

Door Finger Protector - Exterior Pull Side

This model is specifically designed for exterior doors on the pull side of the door. This patented Finger-Gard product is designed for both exterior and interior doors and thus will operator in very cold and very hot tempetures. Flexible to minus 40 degrees. They are made of a special rubber that is resistant to harsh sunlight. They will allow the door to swing up to 180 degrees. This product is available in Brown or White, 78" or 83" lenghts

Our part # on this is GFG7 for the 78" length, and GFG7+ for the 83" length.

LCN Sentronic Door Closer 4310ME-3351 On/Off Switch Assy

Board measures 1-1/8" x 3".   Red plug is a three prong plug, the white plug is a two prong plug.  Specify voltage, 24 or 120 volts.

LCN Part # 4310ME-3351

The International Door Closer 852P Series is common closer we see on a lot of storefront aluminum framed doors.  This is one of the last closers out there to still have sizing.  By sizing I mean each door closer has a spring size of different tension so the closer is selected depending on door size and wether it is interior or exterior.  These days we usually use this door closer as a replacement of existing doors.   The closer features two adjustment valves for closing and latching speeds.  The cylinder is constructed of precision cast aluminum.  If you have an exterior door I would recommend the 880 Series, which is the same door closer, but has a back check valve.  The back check valves will slow the door down if it is caught by a gust of wind.  It ships with a regular arm and parallel arm bracket.  This door closer is for use on doors up to 32” interior or 28” exterior doors.

3/4" x 7-3/8" mounting holes

Ives RLPART.1025 Roller and Rivet for RL30/RL1152

This replacement Nylon Roller and Rivet Package is for the Ives RL30 and RL1152 Roller Latches.  The Roller measures 3/4" high by 5/8" diameter.  The Rivet measures 1-1/16" long and is threaded on one side.

Ives Part # RLPART.1025

The International Door Closer 851P Series is not a common closer we see on a lot of storefront aluminum framed doors.  This is one of the last closers out there to still have sizing.  By sizing I mean each door closer has a spring size of different tension so the closer is selected depending on door size and wether it is interior or exterior.  These days we usually use this door closer as a replacement of existing doors.   The closer features two adjustment valves for closing and latching speeds.  The cylinder is constructed of precision cast aluminum.  If you have an exterior door I would recommend the 880 Series, which is the same door closer, but has a back check valve.  The back check valves will slow the door down if it is caught by a gust of wind.  It ships with a regular arm and parallel arm bracket.  This door closer is for use on doors up to 32” interior or 28” exterior doors.   The 851 meets the size 1 ADA requirements.

3/4" x 6-3/8" mounting holes

The Global Door Closer TC200 is recommended for use on all aluminum store front doors, wood or hollow metal commercial applications. It is a versatile utility closer that provides narrow styling and has a full selection of accessories to accomodate the requirement of any field installation.

In this series, our Global Door Closer TC201 is a multi-size spring model that offers adjustable power with a choice of range sizes 2-5 where high rates of closing force are required. Our TC201ADA model also offers adjustable spring power sizes 1-4 for use on interior doors requireing less than 5 lbs. of opening force and exterior doors requiring less than 8.5 lbs. This complies with ADA handicap codes and ANSI/BHMA standard requirements. Both models will retrofit most full size closers with a 9 1/16" industry standard hole patten to update any opening for code compliance.
Hole Spacing is 3/4" x 9-1/16"

Options: Specify when ordering:

• Finish - AL, DU
• Size 1-4 or 3-6
