The International Door Closer Arm and Track 3020-VO is for offset top arm assemblies, with the track mortised in the top of the door.  This track and arm are for the 7/8" depth of top rail application.  Track measures 12-5/8" long by 1/2" high by 1-1/4" wide.  For use with the 2000, 3000 and 5000 series concealed closers.

The LCN Door Closer Hold Open Head And Tube 3048 - 3048L.  As the arm rotates the pivot point threads close on to the mounting bracket face and create a friction catch.  If yours is new, try rotating the mounting plate 180 degrees so the threads tighten as it closes. This replacement part from LCN either breaks or wears out.   The material some times wears out due to the friction of open and closing.  But the biggest issue seems to be the point where the tube mounts to the cast iron connector.

Specify your current closers model number when ordering. Not all of the LCN closers have the same shape spindle on the door closer cylinder. Model Available here are the:

1260-3048
1260-3048L
1460-3048
1460-3048L
4010-3048
4010-3048L
4020-3048
4020-3048L
4040-3048
4040-3048L

The International Door Closer Arm 3010-K is for end loading top arm assembly (5/8" depth top rail). All screws included with package.  This arm is for center hung concealed closer applications.   For use with the 2000, 3000 and 5000 series International Door Closers.

This is the New Style International Door Closer 522 Hold Open Fore Arm. In July of 2014, the old style was discontinued. Look under "More Views" to see the Old Style. Shown in Dark Bronze, ships with all components in the picture.

International part # 522

NO LONGER AVAILABLE

Dor-o-Matic 2390 Fixed Cover Screw

The Doromatic 2390 Fixed Cover Screw is the screw that holds the Fixed Cover on. The screw is a 12-14 x 1/2" long UFPH MS Type 25 Screw. This is a self tapping screw.

Doromatic / Falcon Part # SCREW.1088 or PB350

Norton PT24SOL 24 Volt Solenoid Assembly

If your Norton or Yale PowerTrack Door Closer is not holding the door open, this is usually the problem. To trouble shoot, first make sure you have voltage going to the solenoid. If you have voltage going in, and the door is still closing, then your solenoid is burned out. The solenoid is under constant voltage, so they do not last forever. The assembly measures 6-1/2" long by 1-1/8" wide with a height of 3/4". We sometime find the number F98024SH.1315 24 VDC on the solenoid.

Norton Part # PT24SOL

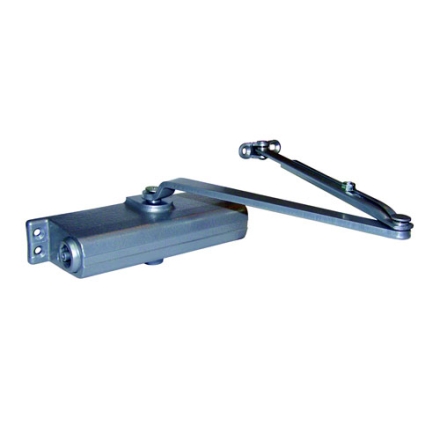

The LCN Door Closer 1261 Series combines the best features from the previous 1070 and 1370 into a single versatile and economical cast iron closer, with Tri mounting capability. The 1261 is the door closer I would recommend if you are tired of replacing your store front door closers because of leakage.  The 1261 is the most heavy duty standard template closer that is made.  This door closer will work on the push, pull or top jamb, and is non handed.  The 1261 is adjustable spring sizes 1-5 and mounts to the most common commercial footprint. The 1261 also features a complete line of regular and extra duty arms, LCN’s peel-n-stick installation templates, a convenient spring adjust pointer.  The hole spacing is 3/4" x 9-1/16", so it is considered a standard template closer.  LCN also offers a 20 year warranty on this closer. The Brass finish is Painted Brass.

We ship the 1261 Rw/PA

With the Handicap Door Pull 18 you are able to get a closed fist behind the pull, which makes it a great ADA Door Pull. Shipped with screws. Also known as a Single Arm Pull, Handicap Grip, ADA Door Pull or Handle.  The handle is constructed of cast aluminum, or brass and then plated. The base plate measures 1-3/4" by 2-3/4", the handle projects our 3-1/2".  Ships with #6 by 5/8" matching finish sheet metal screws.

The International Door Closer Arm and Track 3010-JO for Offset Top Arm Assembly Mortised Type (9/16" Depth of Top Rail) installations. Track measures 15-1/4" long by 3/4" high by 15/16" wide.  For use with the 2000, 3000, and 5000 series concealed door closers.

The Adams Rite 8600 Concealed Vertical Rod is designed for narrow stile aluminum framed glass doors.  The device will fit on stile widths of 2" or more.   We recommend this device for replacement only, modifying your existing door to this exit device will be labor intensive.  The 8611 would be for the aluminum finish and the 8622 would be or the dark bronze finish.  We try to keep the Aluminum and Dark Bronze in stock in the 36" and 48" devices.

This device is not Electrified, please call for the Electrified Model.

The Jackson Panic Device 1085 And 1095 Dogging Pin is the piece that keeps the hardware in the open position during business hours.  It is activated by pressing the crossbar and then turning the flat head screw driver head.  The pin is held in the housings with a screw, which is located on the back of the housing.  This pin has been used since about 1988 or so, the old style are no longer made, but they had a roll pin that was used to hold it in place.  This package comes with a new spring, set screw and the pin.  The Jackson part number on this is 30-1115.

Provides hold-open function with templated stop/hold-open points.
Handle controls hold-open function.

Specify your current closers model number when ordering. Not all
of the LCN closers have the same shape spindle on the door closer
cylinder. This LCN Arm is known as these part numbers: 1260-3049CNS, 1460-3049CNS, 4040-3049CNS, 4110-3049CNS

The SEM7840 LCN Electro Magnetic Door Holder features a metal die cast housing that is surface wall mounted. Tri-voltage design works with 12, 24 or 120 volts, with 35 lbs. of holding force. The magnet housing measures 2-13/16" wide by 4-5/8" high. The armature (door mount part) is 1-11/16" wide by 2-3/8" high with a 1-7/8" diameter. The armature projects out 1-5/8". The total projection of both pieces is 2-5/8". Available in an aluminum or dark bronze color.  Armature extensions are available, along with replacement covers, magnets, and armatures.  Outlet box not included

LCN Part # SEM7840

Door Silencers For Wood Doors

For use on Wood Doors. Insert into 1/4" hole in door frame.

Height: 3/4"
Diameter: 3/8"
Thickness: 1/8"

The LCN Door Closer 4041XP-Hw/PA is the 4040XP, eXtra Protection closer with the 4040XP-3049 Hold Open Arm.  You get the same performance of one of the most revered closers with the functionality of the friction hold open arm.   The cylinder features cast iron construction, forged steel arm, double heat treated steel pinion, non-handed, LCN® “Green Dial” spring force indicator, Peel-n-Stick templates, UL and cUL Listed, 3⁄4″ journal diameter pinion, full compliment bearing, and tested and certified under ANSI standard A156.4, Grade 1.  With this package you have the flexibility to mount the closer on a left, right, push, pull or top jamb mount.  The hold open point is adjustable by loosening or tightening the hold open nut on the arm.

SEM7850-828 Armature for LCN Electro Magnetic Door Holder features a metal die cast construction armature. The armature (door mount part) is 1-11/16" wide by 2-3/8" high with a 1-7/8" diameter. The armature projects out 2-5/8". Available in an aluminum or dark bronze color.  Armature extensions are available, along with replacement covers, magnets, and armatures.

LCN 4640 Low Energy Door Closer

Von Duprin 6111 24VDC Electric Strike

Von Duprin 6100 Series electric strikes are designed for use with Rim devices. The model 6111 retrofits model number VD 3031, and measures 1-5/8” wide, 6” high and has a backbox depth of 1-3/4”.    Other voltages and replacement parts are available.

FSE - Fail-secure.  Requires power to be applied to unlock the strike lip.  On loss of power, the strike lip is locked-Fire Rated

FS - Fail-safe.  Requires power to be applied to lock the strike lip.  On loss of power, the strike lip is unlocked.  Non Fire-Rated.

Detex 101822 Value Series End Cap

Made of black molded plastic.  End Cap is has the numbers 101822 cast on the inside.  The hole spacing is 1-1/2" on center.

Detex part # 101822

LCN 4630 Low Energy Door Closer

Single Left Door Latch -- Rests firmly against door jamb. Shown without lock. Optional lock prevents theft.

Single Right Door Latch -- Rests firmly against door jamb. Shown without optional lock. Lock prevents theft.

Dorma 8916 Door Closer

The Dorma 8916 door closer series designed to provide a highly flexible door control system suitable for institutional or high-traffic commercial applications. Its hydraulic control system features a full range spring power adjustment and back check, along with a narrow projection full cover and flatform style arm.

 Door closer certified for ANSI Grade 1.

we ship the Dorma Model # 8916-AF89P

2-1/8" x 5" hole spacing

The Anodized Aluminum Neoprene Door Shoe is an aluminum U channel to mount on the bottom of doors.  The channel is 1 inch deep with a 1/2 inch neoprene seal on the bottom.  Fits over the bottom of 1-3/4 inch thick doors.  Ships in 36 or 48 inch lengths and comes with #6 x 3/4 inch stainless steel screws.

Dorma 7414 Door Closer

The Dorma 7414 Series door closer features back check and adjustable spring sizing and is the ideal solution in a wide variety of applications, including barrier-free. This Grade 1 hydraulic surface door closer is both flexible and easy to install. The 7414 Series offers a compact design and is available in a variety of sprayed finishes to complement any opening’s decor.

Dorma part # 7414ARP689

3/4" X 10-1/4" Hole Spacing

Door Pull 47

7-3/4" overall
7" centers
3/4" x 1" base
2-3/8" projection

Von Duprin 6113 24 VDC Electric Strike

Von Duprin 6100 Series electric strikes are designed for use with Rim devices.  The 6113 has a 3/4” latch bolt throw, 6” face plate length, 1-5/8” width, and an 1-15/16” backbone depth.  The lock retrofits the VD 3011 and VD 3021.  Other voltages and replacement parts are available.

FSE - Fail-secure.  Requires power to be applied to unlock the strike lip.  On loss of power, the strike lip is locked-Fire Rated

FS - Fail-safe.  Requires power to be applied to lock the strike lip.  On loss of power, the strike lip is unlocked.  Non Fire-Rated.

Von Duprin 6112 24 VDC Electric Strike

Von Duprin 6100 Series electric strikes are designed for use with Rim devices.  The 6112 has a 3/4” latch bolt throw, 9” face plate length, 1-5/8” width, and an 1-3/4” backbone depth.  The lock retrofits the Folger Adams FA 310-4.  Other voltages and replacement parts are available.

FSE - Fail-secure.  Requires power to be applied to unlock the strike lip.  On loss of power, the strike lip is locked-Fire Rated

FS - Fail-safe.  Requires power to be applied to lock the strike lip.  On loss of power, the strike lip is unlocked.  Non Fire-Rated.

The Cal-Royal 45 Narrow Stile Rim Device is part of the new 4500 Series.  They are designed for Narrow Stile doors with a minimum of an 1-3/4" stile width.  This is a Grade 1 Exit Device, which is the highest traffic rating possible. Exit device ships with strike and mounting screws.

Shown is Left Hand Reverse
Opposite would be Right Hand Reverse

The Von Duprin 22 Mechanism End Cap 900981 is the end cap and bracket that ships with the 22 and 2227 series.  The bracket is constructed of zinc plated steel and the end cap is black plastic. Bracket also acts as mounting bracket that holds the exit device on the door.  Von Duprin does offer a new Metal End Cap, look under related products.

Von Duprin part # 900981

The International Door Closer 3010-S Side Load Arm is used with the 200, 300 and 500 Series Concealed Overhead Door Closer for Center Hung Doors.   The arm is constructed of cast iron and measures 10" long, and 7/16" thick.   The package includes all the mounting screws.

No longer manufactured.  We do have some of the PB115, which is the die cast disc that has the receiver for the rim cylinder and the plastic nub.

Dor-O-Matic 1490 Cylinder Assembly 149CA-NL

Doromatic part # 149CA-NL or 4270107272

Discontinued December 2024

Doromatic 2390 Moving Pushbar End Cap

Doromatic 2390 Moving Pushbar End Cap is the piece that fits on the end of the pushbar. The Endcap is 3-3/8" high by 1/4" thick, with an 1-7/8" projection. The Pushbar End Cap is constructed of die cast metal that is painted black.

Doromatic / Falcon Part # PB342 or ECAP.143

Rim Cylinder

Standard Rim Cylinder for use on Rim Cylinder activated exit and panic devices.

Norton Door Closer 9300

• Spring size 2, 3, 4, 5
• Separate and independent valve for sweep speed and latch speed
• Adjustable backcheck standard
• Regular, top jamb, parallel mount
• Friction hold open arm optional
• UL listed and compliant with UL10C for positive pressure
• 5-year limited warranty
• ANSI/BHMA A156.4 Grade 3

3/4" x 9-1/16" Hole Spacing

In April of 2023 Norton Yale have discontinued the 2300 and 9300.  The Norton 1600 will be sent in place of the 2300.   Same Hole Spacing, but adjustable spring tension.

Norton 7701-11 Rod and Shoe

The Norton Rod and Shoe 7701-11 and 7701-11A come in two different lengths, 8-7/8" and 12-1/2".  The length is measured from the end of the bar to the center of the eyelet.

Norton Part #'s:
8-7/8" Long  7701-11
12-1/2" Long 7701-11A
