The Russwin 2800, 2810 and 2820 are no longer available. They have been replaced by the Corbin Russwin DC6210, which has the same hole spacings and arm. You will not have to redrill or modify your door to make the DC6210 work in place of your existing 2800, 2810 or 2820 door closers. The Corbin Russwin DC6210 has a little bit larger body due to the increased functionality of this closer. This new closer will meet all the ADA requirements.

Corbin Russwin’s history combines high-quality product and innovative design. That tradition continues with the new Grade 1 DC6000 Series door closer, designed and engineered with quality features such as captured valves and a complete range of new arms. The DC6000 series is the perfect closer for high-use openings or openings that must meet ADA requirements, such as schools, office buildings, health care facilities, and retail complexes. The series also meets UL and UL10C positive pressure requirements for fire openings.
Uses the same mounting bracket as the 100, and 2800 series.

Older models may have SL72 or MS93 cast on the cylinders. You may also find Clarksdale, MS cast on the cylinder also.

Foot Pull

The Foot Pull is a device for public restroom doors that allows one the option of opening the door using their foot instead of their clean hands. The Foot Pull has been installed in thousands of schools, hospitals, restaurants and office buildings across the US and Internationally, and a 99.95% approval rating, the Foot Pull is truly a "why didn't I think of that" idea with a wide open future. The pull measures 8" across by 7" tall with a 3-3/8" projection. The plate is made of die cast alumunum with a distressed finish.
Package Includes:
1 Foot Pull, Instructions, door signs and all
hardware needed for installation.

The Door Pull Offset 3/4" Diameter #29 is constructed of either solid, Aluminum, Brass or Stainless Steel. The handle 3/4" diameter tubing with a 2-1/2" projection and 2-1/2" offset.  We find these on narrow stile aluminum framed glass storefront doors.  It comes standard with thru bolts and finish washers, but can be special ordered if you would like the handle mounted back to back or surface mounted. Also known as a Door Handle or Door Grip.

Ives FB61P Constant Latching Flush Bolt for Wood Doors

The Ives FB61P is used on the inactive leaf of wood fire doors.   The latch remains extend until the active door is opened.   When the active door is opened the latches retract, and extend when the active door is closed.  The bodies measure 1” wide by 8-1/2” tall and 2” deep.  The bolt throw is 3/4” with a 7/8” vertical adjustment, and has a 3/4” backset.   This package comes with the top and bottom flush bolts with screws and strikes.

90 minute UL Rated.

Ives Part # FB61P

Yale 757 Strike for 7000 and 2100 Devices

Used on the Yale 7100, 7150, 7200 and the 2100 Exit Devices.  Furnished in a Black Finish.  We ship the 757F Strike as a  replacement, all the measurements are the same.

Yale Part # 757

Fabricated from B & S 16 ga. (.050). Standard lengths are 36", 42" and 48". Custom capabilities include variations of all of the above parts including frame protectors and vertical rod protectors.
Custom sizes are available!

Screws included for mounting

Please allow 7-10 for shipment.

Finishes

The 591 manual flush bolt is for wood doors and is UL listed. It is constructed of solid brass. The face plate is 1 x 6-3/4 inches. The mortised body is 6 inches high by 1-3/8 deep by 1 inch thick. The screw spacing is 1/2 by 6-1/4 inches on centers.

The 459 Flush Door Pull measures 3-3/8 x 4-3/4 x 1/8 inch.  The opening size is 1-3/4 by 3-1/2 inches.  The mortised pocket would need to be 3-3/4 by 2-13/16 and 11/16 deep. The flush pull ships with mounting screws in the matching finish.

The Barracuda Model DSO is for Out Swinging 36" Doors and provides up to 550 pounds of security.   It is constructed of heavy duty steel with a durable powder coated finish.  The bar goes across the door frame and grabs the lever or knob set with an adjustable clamp.  To secure the door, simply turn the handle until it is secured.  They currently offer two models, one for jambs up to 5-3/4" and one for jambs greater than 5-3/4".  This device ships with all of the hardware and a wall mounting rack for storage.

Barracuda Part # DSO-1 and DSO-2

The Corbin Russwin Regular Arm Parallel Bracket is the standard bracket shipped by them for the past 40 years.  This replacement bracket will work on the older Corbin 100, 110, and 120's, and the Russwin 2800, 2810 and 2820's.  Along with the DC3210 and DC6210 Door Closers.  This bracket is required if your are going to use a parallel arm mounting, which is when you have the closer mounted on the door, on the push side of the door.  Corbin Russwin part # 188F41-8.

The Ives Wall Door Stop WS443 has been a staple of the Ives product line for at least the last 45 years.  The stop features cast brass construction and then plated the the desired finish, which makes it ideal for interior or exterior use.   The rubber tip is a non marring rubber, that can be replaced and we keep in stock.  The stop has a 2-1/4" base diameter and a 3-11/16" projection from the wall.  This product ships with an expansion shield and lead shield.

The Corbin 100, 110 and 120 Door Closer are no longer available. They have been replaced by the DC6210, which has the same hole spacings and arm. You will not have to redrill or modify your door to make the DC6210 work in place of your existing 100, 110 or 120 door closers. The DC6210 has a little bit larger body due to the increased functionality of this closer. This new closer will meet all the ADA requirements.

Corbin Russwin’s history combines high-quality product and innovative design. That tradition continues with the new Grade 1 DC6000 Series door closer, designed and engineered with quality features such as captured valves and a complete range of new arms. The DC6000 series is the perfect closer for high-use openings or openings that must meet ADA requirements, such as schools, office buildings, health care facilities, and retail complexes. The series also meets UL and UL10C positive pressure requirements for fire openings.
Uses the same mounting bracket as the 100, and 2800 series.

Older models may have SL72 or MS93 cast on the cylinders. You may also find Clarksdale, MS cast on the cylinder also.

Falcon/Monarch 19 Series Hex Dogging Assembly and Cover have been changed.  As of April 12, 2022 the kit now includes a new style dogging assembly also.

We know this kit will work on the 19/24/25 Series, and are not sure if it will work on the Monarch 17/18 Series Dogging Cover goes over the dogging mechanism on the hinge side of the exit device. Sometimes when the end cap goes missing, this cover plate also disappears.

Monarch old part #s 195 and 194
Monarch/Falcon new part #'s 650297 and 650303

Size is the width of the Device, a 36 inch device is usally only 32 inches wide, a 48 inch device is usually about 42 inches wide.

Ives FB31P Automatic Flush Bolt

This fully automatic flush bolt is used on the inactive metal fire door.  When the active door is opened the latches retract, when the active door closes the latches extend.  The Ives FB31P Body is 1” wide by 6-3/4” long and 2” deep. Bolt throw is 3/4” with a 7/8” adjustment with a 3/4” backset,  standard rod is 12” which is measured from the center of latch body to the bolt tip.

Rods are also available in 18”, 24” and 36”, call for pricing.  We ship the 12” rods, and this set includes the top and bottom flush bolts.

3 Hour UL listed

Ives Part # FB31P

Falcon 603 Concealed Top Latch Kit, used on the 18-C, XX-C, 24-C and 25-C Panic Hardware.

This Barn Door Pull Set features back to back handles that are thru-bolt mounted for a hassle-free setup.  The Grip is 6 inches on centers and is constructed of 3/4 inch round stock, and projects out 2-3/8 inch. The flush pull face dimensions are 2-1/2 by 7 inches. The mortise size of the flush pull are 2 x 7/8 deep x 1/4 inch.

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.

The Von Duprin 55 Hinge Case Axle 090051 is used the Rim inactive housing, and all of the other 55 panic hardware.  Such as the 5547, and older 5575's.

Von Duprin Part # 090051 or 090026

LCN 4310ME-72MC Door Closer Cover

Replacement metal cover for the LCN 4310ME Door Closer

Manufacture Part #:  4310ME-72MC

LCN 4410ME-72MC Door Closer Cover

Replacement metal cover for the LCN 4410ME Door Closer

Manufacture Part #:  4410ME-72MC

4" Kickdown Door Holder FS455

The H.B. Ives FS455 is what people think about when they say Kick Down Door Stop.  This design has been around for almost 50 years and is try and true.   Durable and ascetically pleasing to look at.  This door holder features a simple hold and release, activated with a touch of the foot.  They are constructed of cast brass or aluminum depending on the finish that you are looking for.  The rubber tip is a non-marring and is corrugated on the bottom so it will not slide on the floor, and is easily replaceable, look under related products for the replacement shoe.  This holder is for door to floor clearances of less than 2".  This is an ideal door holder for the home, office, church or school.

Made by H.B. Ives

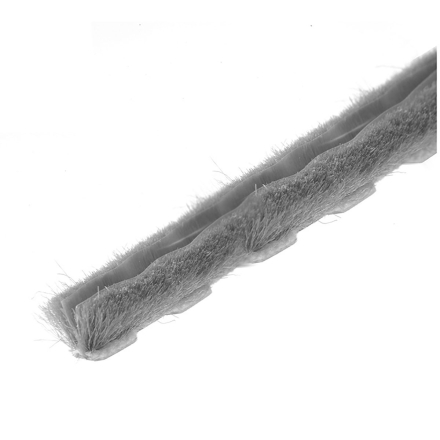

Zipper Pile Weatherstrip is a full density, high performance, water-resistant pile woven to a unique zipper tooth design polypropylene backing. The zipper tooth design allows the pile to easily snap into the extrusion slot from above rather than having to slide the pile in from the ends. Whether it's being used in manufacturing or retrofitted, the application is much easier and faster. It even works if the slot is slightly off size. Zipper Pile can be used to retrofit aluminum, vinyl, fiberglass or wood T-slots without the need to take the complete window or door sash apart. The double center fin provides a true weather seal, compared to other piles without a fin suited for vibration reduction and pest control only.

The Von Duprin 88 End Case 050435 is also known as the hinge case, meaning it is on the hinge side of the door.   This End Cap is used on all of the Von Duprin 88 models, which include 88, 8827, 8847 and 8875.   This piece does all the lifting of the cross bar, so it is an important component.  The case includes the all of the internal workings and springs.

Von Dupin Part # 050435

The Dor-o-Matic 1690/1990 Retractor PB35 has been used since the 1970's.  The manufacture has changed names in the last 5 years and now goes by Falcon Panic Hardware. This piece is used the 990, 1690 and 1990 devices.  The pinion rides inside this bracket to raise and lower the internal rods. Parts used with the retractor are the Pinion (G199005), Traveller (G199028) and the Pinion Bushing (G199046). Retractor measures 1-7/8" long by 7/8" wide by 1/4" thick.

Doromatic part # PB35 or RETRACT.101

Solid offset door pull 1-1/4 inch diameter round stock.  Handle has a 4 inch offset with a 2 inch clearance and 3 1/4" projection. Available in 12 or 18 inch centers.

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.

The LCN Head and Tube 78H and 78HL comes in two versions.  One is 5-3/4" long and the other is 8-5/8".  The square hole is 5/8".  The head and tube usually breaks where the cast ring attaches to the tube.  This part usually goes by the part number 4040-78H, 4040-78HL, 4040XP-78H, 4040XP-78HL, 1260-78H, 1260-78HL, ect.,.

The Dor-O-Matic 1690/1790/2390 Dogging Hex Shaft is the piece that your dog key (allen wrench) fits into the lock the device in the open or dogged position.  This shaft is used on the 1690, 1790, and 2390 device.  The Dor-o-Matic Panic Devices have been around since the late 1960’s, but have most recently been known as the Falcon Panic Device from a name change they had in about 2008.  They are basically the same device, with the same parts, just a different name plate.  The part that the hex key fits into is only about 1/4" deep, because of that these tend to get rounded out, so the key will not move the shaft.

To remove the old shaft just pull with a pair of Channel Locks or Pliers.  To reinstall, just press it back in to position, you might have to bend the holding tabs back down, but we very rarely have to do this.  The manufacture part number on this is SHAFT.101.

The Von Duprin 990DT Trim is known as a Dummy Trim.  This plate mounts on the exterior of the door, and the welded on mounting studs line up with the 99 device on the interior of the building.  If you have a different manufacture or a different Von Duprin series on the interior, it will not line up.  On the back of this plate we usually find the number 990 stamped on it.  The plate shown here is for the Rim and Surface Vertical Rod 99 and 98 devices.  If you have a Mortise or Concealed Vertical Rod, call us and we will order that model.  The plate measures 3" wide by 14-3/16" tall.  Order here for the 990DT-R&V.

The Von Duprin 050046 98/99 Maintenance Kit has all the pieces and screws to keep your 98 or 99 device operating for years.  Kit includes 17 pounds of replacement parts for the panic hardware and the outside trim.

Von Duprin part # 050046

98/99 Maintenance Kit Instruction Manual

Can be used with all Doromatic devices. Comes complete with mounting studs (G199002S)
9-1/4" center to center
2-7/8" projection
1-3/4" clearance

Sargent 25-CPSH Heavy Duty Compression Holder Arm

Forged Steel Arm 11-1/4" long, non handed, will work left or right for Parallel Armed Sargent Closers.  Permits 105 degree opening with built in compression stop and holder mechanism.

Sargent Part # 25-CPSH

Von Duprin 050023 98/9975-F Center Case Kit

The Von Duprin 050023 98/9975-F Center Case Kit less cover is used on the 9875 and 9975, Panic and Fire Rated Hardware.

Von Duprin Part # 050023

Yale 757F Strike for 7100F and 2100F Devices

Used on the Yale 7100F, 7150F, 7200ME and the 2100F Exit Devices.  Furnished in a Black Finish.

Yale Part # 757F

The Barracuda DSI is designed for In Swinging 36" Doors.  The user places the deive on the floor and slides the metal plates under the door.   Then pushing outward on the handles engages the plates to the exterior door jamb.   Then you simply install the locking pin to barracade the door.   The device is manufactured of heavy-duty steel that is then coated in a durable powder coat paint.   It will work on just about any door and comes in 6 different versions depending on your jamb width.   It is lightweight and comes with a storage mounting rack, along with all the the needed hardware for installation.

Barracuda Part Number
4-3/4"  DSI-2
5-3/4"  DSI-1
6-3/4"  DSI-3
7-3/4"  DSI-4
8-1/4"  DSI-5
8-3/4"  DIS-6

The Adams Rite EX88 and EX89 End Caps are for the EX Series Interlocking and Pullman Rim Devices.  The package includes the hinge side and latching side covers, along with the mounting screws.

The WS11X door stop used to be under the Glynn-Johnson product line as the WB11X until they merged with H.B. Ives.  At that point they became the WS11X.  This stop only is constructed of cast brass and then plated to your desired finish.  The stop has a 2" diameter base and projects from the wall 3-3/4".  This particular model is the same as the WS11, except that it is designed for a masonry type mounting and ships with an expansion sheild.

The Von Duprin 2227 Center Case Cover 968888 comes in an Aluminum SP-28 or Dark Brown SP-313 color.  This piece is for used on the 2227 Surface Vertical Rod Panic Hardware.  Package also included mounting screws.

Von Duprin Part # 968888
