The Jackson Panic Device Center Case 1085/1095 is for use with the 1085 devices for both and left, and the inactive case of the 1095.  Case is easily removed by loosening the two 1/8" Allen screws and one on the bottom.  Includes everything in the housing.  The distance between the mounting studs on this Case is 6-5/16"

Jackson part # 30-982 Right Hand Body and Arm Assembly
Jackson part # 30-983 Left Hand Body and Arm Assembly

Housing Shown in Aluminum

Falcon 299 Strike

The Falcon 299 Strike is used on the 25-R and 24-R Devices.  The 299 strike measures 1-1/4" wide by 2-7/8" high with a slotted hole spacing of 2-1/8". The roller projects out 13/16".  This strike is the same as the Von Duprin 299 Strike.

Ships with shim and mounting screws

Falcon Part # 299

The Heavy Duty Cal Royal CRCODE101 is for use on the 7700 and 9800 Rim and Surface Vertical Rods. This lock features Single Code with up to 8000 code combinations, weather resistant, non handed, and code can be changed without removing the lock. Comes in Brushed Chrome finish only.

Installation and Programming Instructions

The Von Duprin 106222 Racket Release Kit is used on the 3347, 3547, 9847 and 9947 Exit Devices.   The pin that projects from the block releases the top latch when the door closes, and locks the door shut.

Von Duprin Part # 106222

The Ives Wall Door Stop / Holder WS45 was introduced about 50 years ago as the Glynn-Johnson W45A or GJW45A.  When they were purchased by H.B. Ives, it became the WS45.  They are constructed of cast Brass or Bronze and then plated to the desired finish.  This door stop is unique because the wall does not have to be parallel to the door for it to latch and hold the door open.  Spring loaded roller rides up the face of the strike, seating itself on the strike, holding the door firmly in the open position.  A heavy rubber pad cushions the shock and absorbs the sound.  With unit mounted on door and the strike on wall, vertical adjustment is available on body.  The strike is adjustable 45 degrees left or right, both adjustments easily accomplished at time of installation or at a later date.  WS45 strike is furnished with wood screws for drywall mounting.

Corbin Russwin 650F64-8 Latch Cover

This latch cover is used on the Corbin Russwin ED4400/5400  Surface Vertical Rod Devices.  We stock these in Brushed Stainless Steel, other finishes will take longer.

Corbin Russwin Part # 650F64

Yale 7100F Series Latch Assembly

This Yale Latch Assembly is used on fire rated panic devices. A fire rated panic is a device were you can not lock the latch in the open position. It is used on doors were the engineers want the door to latch every time it closes to contain a fire.

Yale Part # 60-7000-0425-048

Note the Hub Position of this latch is the 7100

• Narrow design unit for use on rose or escutcheon 3-1/2" or less.
• For use with Type 86 Mortise and Type 161 Cylinder Locks
(ANSI 156.13 Series 1000 and ANSI 156.2 Series 4000).
• No exposed fasteners on face of unit.
• Unique design provides maximum security, virtually eliminating the opening
between door and frame at the latch point.
• Available in 13 Gauge Stainless Steel or 12 Gauge Steel

1-1/2" Wide x 9-1/2" High
Stud center to center: 8-1/2”

TH1116 Aldora Style Offset Pivots are used for both flush face frame installation and 1/8" recessed door applications. Pivots replace most major door manufactures. Suitable for aluminum doors weighing up to 125 pounds. These pivots are engineered and designed for durability, style and are easy to install. To order pivot: For LHRB door order RH pivot For RHRB door order LH pivot Specifications * 3/4" offset pivots for aluminum doors and frames * For flush door / frame and 1/8" recessed door applications * Weather resistant * Aluminum case construction * Vertical adjustment 1/8" * Full race ball bearing and design, provides smooth operation on bottom pivot door portion * No sag, entire weight of doors rests on floor mounted pivot portion * Completely temper proof, yet easily removable, replaceable in unlocked position * All pivots are handed- specify LH, RH * Finish: AL-Aluminum, DU-Duronotic

Von Duprin 050404 33/3527A Center Case

Replacement Von Duprin 33/3527A Surface Vertical Rod Device Center Case.

Von Duprin Part # 050404

For Doors Wood or metal. 1-3/4" (44 mm) thick standard.
minimum stile with trim and 3-1/2"
Mounting Supplied standard with wood and machine screws
Chassis Cover Cold drawn brass, bronze or stainless steel
Chassis Nonferrous alloy
Hand Handed. Specify RHRB or LHRB
Dogging Feature Allen-type dogging furnished standard.
Top and Bottom Bolts Brass, stainless steel

Von Duprin 900894 230L Tailpiece Auxiliary

The Von Duprin 900894 230L Tailpiece Auxiliary includes the Tailpiece (steel), Tailpiece Guide (nylon), and the Pine Tree Clip (nylon).  The Tailpiece measures about 2-1/2" x 1/4" x 3/32" thick.

Von Duprin Part # 900894

Norton Unitrol Hold Open Arm

Used on the Norton 1600, 8000 and 7500 door closers. Parallel Arm mounting only.

Norton # Door Size
6100-1 28-32"
6100-3 33-41"
6100-4 42-48"

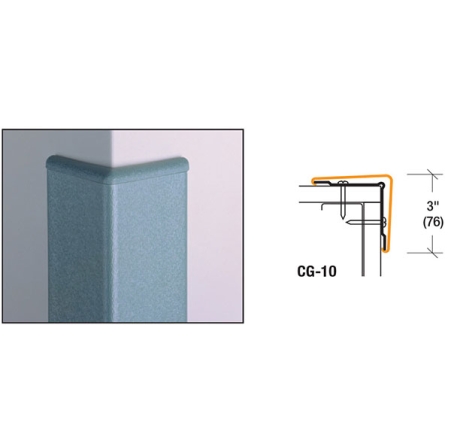

CG-10 Vinyl Corner Guard 3” x 3”

90 degree 3” x 3” vinyl corner guard with aluminum retainer.  Vinyl flex action absorbs impact, and is .100” thick, the aluminum retainer is .062 thick.  Available in 4, 8 and 9 foot lengths.  The CG-10 Corner Guards ship with a top and bottom end cap.

On this Adams Rite End Cap we sometimes find the number HX0471 cast into the Black Plastic construction.  It measures 2-3/8" high by 1" deep, with a projection of 1-1/4". It is used on the 8099, 8100, 8200, 8300, 8400, 8500, 8600, 8700, 8800 and 8900.

Adams Rite Part # 25-0471-IP

The Jackson 1095P Paddle Panic Hardware is an alternative to the cross bar or push pad style panic hardware.  The device is the same as the Jackson 1095, but with a paddle instead of the cross bar.   This device is for use on aluminum or steel doors only.   The device is mounted on surface studs that are tapped into the door.  On a wood door they will pull out.

Right Hand Reverse Shown

Von Duprin 8827 Top Vertical Rod

Standard top rod for a 7'2" door. The rod measures 35-1/2 inchs long.  Top Rod connector not included.

Von Duprin part # 050453
Old Part #960581 and 961628

The Von Duprin 47273111 Converts the E996L to the new M996L.  The difference between the two the later is a motorized version which is more robust and draws less current.  The kit includes the M996 Motorized Module and Slider Assembly.  They are offer two version one for the Rim (Rim), Surface Vertical Rod (SVR) and Concealed Vertical Rod (CVR) Exits, and one for the Mortise Lock Exits.

Replacement spindle for the 8100 and 8200 old style series mortise locks , January 1990 to current.

Includes lever bushings, roll pin and set screws

The Dorma 8400 Center Case Cover is used the 8000 Series Surface Vertical Rod Devices.  The cover is black plastic, the screws are not included.   Dorma Part # CHCOV84

LCN SEM7850-515 Magnet Hardware Package is used to mount the Armature or the Door Mounted part of the Magnetic Door Holders.   If you are currently using LCN door holders, you will not need to purchase this.   However, if you are using another brand and they have gone missing, you will need to purchase this component.

Yale 2100 Series Latch Assembly

Latch assembly for the Yale 2100 Rim Panic Device.   Assembly base measures 7-3/4" high by 5-1/2" wide with a projection of 2-1/4".

Yale Part # 60-2100-0010-048

The Polished Stainless Steel Door Kick Plate is 16 gauge, or .050″ thick. Stainless steel offers one of the best material for commercial applications. They are very hard, and do not dent easily. The also offer the best corrosion resistances out there.  We often have people looking for Brushed Chrome or Polished Chrome, but the appearance of the two finishes next to each other is very difficult to tell which is which. Also a brushed chrome or polished chrome kick plate would be a brass plate which is then chrome plated and brushed or polished depending on the plate. Brass is a soft metal that dents easily, and also does not offer the corrosion resistance that stainless steel does. Since stainless steel is stable in any environment, they do not have to clear coat the plate.

Kick Plates can be mounted by screws, two way tape, and they can be glued to the door. Our plates come standard with screw mounting. The manufacture sends #6 x 5/8″ Oval Phillips Undercut Stainless Steel screws.  The number of holes on the screw mounted plates is determined by an industry wide standardize template. A height between 6-10″ will have 10 holes for plates up to 33″ and 12 holes for plates between 33 and 40″.

You can order these plates with tape mounting, but on larger plates and especially plates with a stainless steel base metal, it is not recommended. Stainless Steel plates are too heavy and they most likely will not stick. We can also ship them with no holes, if you want to drill your own holes. This is fine on the Brass and Aluminum base metals, but again Stainless Steel is very hard and a drill press would be recommended. You can glue them on, I would recommend liquid nails, and come C Clamps with the door on saw horses.

Custom sizes available starting around $0.37 per square inch depending quantity.

Please allow 1 week shipping time

Sargent 97-2434 Old Style 8700 Top Latch

The Sargent 97-2434 Old Style Top Latch was used on the 8706, 8710, 8713, 8715, 8728, 8740, 8743, 8746,  8762, 8763, 8773, and 8774 Series Surface Vertical Rod Devices before November 11, 2002.  We sometimes fine the casting number of 97-0317 stamped on the back of this latch.  This Top Chassis has 3 mounting holes.

Sargent Part # 97-2434

The Cal Royal Escutcheon 4400 Lever Trim is non handed (easily field reversible), thru-bolted, rigid non clutch lever for the 4400 Rim Device. The key locks or unlocks the lever. The Escutcheon measures 2-3/4 by 8-1/2 inches, the lever length is 4-3/4 inches. Ships with a 6 pin solid brass "C" keyway Rim Cylinder.

TH1112 Offset Pivots are used for both flush face frame installation and 1/8" recessed door applications. Pivots replace most major door manufactures. Suitable for aluminum doors weighing up to 125 pounds. These pivots are engineered and designed for durability, style and are easy to install. To order pivot: For LHRB door order RH pivot For RHRB door order LH pivot Specifications * 3/4" offset pivots for aluminum doors and frames * For flush door / frame and 1/8" recessed door applications * Weather resistant * Aluminum case construction * Vertical adjustment 1/8" * Full race ball bearing and design, provides smooth operation on bottom pivot door portion * No sag, entire weight of doors rests on floor mounted pivot portion * Completely temper proof, yet easily removable, replaceable in unlocked position * All pivots are handed- specify LH, RH * Finish: AL-Aluminum, DU-Duronotic

TH1118-B Offset Pivots are used for both flush face frame installation and 1/8" recessed door applications. Pivots replace most major door manufactures. Suitable for aluminum doors weighing up to 125 pounds. These pivots are engineered and designed for durability, style and are easy to install. To order pivot: For LHRB door order RH pivot For RHRB door order LH pivot Specifications * 3/4" offset pivots for aluminum doors and frames * For flush door / frame and 1/8" recessed door applications * Weather resistant * Aluminum case construction * Vertical adjustment 1/8" * Full race ball bearing and design, provides smooth operation on bottom pivot door portion * No sag, entire weight of doors rests on floor mounted pivot portion * Completely temper proof, yet easily removable, replaceable in unlocked position * All pivots are handed- specify LH, RH * Finish: AL-Aluminum, DU-Duronotic

The Detex ECL-230D Alarmed Exit Device is a battery operated, rugged deadbolt panic device. The steel paddle is photo-luminescent sign providing managed security and a 100 decibel alarm for secondary exits. The device features a single point 1" dead bolt, attack resistant design withstands over 2200 pounds of outside pull force and is non handed. Locking and unlocking the dead bolt always arms and disarms the alarm.  Rim Cylinder is not included.

If you have a door that requires Panic Hardware, then use the ECL-230D-PH

The Ives Wall Bumper Stop WS407-CCV our economically price concave wall bumper.  The metal ring is a wrought stainless steel, otherwise known as stamping.  It features a concealed tamper-proof mounting, and is shipped pre-assembled to the back plate is reduce installation time.   Installation is easy, just insert the screw driver through the pin hole in the rubber and tighten.  The bumper is 2-1/2" in diameter and projects out 1".

This Von Duprin Panic Device 7500 Mortise Body Only is used on the Von Durprin 8875, and Von Duprin 98-9975 panic hardware. The body measures 5-7/8" high by 4-1/2" deep and 1" thick. This is the body that has been used since about 1977.

Call or email for pricing on the SS7500, 7500-IN, and E7500 Mortise Bodies and replacement parts for the Lock.

We ship the 7500 in US32D, brushed stainless steel.

The Sargent 20/60 Plastic End Cap Only 68-0434 will also work on the 30 Series Panic Hardware.   The cap has been manufactured for the last 40 years and is made of high impact plastic.  The end cap measures 1-5/8" wide by 2-3/8" tall and projects out 2-3/4".

Sargent Part # 68-0434

Adams Rite old Style end cap for the 8700 and 8800. Dogging in the head.
The black cap measures 2-3/8" high x 1-5/8" wide x 1-1/4" projection

Adams Rite Part # 41-0801-08

Von Duprin 050536 HD-EL Solenoid

Electric Latch Retraction for Von Duprin Exit Devices with Hex Key Dogging.  #4 on the diagram below large picture.

Von Duprin part # 050536
Old Part # was 110740

No longer available, the only solution we have at this time is to upgrade to the HD-QEL Base Plate.

Sargent 80 Series Lexan Touch Pad Kit

Sargent 80 series Lexan Touch Pad Kit replaces old and or broken touch pad inserts. On the Sargent part break downs this would be Touch Bar part number 68-0607 and Base 68-0606. The base is 13-1/2" long with 3 mounting holes 4" apart on center.

Sargent Part # 809 KIT

The Plunger Door Holder / Stop DH6000 is one of the most common plunger style door stops we offer.   They are constructed of a cast zinc alloy that is then electro statically painted to either an aluminum or dark brown color.   It features a non marring rubber tip that is replaceable, and we keep in stock.  The body measures approximately 7" long and is 1-5/8" wide.  The throw on this stop is 1-1/8".  These are sometimes called pop-up or push down door stops.  This product ships with the mounting screws.

Made by International Door Closer

The Jackson Panic Device Top Bolt Trip is for use on the 1085, 1285, and 2086 devices.  The 30-824 Trip Assembly mounts on the jamb stop and has a pin that sticks out of it (actually a threaded set screw).  The pin lines up with the release plate on the Top Bolt Guide Assembly, when the pin hits the top plate as the door closes, it releases the rods, so they can extend.
