TH1116 Aldora Style Offset Pivots are used for both flush face frame installation and 1/8" recessed door applications. Pivots replace most major door manufactures. Suitable for aluminum doors weighing up to 125 pounds. These pivots are engineered and designed for durability, style and are easy to install. To order pivot: For LHRB door order RH pivot For RHRB door order LH pivot Specifications * 3/4" offset pivots for aluminum doors and frames * For flush door / frame and 1/8" recessed door applications * Weather resistant * Aluminum case construction * Vertical adjustment 1/8" * Full race ball bearing and design, provides smooth operation on bottom pivot door portion * No sag, entire weight of doors rests on floor mounted pivot portion * Completely temper proof, yet easily removable, replaceable in unlocked position * All pivots are handed- specify LH, RH * Finish: AL-Aluminum, DU-Duronotic

Glynn-Johnson 70 Series Overhead Door Holder Surface Mounted are constructed primarily of Brass and 300 series Stainless Steel substrates, with several components fabricated of Steel treated to resist corrosion. Models in the 70 series utilize a 1/2"-diameter stainless steel bar, while the 79 series uses a 3/4" stainless steel bar. The bar is always provided in US32D. The spring, washer and nut are provided in a clear zinc finish.

GJ70-79 Catalogue

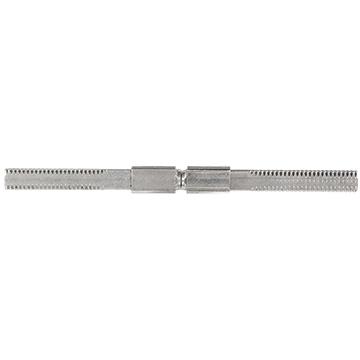

Sargent, 4-3/4" swivel spindle,
solid centers, w/ pin holes

Adams Rite Dogging Assembly

Adams Rite Part # 31-0265

Adams Rite G86 End Cap Parts Package 91-0943

Jackson 1095 RH Backplate Assembly

Jackson Part # 30-846

4-1/4" long

Dorma part # AM385A

4" long

Yale 7110 Bottom Latch 60-7010-0054-000

Dor-o-Matic 1790 Latch Assembly

Doromatic Part # LBOLT.105 or PB325

Yale 7000 Touch Bar End Cap-Front

Yale Part # 60-7000-6115

Arrow BM385A Spindle

3-3/4" long

Dorma part # BM385A

Swivel spindle, 9/32" square,
18 tpi, 4-3/4" long with two 3/8" solid centers

Jackson 1095 Gear Package

Jackson part # 30-852

Dorma 9400 Rod Guide and Screw Package, featuring two rod guides in the Stainless Steel finish.

Detex Advantex Series End Cap 100147. Bracket measures 3-1/2 x 2-1/2 inches.

Rubber Shoe for DH6000

Replacement rubber shoe for the GDH6000

Swivel spindle, 20 tpi,
4-3/4" long, two 3/8"
removable centers

The Monarch 4326 Spring Clip is used with the 4841 Spring in the older Monarch Lever Trims

LCN 4630 replacement arm, LCN part # 4630-3077T

Cal Royal 5000 Dummy Trim

3" X 7-3/4"

4-3/4" long
9/32" square
16 tpi

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

The Dorma Rim Device Strike 463 is used on the 8300, 8300F, 9300 and 9300F exit devices. Mounting screws included.

Doromatic 1690 / 1990 ES Top Latch PB131

Doromatic Part # 4270100316

Actuator 6" diameter, with blue engraved lettering.

Swivel spindle
9/32" square, 16 tpi
4-3/4" long, w/ two solid centers

Swivel spindle, 9/32" square,
18 tpi, 4-3/4" long with two 3/8" solid centers
and three pinning holes

Dor-o-matic 1590 Cylinder Assembly 159CA-HB

Doromatic part # 159CA-HB

Yale 1174 Spindle

Threaded side 3" long, pin hole side 2-3/8"
overall length is 5-3/8",
20 Threads per Inch

Corbin Russwin 677F08-5 Spring Retainer Hub, this is also known as the Yale 60-7000-6217-082 Hub, Lever.

The Von Duprin 99 Cover Mounting Bracket is used on the 98 and 99 Series Covers.

Part # 050564
Old Part # 969864
