The Von Duprin 5547 Concealed Vertical Rod Exit Device is used primarily on aluminum framed glass doors, otherwise known as Narrow Stile Doors.   It is one of the most heavy duty cross bar devices made, and has been in production since at least the 1970's.  It will fit on Stile widths of 1-3/4", and ships with all the mounting screws, dog key and all the necessary strikes.  The device is also non handed.

To order select Finish and Type of Door Construction.   For Metal Doors select Metal Door, for Wood Doors, make sure you select Wood Door, the Wood Door model has additional brackets for mounting.

Corbin Russwin DC3210 Door Closer

The mid-priced, cost-effective choice for high-traffic situations. Corbin Russwin DC3000 Series Door Closers fulfill security and life safety requirements by ensuring reliable latching for access control and fire code compliance, along with ease of operation and precise adjustability for barrier-free code compliance. Ideal for virtually all door openings and draft conditions in both new construction and renovations.

Fits on the same mounting bracket as the 100, 110, 120, 2800, 2810 and 2820 Corbin Russwin Door Closers

Idea for interior doors.

Floor Dome Door Stop 1" Height FS436

We ship the H.B. Ives FS436 Floor Dome Stop, another product made by Ives that has been around for 50 plus years.  Take a walk around a school made in the 1960's and you will probably find this door stop, or the hole were it used to be.  This Dome Stop is used on doors without thresholds that have a bottom of the door to floor clearance of less than 5/8".  The are constructed of cast aluminum or cast bronze depending on the finish you are looking for.  The rubber stop is non-marring and replaceable.  The stop has a base that is 1-3/4" x 2" oval, an overall height of 1" and a base height of 3/16".

The Dor-o-Matic 1990 Housing and 1090 2090 Inactive Housing DCX has been around since the early 1970's.  Although it is now called a Falcon 1990, it is still the same device.  This housing is also the inactive housing on the Dor-O-Matic / Falcon 1090 and 2090 panic hardware.  The housing includes all of the interior springs, arm, and dogging screw.  Housing measures 7-1/2" long by 1-3/16" wide.  The center to center distance of the mounting studs is 6-1/4".

LEFT HAND SHOWN IN PICTURE

See diagrams for handing.

Doromatic part #
4270902784 - right hand dark brown
4270902782 - right hand aluminum
4270902785 -right hand black
4270902778- left hand dark brown
4270902776 - left hand aluminum
4270902779- left hand black

1990 parts breakdown

2090 parts breakdown

The LCN Door Closer Cush-n-Stop Arm 3077CNS is a Non-handed parallel arm that features solid forged steel main arm and forearm with stop in soffit shoe.  Specify your current closers model number when ordering. Not all of the LCN closers have the same shape spindle on the door closer cylinder. LCN Part #'s: 1260-3077CNS, 1460-3077CNS, 4040-3077CNS, 4110-3077CNS.

With the Handicap Door Pull 119 you are able to get a closed fist behind the pull, which makes it a great ADA Door Pull. Also known as the Double Arm Pull it is constructed of aluminum, brass or stainless steel stock.   It measures 8-1/2" overall length and has 5-1/4" centers on the mounting screws.  The flat bar stock is 3/8" x 1", and the round mounting post is 3/4" diameter.  Shipped with screws and finish washers. Also known as a Handicap Grip, ADA Door Pull or Handle.

The Door Pull Offset 3/4" Diameter #29 is constructed of either solid, Aluminum, Brass or Stainless Steel. The handle 3/4" diameter tubing with a 2-1/2" projection and 2-1/2" offset.  We find these on narrow stile aluminum framed glass storefront doors.  It comes standard with thru bolts and finish washers, but can be special ordered if you would like the handle mounted back to back or surface mounted. Also known as a Door Handle or Door Grip.

TH1116 Aldora Style Offset Pivots are used for both flush face frame installation and 1/8" recessed door applications. Pivots replace most major door manufactures. Suitable for aluminum doors weighing up to 125 pounds. These pivots are engineered and designed for durability, style and are easy to install. To order pivot: For LHRB door order RH pivot For RHRB door order LH pivot Specifications * 3/4" offset pivots for aluminum doors and frames * For flush door / frame and 1/8" recessed door applications * Weather resistant * Aluminum case construction * Vertical adjustment 1/8" * Full race ball bearing and design, provides smooth operation on bottom pivot door portion * No sag, entire weight of doors rests on floor mounted pivot portion * Completely temper proof, yet easily removable, replaceable in unlocked position * All pivots are handed- specify LH, RH * Finish: AL-Aluminum, DU-Duronotic

The Door Pull 25 is made of 3/4" round stock in either solid, Aluminum, Brass or Stainless Steel. The handle has a 2-3/8" projection from the door, and 1-5/8" clearance from the door to the back of the handle.  It comes standard with thru bolts and finish washers, but can be special ordered if you would like the handle mounted back to back or surface mounted. Also known as a Door Handle or Door Grip.

The Corbin 100, 110 and 120 Door Closer are no longer available. They have been replaced by the DC6210, which has the same hole spacings and arm. You will not have to redrill or modify your door to make the DC6210 work in place of your existing 100, 110 or 120 door closers. The DC6210 has a little bit larger body due to the increased functionality of this closer. This new closer will meet all the ADA requirements.

Corbin Russwin’s history combines high-quality product and innovative design. That tradition continues with the new Grade 1 DC6000 Series door closer, designed and engineered with quality features such as captured valves and a complete range of new arms. The DC6000 series is the perfect closer for high-use openings or openings that must meet ADA requirements, such as schools, office buildings, health care facilities, and retail complexes. The series also meets UL and UL10C positive pressure requirements for fire openings.
Uses the same mounting bracket as the 100, and 2800 series.

Older models may have SL72 or MS93 cast on the cylinders. You may also find Clarksdale, MS cast on the cylinder also.

4-1/4" long

Dorma part # AM385A

Yale 7110 Bottom Latch 60-7010-0054-000

Arrow BM385A Spindle

3-3/4" long

Dorma part # BM385A

Jackson 1095 Gear Package

Jackson part # 30-852

Rubber Shoe for DH6000

Replacement rubber shoe for the GDH6000

Swivel spindle, 20 tpi,
4-3/4" long, two 3/8"
removable centers

Cal Royal 5000 Dummy Trim

3" X 7-3/4"

Doromatic 1690 / 1990 ES Top Latch PB131

Doromatic Part # 4270100316

Sargent, 4-3/4" swivel spindle,
solid centers, w/ pin holes

Adams Rite Dogging Assembly

Adams Rite Part # 31-0265

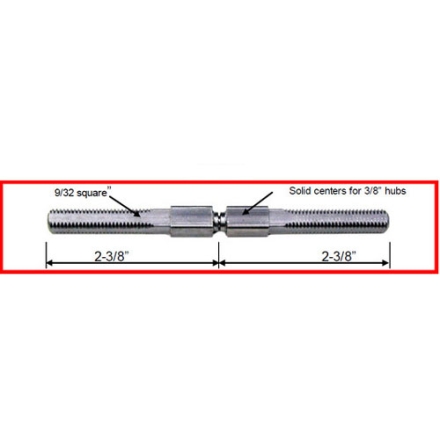

Swivel spindle
9/32" square, 16 tpi
4-3/4" long, w/ two solid centers

Adams Rite G86 End Cap Parts Package 91-0943

Dor-o-matic 1590 Cylinder Assembly 159CA-HB

Doromatic part # 159CA-HB

Jackson 1095 RH Backplate Assembly

Jackson Part # 30-846

Dor-o-Matic 1490 HB Cam Assembly

Doromatic Part # 4270107270

Parts Break Down

Replacement Chassis Cover for the Dorma 9300 Rim Device

Dor-o-Matic 1790 Latch Assembly

Doromatic Part # LBOLT.105 or PB325

4" long

Yale 7000 Touch Bar End Cap-Front

Yale Part # 60-7000-6115

3-1/2" straight spindle thread is 16 tpi. 2-1/4" knob

Schlage Mortise Spindle and Spring

The spindle measures 2" long by 5/16".

Schlage Part # L283-060

3/8 inch square spindle unthreaded, 4 inches long with 6 holes tapped to a 10-24 thread.
