Falcon 24-V 650251 Center Case Cover Kit

Replacement cover for the Monarch Falcon 24-V Narrow Stile Exit Device.   Kit includes cover and the mounting screws.

Falcon Part # 650251

Dor-o-Matic 1490/1590 Dogging Compression Spring

Doromatic part # 4299101020 or PB224

No longer manufactured.  We do have some of the PB115, which is the die cast disc that has the receiver for the rim cylinder and the plastic nub.

Dor-O-Matic 1490 Cylinder Assembly 149CA-NL

Doromatic part # 149CA-NL or 4270107272

The design of the Doromatic 1690 is ideal for demanding, high-traffic applications. The vertical rods and latch mechanisms are concealed in the vertical door stile, ensuring trouble-free operation. Cast metal cover plates and end caps hold up to rigorous use. A quick, singlepoint dogging feature in the housing deactivates the device, permitting unrestricted traffic flow. The Doromatic 1690 may also be used to retrofit a Doromatic 1990 Series crossbar device.

Replacement parts are also available

Shipped with all screws and strikes. The 1690NL Cylinder Assembly (169CA) is required if you wish to use a key cylinder on the exterior, SEE RELATED PRODUCTS toward the bottom of the page.

Falcon / Dor-o-Matic EL1790 Panic Device

The same as the Falcon / Dor-o-Matic 1790 with Mechanical Electric Latch Retraction. Some of the features are listed below. A power supply is required.

Hand: Field reversible, non-handed.
Centercase and end cap are powder-coated black only.
Cylinder: Rim, key entry (NL) or hold back (HB) feature available.
Field selectable.
Sizes: 30", 36", 42", and 48".
Doors: 1-3/4" thick metal doors, specify if other.
Projections: 3-3/8" in neutral position, 23/8" in dogged position.
Pushbar height is 2-1/2.
Stile: 1-3/4" minimum.

1 amp, 24 volt

Replacement parts are also available

Shipped with all screws and strikes.

Falcon Spring-n-Stop Hold Open Arm, non handed, extra duty forged parallel arm includes an integral spring stop and non-adjustable forearm assembly for high volume traffic or abusive conditions.

Function is the Doromatic/Falcon Door Closer Model

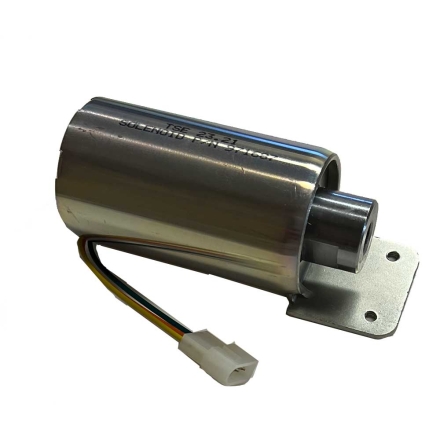

The Dor-o-Matic Falcon 4758959 Soleniod is used on the EL1690, EL1790, and EL2390 Electric Latch Retraction exit devices.  The Solenoid measures 4-1/8 inches long including mouting flange, and has an 1-3/4 inch diameter.  The mounting screw spacing is 1 inch on centers. The Plunger is included and has a 7/8 inch diameter and is 2-15/16 inches long.  We find the number 971687 on the solenoid.

7-1-2025 No longer available.  If you have the 1690 or 1790 you can update your exit to the new mortor 47867200

The Falcon 650388 Latch Cover is for use on the Monarch and Falcon 19-V Series.  The latch is made of high impact black plastic and ships with the mounting screws.  The manufactures part number is 650388, the old Monarch part number was 3781.

Monarch 912L Panic Device Lever Trim

The Monarch / Falcon 912L Lever Trim is for use on the Monarch / Falcon 19 Series.  The 912L measures 7-1/4" high by 1-3/4" wide and the mounting plate is 5/8" thick.  We ship these with the Dane Lever, which projects out 2-7/8" in the Classroom function.  On the Classroom function the key locks and unlocks the lever handle, the Key Cylinder is not included.  We offer this Lever Trim in Painted Aluminum, Painted Dark Bronze, and Brushed Satin Nickel.

Monarch Part # 912L Dane

The Falcon OHC100 and OHC101 Door Closer Body Only are designed for a wide variety of Doors.   The OHC100 is for use on larger exterior doors and has spring size adjustments of 3-5.   The OHC101 is designed for smaller or interior vestibule doors, with an adjustable spring size of 1-3.

The Falcon Monarch 8500NL is used on the 25-M exit devices, and was used on the Monarch 18-M and XX-M exit devices.

Falcon 299 Strike

The Falcon 299 Strike is used on the 25-R and 24-R Devices.  The 299 strike measures 1-1/4" wide by 2-7/8" high with a slotted hole spacing of 2-1/8". The roller projects out 13/16".  This strike is the same as the Von Duprin 299 Strike.

Ships with shim and mounting screws

Falcon Part # 299

Falcon 25-V Center Case Kit 650242

The Falcon / Monarch 25-V Center Case Kit 650242 for non Fire Rated Doors.  The Center Case on the Monarch Falcon 25-V is the same for the Fire Rated and the Non Fire Rated.

Falcon Part # 650242

Falcon 25-R Center Case Kit 650239

The Falcon 25-R Center Case Kit 650239 for non Fire Rated Doors.  A non Fire Rated door is usually an exterior door, or a door that is not designed to contain the spread of fire.

Falcon Part # 650239

The Falcon Automatic Opener 8242 is a smart and easy solution to improve accessibility and meet ADA Codes.  The 8242 is a non handed, surface mounted, 115 volt closer for a push side mounting.   If your door is an inswinging door you would use the 8231.   This self contained package features, an on board power supply, LED light on the control box to signal accurate installation and helps with connection diagnostics.

This closer features:
SmartLatch-senses and overcomes external pressure conditions with a Graduated energy assist of secure latching.
Push N Go-selectable feature allows door to open automatically as soon as it feels pressure.
Open Position Learning-automatically sets the opening position to eliminate wall and door damage.
Obstacle Obstruction Detection-safety feature stops and reverses door direction when distress or an obstruction is sensed.
Pre-Load Strike Assist-removes load on strike lip with a one second delay allowing the door to release and automatically open.
LED Light Illumination-Light illumination on control box signals accurate installation and helps with connection diagnostics.
On Board Power Supply-powers the accessories without the need to install an external power supply-12 vac
Adjustable hold open time delay, backcheck/latch position, backcheck speed, and opening and closing speeds.

The package includes everything except for the actuators.  Uses LCN Actuators.

Falcon 8200 Catalog

Falcon 8200 Installation Instructions

The Falcon Automatic Opener 8231 is a smart and easy solution to improve accessibility and meet ADA Codes.  The 8231 is a non handed, surface mounted, 115 volt closer for a pull side mounting.   If your door is an outswinging door you would use the 8242.   This self contained package features, an on board power supply, LED light on the control box to signal accurate installation and helps with connection diagnostics.

This closer features:
SmartLatch-senses and overcomes external pressure conditions with a Graduated energy assist of secure latching.
Push N Go-selectable feature allows door to open automatically as soon as it feels pressure.
Open Position Learning-automatically sets the opening position to eliminate wall and door damage.
Obstacle Obstruction Detection-safety feature stops and reverses door direction when distress or an obstruction is sensed.
Pre-Load Strike Assist-removes load on strike lip with a one second delay allowing the door to release and automatically open.
LED Light Illumination-Light illumination on control box signals accurate installation and helps with connection diagnostics.
On Board Power Supply-powers the accessories without the need to install an external power supply-12 vac
Adjustable hold open time delay, backcheck/latch position, backcheck speed, and opening and closing speeds.

The package includes everything except for the actuators.  Uses LCN Actuators.

Falcon 8200 Catalog

Falcon 8200 Installation Instructions

Monarch 914KIL-KD Panic Device Lever Trim

The 914KIL Lever Trim is for use on the Monarch / Falcon 19 Series.  This lever trim is shipped with a standard Schlage C Keyway, that are keyed different if you are ordering multiple levers.  The key locks and unlocks the Lever handle.

Monarch Falcon Part # 914KIL-KD

Falcon 2130 Bottom Latch Strike

The Falcon 2130 Bottom Latch Strike is used on the 19-V, 24-V, 25-V and XX-V devices.  This strike usually fits into the threshold or is recessed into the floor.

Falcon Part # 2130

The Dor-O-Matic 2090 Panic Device has been around since the early 1970's.   Even though it is now called the Falcon 2090 Panic Hardware, it is the same exact device.  The 2090 provides balanced appearance, dependable performance and economical pricing, making it a popular choice where rim exit devices are required.  The package includes both housings, 41" crossbar (that can be cut in the field), mounting screws and strike.

Hand: Specify RHR or LHR, not reversible. See Below
Left Hand Reverse shown in picture
Latchbolt: 1/2" throw hardened steel.
Dogging Feature: Hex dogging standard.
Sizes: Field adjustable width, 41" crossbar standard, fits
3' 8" door width, extra length crossbars available.
Doors: 1-3/4" thick metal or wood doors, specify if wood door.
Projections: 4-3/8" extended, 2-1/2" depressed.
Stile: 1-3/4" minimum.

Replacement parts are also available

Effective December 20, 2024 the EL2390 has been discontinued.  Falcon Doromatic is working on retro-fit plates to work with the MEL1690.

Doromatic EL2390 Exit Device

Falcon 650389 19-24-25-XX Top Latch

Falcon 650389 17V-18V-19V-24V-25V-XXV Top Latch for non Fire Rated Doors.  This latch has a long history, the old number is 588, and the new number is 650389.  A non Fire Rated door is usually an exterior door, or a door that is not designed to contain the spread of fire.

Falcon Part # 650389
Old Monarch Part # 588

Von Duprin 8827 surface mounted vertical rod devicesfor all types of single and double
doors, UL listed for accident hazard installations.Covers stock hollow metal doors
with 86 or 161 cutouts and fits door stiles as narrow as 3½" (90mm).

• Fully reversible
• Five popular finishes
• Field sizeable
• Hex key dogging
• 5/8"(16mm)throw latch bolt

Ships with all mounting screws and the 299, 304L and 248L-4 Strikes.

TH1114U US Alum Offset Pivots are used for both flush face frame installation and 1/8" recessed door applications. Pivots replace most major door manufactures. Suitable for aluminum doors weighing up to 125 pounds. These pivots are engineered and designed for durability, style and are easy to install. To order pivot: For LHRB door order RH pivot For RHRB door order LH pivot Specifications * 3/4" offset pivots for aluminum doors and frames * For flush door / frame and 1/8" recessed door applications * Weather resistant * Aluminum case construction * Vertical adjustment 1/8" * Full race ball bearing and design, provides smooth operation on bottom pivot door portion * No sag, entire weight of doors rests on floor mounted pivot portion * Completely temper proof, yet easily removable, replaceable in unlocked position * All pivots are handed- specify LH, RH * Finish: AL-Aluminum, DU-Duronotic

Monarch Falcon 060111 Cotter Key Package

Monarch Falcon 060111 Cotter Key Package or 10.  Cotter Key measures 1/8" x 1"

Monarch Falcon Part # 060111
Old Part # 661102

The Falcon 712L Lever Trim is used for the XX-C, 18-C, and all 24 Series Falcon Devices.  The XX-C and 18-C are the obsolete concealed vertical rod Monarch Exit Devices. The Trim is non handed or field reversible. The Key locks or unlocks the Lever. The escutcheon measures 1-3/4" wide and 7-1/4" long.

Falcon 3788 Top Latch Strike

The Falcon 3788 Top Latch Strike is used on the 18-V, 19-V, 24-V, 25-V and XX-V panic and fire rated devices.

Falcon Part # 3788

The Falcon 600293 E Trim Solenoid PKG is used on the 25 Series Electrified Lever Trim.  The unit can be used for Fail Safe or Fail Secure applications, depending on how the unit is installed.  The piece measures 3/4" diameter by 1-1/2" long, with a 3/4" hole spacing.  We sometimes find the numbers 661375-00 and 610306-00 on a stick on this piece.  The package ships with two mounting screws.   This unit is called the FSA/FSE Solenoid Kit on their parts breakdowns and in their price book.  The Falcon/Monarch part number is 600293.

The Falcon Dor-O-Matic RM70 Mullion Bracket Kit includes the top and bottom brackets and all of the mounting screws.

Falcon part # 4270108954

The Doromatic Exit Device 2090 Active Case is for use on the 1090 and 2090 panic hardware.  This device has been around since the early 1970's, and is now called the Falcon 2090 Active Case, but it is the same piece.  Includes all of the interior hardware. Just unscrew or loosen the three set screws and remove your old case and install and tighten the three set screws. Housing measures 7-1/2" long by 1-3/16" wide, mounting studs have a 6-1/4" center to center distance.

LEFT HAND HOUSING SHOWN IN PICTURE

4270902740 Left Hand Aluminum Stock
4270902742 Left Hand Dark Brown Stock
4270902743 Left Hand Black * One week lead time
4270902746 Right Hand Aluminum Stock
4270902748 Right Hand Dark Brown Stock
4270902749 Right Hand Black * One week lead time

1990 parts breakdown

2090 parts breakdown

TH1114KM Pitco Style Offset Pivots are used for both flush face frame installation and 1/8" recessed door applications. Pivots replace most major door manufactures. Suitable for aluminum doors weighing up to 125 pounds. These pivots are engineered and designed for durability, style and are easy to install. To order pivot: For LHRB door order RH pivot For RHRB door order LH pivot Specifications * 3/4" offset pivots for aluminum doors and frames * For flush door / frame and 1/8" recessed door applications * Weather resistant * Aluminum case construction * Vertical adjustment 1/8" * Full race ball bearing and design, provides smooth operation on bottom pivot door portion * No sag, entire weight of doors rests on floor mounted pivot portion * Completely temper proof, yet easily removable, replaceable in unlocked position * All pivots are handed- specify LH, RH * Finish: AL-Aluminum, DU-Duronotic

Falcon 650233 / 650234 24-R Center Case

Replacement Center Case for the Monarch-Falcon 24-R Narrow Stile Rim Device.  This Center Case is for use on both the Fire Rated and Non Fire Rated devices.  This was changed in the summer of 2018.  The 650233 has been replaced by the 650234, which was the Fire Rated version part number.

Falcon Part # 650233 / 650234

The Falcon 1590 Retractor RTR10 is one of the components you need to convert a Exit Only device to a NL or HB device.  The RTR10 along with the 159CA-NL or 159CA-HB is all you need, along with a Key Cylinder.

Falcon 650387 Bottom Bolt Guide Assembly

The Falcon Monarch Bottom Bolt Guide Assembly 650387 is used the 19-V, 24-V, 25-V and the XX-V Bottom Rod.  The Guide Assembly measures 1-7/8" tall by 1" wide and projects 1-9/16" at the widest projection.   The Bottom Bolt Guide is made of zinc plated steel.

Falcon Monrarch Part # 650387

Falcon Dor-O-Matic STK45 Surface Strike

This strike is used when we have a double door application without a center post. By using this strike we can have one door with a surface vertical rod and one door a rim device, which will save money because vertical rods are usually expensive. This strike can be used with the 1590, 1790 and 2090 Rim Devices. The strike base measures 1-5/16" wide by 3-1/4" high, and 1/4" thick. The three slots are 1-1/4" on center. This strike ships with the mounting screws.

US19-Black finish

Falcon F570 Strike

The Falcon F570 Strike for 19-R and XX-R Devices is used on the Fire and Non Fire Rated Devices.  This is the same strike that was used on the Monarch XX-R, 19-R, 17-R and 18-R devices.

Falcon Part # F570

Falcon 650236 24-V Center Case

Replacement Center Case for the Falcon 24-V Narrow Stile Surface Vertical Rod Device.  This Center Case is the same for the Fire Rated and Non Fire Rated devices.

Falcon Part # 650236
