LCN Sentronic Door Closer 4310ME-3351 On/Off Switch Assy

Board measures 1-1/8" x 3".   Red plug is a three prong plug, the white plug is a two prong plug.  Specify voltage, 24 or 120 volts.

LCN Part # 4310ME-3351

LCN Sentronic Door Closer 4410ME-3351 On/Off Switch Assy

Board measures 1-1/8" x 3".   Red plug is a 3 prong plug, white plug is a 2 prong plug.  Specify voltage, 24 or 120 volts

LCN Part # 4410ME-3351

Product Description & Features
• Total Projection: 1-13/16" (46mm)
• Mounting Requirements:
2" x 4" x 2-1/2" (51 x 102 x 64mm) outlet box
• Wall must be properly reinforced and outlet box
adequately fastened
• UL listed door holder

The International 8600 Dogging Assembly is used on the 8510S, 8710S, 8610S, 8810S, 8501S, 8710S, and many more.

The Ives Wall Mounted Door Stop WS33 is another hold back part from the Glynn-Johnson door stop era.  I can not remember the Glynn-Johnson part #, but when Ives purchased them, they changed it to WS33.  This stop is constructed of cast brass that is then plated to a brushed chrome finish.  It features a replaceable rubber bumper with offset shoulder screws into cavity on body to prevent loss or theft.  And a sloping design that discourages vandalism.The base height is 3" with a width of 2-1/4", and a projection of 3-3/4",  WS33 is furnished with wood screws for drywall mounting.

Replacement Rubber Shoe for Mickey Door Holder

Replacement shoe for the GJX2M Grand Specialties 3" Mickey Door Stop.

The Jackson Door Closer Center hung Arm - 20-400B is used with the 20-330 door closer.  This arm is for use with double acting, center hung doors.  The arm measures 10" long by a 1-1/2" wide and 1/2" thick.

Jackson Part # 20-400B

The Command Access MLRK-VD Motorized Latch Retraction is for use on the 33,35, 98 or 99 Von Duprin Exit Devices. This motor is 24 to 28 volts and has a Standard : 900 mA (Avg Current Peak); 215 mA (Avg Current Hold). This unit requires 18 ga wire.  And ships with (1) Motor Mount with MM5; (2) 40002 - 8/32 x 1/4 inch Phillips Head Screw; (1) 50030 8/Lead with vd Connector; (1) 50944 Molex Pigtail; (1) 40144 Dogging Hole Cap; (1) 50991 Fire Rated Drilling Template; (1) Replacement Dogging Tail Piece.

The MLRK1-VD is a cost-effective and straightforward way to upgrade your Von Duprin 33/35 & 98/99 series device to motor-driven latch retraction in the field. For AX devices, see the MLRK1-VDAX listed on the cutsheet below. UL Listed + 3 Year Warranty

The Yale Door Closer 4400 has been around for quite a long time, and was designed to replace the older 400, which are still made. The beauty of the 4400 is that is can be mounted left or right, push, pull or top jamb, were as the 4200 you had to specify all those attributes, which made stocking them a head ache. This is a Grade 1 closer, and is extremely durable. If you are looking for a 4400BF, the barrier free version, the new 4400 is barrier free, and will do the trick. This closer has a 2-3/8" x 6-3/4" hole spacing.

The Plunger Door Holder / Stop 582 is constructed of cast aluminum.  The stop measures 6-1/4" by 1-1/2" with a 1-5/8" throw.  The rubber shoe is gray.  It will ship with matching finish screws.  These are sometimes called pop-up or push down door stops.

The WS11X door stop used to be under the Glynn-Johnson product line as the WB11X until they merged with H.B. Ives.  At that point they became the WS11X.  This stop only is constructed of cast brass and then plated to your desired finish.  The stop has a 2" diameter base and projects from the wall 3-3/4".  This particular model is the same as the WS11, except that it is designed for a masonry type mounting and ships with an expansion sheild.

The LCN Head and Tube 78H and 78HL comes in two versions.  One is 5-3/4" long and the other is 8-5/8".  The square hole is 5/8".  The head and tube usually breaks where the cast ring attaches to the tube.  This part usually goes by the part number 4040-78H, 4040-78HL, 4040XP-78H, 4040XP-78HL, 1260-78H, 1260-78HL, ect.,.

Sargent 25-CPSH Heavy Duty Compression Holder Arm

Forged Steel Arm 11-1/4" long, non handed, will work left or right for Parallel Armed Sargent Closers.  Permits 105 degree opening with built in compression stop and holder mechanism.

Sargent Part # 25-CPSH

Center Hung Door Closer

• Available (NHO) non-hold open, or (SHO) selective
hold open. Specify degree (90 or 105°)
• Standard top pivot: 340 included
• Cycolac cement case
• Separate independent valves for closing,
latch and backcheck adjustments
• Built-in positive dead stop prevents door
from swinging beyond desired opening
degree
• Vertical and horizontal door adjustment
• Arm centering adjustment

The Jackson Door Closer Center Hung Arm 20-2085 is for double acting center hung doors for use with the 20-330 concealed closer.  The arm measures 9-1/2" long by 1-3/8" wide by 19/32" thick.

Jackson Part # 20-2085

Detex EAX-500W Weatherized Battery Powered Door Exit Alarm

The Detex EAX-500W Series is designed for applications requiring a battery-powered alarm on secured doors. The alarm, with approximately 100dB, will sound when an unauthorized exit occurs. The redesigned shape and smaller size of the EAX-500W makes it the ideal choice for quick and easy installations on emergency exit and restricted doors.  The weatherized version is for use on out swinging doors that may get wet due to rain, or wet environments.

Gray Only

Mortise cylinder sold separately
Uses a standard 9 volt batthery

Detex EAX-500 Installation Instructions

The Floor Door Stop FS434 is another one the old Ives parts that has been around for about 40 plus years.   The FS434 is constructed of burnished wrought steel, with a soft, resilient gray rubber shoe.  The shoe is replaceable and is under related products.  The stop measures 2-5/8" overall height, and the base measures 1-1/2" wide by 2-3/4" long.  This door stop ships with all the fasteners and anchors needed.

Floor Door Stop Heavy Duty 540

This Floor Mounted Door Stop is a personal favorite. It is extremely heavy duty, and is ideal for areas of high vandalism. Includes the 4-1/2" lag bolt & lag shield. The rubber base is 3" in diameter and is 2-5/8" high.  Uses a 3/4" diameter hole for the lag sheild.

The LCN Sentronic Door Closer Roller - 3034 is used on all of the LCN Track Closers, and Sentronic Closers. Nylon wheel is 1-1/16" diameter by 3/8" thick. The shaft is has a 1/2" diameter by 1-1/8" long.  However in November of 2015 they started shipping the roller with the Slider 168 attached to it, with a retaining ring. LCN Started using this Roller Assembly in December 2018.

LCN part # 4040SE-3034

Floor Door Stop FS434 09-318 Rubber Only

Replacement rubber shoe for the FS434.  Rubber measures 2-1/4" high by 1-7/16" wide by 5/8" thick.

Ives Part # 09-318

Step N Pull®

Stop the spread of germs with this ingenious product. Simple step on the plate and pull the door without grabbing the door pull.

Includes:

1. One StepNpull®
2. Required mounting screws
3. Two stickers, one for the door and the other for the mirror, paper towel dispenser or hand dryer. Actual dimensions are 5"x4"

Currently we only have Aluminum in stock.
Available in Aluminum, Gold or Copper Finish-See Color under "More Views"

The Jackson Panic Device 1085 And 1095 Dogging Pin is the piece that keeps the hardware in the open position during business hours.  It is activated by pressing the crossbar and then turning the flat head screw driver head.  The pin is held in the housings with a screw, which is located on the back of the housing.  This pin has been used since about 1988 or so, the old style are no longer made, but they had a roll pin that was used to hold it in place.  This package comes with a new spring, set screw and the pin.  The Jackson part number on this is 30-1115.

The Jackson Door Closer Center Hung Arm - 20-2010 is used with the 20-330 concealed closer.  The arm measures 9-1/2" long by 1-3/8" wide at the hub by 13/16" thick at the hub.

Jackson part # 20-2010

Rubber Shoe For GJ1154M and GJL444-555 Kickdown Door Stop / Holder

Replacement rubber shoe
5/8" insert diameter
1" base diameter
8-32 threaded screw

International 8630S Surface Vertical Rod Device-Grade 1

DC 8000 Series Exit Devices are heavy duty and designed for heavy traffic applications. The devices are Underwriters Laboratory (UL, USA and ULC, Canada) listed for Panic Exit Hardware or Fire Exit Hardware, and are certified to ANSI A156.3-2001 Grade 1.

Non handed, 4-1/2" minimum stile width. Smooth Surface.

For doors 29" to 36" wide order the Size 30 to 36"
For doors 36" to 48" wide order the Size 48"

Product Description & Features
• Concealed Wiring
• Total Floor Space Required:
6-5/8" (168mm)
• Mounting Requirements: Conduit
connects directly to floor plate
• UL listed door holder

For use on metal frames featuring
pneumatic design that, once installed,
forms an air pocket to absorb sound and
reduce noise of door closing.

Diameter: 1/2"
Thickness: 1/8"

The LCN Hold Open Arm Wrench T-1157 is used to adjust LCN Friction Hold Open Arms,  one side if for the 1-1/2" nut and the other is 1-3/16".  Friction Hold Open arm would be part number 3049, with the suffix being the closer model, like 4040-3049, ect..

LCN part # T-1157

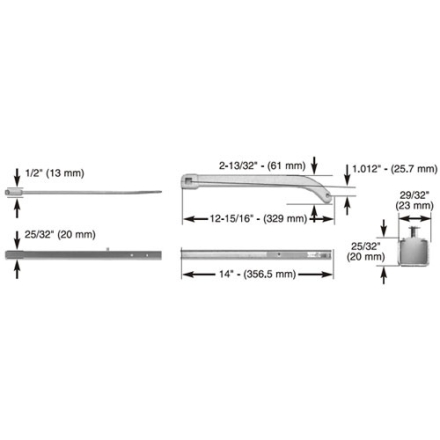

The Jackson Door Closer Offset Arm  20-900-LC is used with the 20-330 concealed closer for single acting offset mounted doors.  The arm measures 12-15/16" long by 1/2" thick with a 1.012" offset.  The track measures 25/32" deep by 29/32" wide by 14" long.  The track includes the nylon slide, pin and retaining clips.

Jackson Part # 20-900-LC

Kickdown Door Holder Rubber Shoe FSPART.1053

Replacement rubber shoe
1/2" insert diameter
1" base diameter
1" height

• Designed for use with the bottom bolt of all flush bolts.
• Spring-loaded plunger returns to floor or threshold level anytime
flush bolt is retracted, eliminating need to clean standard
floor strikes.
• Strike hole is 3/4" Diameter and 1-1/8" Deep

DP2 Face Plate: 1-5/8" W x 3-1/2" L x 1/8" Thick
Body: 1-3/16" Diameter x 1-7/8" Deep

Dome Door Stop 1-5/8" Height 521

The 521 is a larger version of the other dome stops we offer.  It offers forged brass construction with a gray rubber bumper.  The base measures 1-3/4" diameter x 1-5/8" High, with a 1/4"  thickness.  That this point only US26D-Brushed Satin Chrome is available.  It ships with wood screws and machine screws  and floor anchors.

The LCN Sentronic Door Closer 4040SE-168 Slider used to be just the slider, the metal part.   In October of 2015 they changed the part so the roller is now included and they are held together by a snap ring or E-clip.

The slider is not longer sold separately, it is sold with the roller.  You have to take the Assembly apart to get just the slider.

Floor Door Stop Dome 1" Height 522

This contemporary looking Dome Stop has been a hot selling in the last few years.  The stop is constructed of forged brass, that is then chrome plated and brushed to the satin finish.  At this time, only brushed or satin chrome is available.  The base is 1-11/16" wide by 4" long and 1" tall.  The base is 5/16" thick.  This door stop ships with wood and machine screws and all of the anchors.

Fabricated from B & S 16 ga. (.050). Standard lengths are 36", 42" and 48". Custom capabilities include variations of all of the above parts including frame protectors and vertical rod protectors.
Custom sizes are available!

Screws included for mounting

Please allow 7-10 for shipment.

Finishes

The Jackson Door Closer Offset Arm 20-1134LC is the arm and track assembly for the 20-330 concealed closer.  The arm measures 12-15/16" long with .919" offset, and the track measures 1/2" thick by 12-7/8" long by 1-9/32" wide.  The track includes the nylon slide, pin and retaining ring.

Jackson part # 20-1134-LC
