The Von Duprin Strike 299F is used on the 22, 88, 98, and 99 Fire Rated Rim Devices (no hex or cylinder dogging). The 299F strike measures 1-1/4" wide by 2-7/8" high with a slotted hole spacing of 2-1/8". The roller projects out 13/16". The non fire rated version would be the Von Duprin Strike 299.  Ships with shim and mounting screws.

Von Duprin Part # 299F

Von Duprin 386DT Dummy Trim

This Von Duprin 386DT Dummy Trim is just a pull handle. The bolt pattern of the trim plate lines up with the Von Duprin 33A on the inside so they are on cohesive unit. The base plate measures 7-15/16" by 1-5/8". The grip measures 8-1/2" by 4-5/16" with a 2-7/16" projection. This 386DT Dummy Trim is non handed.

Falcon 650389 19-24-25-XX Top Latch

Falcon 650389 17V-18V-19V-24V-25V-XXV Top Latch for non Fire Rated Doors.  This latch has a long history, the old number is 588, and the new number is 650389.  A non Fire Rated door is usually an exterior door, or a door that is not designed to contain the spread of fire.

Falcon Part # 650389
Old Monarch Part # 588

The Detex BN ValueSeries Lever Trim measures 1-29/32 wide by 8-1/4 inches tall, and the escutcheon is 15/16 inches thick.  We ship the Classroom Function where the keys locks and unlocks the lever, other functions are available. The Lever trim does not ship with the Mortise Cylinder.

The Sargent 646 Surface Strike is used on the 20, 30 and 80 Series Surface Vertical Rod Panic Hardware and Fire Rated Hardware.  It is used as a strike for the top latch. The strike measures 1-5/32" x 3-11/16"  with a 3/4" projection.   Strike features a black coated epoxy finish.

Sargent Part #646

Monarch 914KIL-KD Panic Device Lever Trim

The 914KIL Lever Trim is for use on the Monarch / Falcon 19 Series.  This lever trim is shipped with a standard Schlage C Keyway, that are keyed different if you are ordering multiple levers.  The key locks and unlocks the Lever handle.

Monarch Falcon Part # 914KIL-KD

The Detex D Lever Trim is used on the 10, 20, 21 and 27 Series exit devices. The D Lever is designed to be as heavy duty as their exit devices. It features a break-away lever to prevent damage. The escutcheon measures 2-3/4 x 9-1/16 inches, with a plate thickness of 7/8 inch. We ship the classroom function, which locks and unlocks the lever.

Plastic end cap for all Adams Rite Concealed Vertical Rod and Mortise devices, specifically the 8300, 8500, and 8600 Series.

Plastic cap measures 2-3/8" high by 1-1/16" wide by 1-1/4" projection. The metal tab measures 1-3/16" wide by 5" long.

Adam Rite Part # 41-0901-05-IP

The Jackson 1085 Panic Device is one of a few original manufactures of Panic Hardware for aluminum framed glass doors, or storefront doors.  The 1085, 1095 along with their door closer the 20-330 were installed on about half of these doors in the 1970's and 1980's.  They were installed on Vistawall and Kawneer doors just to name a few.  Universally recognized as the standard for aluminum storefront hardware it is made of high tensile strength aluminum.  The device is Non Handed, Comes with 45" cross bar that is easily cut in the field.  Also includes the Concealed Vertical Rods, Screws and Strikes.

Replacement parts are available, in stock!

Von Duprin 050535 El Solenoid Assy-Discontinued.  All of our stock is gone, the only way to have your current device work with Electric Latch Retraction would be to up grade to the newer version.  The newer version is the QEL or QEL-HD Conversion Kit.  Here is a link to the QEL Conversion Kit.

Screws are 1" on center, the cylinder measures 3" long by 1-3/4" diameter. Used on the 33A, 35A, 98 and 99 exit and panic devices. This Solenoid Assembly is also used on the Doromatic/Falcon EL1690, EL1790 and EL2390

We sometimes find the number 971687, along with 4011 VDC 24

Von Duprin Part Number 050535
Doromatic/Falcon Part # 971687-00

Jack Nut 10-24

The Jack Nut is used on hollow metal doors to fasten door closers, door closer arms, exit devices and continuous hinges.

Adams Rite 8800 Panic Device

The 8800 features the Starwheel locking bolt that interlocks door to the door frame.  The 36" version is in stock, we can also get the 30", 42" and 48" devices, lead time is 2-3 weeks.  This device is used exclusively on aluminum framed glass storefront doors.  Replacement parts are available.

Corbin Russwin ED5200 Active Head

Used on the Corbin Russwin ED5000 Rim Devices, for non fire rated doors. For fire rated doors, order the G650F36-8. A non fire rated door is a door were you can use your allen wrench to dog, or lock, the door in the open position during business hours.

Corbin Russwin part # 650F35-8

Rim Cylinder Hub Position for the ED5200

Exterior or Interior Doors
Weight to 500 lbs.
Door Sizes up to 3'8"x 8'6"
Includes 340 top pivot
Non-handed

The Von Duprin 100316 is used on the 5547 on the top of the door.   The top rod goes through the square hole on the plate.  The plate shown in the Picture has both sides or LHR and RHR doors.  One side of the strike is usually broken off depending on the hand of the door.

Von Duprin 8827 Special Chassis Nut 050277

The 8827 Special Chassis Nut goes on the ends of the 8827 Chassis Tie Rod. The Nut is threaded all the way through so the cover mounting screws can then be threaded on it also. The nut is 3/8" long by 1/4" hex.

Von Duprin Part # 050277
Old Von Duprin Part # 960652

The Dor-O-Matic 2390 231CA Cylinder Kit converts your 2390 exit only to a Night Latch or Hold Back function key lock.  All the hardware is included in the package to convert your device, except for the Mortise Cylinder.  Housing measures 4-1/2" tall by 1-11/16" wide with a 1-1/8" projection.  We send the 231CA which includes the Schlage B502-191 Cam.   The 239CA is the same kit, but without the Schlage Cam.

Discontinued item, we only have a few left in Dark Bronze.

Von Duprin 9827/9927 surface mounted vertical rod device for all types of single or double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. The Von Duprin 9827 device has a smooth mechanism case and the Von Duprin 9927 device has a grooved case. The surface vertical rod device is non-handed.

Corbin Russwin ED4200 Active Head

Used on the Corbin Russwin ED4000 Rim Devices, for non fire rated doors. A non fire rated door is a door were you can use your allen wrench to dog, or lock, the door in the open position during business hours.

Corbin Russwin part # 650F37-8

The Hub Position for the ED4200

The Von Duprin 9927 Top Latch 050091 used on all the Von Duprin 9827 and 9927's. Replaces and updates all 9827 and 9927 bottom latches to the new style, if your device was installed before October 1998. If your device is newer then October 1998, then use the G050400.  This is usually the problem if your bottom rod is dragging on the floor. Latch measures:   1-1/16" wide x 4-5/16" long (less latch bolt) x 1-7/8" projection at the highest point.  Includes screws.

Von Duprin Part # 050091

The Von Duprin Strike 299 is used on the 22, 88, 98, and 99 Rim Devices and also as a Top Strike on the 2227, 8827, 9927, and 9827 Surface Vertical Rod Panic Devices. The 299 strike measures 1-1/4" wide by 2-7/8" high with a slotted hole spacing of 2-1/8". The roller projects out 13/16".  Ships with shim and mounting screws.

Replacement LCN 4640 (4642) Door Closer Arm. Arm is Non handed and ships with screws.

LCN Part # 4640-3077

Von Duprin 050574 98/9947 Adjustable Top Rod

Von Duprin 98/9947 Adjustable Top Rod for 6'8" to 8'4" doors.  This rod is used on the 9847, 9847-F, 9947 and 9947-F

Von Dupin Part # 050574
Old Part #110375

Application
includes 180 top pivot
Interior Doors
Weight to 300 lbs.*
Door Width up to 3'6"(1067mm)
Handed

Handing diagram

The 4311HSA SENTRONIC is an electrically controlled closer/holder designed to provide easy passage for groups of pedestrians through high traffic doors. Pedestrians, moving through the doorway, trigger the built-in scanner. When the door is opened to 80° or more, the door is electrically held open to minimize wear and tear on applied door hardware. After the last pedestrian in a group passes through the doorway, the system timer releases the hold-open, closing the door under control of the heavy duty closer. Single lever (track) arm closer is specifically designed for pull side mounting. Choice of finishes and accessories meet virtually all high traffic installation requirements.

The 4412HSA SENTRONIC® is an electrically controlled closer/holder designed to provide easy passage for groups of pedestrians through high traffic doors. Pedestrians, moving through the doorway, trigger the built-in scanner. When the door is opened to 80° or more, the door is electrically held open to minimize wear and tear on applied door hardware. After the last pedestrian in a group passes through the doorway, the system timer releases the hold-open, closing the door under control of the heavy duty closer. Double lever arm closer is specifically designed for push side mounting. Choice of finishes and accessories meet virtually all high traffic installation requirements.

The Dor-o-Matic 1690/1990 Top Strike PB48 is used on the Dor-o-Matic 1690, 1990 and 2390 Concealed Vertical Rod Exit and Panic Devices. The plate measures 1" x 1-1/16" with 4 holes. The mounting holes are 11/16" x 11/16" on center. The diameter of the pin is 7/16" and projects out 5/32". Ships with mounting screws and 3 shim plates.  The Dor-o-Matic Panic Devices have been around since the late 1960’s, but have most recently been known as the Falcon Panic Device from a name change they had in about 2008.  They are basically the same device, with the same parts, just a different name plate.  Falcon part # PB48.

Dor-o-Matic/Falcon 990/1990 Repair Parts Breakdown
Dor-o-Matic/Falcon 1690 Repair Parts Breakdown

The Von Duprin 2227 Top Latch 050091 latch is used on devices shipped before October 1998, see related products for the new style latch if your device is newer. This is usually the problem if your bottom rod is dragging on the floor.  Latch measures:   1-1/16" wide x 4-5/16" long (less latch bolt) x 1-7/8" projection at the highest point.  Includes screws.

Von Duprin Part # 050091

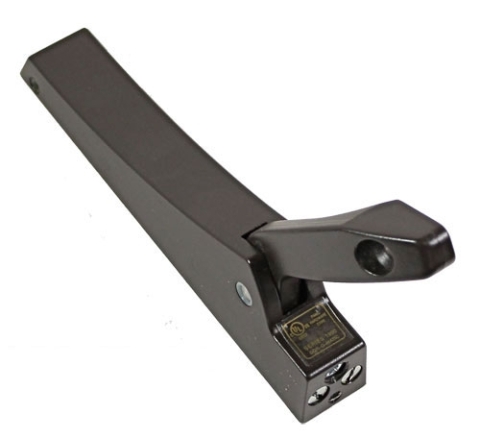

The Dor-o-Matic 1990 Housing and 1090 2090 Inactive Housing DCX has been around since the early 1970's.  Although it is now called a Falcon 1990, it is still the same device.  This housing is also the inactive housing on the Dor-O-Matic / Falcon 1090 and 2090 panic hardware.  The housing includes all of the interior springs, arm, and dogging screw.  Housing measures 7-1/2" long by 1-3/16" wide.  The center to center distance of the mounting studs is 6-1/4".

LEFT HAND SHOWN IN PICTURE

See diagrams for handing.

Doromatic part #
4270902784 - right hand dark brown
4270902782 - right hand aluminum
4270902785 -right hand black
4270902778- left hand dark brown
4270902776 - left hand aluminum
4270902779- left hand black

1990 parts breakdown

2090 parts breakdown

The Falcon Monarch 19-V Rod Guide 650386 is mounted on the door with two screws and holds the vertical rods in alignment.  The guide is constructed of black plastic and comes with the mounting screws.

Old Part # 4783
New Part # 650386

The Adams Rite EX88 Interlocking Rim Exit Device is designed for heavy duty use on narrow stile aluminium door applications. The EX88 has a unique latch bolt design that interlocks with the frame of the door. This device is non handed, requires a minimum stile width of 2" and will work on aluminum, hollow metal or wood doors.The device is constructed of extruded aluminum with matching metal angled end caps. To order specify your door width, and the color.

The Von Duprin 22, 33, And 99 Dogging Shaft 090040 is the peice that the hex dogging key would fit into. The shaft is for a 5/32" dog key, but it has to be the long version.   The shorter versions will not have enough reach to get all the way into the shaft.  This is a very common problem area, the hole that the key fits in is only about 1/4" deep, and if you do not push down on the hex key when locking it open it will round out over time.  To remove the shaft, just pull it straight out with a part of channel locks.   We reinstalling the new one you might have to bend the ends of the adapter spring 090042 back down. This dogging shaft is for use on all Von Duprin Panic Exit Devices shipped after 1997.

The Jackson 30-1345 Top Strike Package for the 2085-3185  is mounted on the frame of the door were the top latch can engage it.   The Package includes the Strike, Plate, Latch Adjusting Wrench and the Mounting Screws.   Jackson Part Number 30-1345.

The Von Duprin Strike 264 measures 2-7/8" tall by 1-1/4" wide with a roller projection of 9/16". Used on the Von Duprin 22, 88, 98 and 99 when a lower profile strike is need in place of the Von Duprin 299 Strike. The hole spacing is 2-1/8" on center, and it ships with mounting screws and a shim. Also known as a Von Duprin Surface Roller Strike.

Von Duprin Part # 264

The Von Duprin 2227 Top Vertical Rod 109361 will work on all 2227's up to door heights of 7'1".  The actual length of the rod is 37-3/8", less the fittings.  If your door is taller you will need a rod extension.  Call 1-800-642-2403 for longer top rods or rod extensions.

Von Duprin part # 109361
