4-1/4" long

Dorma part # AM385A

The Falcon 650388 Latch Cover is for use on the Monarch and Falcon 19-V Series.  The latch is made of high impact black plastic and ships with the mounting screws.  The manufactures part number is 650388, the old Monarch part number was 3781.

Standard duty brass 2-1/4" knob is pinned to swivel spindle for 1-3/4" door.
Outside spindle is 3/8" solid center and inside spindle is 9/32". Inside knob
threaded 3/8-20 with two case hardened set screws.

The Dor-o-Matic 1690/1990 Retractor PB35 has been used since the 1970's.  The manufacture has changed names in the last 5 years and now goes by Falcon Panic Hardware. This piece is used the 990, 1690 and 1990 devices.  The pinion rides inside this bracket to raise and lower the internal rods. Parts used with the retractor are the Pinion (G199005), Traveller (G199028) and the Pinion Bushing (G199046). Retractor measures 1-7/8" long by 7/8" wide by 1/4" thick.

Doromatic part # PB35 or RETRACT.101

Jackson 1095 Gear Package

Jackson part # 30-852

Von Duprin 33/35/98/99 push bar stock absorbers. This is the piece that makes these Von Duprin exit devices one of the quietest devices made.

Von Duprin Part # 050491

Arrow BM385A Spindle

3-3/4" long

Dorma part # BM385A

The Dorma 4 Loop Torsion Spring is used on the 9000 Series Exit Device Escutheon Lever Trims. Spring measures 1 inch diameter by 5/16 thick.

Dorma Part # 780367270 or 6000-717-500

The Jackson Panic Device Center Case 1085/1095 is for use with the 1085 devices for both and left, and the inactive case of the 1095.  Case is easily removed by loosening the two 1/8" Allen screws and one on the bottom.  Includes everything in the housing.  The distance between the mounting studs on this Case is 6-5/16"

Jackson part # 30-982 Right Hand Body and Arm Assembly
Jackson part # 30-983 Left Hand Body and Arm Assembly

Housing Shown in Aluminum

The Ives Roller Bumper Offset RB470 are ideal if you have situations where doors meet each.   They are constructed cast brass or bronze and are then plated to the desired finish.   The arm projects 5" and the base has a 1-11/16" x 2-1/4".   The device was just like the Glynn-Johnson RB3 or GJRB3.

• For 1-3/4" (44mm) doors standard
• Through-bolted with 3 mortise nuts
• Pulls project 1-1/2" (38mm) from door face
• GTB Design trim will cover a 161 cutout

The Push Bar w/Handle 422X26 is usually found aluminum framed glass store front doors.  It is constructed of 1" diameter solid aluminum, brass, bronze or stainless steel, depending on the finish.  The handle or grip will have either a 8", 10", 12" or 18" center to center screw spacing.  The push bar center to center length is determined by you, we can do any reasonable size.  Establish the center to center dimension by subtracting the width of one stile from the width of the door. On solid doors, subtract 5" from the width of the door.  All the fasteners are included, and are determined by the material your door is made of (wood or metal).   Please allow 3-4 weeks on the Dark Bronze and Aluminum, and 2 weeks on the other finishes.

Finishes

Doromatic 1690 / 1990 ES Top Latch PB131

Doromatic Part # 4270100316

Detex 101822 Value Series End Cap

Made of black molded plastic.  End Cap is has the numbers 101822 cast on the inside.  The hole spacing is 1-1/2" on center.

Detex part # 101822

Falcon 25-R 650255 Center Case Cover Kit

Replacement cover for the Monarch Falcon 25-R Exit Device.   Kit includes cover and the mounting screws.

Falcon Part # 650255

The Von Duprin Pull Handle 972466/972467 replacement Grip/Handle only, screws not included. Cast bronze construction, and then plated to the selected finish. The Grip measures 15/16" wide by 6" long. The center to center hole spacing is 5-1/2". This handle works on the Von Duprin 608, 696, 880, and 990 outside trim plates.

Von Duprin Part # 972466 and 972467
Old Part # 969925 and 959122

Von Duprin 880/990 Trim Hex Stud

This is the Hex Stud used on the 880 and 990 Trim Plates. The threads are 7/32-24. Overall lenght is 2"

Von Duprin Part # 956760

The Falcon Dor-O-Matic RM70 Mullion Bracket Kit includes the top and bottom brackets and all of the mounting screws.

Falcon part # 4270108954

Dor-o-Matic 1490 RHR/1590 LHR Push Label
4-7/8" x 1-7/16"

Doromatic part # 4270107321 or PB212 Black-No longer available
Doromatic part # 4270107320 or PB214 Gold

Cal Royal 2000 Night Latch Trim

3" X 7-3/4"

Cal Royal Part # 2200NL

Doromatic 2390 Fixed Cover

The Doromatic 2390 Fixed Cover also known as the center case cover. The cover is 1-1/2" wide by 3-7/16" high and projects out 2 inches. The mounting screws are 3" on center.

Doromatic / Falcon Part # COVER.127 or PB341

Von Duprin 6112 24 VDC Electric Strike

Von Duprin 6100 Series electric strikes are designed for use with Rim devices.  The 6112 has a 3/4” latch bolt throw, 9” face plate length, 1-5/8” width, and an 1-3/4” backbone depth.  The lock retrofits the Folger Adams FA 310-4.  Other voltages and replacement parts are available.

FSE - Fail-secure.  Requires power to be applied to unlock the strike lip.  On loss of power, the strike lip is locked-Fire Rated

FS - Fail-safe.  Requires power to be applied to lock the strike lip.  On loss of power, the strike lip is unlocked.  Non Fire-Rated.

The Jackson 1095P Paddle Panic Hardware is an alternative to the cross bar or push pad style panic hardware.  The device is the same as the Jackson 1095, but with a paddle instead of the cross bar.   This device is for use on aluminum or steel doors only.   The device is mounted on surface studs that are tapped into the door.  On a wood door they will pull out.

Right Hand Reverse Shown

Dor-o-Matic 1490 LHR/ 1590 RHR Push Label
1-7/16" x 4-7/8"

Doromatic part # 4270107323 or PB213 Black-No longer available
Doromatic part # 4270107322 or PB215 Gold

Von Duprin 090069 33/3547 99/9947 Ratchet Lever Spring (2)

One of two springs located in the 33/3547 and 98/9947 Top Latch 050492.  Sold in packages of 2.

Von Duprin Part # 090069

Dor-o-matic 1590 Cylinder Assembly 159CA-HB

Doromatic part # 159CA-HB

Von Duprin 050500 88 Latch Tail Kit

The Von Duprin Part # 050500 includes the 1 Latch Tail, 2 Latch Tail Rivets, and 2 Latch Tail Springs.  This product is used on the Von Duprin 88 Rim Device, for the EO, NL, TP and DT functions.  This is not the Latch Tail Kit used on the Fire Rated Von Duprin 88-F Devices.

Von Duprin Part # 050500

Doromatic PS914x900-2RS Power Supply

The Von Duprin Panic Device 210K  Knob Trim is for use on the 22 Rim and 2227 Surface Vertical Rod devices.  Key in knob can lock and unlock the knob.  Since the enforcement of local ADA standards, this knob is probably at the end of this life, no one seems to want these anymore.  The mounting plate measures 3" wide by 4-25/32", and is 3-32" thick.  We do have parts on this Knob, but at this point they are not on the website.

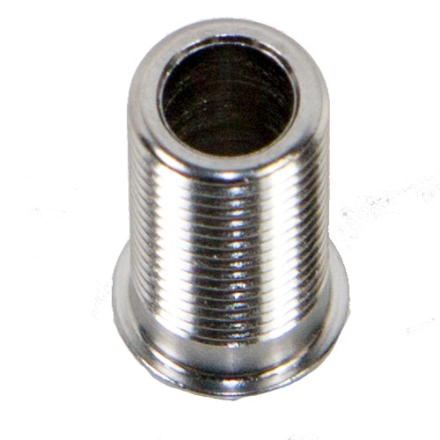

Detex 100268 Hex Key Filler Sleeve

One inch overall height with a half inch diameter.  The threaded tube has 20 threads per inch.

Detex Part 100268-7

Cal Royal 2000 Series Thumb Pc Trim

2-5/8" X 16"

Cal Royal part # THP00

The Von Duprin 9927 Center Case Cover 050072 replaces your old 1 or 3 piece cover.  The Von Duprin Cover comes with mounting bracket and all screws.

Von Duprin part # 050072

Von Duprin 050023 98/9975-F Center Case Kit

The Von Duprin 050023 98/9975-F Center Case Kit less cover is used on the 9875 and 9975, Panic and Fire Rated Hardware.

Von Duprin Part # 050023

Monarch 19 Series Chassis Assembly Cover

This is the cover for the Monarch Falcon 19-R Rim Device. The cover measures 5-7/8" tall by 2-1/2" wide with a projection of 1-7/8". We sometimes find the number 6133 - 000 cast into the inside of the cover.

Monarch/Falcon part # 650384
Old Part # 6133

Jackson 1095 LH Backplate Assembly

Jackson Part # 30-847

The Von Duprin Mullion Stabilizer Package are used with Von Duprin Mullions to stop any deflection on the mullion, which may cause the exit devices to release.  We run into issues where people are able to shake the door, and the door opens.   The package includes two sets of stabilizers and all the mounting screws.
