Anodized Aluminum Door Kick Plates are the most cost effective, least expensive. The aluminum plates are 16 gauge, or .050″ thick and have a brushed or satin finish. They have an anodized finish to resist corrosion and we find these in many commercial buildings through out the United States.

Our plates come standard with screw mounting. The manufacture sends #6 x 5/8″ Oval Phillips Undercut Stainless Steel screws. The number of holes on the screw mounted plates is determined by an industry wide standardize template. A height between 6-10″ will have 10 holes for plates up to 33″ and 12 holes for plates between 33 and 40″.   You can order these plates with tape mounting, but on larger plates, it is not recommended, the plates are too heavy and they most likely will not stick. We can also ship them with no holes, if you want to drill your own holes. You can glue them on, I would recommend liquid nails, and come C Clamps with the door on saw horses.

Custom sizes available starting around $0.21 per square inch depending quantity

Please allow 1 week shipping time

The PBB Shim Hinge is for use in Fire Doors where the doors are not square.  Putting cardboard or wood shims on fire doors is prohibited, so they have come up with a solution where one of the leaves are drilled tapped and a set screw is inserted.  These hinges are only available in 4.5 x 4.5 sizes in brushed chrome finish. They are sold in boxes of three hinges and come with wood and machine screws. The base metal is steel.

The Glynn-Johnson Overhead Door Holder 450 Series provide reliable and versatile surface-mounted overhead door control for all medium to light-duty applications. The visible components are available in a wide variety of architectural finishes to complement any design. The Glynn-Johnson 450 series holders and stops are designed for installation in virtually all types of doors and frames including doors with conventional butt hinges, offset pivots, continuous hinges, swing clear hinges and many other specialty hinges. The templates provided allow for variable mounting positions, ranging from 85° - 110° of opening.

The 450 Series replaces the older GJ360, GJ370 and GJ380 Series.

GJ450 Catalogue

The Dorma 8400 Center Case Cover is used the 8000 Series Surface Vertical Rod Devices.  The cover is black plastic, the screws are not included.   Dorma Part # CHCOV84

• Handed
• Top, header mount
• Bottom, jamb mount
• Use with 1-3/4" minimum door thickness, with 1/8" bevel in 2"
• Maximum door load 200 pounds
• Vertical adjustment range 3/16", with positive locking

Handing diagram

Dor-o-matic 1790 Center Case Cover Screw

For devices shipped before September, 2004

Doromatic part # SCREW.1025 or PB324

Dor-o-Matic 1790 Repair Parts Breakdown

The Cal-Royal 4500 Series Lever Trim is for use on the 45-RIM and 45-SVR Exit Devices. The Lever Trim is non handed and ships with a 6-pin C Keyway Cylinder. The function is Classroom, which means the key will lock or unlock the lever. The lever also incorporates a clutch function so the mechanism will not break when excessive force is applied to the lever.

Cal-Royal 9000 Series Lever Trim HDESC is for use on the 9800 and 9800 Exit Devices. The Trim has a clutch mechanism to prevent breaking and two heavy duty springs to prevent sagging. Escutcheon measures 2-5/8 inches wide by 10-5/8 inches long.  The lever projects out 2-7/8 inches. Key locks or unlocks lever.

The Cal-Royal 2000 and 9000 Dogging Assembly is used on the 2200 and 9800 Series Exit Devices which include the 2200, 2260, 9800 and 9860.  The assembly uses a 7/32 inch dog key.

The Glynn-Johnson 81 Series Overhead Door Holder Surface Mounted provide rugged, heavy-duty door control. The jointed-arm design provides the most effective stop mechanism available. The shock absorber bracket is surface mounted, usually with sex bolts. The jamb bracket is mounted to the stop of the frame, so a minimum of door and frame preparation is required.

GJ80 Catalogue

New for 2024 the Falcon MEL 47867200 Mechanical Latch Retraction. Retrofits all 1690, 1790, 24 and 25 Series devices to Mechanical Latch Retraction. This new system uses the PS902 Power Supply.  The benefits for the MEL Series over the Older EL series are lower power draw (1 amp verse 16 amp), and more flexible power supply location, longer wire runs and thinner guage wires.

Exterior or Interior Doors
Weight to 450 lbs.*
Door Width up to 4'0"(1219mm)
Includes 180 top pivot
Handed

The Falcon Dor-O-Matic 1690 Auxiliary Package PKG.150 is one of the installation packages shipped with new devices.   The kit includes the Rod Bearing Bushings (G199003), Traveler Lift Bracket, Retaining Rings (G199004) and 5/32" Dog Key (88R60).

The Corbin Russwin 650F54 is used on the ED4400, ED4800, ED5400 and ED5800 Surface Vertical Rod Devices as the Top Latch Strike. The Strike used to have a roller on it, they no longer have the roller.

The Ives Wall Bumper Stop WS407-CVX our economically price convex wall bumper.  The metal ring is a wrought stainless steel, otherwise known as stamping.  It features a concealed tamper-proof mounting, and is shipped pre-assembled to the back plate is reduce installation time.   Installation is easy, just insert the screw driver through the pin hole in the rubber and tighten.  The bumper is 2-1/2" in diameter and projects out 1".

Exterior or Interior Doors
Weight to 600 lbs.*
Exterior Door Width up to 3'0"(914mm)
Interior Door Width up to 3'6"(1067mm)
Includes 180 Top Pivot
Handed

Handing diagram

The Brushed Stainless Steel Door Kick Plate 16 Gauge .050 is the most popular.  Stainless steel offers one of the best material for commercial applications. They are very hard, and do not dent easily. The also offer the best corrosion resistances out there.  We use type 304 stainless

Stainless Steel Kick Plates can be mounted by screws, two way tape, and they can be glued to the door. Our plates come standard with screw mounting. The manufacture sends #6 x 5/8″ Oval Phillips Undercut Stainless Steel screws. The number of holes on the screw mounted plates is determined by an industry wide standardize template. A height between 6-10″ will have 10 holes for plates up to 33″ and 12 holes for plates between 33 and 40″.

You can order these plates with tape mounting, but on larger plates and especially plates with a stainless steel base metal, it is not recommended. Stainless Steel plates are too heavy and they most likely will not stick. We can also ship them with no holes, if you want to drill your own holes.  Stainless Steel is very hard and a drill press would be recommended. You can glue them on, I would recommend liquid nails, and come C Clamps with the door on saw horses.

Custom sizes available starting around $0.23 per square inch depending quantity

Please allow 1 week shipping time

Yale 791 Top Strike

Used on the Yale 7110, 7110F, 7120F, 7210MF, 7220MF, 2110F and 2110 Series Vertical Rod Exit Devices.  Used as the Top Strike.  This is the same strike as the Corbin Russwin 650F54 or 650F54-8.  This strike no longer uses a roller.

Yale Part # 791

The Push Bar W/Offset Grip 422X39 is usually found aluminum framed glass store front doors.  It is constructed of 1" diameter solid aluminum, brass, bronze or stainless steel, depending on the finish.  The handle or grip will have either a 8", 10", 12" or 18" center to center screw spacing.  The push bar center to center length is determined by you, we can do any reasonable size.  Establish the center to center dimension by subtracting the width of one stile from the width of the door. On solid doors, subtract 5" from the width of the door.  All the fasteners are included, and are determined by the material your door is made of (wood or metal).   Please allow 3-4 weeks on the Dark Bronze and Aluminum, and 2 weeks on the other finishes.

Finishes

Yale 2100 Series Dogging Assembly

yale Part # 60-2100-1001-999

The Dorma 8831 Top Arm for RTS88 is for use on Single and Double Acting doors.  This arm is known as a side load arm, and usually has a notch in the door at the top to access the arm fastening block.  This piece measures 10-1/2" long by 1-3/8" wide at the widest part, and is 1/2" thick.  This is the standard arm in the RST01 and RST02 Packages.

Dorma Part # 8831

The Dor-o-Matic Falcon 4758959 Soleniod is used on the EL1690, EL1790, and EL2390 Electric Latch Retraction exit devices.  The Solenoid measures 4-1/8 inches long including mouting flange, and has an 1-3/4 inch diameter.  The mounting screw spacing is 1 inch on centers. The Plunger is included and has a 7/8 inch diameter and is 2-15/16 inches long.  We find the number 971687 on the solenoid.

7-1-2025 No longer available.  If you have the 1690 or 1790 you can update your exit to the new mortor 47867200

Application
Interior Doors
Weight to 250 lbs.*
Door Width up to 3'6"(1067mm)
Includes 180 Top Pivot
Handed

Handing diagram

The Sargent Parallel Arm Bracket 125-P is for use with the 25-O regular arm, to convert it to a parallel arm mount.   A parallel arm mount is when the door closer is mounted on the push side of the door and the arm is parallel to the door when in the closed position.

Sargent part # 125-P9

The Ives Wall Bumper Stop WS407-CCV our economically price concave wall bumper.  The metal ring is a wrought stainless steel, otherwise known as stamping.  It features a concealed tamper-proof mounting, and is shipped pre-assembled to the back plate is reduce installation time.   Installation is easy, just insert the screw driver through the pin hole in the rubber and tighten.  The bumper is 2-1/2" in diameter and projects out 1".

The Ives 112HD Continuous Full Mortise Hinge Geared Hinge measures 83" long and is constructed of extruded aluminum.  This hinge is non handed, and will work on doors up to 48" wide and 450 pounds.  You can easily cut this hinge in the field if your door is less than 83" high.

The Push Bar With Offset Grip M422XM39 is usually found aluminum framed glass store front doors.  It is constructed of 1-1/4" diameter solid aluminum, brass, bronze or stainless steel, depending on the finish.  The handle or grip will have either a 12" or 18" center to center screw spacing.  The push bar center to center length is determined by you, we can do any reasonable size.  Establish the center to center dimension by subtracting the width of one stile from the width of the door. On solid doors, subtract 5" from the width of the door.  All the fasteners are included, and are determined by the material your door is made of (wood or metal).   Please allow 3-4 weeks on the Dark Bronze and Aluminum, and 2 weeks on the other finishes.

Finishes

The Glynn-Johnson Overhead Door Holder 100 Series Concealed Mounting, provide the most reliable and versatile concealed overhead door control. They are designed for installation on virtually all types of doors mounted on conventional type butt hinges, pivots, continuous hinges, swing clear hinges and numerous other specialty hinges. When used in conjunction with many surface-applied door closers, Glynn-Johnson 100 series holders and stops provide the most effective control for entrance doors and vestibule doors of all types, as well as heavy or often used interior doors. Templates provided allow for variable mounting positions, ranging from 85° - 110° of opening.

Painted finishes are also available. Please Call 1-800-642-2403

GJ100 Catalogue

• Handed
• Top, header mount
• Bottom, base plate mount
• Use with 1-3/4" minimum door thickness, with 1/8" bevel in 2"
• Maximum door load 200 pounds
• Vertical adjustment range 3/16", with positive locking

Handing diagram

The Brushed Stainless Steel Door Kick Plate 18 Gauge .037 is the lightest duty stainless steel plate we offer .  Stainless steel offers one of the best material for commercial applications. They are very hard, and do not dent easily. The also offer the best corrosion resistances out there.  This plate is ideal as a replacement for Brushed Chrome kick plates. Brushed Chrome Kick Plates are usually a bronze plate that is chrome plated. The problem with bronze is it is a soft metal and dents easily. The stainless steel plates are a lot harder and more resistant to dents. Brushed chrome looks identical to brushed stainless steel.  We only use type 304 stainless.

 Stainless Steel Kick Plates can be mounted by screws, two way tape, and they can be glued to the door. Our plates come standard with screw mounting. The manufacture sends #6 x 5/8″ Oval Phillips Undercut Stainless Steel screws. The number of holes on the screw mounted plates is determined by an industry wide standardize template. A height between 6-10″ will have 10 holes for plates up to 33″ and 12 holes for plates between 33 and 40″.

 You can order these plates with tape mounting, but on larger plates and especially plates with a stainless steel base metal, it is not recommended. Stainless Steel plates are too heavy and they most likely will not stick. We can also ship them with no holes, if you want to drill your own holes.  Stainless Steel is very hard and a drill press would be recommended. You can glue them on, I would recommend liquid nails, and come C Clamps with the door on saw horses.

 Custom sizes available starting around $0.22 per square inch depending quantity

 Please allow 1 week shipping time

Full Mortise Double Swinging Spring Hinge

Used mainly for commercial kitchen doors,  or any commercial double swinging door.   Sold in sets of 2 hinges, they will handle doors up to 75 lbs that are 1-3/4" thick.   If you door weighs between 75 and 107 lbs, you should use 3 hinges.  The door flange is designed for a standard 4-1/2" x 4-1/2" template mortise.   Hinges ship with wood and metal mounting screws. They come in a standard Painted Primed Finish Gray.

The jamb flange is .100" thick, the door flange is .134" thick and the barrel diameter is 1.18".

Exterior or Interior Doors
Weight to 500 lbs.
Door Sizes up to 3'8"x 8'6"
Includes 340 top pivot
Non-handed

Sargent 97-2434 Old Style 8700 Top Latch

The Sargent 97-2434 Old Style Top Latch was used on the 8706, 8710, 8713, 8715, 8728, 8740, 8743, 8746,  8762, 8763, 8773, and 8774 Series Surface Vertical Rod Devices before November 11, 2002.  We sometimes fine the casting number of 97-0317 stamped on the back of this latch.  This Top Chassis has 3 mounting holes.

Sargent Part # 97-2434

• For 1-3/4" (44mm) doors standard
• Through-bolted with 3 mortise nuts
• Pulls project 1-1/2" (38mm) from door face
• GTB Design trim will cover a 161 cutout

Replacement LCN 4640 (4642) Door Closer Arm. Arm is Non handed and ships with screws.

LCN Part # 4640-3077

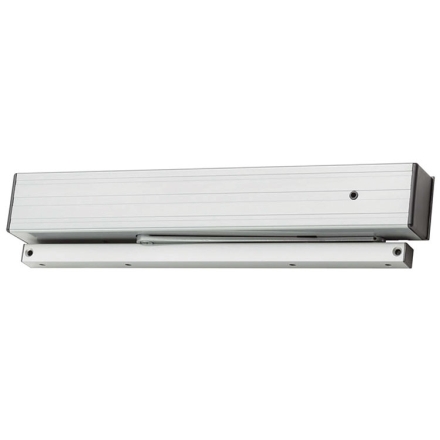

The 4311HSA SENTRONIC is an electrically controlled closer/holder designed to provide easy passage for groups of pedestrians through high traffic doors. Pedestrians, moving through the doorway, trigger the built-in scanner. When the door is opened to 80° or more, the door is electrically held open to minimize wear and tear on applied door hardware. After the last pedestrian in a group passes through the doorway, the system timer releases the hold-open, closing the door under control of the heavy duty closer. Single lever (track) arm closer is specifically designed for pull side mounting. Choice of finishes and accessories meet virtually all high traffic installation requirements.
