Adams Rite New Style metal end cap for the 3700, 8700 and 8800.
The black cap measures 2-3/8" high x 1-1/2" wide x 1-1/4" projection.

Adams Rite Part # 41-0902-03-IP

Falcon 2130 Bottom Latch Strike

The Falcon 2130 Bottom Latch Strike is used on the 19-V, 24-V, 25-V and XX-V devices.  This strike usually fits into the threshold or is recessed into the floor.

Falcon Part # 2130

Zipper Pile Weatherstrip .270" Backing - .200" Pile Height - 100' Roll

Replaces Old or Worn-Out Pile Weatherstripping in Doors and Windows. New Zipper Tooth Design Allows Pile to Easily Snap in from Above the Extrusion Slot. High Density Gray Pile with Double Center Fin.

Zipper Pile Weatherstrip .270" Backing - .250" Pile Height - 100' Roll

Replaces Old or Worn-Out Pile Weatherstripping in Doors and Windows. New Zipper Tooth Design Allows Pile to Easily Snap in from Above the Extrusion Slot. High Density Gray Pile with Double Center Fin.

The Adams Rite 4580 cam is used on the the 4500 and 4900 Dead Latch Paddles.  The 4580-500 is for Left Hand, and the 4580-600 is for Right Hand Doors.

Jackson 1285 Actuating Lift Assembly

G302669  LHRB
G302675 RHRB

The Monarch / Dor-O-Matic / Falcon 600339 NL Spring Package converts the 179L , 712L, 712K, 912l and 911K to an NL function.   The NL function is  one were the Lever Handle can not be unlocked and left in the unlocked position when the key is removed.   Spring has a 5/8" diameter.  See attached instructions.

Doromatic Mounting Stud. Male stud mounts to the door and the housing slides over.

Doromatic part # PB2 and also STUD.101

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

The Von Duprin Dogging Adapter 090043 is the piece that the 090042 and 090040 fit through and lock in place.  These piece very rarely has to be replaced.  The Shaft 090040 is usually the part you need to replace.  We sell these individually.

The Door Push Plate 70 is our thickest plate we offer.  The plate is 1/8" thick, and is aluminum, brass, stainless steel, or bronze depending on the finish.  All 4 edges are beveled.  We offer this plate in many sizes, and it ships with matching mounting screws.

Finishes

Sex Nut 1/4-20

1-3/4" Long X 3/8" diameter constructed of aluminum

screw not included

The Von Duprin Dogging Spring 090041 is the spring that activates the Dogging Hook # 090044.  These do occasionally fail, we sell them individually.  It is # 3 on the diagram.

Dor-o-matic bottom rod guide. Fits up inside the door to take up slack in bottom rod. Also known as the GPB134 and G1990134

Doromatic part # 4270107176

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1690 Repair Parts Breakdown
Falcon / Dor-o-Matic 2390 Parts Break Down

The Falcon Doromatic Latch Screw PB17 is also known as the SCREW.1029 and the GPB17.  The screw is a 10-32-1/4" with an undercut head.  This screw is used to hold the top and bottom latches on the door for the 1690 and 1990 series devices.

The Corbin Russwin 651F62 Blue Lever Spring is same part as the Yale Lever Trim Spring. Used on Yale and Corbin Russwin RHR or LH Doors outside trim lever handles. The spring has an 1-1/4" OD and 1-1/8" ID.

Yale Part # 60-7000-1224-999
Corbin Russwin # 651F62

The Von Duprin 55 Arm Brushing 050333 takes up the slack between the lever arms and the housing.  It measures 13/16" outside diameter by 5/16" high.

Von Duprin 050333

• Standard top pivot for heavy-duty offset
pivot sets
• Heavy-duty needle bearings are standard
• Non-ferrous base metal
• 3/4"(19mm) offset (measured from
centerline of pivot to face of door)
• Furnished with wood and machine screws

Handing diagram

The Von Duprin 2227 Bottom Latch 050090 replaces and updates all 2227 bottom latches to the new style if you device was shipped before October 1998. If your device was shipped after October 1998 then use the G050401.

Includes screws and bracket

Von Duprin Part # 050090

On this Adams Rite End Cap we sometimes find the number HX0471 cast into the Black Plastic construction.  It measures 2-3/8" high by 1" deep, with a projection of 1-1/4". It is used on the 8099, 8100, 8200, 8300, 8400, 8500, 8600, 8700, 8800 and 8900.

Adams Rite Part # 25-0471-IP

Falcon 299 Strike

The Falcon 299 Strike is used on the 25-R and 24-R Devices.  The 299 strike measures 1-1/4" wide by 2-7/8" high with a slotted hole spacing of 2-1/8". The roller projects out 13/16".  This strike is the same as the Von Duprin 299 Strike.

Ships with shim and mounting screws

Falcon Part # 299

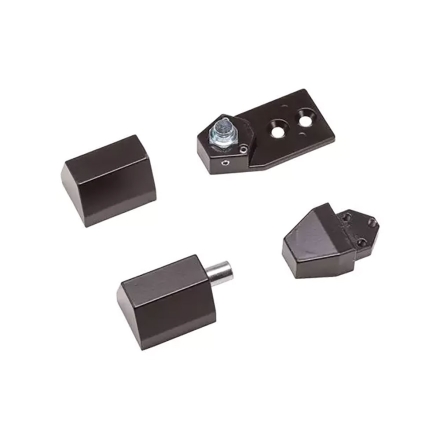

Non-Handed Offset Storefront Pivot Hinge Set, includes top and bottom pivots and all the fasteners.

The Norton 7700AS Arm Stud is for use on the 7700PT Power Track Closers.  The stud connects the arm to the slider (7700SLD) and is held in place by the Retaining Ring (7700ASR).   This piece is approximately 1" long.

Dor-O-Matic 1690/1790/2390 Dogging Assembly PBX-16

Falcon Doromatic 1690, 1790, and 2390 replacement dogging assy. The dogging assembly is used to dog the door in the open position, so people can enter the building without having to unlatch the door for the inside or with a key on the outside.  The KIT.1197 comes complete with mounting screws.   Some of the earlier version where riveted into the rail, so you might need to drill out the rivets, the screws shipped with KIT.1197 have self tapping thread forming screws.

Doromatic part # KIT.1197

Dor-o-Matic 1690 Repair Parts Breakdown
Dor-o-Matic 1790 Repair Parts Breakdown
Falcon / Dor-o-Matic 2390 Parts Break Down

Sargent 2828 / 2838 Center Case Cam

The Sargent 2828 / 2838 Center Case Cam is the Cam that the key cylinder actuates to open the door.   The Cam is located in the middle of the Center Case.  We can no longer get the retaining ring to hold it in place.

Sargent Part # 28-0109

Yale Trim Spring Red

Same part as the Corbin Russwin Lever Trim Spring. Used on Yale and Corbin Russwin LHR or RH Doors. The spring has an 1-1/4" diameter.

Yale Part # 60-7000-1225-999
Corbin Russwin # 651F61

Von Duprin 88 NL Cylinder Cam

Von Duprin part # 951970 and 050502

The LCN Fusible Link melts at 165 degrees to release the hold open mechanism.   Link measures 1-3/8 long by a 1/2" wide, the center to center distance on the holes is 15/16".

LCN Part Numbers:
4010-28
4110-30
4020-31

Adams Rite 8600 Strike Plate Assembly

The 31-0945 has a 1" outer diameter.

Adams Rite Part # 31-0945

The Von Duprin 99 Cover Mounting Bracket is used on the 98 and 99 Series Covers.

Part # 050564
Old Part # 969864

The Norton 7700SLD Slider for replacement of the 7700PT Series Power Track Closers.  This is the piece that slides in the track and the arm attaches to.  The unit measures 2-1/16" long by 1-1/4" wide and 5/8" thick, not including the metal clip on the back.

The Jackson 1285/1295 Push Bar End Cap Package comes complete with the right and left side caps, mounting bracket and screws.  This piece is available in aluminum (silver) and dark bronze (dark brown).

Jackson Part # 30-2650

The Von Duprin 88 Wedge Ring 090020 is also used on the Von Duprin 55's.  The Wedge Tite Screw applies pressure on the Wedge which expands the Tube Attaching Ring to grip the Cross Bar. Measures 5/8" on the flat edge.

Von Duprin Part # 090020
Old Part # 956520

Von Duprin 8827 Top Rod Connector

Inserts into rod so the latch can connect to the rod. The top vertical rod does not ship with the top rod connector!

Von Duprin Part # 050279
Old Part # 960577

Adams Rite Old Style Dogging Pin 24-0730

This Adams Rite part is a replacement for worn or stripped dogging pins. The pin has a 1/8" allen head hex.

Adams Rite part # 24-0730

The Corbin Russwin 651F61 Red Lever Spring is the same part as the Yale Lever Trim Spring. Used on Yale and Corbin Russwin LHR or RH Doors on there outside trim Lever Handles. The spring has an 1-1/4" OD and 1-1/8" ID.

Yale Part # 60-7000-1225-999
Corbin Russwin # 651F61
