Monarch 19 Series End Cap

Black plastic end cap measures 2-1/16" high by 1-5/8" wide with a 1-7/16" projection. Cap mounts on to the two mounting holes fo the End Cap Bracket which are about 9/16" on center.

Monarch Falcon Part # 650343 or old part # 6135

Von Duprin 880/990 Trim Hex Stud

This is the Hex Stud used on the 880 and 990 Trim Plates. The threads are 7/32-24. Overall lenght is 2"

Von Duprin Part # 956760

Von Duprin 090069 33/3547 99/9947 Ratchet Lever Spring (2)

One of two springs located in the 33/3547 and 98/9947 Top Latch 050492.  Sold in packages of 2.

Von Duprin Part # 090069

Von Duprin 992/994 Lever Lift Spring 971573

The spring measures 1-5/8" long with a 7/16" diameter. We find two of these springs per 992 and 994 series lever trims. These springs help support the lever handle and return it to the proper position.

Von Duprin Part # 971573-00

Von Duprin 8827-F Special Hex Stud Kit

The Von Duprin Special Hex Stud mounts on the upper and lower latches.  The cover attaches to the Hex Stud, it is like a spacer.

Von Duprin Part # 050478
Old Part # 961218

The Von Duprin 090076 Spring is located in top latch of the Surface Vertical Rod.  It is used on the 2227, 3327A, 3427A, 9827 and 9927 models. It is number 18 in the attached diagram. They are sold in packages of 10.

The Von Duprin Strike 385A is used on the floor for the Von Duprin 2227, 8827, 9827 and 9927 Surface Vertical Rods. Von Duprin recommends this strike if you are mounting the bottom strike in wood.  The strike face plate outside dimensions are 2-1/4" x 2-1/4" with an inside dimension of 1-1/8" by 1". This floor strike features a bolt that can be cemented into the floor.  This is an optional strike when added security is needed.  Zinc plated finish.

The Von Duprin 8827 050467 Bottom Latch And Cover is the 050461 (latch) and 050464 (cover) in one convenient package. The package includes the cover screws and mount screws.

Von Duprin Part # 050467

Von Duprin 8827 Chassis Tie Rod Pkg 050328

The 8827 Chassis Tie Rod Package is the rod that goes through the top and bottom latches. The Tie Rod is held in place by the Special Chassis Nut. The Tie Rod measures 1-3/8" long by 3/16" diameter.

Von Duprin Part # 050328
Old Von Duprin Part # 967616

The Von Duprin 050390 Bottom Mullion Fitting is the Bottom Fitting for the 1654, 4754, 4854, and 4954 Von Duprin Mullions. The 050390 measures 5/8" thick by 2" wide and 3" long excluding the flange the projects out the one end.   We find the number 961040-70  ESE cast right in the fitting.  The mounting holes are 2-1/4" on center.  Mounting Screws included.

Von Duprin Part # 050390

The Von Duprin 1654-4954 Mullion Brackets 050330 are the top and bottom mullion fittings for the 1654 and 4954 Mullions. . Includes Top and Bottom Fittings, screws and mounting shields.

Von Duprin part # 050330

The Von Duprin 373L Lever Control Spring 090091 and 090092 are used on the 371, 373, 375 and 378 Lever Handles.  The spring is used to return the lever to the horizontal position.  Sold in packages of 4 springs.

Von Duprin Part #
090091 Left Hand Reverse
090092 Right Hand Reverse

The Polished Stainless Steel Door Kick Plate is 16 gauge, or .050″ thick. Stainless steel offers one of the best material for commercial applications. They are very hard, and do not dent easily. The also offer the best corrosion resistances out there.  We often have people looking for Brushed Chrome or Polished Chrome, but the appearance of the two finishes next to each other is very difficult to tell which is which. Also a brushed chrome or polished chrome kick plate would be a brass plate which is then chrome plated and brushed or polished depending on the plate. Brass is a soft metal that dents easily, and also does not offer the corrosion resistance that stainless steel does. Since stainless steel is stable in any environment, they do not have to clear coat the plate.

Kick Plates can be mounted by screws, two way tape, and they can be glued to the door. Our plates come standard with screw mounting. The manufacture sends #6 x 5/8″ Oval Phillips Undercut Stainless Steel screws.  The number of holes on the screw mounted plates is determined by an industry wide standardize template. A height between 6-10″ will have 10 holes for plates up to 33″ and 12 holes for plates between 33 and 40″.

You can order these plates with tape mounting, but on larger plates and especially plates with a stainless steel base metal, it is not recommended. Stainless Steel plates are too heavy and they most likely will not stick. We can also ship them with no holes, if you want to drill your own holes. This is fine on the Brass and Aluminum base metals, but again Stainless Steel is very hard and a drill press would be recommended. You can glue them on, I would recommend liquid nails, and come C Clamps with the door on saw horses.

Custom sizes available starting around $0.37 per square inch depending quantity.

Please allow 1 week shipping time

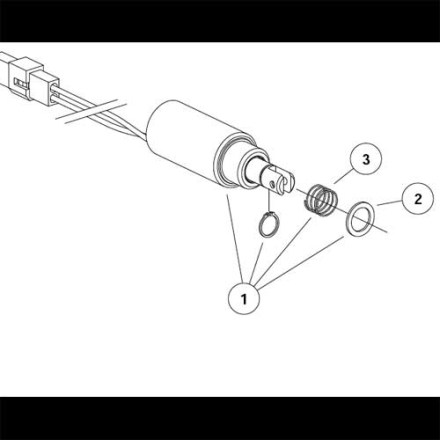

The Von Duprin 6000 Series Solenoid Kit is used to replace burnt out solenoids on there 6000 series.  To order determine the voltage and whether you have fail safe or fail secure.

Part # 050237 12 VDC (Fail Safe & Fail Secure)
Part # 050239 16 VDC (Fail Safe & Fail Secure)
Part # 050240 24 VDC (Fail Safe & Fail Secure)

The Von Duprin 99 Rim Center Case Cover 050071 replaces your old 1 or 3 piece covers.  Included in the package is the cover and the mounting screws.

Von Duprin part # 050071

Adams Rite New Style end cap for the 8700 and 8800.
The black cap measures 2-3/8" high x 1-1/2" wide x 1-1/4" projection. We some times find the number 25-0674-01 cast in the black plastic.

Adams Rite Part # 41-0901-03-IP

Von Duprin 050484 33/3527A Center Case Cover

Replacement Von Duprin 33/3527A Surface Vertical Rod Center Case Cover Kit.  Screws come with the new cover.

Von Duprin Part # 050484

Back to Back mounted 1 inch diameter stock.  One handle will be threaded and the other will be a female fitting that snugs the handle with a set screw.  The standard Stud that ships with the handle is for an 1-3/4 thick door.

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.

This Von Duprin Strike 304L Bottom Strike is used for the bottom latch of the 2227, 8827, 9827 and 9927. The strike measures 1-7/8" by 1-7/8" out dimension of the square flange, with an inside dimension of 1-1/8" by 1-1/8". The part that is inserted into the floor is 1-5/16" x 1-5/16" and drops down 13/16". Also known as a Von Duprin Floor Mounted Mortise Strike.

Von Duprin Part # 304L

Von Duprin 386NL Dummy Trim

This Von Duprin 386NL Night Latch Trim is just a pull handle. The bolt pattern of the trim plate lines up with the Von Duprin 33A on the inside so they are on cohesive unit. The base plate measures 7-15/16" by 1-5/8". The grip measures 8-1/2" by 4-5/16" with a 2-7/16" projection. This 386NL Night Latch Trim is handed. Uses a standard Rim Cylinder.

Von Duprin 050073 98/9947 98/9949 98/9975 Case Cover

Cover for the Von Duprin 050022, 050029 and 050030 Center Chassis Assemblies.  Cover includes mounting bracket and screws.

Von Duprin Part # 050073

Von Duprin 8827 Special Chassis Nut 050277

The 8827 Special Chassis Nut goes on the ends of the 8827 Chassis Tie Rod. The Nut is threaded all the way through so the cover mounting screws can then be threaded on it also. The nut is 3/8" long by 1/4" hex.

Von Duprin Part # 050277
Old Von Duprin Part # 960652

The Corner Guard 301 are a great way to protect corners and edges of doors.  Fabricated from 16 gauge (.050") thick metal they measure 1" on one arm and 1-3/4" on the other, and can come in any length.  Standard lengths are 36", 42" and 48", but we have the capability to modify to your specifications. This product is ideal for high traffic or areas of high abuse.   They come standard with screw mounting, but other options are available.

Screws included for mounting

Finishes

The Von Duprin Strike 264 measures 2-7/8" tall by 1-1/4" wide with a roller projection of 9/16". Used on the Von Duprin 22, 88, 98 and 99 when a lower profile strike is need in place of the Von Duprin 299 Strike. The hole spacing is 2-1/8" on center, and it ships with mounting screws and a shim. Also known as a Von Duprin Surface Roller Strike.

Von Duprin Part # 264

Von Duprin 050485 33/3547A/49A Center Case Cover

Replacement Von Duprin 33/3547A/49A Concealed Vertical Rod Center Case Cover Kit.  Screws come with the new cover.

Von Duprin Part # 050485

The Glynn-Johnson 79 Series Overhead Door Holder Surface Mounted are constructed primarily of Brass and 300 series Stainless Steel substrates, with several components fabricated of Steel treated to resist corrosion. Models in the 70 series utilize a 1/2"-diameter stainless steel bar, while the 79 series uses a 3/4" stainless steel bar. The bar is always provided in US32D. The spring, washer and nut are provided in a clear zinc finish.

GJ70-79 Catalogue

Glynn-Johnson 70 Series Overhead Door Holder Surface Mounted are constructed primarily of Brass and 300 series Stainless Steel substrates, with several components fabricated of Steel treated to resist corrosion. Models in the 70 series utilize a 1/2"-diameter stainless steel bar, while the 79 series uses a 3/4" stainless steel bar. The bar is always provided in US32D. The spring, washer and nut are provided in a clear zinc finish.

GJ70-79 Catalogue

Push Plate Plastic 90

1/8" thickness plastic

Sargent 700 ET Spindle Kit 730-7

This Sargent Kit 730-7 includes the spring, spindle and the associated plates. Look under "More Views" for a detailed look of this repair kit. The 730-7 is for 1-3/4" doors.   Shank measures 4-1/4" long, square spindle is 5/16" square.

Sargent Part # 730-7

The Von Duprin 99 Mechanism End Cap 050014, also known as 33A/35A/98/99/330/350 Impact Resistant End Cap Kit.  Replaces all of the old versions of the 98/99 End Caps, the mounting holes may be different.  Includes end cap, bracket and all screws

Von Duprin Part # 050014
