The Adams Rite G86 Mounting Cap and Label with only work on the G86 Device.  The Cap measures 3-3/4" high by 1-1/8" with a 1-5/8" projection.

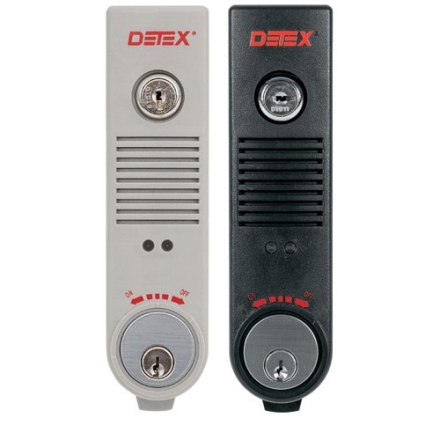

Detex EAX-500 Battery Powered Door Exit Alarm

The Detex EAX-500 Series is designed for applications requiring a battery-powered alarm on secured doors. The alarm, with approximately 100dB, will sound when an unauthorized exit occurs. The redesigned shape and smaller size of the EAX-500 makes it the ideal choice for quick and easy installations on emergency exit and restricted doors.

Mortise cylinder sold separately
Uses a standard 9 volt battery

Detex EAX-500 Installation Instructions

Von Duprin 22 / 2227 Push Bar End Cap

Cap fits on the ends of the Von Duprin 22 Series Push Bar.

Von Duprin Part # 968598

• Handed
• Top, header mount
• Bottom, base plate mount
• Use with 1-3/4" minimum door thickness, with 1/8" bevel in 2"
• Maximum door load 200 pounds
• Vertical adjustment range 3/16", with positive locking

Handing diagram

The Adams Rite EX76 End Caps are for the Concealed Vertical Rod Devices. The package includes the hinge side and latching side covers, along with the mounting screws. The aluminum color is no longer available, only Black.

The International Door Closer 200 Series Overhead Concealed Closer has been in there line up for at least 20 years.  It is designed as a replacement for the Jackson 20-330 concealed closer.  This closer is a fixed spring closer with two adjustment valves, one for closing and one for latching speeds.  It has a built in positive back stop and hold open positions, if you order the hold open option.  To order select the desired opening swing (90 or 105 degrees) and hold open or non hold open.  This is just the hydraulic cylinder, the arms are sold separately.

2000-B-230 105 with Hold Open
2000-B-231 105 with No Hold Open
2000-B-232 90 with Hold Open
2000-B-233 90 with No Hold Open

The Adams Rite EX88 and EX89 End Caps are for the EX Series Interlocking and Pullman Rim Devices.  The package includes the hinge side and latching side covers, along with the mounting screws.

Adams Rite G86 End Cap Parts Package 91-0943

Effective December 20, 2024 the EL1590 has been discontinued.  Falcon Doromatic is working on retro-fit plates to work with the MEL1690.

Dor-o-Matic/Falcon EL1590 Panic Device with Electric Latch Retraction

The Dor-o-matic 1590 is our heaviest device and offers a clean appearance with push pad styling and a variety of practical features. The Dor-o-matic 1590 is built with rugged steel operating mechanisms, and durable aluminum push bars and end caps.

Requires a Power Supply

Replacement parts are also available

Shipped with all screws and strikes.

Falcon / Dor-o-Matic EL1790 Panic Device

The same as the Falcon / Dor-o-Matic 1790 with Mechanical Electric Latch Retraction. Some of the features are listed below. A power supply is required.

Hand: Field reversible, non-handed.
Centercase and end cap are powder-coated black only.
Cylinder: Rim, key entry (NL) or hold back (HB) feature available.
Field selectable.
Sizes: 30", 36", 42", and 48".
Doors: 1-3/4" thick metal doors, specify if other.
Projections: 3-3/8" in neutral position, 23/8" in dogged position.
Pushbar height is 2-1/2.
Stile: 1-3/4" minimum.

1 amp, 24 volt

Replacement parts are also available

Shipped with all screws and strikes.

The Corbin 100, 110 and 120 Door Closer are no longer available. They have been replaced by the DC6210, which has the same hole spacings and arm. You will not have to redrill or modify your door to make the DC6210 work in place of your existing 100, 110 or 120 door closers. The DC6210 has a little bit larger body due to the increased functionality of this closer. This new closer will meet all the ADA requirements.

Corbin Russwin’s history combines high-quality product and innovative design. That tradition continues with the new Grade 1 DC6000 Series door closer, designed and engineered with quality features such as captured valves and a complete range of new arms. The DC6000 series is the perfect closer for high-use openings or openings that must meet ADA requirements, such as schools, office buildings, health care facilities, and retail complexes. The series also meets UL and UL10C positive pressure requirements for fire openings.
Uses the same mounting bracket as the 100, and 2800 series.

Older models may have SL72 or MS93 cast on the cylinders. You may also find Clarksdale, MS cast on the cylinder also.

Adams Rite New Style end cap for the 8700 and 8800.
The black cap measures 2-3/8" high x 1-1/2" wide x 1-1/4" projection. We some times find the number 25-0674-01 cast in the black plastic.

Adams Rite Part # 41-0901-03-IP

The ESC6600 are non handed, with a Grade 1 thru bolted design. It features a clutch mechanism, double heavy duty spring support to prevent sagging and a hardened stell heavy duty spindle. Entrance function, key locks or unlocks lever, operates as a Classroom Function. Ships with mounting screws and a 6-Pin Schlage Mortise Cylinder.

The Sargent 281 Door Closer is also known as the Powerglide, This closers meets ADA requirements, meets the Buy American Act, and is certified Grade 1, the heaviest rating possible.  The closer has the capability to be mounted on the push, pull or top jamb, and is non handed.  This closer is the replacement for the 1250 and 1251 series closers.  This closer has been the replacement for the 1250 since about 2000.  It is manufactured of an aluminum alloy.

Replaces the older Sargent 1250 and 1251 door closers, mounting holes will match

Dor-o-Matic Lock stile Push Bar End Cap

The Dor-o-Matic -Falcon 1690/1790 Lock Stile Push Bar End Cap PB318 is used on the 1690 concealed vertical rod and 1790 rim device.This is the end cap for the push bar and is located closest to the active housing.  Doromatic part # ECAP.129 or PB318

Dor-o-Matic 1690 Repair Parts Breakdown
Dor-o-Matic 1790 Repair Parts Breakdown

Plastic end cap for all Adams Rite Concealed Vertical Rod and Mortise devices, specifically the 8300, 8500, and 8600 Series.

Plastic cap measures 2-3/8" high by 1-1/16" wide by 1-1/4" projection. The metal tab measures 1-3/16" wide by 5" long.

Adam Rite Part # 41-0901-05-IP

Dor-o-matic Falcon 1690 and 1790 End Cap Bracket Screw. This screws holds the bracket that holds the end cap.

Doromatic part # SCREW.1070 or PB315

Dor-o-Matic 1690 Repair Parts Breakdown
Dor-o-Matic 1790 Repair Parts Breakdown

The International Door Closer 9001-TP Series is a relatively newer closer.  This closer features fully adjustable spring tension, closing and latching speeds and back check.  The narrow design allows for mounting on the top jamb of store front doors without a drop plate.  The closer is non handed, and can be mounted on the push, pull  or top jamb positions.  It meets all ADA requirements and is a Grade 1 closer, the heaviest rating possible.

3/4" X 11-3/32" Hole Spacing

Von Duprin 8827 surface mounted vertical rod devicesfor all types of single and double
doors, UL listed for accident hazard installations.Covers stock hollow metal doors
with 86 or 161 cutouts and fits door stiles as narrow as 3½" (90mm).

• Fully reversible
• Five popular finishes
• Field sizeable
• Hex key dogging
• 5/8"(16mm)throw latch bolt

Ships with all mounting screws and the 299, 304L and 248L-4 Strikes.

The Global Door Closer TC200 is recommended for use on all aluminum store front doors, wood or hollow metal commercial applications. It is a versatile utility closer that provides narrow styling and has a full selection of accessories to accomodate the requirement of any field installation.

In this series, our Global Door Closer TC201 is a multi-size spring model that offers adjustable power with a choice of range sizes 2-5 where high rates of closing force are required. Our TC201ADA model also offers adjustable spring power sizes 1-4 for use on interior doors requireing less than 5 lbs. of opening force and exterior doors requiring less than 8.5 lbs. This complies with ADA handicap codes and ANSI/BHMA standard requirements. Both models will retrofit most full size closers with a 9 1/16" industry standard hole patten to update any opening for code compliance.
Hole Spacing is 3/4" x 9-1/16"

Options: Specify when ordering:

• Finish - AL, DU
• Size 1-4 or 3-6

The Sargent Door Closer 1431 is also known as the Powerglide.  This closer meets ADA requirements and has a capability to be mounted on the push, pull or top jamb, and is non handed.  This closer can be used as a direct replacement for the older version 1230 or 1231 Sargent Closers without having to re drill the mounting holes.  This closer has been the replacement for the 1230 since about 2000.  It is manufactured of an aluminum alloy.

Retrofits existing SARGENT 1230/1231 Series Closer installations

The Doromatic 1790 rim device is typically used in applications where maintenance is a concern because the rim device has fewer parts and pieces than current exit devices. The result is less maintenance and adjustment. The streamlined design has no openings for chains, reducing the risk for code infringements and offering increased building security by eliminating the possibility of tampering and forced entry through the use of coat hangers and other tools. The Doromatic 1790 may also be used to retrofit a Doromatic 2090 series crossbar device.

Replacement parts are also available

Shipped with all screws and strikes. If you wish to use a key cylinder on the exterior, you will need the 1790 NL/HB Cylinder Assembly, 179CA.

The Norton Door Closer 1601 has been around for the past 40 years.  With the advent of aluminum framed glass doors, Norton was on for the first manufactures to come up with a narrow stile door closer.  Because of this, it is still one of the most popular door closer model out there.  It is a Grade 1 closer and has adjustable closing, latching, and back check speeds.  The model we ship also has adjustable spring tension to work on a wider range of doors.  The hole spacing is 3/4” x 9-1/16”.

Older models may be stamped with Scoville or Eaton, which are the companies that used to own Norton.  We sometimes find 20-1624-4001, or 20-1604-4001 stamped on the back of the closer. If your door closer is stamped 20-1603-4001 or 20-1623-4001, you might want to double check the hole spacing. The 20-1603-4001 usually has a hole spacing of 3/4" x 8-3/16", you could use the International Door Closer 853 as a replacement.

The Sargent Door Closer 351 is the most heavy duty closer made by Sargent.  This closers meets ADA requirements, meets the Buy American Act, and is certified Grade 1, the heaviest rating possible.  The closer has the capability to be mounted on the push, pull or top jamb, and is non handed. It ships with arm, plastic cover, parallel arm bracket and all of the fasteners.  The hole spacing is 2-1/2" x 9"

The Norton Door Closer 1601BF Barrier Free has been around for about 10 years. With the advent of aluminum framed glass doors, Norton was one of the first manufactures to come up with a narrow stile door closer. Because of this, it is still one of the most popular door closer models out there. It is a Grade 1 closer and has adjustable closing, latching, and back check speeds. The Barrier Free version just means you can turn the spring tension down to a size 1 spring, which will meet the ADA codes (less than 5 pounds of resistance). The model we ship also has adjustable spring tension to work on a wider range of doors. The hole spacing is 3/4” x 9-1/16”.

Norton 1600 Installation Instructions

Corbin Russwin DC6210 Door Closer

Corbin Russwin’s history combines high-quality product and innovative design. That tradition continues with the new Grade 1 DC6000 Series door closer, designed and engineered with quality features such as captured valves and a complete range of new arms. The DC6000 series is the perfect closer for high-use openings or openings that must meet ADA requirements, such as schools, office buildings, health care facilities, and retail complexes. The series also meets UL and UL10C positive pressure requirements for fire openings.
Uses the same mounting bracket as the 100,110, 120 and 2800, 2810 and 2820 series and also the , DC220, DC2400, and DC2600

Older models may have SL72 or MS93 cast on the cylinders.
You may also find Clarksdale, MS cast on the cylinder also.

The Von Duprin 106222 Racket Release Kit is used on the 3347, 3547, 9847 and 9947 Exit Devices.   The pin that projects from the block releases the top latch when the door closes, and locks the door shut.

Von Duprin Part # 106222

The heavy-duty 8900 Series non-handed surface applied closer
with adjustable spring power and backcheck positioning adjustment.
The 8900 has intensity adjustable hydraulic backcheck
that will take effect at approximately 65º. The 8900 has two
independent, noncritical adjustment valves to control sweep and
latch closing speeds. The backcheck positioning valve maintains
an effective backcheck range on parallel arm applications. The
8916 will be available with field adjustable spring power from size
1 to 6 for barrier-free requirements.

2-1/8" x 5" hole spacing

Detex EAX-500W Weatherized Battery Powered Door Exit Alarm

The Detex EAX-500W Series is designed for applications requiring a battery-powered alarm on secured doors. The alarm, with approximately 100dB, will sound when an unauthorized exit occurs. The redesigned shape and smaller size of the EAX-500W makes it the ideal choice for quick and easy installations on emergency exit and restricted doors.  The weatherized version is for use on out swinging doors that may get wet due to rain, or wet environments.

Gray Only

Mortise cylinder sold separately
Uses a standard 9 volt batthery

Detex EAX-500 Installation Instructions

Detex 101822 Value Series End Cap

Made of black molded plastic.  End Cap is has the numbers 101822 cast on the inside.  The hole spacing is 1-1/2" on center.

Detex part # 101822

Monarch 19-V Exit Device

Hand: Field reversible.
Functions: All functions built into “EO” device.
Finishes: Powder-coated aluminum–SP28; powder-coated duranodic–SP313;
Latchbolt: Top stainless steel 3⁄4" throw. Bottom square bolt 1⁄2" throw.
Deadlocking Latchbolt: Standard.
Dogging Feature: 1⁄2 turn hex dogging standard. No threaded parts to wear out.
Stock Sizes: 3'0" and 4'0"
Doors: 13⁄4" thick, wood or metal.
Narrow Stile Doors: To 1-3⁄4" N.S. aluminum. With control trim–2-1⁄4" min. stile.
Projection: 2-1⁄2" max., 1-7⁄8" dogged.

36" device is only 33-1/2" wide
48" device is only 43-1/2" wide

The TH1100-HK1 is the perfect solution for existing hinges that have failed, and is a quick and easy fix for compromised door openings.  Deluxe Hinge Kit TH1100-HK1 comes in a package of two hinges, 2 1/4" shims, and 12 one-way mounting screws.   The hinges are non handed, will work on Flush, and 1/8" offset door applications, have a self lubricating pin that rotates on anti-friction bearings, and have a vertical adjustment screw.   They are constructed of an aluminum alloy.

The International Door Closer 5001P Series Adjustable Spring Power is a great closer to use as a replacement for the many 3/4" by 12" mounting holed closers.  This door closer is fully adjustable with sweep, latching and back check adjustments, a long with an adjustable spring tensoin control.  This closer can be adjusted to less then 8-1/2" pounds of resistance to meet ADA standards.  You can install this closer on the push, pull or top jamb, we ship the regular arm and a parallel arm bracket.  This closer has the same mounting holes as the Norton 8000 and Yale 3000 door closers.

Hole spacing 3/4" x 12"

Adams Rite 8800 Panic Device

The 8800 features the Starwheel locking bolt that interlocks door to the door frame.  The 36" version is in stock, we can also get the 30", 42" and 48" devices, lead time is 2-3 weeks.  This device is used exclusively on aluminum framed glass storefront doors.  Replacement parts are available.

• Handed
• Top, header mount
• Bottom, jamb mount
• Use with 1-3/4" minimum door thickness, with 1/8" bevel in 2"
• Maximum door load 200 pounds
• Vertical adjustment range 3/16", with positive locking

Handing diagram

Detex Advantex Series End Cap 100147. Bracket measures 3-1/2 x 2-1/2 inches.
