The Von Duprin Panic Device 880NL Trim is for the 88 Series only.   The stanchions welded on the back of the plate line up with the88 device on the interior.  Optional key cylinder locks and unlocks the device, and can be used for dogging the door open.  Plate measures 3" wide by 14-3/16" long, with an 1-5/8" bore for cylinder.

Von Duprin part # 880NL-R

The Von Duprin Panic Device 990NL Trim is known as a Night Latch Trim.  This plate mounts on the exterior of the door, and the welded on mounting studs line up with the 99 device on the interior of the building.  The key locks and unlocks the interior exit device.  If you have a different manufacture or a different Von Duprin series on the interior, it will not line up.  On the back of this plate we usually find the number 990 stamped on it.  The plate shown here is for the Rim and Surface Vertical Rod 99 and 98 devices.  If you have a Mortise or Concealed Vertical Rod, call us and we will order that model.  The plate measures 3" wide by 14-3/16" tall.   Order here for the 990NL-R&V.  The key cylinder is sold separately.

The Falcon / Dor-o-Matic Panic Device 2090 / 1790 Standard Strike is the strike shipped with all new Falcon 2090 and 1790 exit devices.  The strike measures 1-3/4" high, 1-3/4" deep and only comes in a Black Matte color.  This strike was known for a long time as the Dor-o-Matic SD36 Strike, but after changing there name to Falcon in about 2008, it is know known as the Falcon SD36 Strike.

Dorma 8400 Surface Vertical Rod Exit Device minimize forced entry while offering a low-cost solution to life safety requirements. Certified/listed to ANSI/BHMA 156.3 Grade 1 for exit devices. 5 year limited warranty.

This is the same trusted Von Duprin 99 with Electric Latch Retraction, also known as EL.

The Jackson Panic Device Crossbar is for use on the 1085 and 1095 hardware.  The bar is 45" long and can be cut in the field with a chop saw or hack saw.  There is a groove the entire length of the bar for added and strength and for the thread forming screws to thread into.  The Jackson part number is 30-733-PKG, and it ships with the cross bar screws.

Jackson Part # 30-744PKG or 30744PKG

The Von Duprin 2227 Panic Only surface mounted vertical rod exit device for all types of single and double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3, 2001, Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. Fits door stiles as narrow as 3-5/8". For doors as high as 7'1", if your door is higher than 7'1", please call.  Ships with all mounting screws and the 299, 304L and 248L-4 Strike

The Von Duprin Pull Handle 972466/972467 replacement Grip/Handle only, screws not included. Cast bronze construction, and then plated to the selected finish. The Grip measures 15/16" wide by 6" long. The center to center hole spacing is 5-1/2". This handle works on the Von Duprin 608, 696, 880, and 990 outside trim plates.

Von Duprin Part # 972466 and 972467
Old Part # 969925 and 959122

The Jackson Panic Device 1085 Body Package includes 4 mounting studs, 3 housing set screws, 2 lever arm springs, 2 lever arm pins, and an actuator link.  Jackson part # 30-1409

Doromatic Exit Device 1590 Pushbar End Cap PB202

Cover the end of the 1590 Push Bar.  Made of die cast metal and electrostatically painted black.

Doromatic Part # 4270106875 or PB202

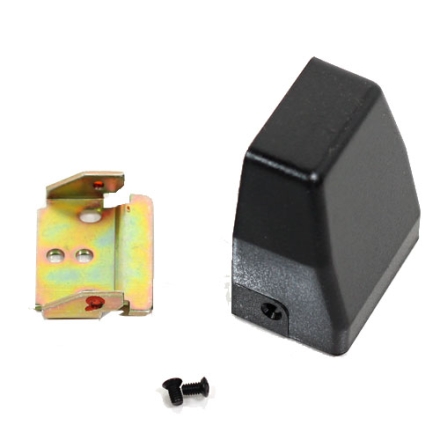

Sargent Exit Device 80 Series Plastic End Cap And Bracket

includes the end cap, bracket and mounting screws. This plastic end cap always breaks. You might want to consider trying the new impact resistant end cap shown in the related products, on the right hand margin of the page.

Used on the Sargent 80 Series Exit Devices

Part #'s 68-0561, 68-0511 and 97-0052

The Von Duprin Panic Device 230NL Trim is for use with the 22 Rim and 2227 Surface Vertical Road devices.  The key locks and unlocks the panic bar. The plate measures 3" wide by 12-1/16" high and has a plate thickness of 3/32".

The design of the Doromatic 1690 is ideal for demanding, high-traffic applications. The vertical rods and latch mechanisms are concealed in the vertical door stile, ensuring trouble-free operation. Cast metal cover plates and end caps hold up to rigorous use. A quick, singlepoint dogging feature in the housing deactivates the device, permitting unrestricted traffic flow. The Doromatic 1690 may also be used to retrofit a Doromatic 1990 Series crossbar device.

Replacement parts are also available

Shipped with all screws and strikes. The 1690NL Cylinder Assembly (169CA) is required if you wish to use a key cylinder on the exterior, SEE RELATED PRODUCTS toward the bottom of the page.

The Adams Rite Panic Device Dog Key is used on there older models.   The key is made of high density plastic, and is also known as Hex Key, Dog Key, Allen Key, Dogging Key.  Adams Rite part # 25-0480.

The Cal-Royal 9800 Rim Device is a grade 1 Heavy Duty Exit Device.   The 9800 has the same template as the 8800 and 9800 with escutcheon lever trim. The 36 inch device will be 32 inches wide and can be cut down an additional 2" to fit doors as narrow as 30 inches.  The 48 inch will be 44 inches wide and can be cut down to fit doors 36 inches wide. The device is non handed, meaning it will work on a left hand reverse or right hand reverse door. Strike and mounting screws are included.

The Von Duprin Panic Device 880TP Trim is for the 88 series only.  The stanchions welded on the back line up with the 88 device on the interior.  The optional key cylinder locks and unlocks the thumb piece.  The plate measures 3" wide by 14-3/16" long with an 1-5/8" bore hole for cylinder.

Von Duprin part # 880TP-R

Jackson Exit Device 1285/1295 Dogging Assembly

Package includes 4 screws, bracket and dogging bracket. Uses 1/8" dog key, our part # 88R6018

Jackson part # 30-2670

Simplicity
• Engineered with minimum components and maintenance-free
• Modular design allows for phased component installation. Chassis assembly can be mounted separately to secure the door during construction
• Retrofits to all applications
• One chassis design to accept all available functions/trims
Durability
• Reinforced cast (ZA) alloy chassis – exceptional strength and durability. Withstands 2X more static load forces compared to a stamped steel chassis
• Endures over 4 times the ANSI/BHMA A156.3 2001 Grade 1 cycle testing standard
• Non-handed rim; reversible vertical rod
• Solid stainless steel latch. Meets UL panic test requirements without roller strikes which compromise strength and durability
• Three year warranty

The Von Duprin Exit Device 2227 Center Case 109358 replaces worn out Von Duprin 2227 Surface Vertical Rod Center Cases.  The center case has been the same for the last 30 years.

Von Duprin Part # CASE.107
Old Von Duprin Part # 109358

Von Duprin 373L 88 Lever Trim

Jackson 1095 LH Backplate Assembly

Jackson Part # 30-847

The Von Duprin Exit Device 5547 Blind Fastener Kit 900539 is used to connect the Rod Control Housing to the Rods.  This part is used on the 5547 Concealed Vertical Rod only.

Von Duprin Part # 900539

Doromatic Exit Device 1790 Parts Breakdown

International 5530S Surface Vertical Rod Device-Light Duty

All devices are non-handed design
Auxiliary guarded latch deadlocks latch bolt automtically locks when the door is closed
High shock-resistant latching mechanical design or protection from vandalism
All inside components are made of high rust-resistant alloy or heavy electroplated steel

Standard 36”: Device length is 33 15/32” (850mm) for 3’ door use, with a standard push bar.
Long 48”: Device length is 44 3/4” (1137mm) for 4’ door use, with long push bar.

Standard vertical rod accommodates 7’ or 8’ doors

We offer the aluminum and dark bronze finish online, the polished brass and stainless steel finishes are available.

The Von Duprin 88 and 55 Cross Bar 967738 has been in use since the 1950's.  The bar is 1" in diameter and is 42" long and can be cut down in the field.  One side of the bar will be cut for the wedge tite screw opening.

Von Duprin Part # 050004
Old Part # 967738

The Adams Rite P8800 is the same device as the 8800 Star Wheel exit device, except it has a Pullman Latch, which is more popular.  Push bar Length Standard sizes: dimensioned for 30, 36, 42, and 48 inch openings. Standard width bars can be field cut to the next smallest opening width.

Adams Rite G86 End Cap Parts Package 91-0943

The Von Duprin 88 Lever Arm Left Hand 050439 replacement lever arm for all the Von Duprin 88 exit devices. Usually replaced due to the dogging screw stripping out.  The arm includes the Wedge, Wedge Ring, Wedge Tite Screw and Dog Screw, and sometimes the axle.

Von Dupin part # 050439
Old Part # 100729

The Sargent Exit Device 20/30/60 End Cap And Bracket is a part we put together here for your convenience.  Sargent only sells these components separately.  Usually only the cap goes missing, but every once and while the bracket goes missing also.  The package is used on the all of the 20, 30 and obsolete 60 series devices.

Sargent Part # 68-0434, 68-2141, and 97-0052

Von Duprin Exit Device 992L Hex Stud

This is the Hex Stud used on the 992L Lever Trim and the 991K Knob Trim. The threads are 1/4-20. Overall lenght is 1-3/4"

Von Duprin Part # 971440

Dor-o-matic 1090/2090 Assembly Plate.   This plate can be used if your current device has pulled the screws out, or you want to mount a new exit on a wood door.

Doromatic part #4270100304

2090 parts breakdown

For use on the Doromatic 1790 exit devices only. It will not work on the other Doromatic exit devices.  This Lever Trim is now reversible.   To change the hand all you have to do is remove the shear pin, rotate the handle and reinsert the shear pin.

Jackson 1095 Gear Package

Jackson part # 30-852

The Jackson Panic Device Top Bolt Trip is for use on the 1085, 1285, and 2086 devices.  The 30-824 Trip Assembly mounts on the jamb stop and has a pin that sticks out of it (actually a threaded set screw).  The pin lines up with the release plate on the Top Bolt Guide Assembly, when the pin hits the top plate as the door closes, it releases the rods, so they can extend.

The Von Duprin Panic Device 230TP Trim is for use on the 22 and 2227 series only.  The key cylinder locks and unlocks the thumb piece.  The plate measures 3" wide by 12-1/16" with a plate thickness of 3/32".

The International Door Closer (IDC) 8710S is a narrow design rim device. The minimum stile width has to be 2-19/32 inches. The device features a 3/4 inch throw deadlocking latchbolt, hex key dogging, and ships with machine screws and strike. The device is Grade 1 Rated, which is the highest rating possible. The 36 inch device is 33-15/32 long and the 48 is 44-3/4 inches.
