Hager 5400 Series Door Closer

This Hager Door Closer is a Grade 2 closer.  The hole spacing is 3/4" x 9-1/16" center to center.  The closer comes with the ability to go left or right, push, pull or top jamb mounting.

We ship the 5400MLT04, aluminum is in stock, Dark Bronze has a 3 week lead time

The Yale Door Closer 51 Series has been around since the early 1970's.  With the advent of the aluminum framed storefront doors, this door closer was a perfect fit.  The 50 series is a non-sized, non-handed closer that can be mounted on the push (parallel arm), pull (regular arm) or top jamb.   A Grade 1 closer certification, means it is one of the more heavy duty closers out there.  Older models may be stamped with Scoville or Eaton, which are the companies that used to own Yale.  We some times find 20-0054-4001 or 20-0254-4001 stamped on the back of the closer.   Ships with all mounting screws and a parallel arm bracket.  The hole spacing is 3/4" by 9-1/16".

The design of the Doromatic 1690 is ideal for demanding, high-traffic applications. The vertical rods and latch mechanisms are concealed in the vertical door stile, ensuring trouble-free operation. Cast metal cover plates and end caps hold up to rigorous use. A quick, singlepoint dogging feature in the housing deactivates the device, permitting unrestricted traffic flow. The Doromatic 1690 may also be used to retrofit a Doromatic 1990 Series crossbar device.

Replacement parts are also available

Shipped with all screws and strikes. The 1690NL Cylinder Assembly (169CA) is required if you wish to use a key cylinder on the exterior, SEE RELATED PRODUCTS toward the bottom of the page.

The Sargent 655 Bottom Surface Strike is for use the 20, 30, 80 and 90 Series Surface Vertical Rod Panic Hardware.  The Strike measures 1-13/16" x 2-3/4" x 3/32" thick.

Sargent Part #655

The Jackson Panic Device Crossbar is for use on the 1085 and 1095 hardware.  The bar is 45" long and can be cut in the field with a chop saw or hack saw.  There is a groove the entire length of the bar for added and strength and for the thread forming screws to thread into.  The Jackson part number is 30-733-PKG, and it ships with the cross bar screws.

Jackson Part # 30-744PKG or 30744PKG

The Von Duprin 55EO Rim Exit Device is used primarily on aluminum framed glass doors, otherwise known as Narrow Stile Doors.   It is one of the most heavy duty cross bar devices made, and has been in production since at least the 1970's.  It will fit on Stile widths of 1-3/4", and ships with all the mounting screws, dog key and the 1409 Surface Strike.  The device is also non handed.

Sargent 80 Series Lexan Touch Pad Kit

Sargent 80 series Lexan Touch Pad Kit replaces old and or broken touch pad inserts. On the Sargent part break downs this would be Touch Bar part number 68-0607 and Base 68-0606. The base is 13-1/2" long with 3 mounting holes 4" apart on center.

Sargent Part # 809 KIT

Von Duprin 1606 Rim Device Strike for Panic Devices only.  Strike measure 1-3/8 x 2-7/8 with a 3/8 inch projection. The hole spacing is 2-1/8 inches.

Falcon/Monarch 19 Series Hex Dogging Assembly and Cover have been changed.  As of April 12, 2022 the kit now includes a new style dogging assembly also.

We know this kit will work on the 19/24/25 Series, and are not sure if it will work on the Monarch 17/18 Series Dogging Cover goes over the dogging mechanism on the hinge side of the exit device. Sometimes when the end cap goes missing, this cover plate also disappears.

Monarch old part #s 195 and 194
Monarch/Falcon new part #'s 650297 and 650303

Size is the width of the Device, a 36 inch device is usally only 32 inches wide, a 48 inch device is usually about 42 inches wide.

Cal Royal 7000 Alarmed Exit Device

Same as the Cal Royal 7700, but with these added features"

Alarm unit has internal horn. When the push rail is depressed, the horn sounds to provide an audible means of signaling that the door has been opened and violated. The unit has changeable 2 minute alarm cutoff or manual reset. Preset at factory for 2 minute alarm cut off. The key switch to turn alarm off is a standard 1 ¼” cylinder with “C” keyway. The alarm operates on one standard 9 volt transistor battery. When battery is weak the horn will emit an intermittent signal. Alarmed units are supplied with a switch that monitors push rail only. Unit includes “EMERGENCY EXIT ONLY • ALARM WILL SOUND” decal for application on door or unit.

The Surface Mounted Glynn-Johnson 90 Series Overhead Door Holder are the most rugged models available for heavy-duty applications. The channel is surface-mounted to the door, most often with barrel nuts, and the jamb bracket is surface mounted to the jamb, requiring minimal door and frame preparation.

GJ90 Catalogue

For Doors Wood or metal. 1-3/4" (44 mm) thick standard.
minimum stile with trim and 3-1/2"
Mounting Supplied standard with wood and machine screws
Chassis Cover Cold drawn brass, bronze or stainless steel
Chassis Nonferrous alloy
Hand Handed. Specify RHRB or LHRB
Dogging Feature Allen-type dogging furnished standard.
Top and Bottom Bolts Brass, stainless steel

Falcon 25-R 650255 Center Case Cover Kit

Replacement cover for the Monarch Falcon 25-R Exit Device.   Kit includes cover and the mounting screws.

Falcon Part # 650255

The Adams Rite EX88 Interlocking Rim Exit Device is designed for heavy duty use on narrow stile aluminium door applications. The EX88 has a unique latch bolt design that interlocks with the frame of the door. This device is non handed, requires a minimum stile width of 2" and will work on aluminum, hollow metal or wood doors.The device is constructed of extruded aluminum with matching metal angled end caps. To order specify your door width, and the color.

• For 1-3/4" (44mm) doors standard
• Through-bolted with 3 mortise nuts
• Pulls project 1-1/2" (38mm) from door face
• GTB Design trim will cover a 161 cutout

Detex 98 Advantex 100855-1 Semi Mortise

98 Semi-Mortise-applied strike for 10 an d40 series Rim Devices

Detex Part # 100855-1

Von Duprin 88 Latch Tail Springs

This is the spring that pushes the latch bolt out. Used on all Von Duprin 88 Rim Devices. The spring measures 2-5/8" long by 3/16" diameter.

Sold in packages of 2.

Von Duprin Part #050393

The Sargent 20/60 Plastic End Cap Only 68-0434 will also work on the 30 Series Panic Hardware.   The cap has been manufactured for the last 40 years and is made of high impact plastic.  The end cap measures 1-5/8" wide by 2-3/8" tall and projects out 2-3/4".

Sargent Part # 68-0434

Cal Royal A2200V Surface Vertical Rod

Grade 1
Non handed-field reversible
Heavy gauge steel, painted
4-1/2" minimum stile width

24" wide x 84" high, and 32" wide and 84" high also available in aluminum only

Detex Advantex 102216-2 Hex Key Dogging Assembly

Advantex Hex Dogging Assembly for the 10, 20, 30, 40, and 50 series.

Detex Part #102216-2

Cal Royal 2000 Dummy Trim

3" X 7-3/4"

Cal Royal Part # 2200DTP

The Cal-Royal 45 Narrow Stile Rim Device is part of the new 4500 Series.  They are designed for Narrow Stile doors with a minimum of an 1-3/4" stile width.  This is a Grade 1 Exit Device, which is the highest traffic rating possible. Exit device ships with strike and mounting screws.

Shown is Left Hand Reverse
Opposite would be Right Hand Reverse

The Detex ECL-230X Panic Device is a single point deadbolt device. One size fits 36 to 48 inch doors. The dead bolt has a 1 inch throw and is saw resistant. Locking and unlocking dead bolt always arms and disarms alarm.  The alarm is 100 decibels and is powered by a 9 volt battery. Email for more information.

The Adams Rite Panic Device Dog Key is used on there older models.   The key is made of high density plastic, and is also known as Hex Key, Dog Key, Allen Key, Dogging Key.  Adams Rite part # 25-0480.

The International Door Closer 8051-TP Series is an ideal replacement closer for just about any Store Front Door. We recommend this closer because it will fit any size door, and you can adjust the spring tension to make it easier for the elderly, smaller children and the handicapped. The 8051 will work in interior or exterior doors, and will meet ADA codes.  This door closer will work on a Right or Left Hand Door, Push or Pull side or Top Jamb mounting, it ships with a parallel arm bracket, arm and mounting screws along with a full plastic cover.   We ship the 8051-TP DU or 8051-TP AL depending on the color you choose.  Length of Closer is 9-3/4”, Horizontal Mounting Holes 9-1/16”, Vertical Mounting Holes 3/4”, overall height is 4-21/32” with height of l1-21/32”, and projects  2-29/32” from the door face.    The 4 adjustment valves are Closing and Latching Speed, Power and Back Check.

Effective December 20, 2024 Falcon Doromatic has discontinued this exit device.  They are currently working on retro-fit plates to make transitioning to 1790EO more easily.

The Doromatic 1590 is our heaviest device and offers a clean appearance with pushpad styling and a variety of practical features. The Doromatic 1590 is built with rugged steel operating mechanisms, and durable aluminum push bars and end caps.

Replacement parts are also available

Shipped with all screws and strikes.

Cal Royal 7000 Lever Trim

The Von Duprin Panic Device 55 Center Case 050183 is a replacement housing for the 55 Rim Device.  The housing includes all of the internal workings and latch bolt.  Von Duprin Part # 050183.

Detex 101822 Value Series End Cap

Made of black molded plastic.  End Cap is has the numbers 101822 cast on the inside.  The hole spacing is 1-1/2" on center.

Detex part # 101822

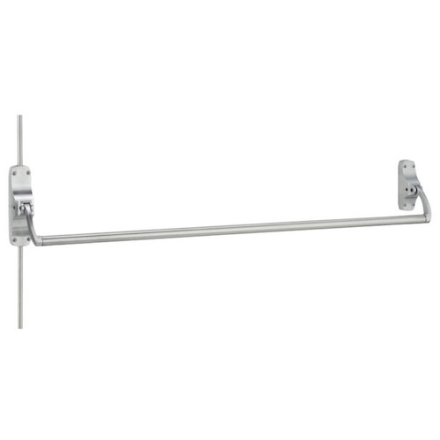

Von Duprin 8827 surface mounted vertical rod devicesfor all types of single and double
doors, UL listed for accident hazard installations.Covers stock hollow metal doors
with 86 or 161 cutouts and fits door stiles as narrow as 3½" (90mm).

• Fully reversible
• Five popular finishes
• Field sizeable
• Hex key dogging
• 5/8"(16mm)throw latch bolt

Ships with all mounting screws and the 299, 304L and 248L-4 Strikes.

Von Duprin Exit Device 992L Hex Stud

This is the Hex Stud used on the 992L Lever Trim and the 991K Knob Trim. The threads are 1/4-20. Overall lenght is 1-3/4"

Von Duprin Part # 971440

The same as the Falcon / Dor-o-Matic 1690 with Mechanical Electric Latch Retraction. Some of the features are listed below. A power supply is required.

Hand: Field reversible, non-handed.
Centercase and end cap are powder-coated black only.
Strikes: PB48 top.
Latches: Hex bottom latch (standard), RL - rod bottom latch, PL - Pullman bottom latch
Cylinder: Rim, key entry (NL) or hold back (HB) feature available.
Field selectable.
Sizes: 30", 36", 42", and 48".
Doors: 1-3/4" thick metal doors, specify if other.
Projections: 3-3/8" in neutral position, 23/8" in dogged position.
Pushbar height is 2-1/2.
Stile: 1-3/4" minimum.

Replacement parts are also available

Shipped with all screws and strikes.

Jackson Exit Device 1285/1295 Dogging Assembly

Package includes 4 screws, bracket and dogging bracket. Uses 1/8" dog key, our part # 88R6018

Jackson part # 30-2670

Sargent Exit Device 80 Series Bracket

Used on to hold exit device on door, plastic end cap mounts to it.

Sargent part # 68-0511

Cal Royal 2000 Night Latch Trim

3" X 7-3/4"

Cal Royal Part # 2200NL

Falcon 24-R 650247 Center Case Cover Kit

Replacement cover for the Monarch Falcon 24-R Exit Device.   Kit includes cover and the mounting screws.

Falcon Part # 650247
