The Von Duprin Panic Device 210DT Trim is part of there economy series trims.  This trim is just a pull, but will line up with the chassis mounting holes of the 22 and 2227 devices.  The plate measures 5-3/8" x 4-25/32" x 3/32", with a projection of 1-31/32".

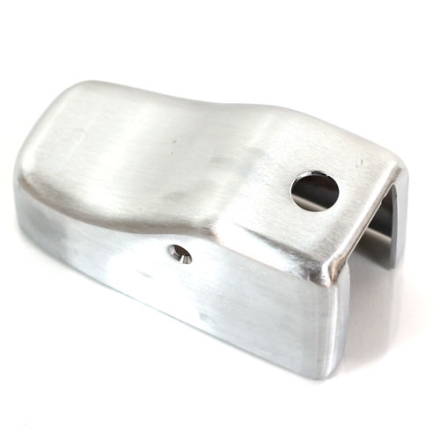

Jackson Panic Device 1295 Push Pad End Cap Package

Package includes two end caps, one bracket mounting screw, and 4 end mounting screws. This product was just upgraded to a metal cover, which will replace the old plastic cover.

Old Jackson part # 30-2677
New Jackson Part # 30-2654

Von Duprin 9827/9927 surface mounted vertical rod device for all types of single or double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. The Von Duprin 9827 device has a smooth mechanism case and the Von Duprin 9927 device has a grooved case. The surface vertical rod device is non-handed.

The Panic Hex Key 1/8" is used on the new Adams Rite, Cal Royal, Jackson and many of the imported panic hardware like International Door Closer.  The key measures 1/8" by 1-13/16" long.  They are also known as Hex Key, Dog Key, Allen Key, and Dogging Key.

The Push Bar With Offset Grip M422XM39 is usually found aluminum framed glass store front doors.  It is constructed of 1-1/4" diameter solid aluminum, brass, bronze or stainless steel, depending on the finish.  The handle or grip will have either a 12" or 18" center to center screw spacing.  The push bar center to center length is determined by you, we can do any reasonable size.  Establish the center to center dimension by subtracting the width of one stile from the width of the door. On solid doors, subtract 5" from the width of the door.  All the fasteners are included, and are determined by the material your door is made of (wood or metal).   Please allow 3-4 weeks on the Dark Bronze and Aluminum, and 2 weeks on the other finishes.

Finishes

International 89L Escutcheon Trim

Clutched lever trim for use with the 8000 Series International Door Closer Exit Devices. Escutcheon measures 8-27/32" high by 2-15/16" wide by 15/16" thick. Trim is non handed and easily converted in the field. We offer 3 functions, Classroom, Passage and Storeroom.

Classroom - cylinder (not included) locks and unlocks lever handle
Passage - no cylinder hole, lever always active
Storeroom (Night Latch) - cylinder (not included) unlocks lever, but lever is always locked when key is removed.

6" Kickdown Door Holder Grand Standard

Frequently we are asked, “What is the heaviest duty kick down holder  you sell?”  The answer to that question is any of  Grand Specialty door holders.  These door stops are American made and simply the best out there.   They have a shoe that is held in place by a screw, a rivet instead of a roll pin for the hinging mechanism, and a “wedge” instead of a piece of spring steel to hold up the leg.  They are constructed of steel, and not cast like all of the other door holders made.

Another feature is their well constructed shoe can be adjusted down as the rubber wears making the holder last way longer than their competitors. Another use for them is as a door floor lock if mounted on the other side of the door. Once kicked down there's no entry possible unless you slide a flat item under the door to lift the door holder leg out of the way and push the door open. It can be opened from the inside as normal with your foot or hand. A very inexpensive security lock.

• No roll pin at pivot point
• Mallable with a pair of pliers
• Rubber shoe held on by a screw
• American Made
• Zinc plated steel

 The bottom mounting screws holes would be 5-3/8" to the Floor when mounted.

Made by Grand Specialties 606z and 606br
606BR is not longer manufactured

10" Kickdown Door Holder Grand Standard

Frequently we are asked, “What is the heaviest duty kick down holder  you sell?”  The answer to that question is any of  Grand Specialty door holders.  These door stops are American made and simply the best out there.   They have a shoe that is held in place by a screw, a rivet instead of a roll pin for the hinging mechanism, and a “wedge” instead of a piece of spring steel to hold up the leg.  They are constructed of steel, and not cast like all of the other door holders made.

Another feature is their well constructed shoe can be adjusted down as the rubber wears making the holder last way longer than their competitors. Another use for them is as a door floor lock if mounted on the other side of the door. Once kicked down there's no entry possible unless you slide a flat item under the door to lift the door holder leg out of the way and push the door open. It can be opened from the inside as normal with your foot or hand. A very inexpensive security lock.

• No roll pin at pivot point
• Mallable with a pair of pliers
• Rubber shoe held on by a screw
• American Made
• Zinc plated steel

 The bottom mounting screws holes would be 9-3/8" to the Floor when mounted.

 Made by Grand Specialties 610z

Corbin Russwin ED5200A Active Head

Used on the Corbin Russwin ED5000 Rim Devices, for fire rated doors. For non fire rated doors, order the G650F35-8. A fire rated door is a door were you can NOT use your allen wrench to dog, or lock, the door in the open position during business hours.

Corbin Russwin part # 650F36-8

Rim Cylinder Hub Position for the ED5200A

The Jackson Panic Device 1085 Body Package includes 4 mounting studs, 3 housing set screws, 2 lever arm springs, 2 lever arm pins, and an actuator link.  Jackson part # 30-1409

International 5510S Rim Device-Light Duty

All devices are non-handed design
Auxiliary guarded latch deadlocks latch bolt automtically locks when the door is closed
High shock-resistant latching mechanical design or protection from vandalism
All inside components are made of high rust-resistant alloy or heavy electroplated steel

Standard 36”: Device length is 33 15/32” (850mm) for 3’ door use, with a standard push bar.
Long 48”: Device length is 44 3/4” (1137mm) for 4’ door use, with long push bar.

The Von Duprin Panic Device 88 Mounting Screws are used on the 88 Exit Device, there description is 88C/C or E/C Mtg Pkg (CS and MS). The package included 12 screws, 6 machine and 6 hybrid.

Von Duprin Part # 900503
.

This Barn Door Pull Set features back to back handles that are thru-bolt mounted for a hassle-free setup.  The Grip is 6 inches on centers and is constructed of 3/4 inch round stock, and projects out 2-3/8 inch. The flush pull face dimensions are 2-1/2 by 7 inches. The mortise size of the flush pull are 2 x 7/8 deep x 1/4 inch.

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.

Cal Royal 2000 Dummy Trim

3" X 7-3/4"

Cal Royal Part # 2200DTP

Cal Royal 2000 Night Latch Trim

3" X 7-3/4"

Cal Royal Part # 2200NL

Von Duprin 6114 24VDC Electric Strike

Von Duprin 6100 Series electric strikes are designed for use with Rim devices.  The 6114 has a 3/4” latch bolt throw, 7” face plate length, 1-7/8” width, and projects1-9/16”.  The lock retrofits the Folger Adams FD 310-5.  Other voltages and replacement parts are available.

FSE - Fail-secure.  Requires power to be applied to unlock the strike lip.  On loss of power, the strike lip is locked-Fire Rated

FS - Fail-safe.  Requires power to be applied to lock the strike lip.  On loss of power, the strike lip is unlocked.  Non Fire-Rated.

The Von Duprin 8827-F Top Latch Kit 050462 is the Top Latch Kit for the Von Duprin 8827-F. The 8827-F is the Fire Rated Surface Vertical Rod device usually used on interior doors to contain a fire. The Fire Rated version would not have dog screws to lock the device in the retracted postion.

Von Duprin Part # 050462
Old Part # 102676

Cal Royal 2000 Series Thumb Pc Trim

2-5/8" X 16"

Cal Royal part # THP00

The Von Duprin 499F is used on the 22, 98 and 99 Series Fire Rated Rim Devices when used with the 9954 Mullion.  A Fire Rated Device is one that does not have a dogging pin or screw to lock the door in the open position.

Von Duprin Part # 499F

Cal Royal 2000 Alarmed Exit Device
Alarm units has an internal horn. When the push rail is depressed, the horn sounds to provide an audible means of signaling that the door has been opened and violated. The unit has changeable 2 minute alarm cutoff or manual reset. Preset at factory for 2 minute alarm cut off. Jumper cable is provided to swich to continuous alarm. The key switch to turn the alarm off is a standard 1” cylinder with “C” keyway. The alarm operates on one standard 9 volt transistor battery. When battery is weak the horn will emit an intermittent signal. Alarmed units are supplied with two switches. One switch monitors the push rail and the other switch monitors the latch bolt for full proof security.

Unit includes “EMERGENCY EXIT ONLY. ALARM WILL SOUND” decal for application on door or unit.

The Von Duprin 8827-F Top Latch Cover Kit 050465 the Top Latch Cover for the Von Duprin 8827-F. The 8827-F is the Fire Rated Surface Vertical Rod device usually used on interior doors to contain a fire. The Fire Rated version would not have dog screws to lock the device in the retracted position.

Von Duprin Part # 050465
Old Part # 961206

International 7100 Concealed Vertical Rod Device

Modern flat touch bar Concealed Vertical Rod Device Panic exit device. This series offers durability, safety and meets the security demand and access control needs of today. Series 7300 Rim Panic exit devices are used with Narrow, Medium and Wide aluminum door and Hollow Metal and Wood Door applications. Series 7300 is non-handed, Field Reversible for LHRB or RHRB doors. Outside Unlatching and Dogging by Cylinder Key or Dogging by Hex Key in Touch Bar. Standard Units for 36” and 48” in widths (cut bar to fit). Can be used on 30” wide doors.

The Adams Rite Panic Device Dog Key is used on there older models.   The key is made of high density plastic, and is also known as Hex Key, Dog Key, Allen Key, Dogging Key.  Adams Rite part # 25-0480.

Corbin Russwin ED4200 Narrow Stile Exit Device
This device is designed for use with a narrow framed glass door, and is recommend for use in high traffic, abusive areas.

Device
non-handed.
Trim handed.
Easily field cut to size.
Standard: 36" bar fits 30"- 36"
914mm) door.

Stile
Minimum width 2" (51mm).

Replacement parts are also available

The Door Pull Plate 5026 is a solid .050" wought plate of solid aluminum, brass or stainless steel depending on the finish. The Door Pull GHE26 has 8" centers and is constructed of solid aluminum, brass or stainless steel, and is 1" in diameter, handles come with thru bolts. The plate come predrilled with counter sunk holes and sheet metal screws in matching finiish.

Finishes

4" Kickdown Door Holder Grand Standard

Frequently we are asked, “What is the heaviest duty kick down holder  you sell?”  The answer to that question is any of  Grand Specialty door holders.  These door stops are American made and simply the best out there.   They have a shoe that is held in place by a screw, a rivet instead of a roll pin for the hinging mechanism, and a “wedge” instead of a piece of spring steel to hold up the leg.  They are constructed of steel, and not cast like all of the other door holders made.

Another feature is their well constructed shoe can be adjusted down as the rubber wears making the holder last way longer than their competitors. Another use for them is as a door floor lock if mounted on the other side of the door. Once kicked down there's no entry possible unless you slide a flat item under the door to lift the door holder leg out of the way and push the door open. It can be opened from the inside as normal with your foot or hand. A very inexpensive security lock.

• No roll pin at pivot point
• Mallable with a pair of pliers
• Rubber shoe held on by a screw
• American Made
• Zinc plated steel

 The bottom mounting screws holes would be 3-3/8" to the Floor when mounted.

The Von Duprin Panic Device 230L Lever Trim will work on the 22 and 2227 series exit devices.  In 2008 this lever was redesigned and went from a key in the lever to the new style which has the key above the lever.  The plate measures 3" wide by 6-3/8" high and is 15/16" thick.  This lever only comes in sprayed aluminum or dark bronze.  We also have replacement parts for this particular trim piece in stock, email  us under the contact tab at the top of the page.

Cylinder not included

Installation Instructions

Full Mortise Double Swinging Spring Hinge

Used mainly for commercial kitchen doors,  or any commercial double swinging door.   Sold in sets of 2 hinges, they will handle doors up to 75 lbs that are 1-3/4" thick.   If you door weighs between 75 and 107 lbs, you should use 3 hinges.  The door flange is designed for a standard 4-1/2" x 4-1/2" template mortise.   Hinges ship with wood and metal mounting screws. They come in a standard Painted Primed Finish Gray.

The jamb flange is .100" thick, the door flange is .134" thick and the barrel diameter is 1.18".

5" Kickdown Door Holder Grand Standard

Frequently we are asked, “What is the heaviest duty kick down holder  you sell?”  The answer to that question is any of  Grand Specialty door holders.  These door stops are American made and simply the best out there.   They have a shoe that is held in place by a screw, a rivet instead of a roll pin for the hinging mechanism, and a “wedge” instead of a piece of spring steel to hold up the leg.  They are constructed of steel, and not cast like all of the other door holders made.

Another feature is their well constructed shoe can be adjusted down as the rubber wears making the holder last way longer than their competitors. Another use for them is as a door floor lock if mounted on the other side of the door. Once kicked down there's no entry possible unless you slide a flat item under the door to lift the door holder leg out of the way and push the door open. It can be opened from the inside as normal with your foot or hand. A very inexpensive security lock.

• No roll pin at pivot point
• Mallable with a pair of pliers
• Rubber shoe held on by a screw
• American Made
• Zinc plated steel

 The bottom mounting screws holes would be 4-3/8" to the Floor when mounted.

made by Grand Specialties 605z 605b

Corbin Russwin ED4200 Active Head

Used on the Corbin Russwin ED4000 Rim Devices, for non fire rated doors. A non fire rated door is a door were you can use your allen wrench to dog, or lock, the door in the open position during business hours.

Corbin Russwin part # 650F37-8

The Hub Position for the ED4200

Sargent Panic 97-0008 End Plug

Sargent 97-0008 End Plug and 01-001 End Plug Screw.  Fits the 90 series cross bar panic devices.

Von Duprin 992/994 Lever Lift Spring 971573

The spring measures 1-5/8" long with a 7/16" diameter. We find two of these springs per 992 and 994 series lever trims. These springs help support the lever handle and return it to the proper position.

Von Duprin Part # 971573-00

Von Duprin 3327A Exit Device Only

3327A and 3527A for all types of single and double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. The 3527A has a smooth mechanism case and the 3327A has grooved case. 3327A/3527A fits door stiles as narrow as 1-3/4". Newly designed device has a one piece center case cover.

The Door Pull Plate 5025 is a solid .050" wought plate of solid aluminum, brass or stainless steel depending on the finish. The Door Pull GHE25 has 6" centers and is constructed of solid aluminum, brass or stainless steel, and is 3/4" in diameter, handles come with thru bolts. The plate come predrilled with counter sunk holes and sheet metal screws in matching finiish.  This is one of our most popular plates sold.

Finishes

Corbin Russwin ED5200 Active Head

Used on the Corbin Russwin ED5000 Rim Devices, for non fire rated doors. For fire rated doors, order the G650F36-8. A non fire rated door is a door were you can use your allen wrench to dog, or lock, the door in the open position during business hours.

Corbin Russwin part # 650F35-8

Rim Cylinder Hub Position for the ED5200

The Von Duprin 106222 Racket Release Kit is used on the 3347, 3547, 9847 and 9947 Exit Devices.   The pin that projects from the block releases the top latch when the door closes, and locks the door shut.

Von Duprin Part # 106222
