The Von Duprin 8827 050466 Top Latch And Cover is the 050460 (latch) and 050464 (cover) in one convenient package. The package includes the cover screws and mount screws.

Von Duprin Part # 050466

The International Door Closer 9001-TP Series is a relatively newer closer.  This closer features fully adjustable spring tension, closing and latching speeds and back check.  The narrow design allows for mounting on the top jamb of store front doors without a drop plate.  The closer is non handed, and can be mounted on the push, pull  or top jamb positions.  It meets all ADA requirements and is a Grade 1 closer, the heaviest rating possible.

3/4" X 11-3/32" Hole Spacing

The International Door Closer 1803BC-P - Fixed Spring Closer is one of the heaviest duty closers in the International product line.   It offers a 10 year warranty, and is Grade 1 rated, which is the highest rating you can have.  The closer features three adjustment valves for closing,latching speeds and one for back check.  The cylinder is constructed of precision cast aluminum.   It ships with a regular arm and parallel arm bracket.   This is one of the last closers out there to still have sizing.  By sizing I mean each door closer has a spring size of different tension so the closer is selected depending on door size and wether it is interior or exterior.  These days we usually use this door closer as a replacement of existing doors.   This door closer is for use on doors up to 42” interior or 36” exterior doors.

3/4" X 9-1/16" Hole Spacing

The International Door Closer 1805BC-P - Fixed Spring Closer is one of the heaviest duty closers in the International product line.   It offers a 10 year warranty, and is Grade 1 rated, which is the highest rating you can have.  The closer features three adjustment valves for closing,latching speeds and one for back check.  The cylinder is constructed of precision cast aluminum.   It ships with a regular arm and parallel arm bracket.   This is one of the last closers out there to still have sizing.  By sizing I mean each door closer has a spring size of different tension so the closer is selected depending on door size and wether it is interior or exterior.  These days we usually use this door closer as a replacement of existing doors.   This door closer is for use on doors up to 54” interior or 48” exterior doors.

3/4" X 9-1/16" Hole Spacing

LCN 4810 Door Closer Pneumatically Operated

LCN 4820 Door Closer Pneumatically Operated

The Von Duprin 050390 Bottom Mullion Fitting is the Bottom Fitting for the 1654, 4754, 4854, and 4954 Von Duprin Mullions. The 050390 measures 5/8" thick by 2" wide and 3" long excluding the flange the projects out the one end.   We find the number 961040-70  ESE cast right in the fitting.  The mounting holes are 2-1/4" on center.  Mounting Screws included.

Von Duprin Part # 050390

The Von Duprin 88 Active Case 050409 is for use with the Rim Device, which is the model that has the latch bolt sticking out the side of the housing.  This version of the housing is for use on the 88EO (Exit Only), 88DT (Dummy Trim) and 88NL (Night Latch) models only.  Call or email if you need the Thumb Piece, Knob or Lever Version.  The Center Case includes all of the internal workings.

Von Duprin Part # 050409
Old Part # 101662

The Cal-Royal 6600 Rim Device is a Grade 1 exit device.  It is designed for doors that have at least a 4-1/2 inch stile width. The 36 inch device has a 32 inch actual length and can cut down 6" (24 inch actual). The 48 inch device has an actual length of 44 inches and can be cut down 12 inch (34 inch actual).  Devices ships with 938 Strike and all the mounting screws.

The Von Duprin 2227 Center Case Cover 968888 comes in an Aluminum SP-28 or Dark Brown SP-313 color.  This piece is for used on the 2227 Surface Vertical Rod Panic Hardware.  Package also included mounting screws.

Von Duprin Part # 968888

The SEM7850 LCN Electro Magnetic Door Holder features a metal die cast housing that is surface wall mounted. Tri-voltage design works with 12, 24 or 120 volts, with 35 lbs. of holding force. The magnet housing measures 2-13/16" wide by 4-5/8" high. The armature (door mount part) is 1-11/16" wide by 2-3/8" high with a 1-7/8" diameter. The armature projects out 1-5/8". The total projection of both pieces is 3-5/8". Available in an aluminum or dark bronze color.   Armature extensions are available, along with replacement covers, magnets, and armatures.  Outlet box not included

LCN Part # SEM7850

The SEM7820 LCN Electro Magnetic Door Holder features a metal die cast housing that is surface mounted on the floor. Tri-voltage design works with 12, 24 or 120 volts, with 35 lbs. of holding force. The magnet housing measures 5-1/8" long x 4-9/16" wide and 3-7/16" high. The armature (door mount part) is 1-11/16" wide by 2-3/8" high with a 1-7/8" diameter. The armature projects out 1-5/8". The total projection of both pieces is 6-3/4". Available in an aluminum or dark bronze color.  Armature extensions are available, along with replacement covers, magnets, and armatures.

LCN Part # SEM7820

Von Duprin 22 Cover Plate 968595 968596

Von Duprin 22 Dogging Cover Plate. Plate covers the dogging assy, or hinge side of the exit device. This plate sides off when the plastic end cap breaks or goes missing.

Von Duprin Part # 968595   measures 10-3/4" Long  for 3' devices
Von Duprin Part # 968596   measures 16-3/4" Long  for 4' devices

The International Door Closer 526 Parallel Arm Bracket is one of two they offer.  This bracket us usually used with the Hold Open Arm 522, and is stronger than the 525 Parallel Arm bracket that ships with the closers.

The LCN Door Closer 3077EDA Extra Duty Arm is the standard arm shipped with the 4110 series, and is optional on just about all of there other closers.  The arm features a non-handed parallel arm solid forged steel main arm and forearm with stop in soffit shoe.  Specify your current closers model number when ordering. Not all of the LCN closers have the same shape spindle on the door closer cylinder. LCN Part #'s: 1260-3077EDA, 1460-3077EDA, 4040-3077EDA, 4110-3077EDA

The Von Duprin 2227 Bottom Vertical Rod 109362 has a length of 33-1/4" to 33-1/2" that is set at the factory.  All the bottom rods are the same length because of ADA standards. The top rods are field adjustable.

Von Duprin part # 109362

The Von Duprin Panic Device 88 Mounting Screws are used on the 88 Exit Device, there description is 88C/C or E/C Mtg Pkg (CS and MS). The package included 12 screws, 6 machine and 6 hybrid.

Von Duprin Part # 900503
.

The Von Duprin 22 Rim Center Case Cover 968603 is for use on the 22 rim devices.  The cover comes with mounting screws and is available in aluminum SP-28 or dark brown SP-313.

Von Duprin part # 968603 SP28 or SP313

The Von Duprin 8827 Latch Covers 050464 is used on the top and bottom latches of the 8827 Panic Hardware, and the bottom latch of the 8827-F Fire Rated Hardware.  Latch covers come with matching screws

Von Duprin Part # 050464
Old Part # 960548

The SEM-7800-825 Armature for LCN Electro Magnetic Door Holder is the door mounted piece for th LCN SEM7820-825 / SEM7830-825 / SEM7840-825 / SEM7870-825 series.  It features a metal die cast construction armature. The armature (door mount part) is 1-11/16" wide by 2-3/8" high with a 1-7/8" diameter. The armature projects out 1-5/8". Available in an aluminum or dark bronze color.  LCN Part # SEM7820-825, SEM7830-825, SEM7840-825, and SEM7870-825

Heavy Duty Design
The new Series 2670 Exit Alarm Lock provides secure protection through a large stainless steel deadbolt, which is 2" x 1/2" (51mm x 13mm) and has over a 3/4" (19mm) throw. The engagement area into the strike is over 1 1/4" (32mm) square inches. The cast aluminum latch case protects the internal mechanism and resists tampering or vandalism from inside the door. This unit has been tested to withstand up to 1600 pounds of static load force against the door.

Fits 36" to 48" doors.
Uses 9 volt battery
Ships with all mounting hardware and strike.

The Von Duprin Pull Handle 972466/972467 replacement Grip/Handle only, screws not included. Cast bronze construction, and then plated to the selected finish. The Grip measures 15/16" wide by 6" long. The center to center hole spacing is 5-1/2". This handle works on the Von Duprin 608, 696, 880, and 990 outside trim plates.

Von Duprin Part # 972466 and 972467
Old Part # 969925 and 959122

The Von Duprin HD-QEL Baseplate conversion is used to convert the older 33A/35A/98 and 99 HD-EL models to the newer motor driven devices. The HD-QEL is a Hex Key Dogging QEL Model. The QEL is a quiet motor driven solution.

Von Duprin Part numbers:
36" devices  958004
48" devices 040067

The Full Mortise Spring Hinge is found in many hotels and motels across the United States.  They are an inexpensive way to meet Fire Codes.   An internal adjustable spring in the hinge closes the door when they are opened.  So instead of using a door closer, you can use these spring hinges.  One draw back is you can not slow the door down and they will slam shut.  We do not recommend these self closing hinges if your door swings more than 110 degrees, chances are the spring will break.  They are constructed of 10 gauge (.134”) steel that is then plated or paint primed.   We ship them in boxes of 3 hinges, and they ship with machine and wood screws.

Shown in brushed brass

The Von Duprin Panic Device 880DT Trim is for 88 Series devices only.  Stanchions welded on the back line up with the device on the interior. The plate measures 3" wide by 14-3/16" long.

Von Duprin part # 880DT-R

4-1/4" long

Dorma part # AM385A

The International Door Closer 521 Regular Arm Forearm measures 9-1/2" loop to loop in the shortest position, and 14" when it is the fully extended . The loop on the left side is 3/8" diameter. The hole spacing on the right hand side of the picture shoe is 1-3/4".

International part # 521

The Von Duprin 88 Lever Arm Right Hand 050438 replacement lever arm for all the Von Duprin 88 exit devices. Usually replaced due to the dogging screw stripping out.  The arm includes the Wedge, Wedge Ring, Wedge Tite Screw and Dog Screw, and sometimes the axle.

Von Dupin part # 050439
Old Part # 100729

The Glynn-Johnson Overhead Door Holder 450 Series provide reliable and versatile surface-mounted overhead door control for all medium to light-duty applications. The visible components are available in a wide variety of architectural finishes to complement any design. The Glynn-Johnson 450 series holders and stops are designed for installation in virtually all types of doors and frames including doors with conventional butt hinges, offset pivots, continuous hinges, swing clear hinges and many other specialty hinges. The templates provided allow for variable mounting positions, ranging from 85° - 110° of opening.

The 450 Series replaces the older GJ360, GJ370 and GJ380 Series.

GJ450 Catalogue

The Von Duprin Panic Device 55 Center Case 050183 is a replacement housing for the 55 Rim Device.  The housing includes all of the internal workings and latch bolt.  Von Duprin Part # 050183.

Von Duprin 050484 33/3527A Center Case Cover

Replacement Von Duprin 33/3527A Surface Vertical Rod Center Case Cover Kit.  Screws come with the new cover.

Von Duprin Part # 050484

The Von Duprin ALK Alarm Kit converts the Von Duprin 22, 33A, 35A, 98 and 99 Devices to an alarmed exit device.   When you exit the 85 decibel alarm will sound.  Powered by a standard 9 volt battery and is controlled by a Mortise Cylinder with a straight cam.  When battery is low, the alarm will beep.

Mortise Cylinder NOT included.

Von Duprin Part # 22-ALK, 33A-ALK, 35A-ALK, 98-ALK AND 99-ALK

The Von Duprin 9927 Center Case Cover 050072 replaces your old 1 or 3 piece cover.  The Von Duprin Cover comes with mounting bracket and all screws.

Von Duprin part # 050072

The Von Duprin Panic Device 55 Right Hand Arm 050136 includes the wedge, wedge ring, wedge tite screw and dog screw.

Von Duprin Part # 050136

The Von Duprin 1654-4954 Mullion Brackets 050330 are the top and bottom mullion fittings for the 1654 and 4954 Mullions. . Includes Top and Bottom Fittings, screws and mounting shields.

Von Duprin part # 050330

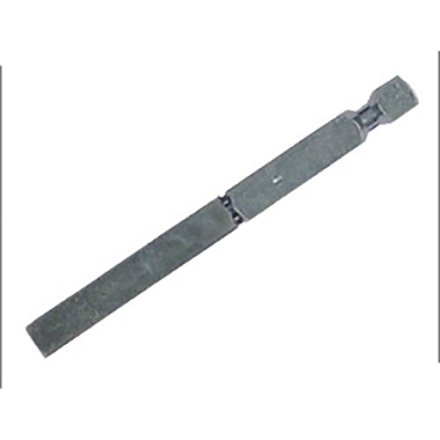

Arrow BM385A Spindle

3-3/4" long

Dorma part # BM385A
