The Jackson 1085 30-1242 / 30-1243 Lever Arms are for use with the Jackson 1085 Housings, both sides.  And the Jackson 1095 Inactive (hinge side) Housings.  To determine hand, stand inside and look out the door, what is side is the arm on?  If it is on the Right then order Right.

The Hands Free Foot Operated Door Pull is a low cost solution to keep your hands off of high traffic handles. It is constructed of cast aluminum, and measures 4" wide by 1-7/32" high with a 2-3/8" projection. The package includes fasteners, door decal and installation tool.

Yale 759 Strike for the 7250 Devices

Used on the Yale 720X Exit Devices.  The Strike measures 2" wide by 3" high and 1/2" thick. Furnished in a Black Finish.

Yale Part # 759

The Norton Apollo Door Closer 7500 has been around for quite a long time, and was designed to replace the older 7700, which are still made. The beauty of the 7500 is that is can be mounted left or right, push, pull or top jamb, were as the 7700 you had to specify all those attributes, which made stocking them a head ache. This is a Grade 1 closer, and is extremely durable. If you are looking for a 7500BF, the barrier free version, the new 7500 is barrier free, and will do the trick. This closer has a 2-3/8" x 6-3/4" hole spacing.

The Falcon / Doromatic Door Closer SC91 is an affordable, high quality closer for residential or light commercial applications.  They used to be know as the Doromatic SC90, but in about 2008, they changed it to the Falcon SC91.  This closer offers adjustable closing, latching and back check speeds, along with adjustable spring tension.  It has the ability to be mounted on the push, pull or top jamb and is non handed.  This closer is considered a Grade 3 closer, which is the lightest grade you can get.   The hole spacing is 3/4” x 6-3/8”.  We ship the SC91 Rw/PA.

Yale 7000 Touch Bar End Cap-Front

Yale Part # 60-7000-6115

The Norton Door Closer 1601 has been around for the past 40 years.  With the advent of aluminum framed glass doors, Norton was on for the first manufactures to come up with a narrow stile door closer.  Because of this, it is still one of the most popular door closer model out there.  It is a Grade 1 closer and has adjustable closing, latching, and back check speeds.  The model we ship also has adjustable spring tension to work on a wider range of doors.  The hole spacing is 3/4” x 9-1/16”.

Older models may be stamped with Scoville or Eaton, which are the companies that used to own Norton.  We sometimes find 20-1624-4001, or 20-1604-4001 stamped on the back of the closer. If your door closer is stamped 20-1603-4001 or 20-1623-4001, you might want to double check the hole spacing. The 20-1603-4001 usually has a hole spacing of 3/4" x 8-3/16", you could use the International Door Closer 853 as a replacement.

Yale 7110 Top Latch 60-7010-0049-999

Yale 7110 Top Latch for the Non Fire Rated Yale 7000 Series Surface Vertical Rod.

Yale Part # 60-7010-049-999

The LCN Door Closer Regular Arm 3077 ships with 95 percent of there door closers.   This is the standard regular.   Specify your current closers model number when ordering. Not all of the LCN closers have the same shape spindle on the door closer cylinder. The fitting for the 4040 is a six sided, the 4010, 4020 and 4110 have a flat sided oval, and the 1260 and 1460 have an eight sided star.  The LCN Part #'s on this Regular Arm is: 1260-3077, 1460-3077, 4010-3077, 4020-3077,  and  4040-3077.  If your model is not here, call us and we will quote you a price.

Yale 2100 Series Latch Assembly

Latch assembly for the Yale 2100 Rim Panic Device.   Assembly base measures 7-3/4" high by 5-1/2" wide with a projection of 2-1/4".

Yale Part # 60-2100-0010-048

The Norton Door Closer 1601BF Barrier Free has been around for about 10 years. With the advent of aluminum framed glass doors, Norton was one of the first manufactures to come up with a narrow stile door closer. Because of this, it is still one of the most popular door closer models out there. It is a Grade 1 closer and has adjustable closing, latching, and back check speeds. The Barrier Free version just means you can turn the spring tension down to a size 1 spring, which will meet the ADA codes (less than 5 pounds of resistance). The model we ship also has adjustable spring tension to work on a wider range of doors. The hole spacing is 3/4” x 9-1/16”.

Norton 1600 Installation Instructions

The Jackson 20330 Concealed Door Closer has been around since the late 1960's early 1970's.  They are used on aluminum framed storefront doors, that have a narrow stile (frame) around the glass.  The closer is tucked up in the header of the door frame.  Jackson has been a leader in this style of door closer for almost 50 years.   The closer is manufactured in the U.S.A. under strict ISO 9001 guidelines and is designed to give long lasting, maintenance-free performance. One basic closer mechanism allows for single or double acting, center-hung, or offset applications and is non-handed. The adjustable spring power makes this closer suitable for aluminum, wood or steel doors.

Mechanism only, Spindle Length is 1/2"
See Jackson arms for replacement arms.

Yale 7250 Series Latch Assembly

This latch assembly is used on the Yale 7250 Rim Device with the Square Bolt Latch.

Yale Part #60-7250-0001-048

Note the Hub Position for this Assembly is the  7200

Jackson Exit Device 2085 Dogging Assembly LH/RHRB

This Jackson Exit Device dogging assembly is used on the 2085 Device made after October 1, 1999. It will work on the previous version of this exit device, but you may have to use a file a remove some material from the catch.

Jackson Part # 30-2462

This spring would be for the Device on the Right, shown below.

The Falcon / Doromatic Door Closer SC61 is an affordable, higher quality, standard template closer.  This closer offers adjustable closing, latching and back check speeds, along with adjustable spring tension.  It has the ability to be mounted on the push, pull or top jamb and is non handed.  This closer is considered a Grade 1 closer, which is the highest grade you can get.  The hole spacing is 3/4” x 9-1/16”, which is the most common mounting template out in industry today.  They used to be know as the Doromatic SC60, but in about 2008, they changed it to the Falcon SC61.  We ship the SC61 Rw/PA.

The LCN Door Closer 4011 is known as the Smoothee.  The door closer ships with regular arm, standard plastic cover, and self reaming and tapping screws.  This is considered an application specific closer, meaning you have to specify left and right swing door, and it can only be mounted as a regular armed closer.  A regular armed closer is a closer that is mounted on the pull side of the door.  The non sized clinder will work on doors from 30" to 60" interior doors, or 26" to 48" exterior doors, and can be adjusted to meet ADA specifications.  This door closer is ideal for areas of high traffic and abuse, like schools or any other areas of extreme use.  We ship the 4011 REG.

Yale 794 Bottom Strike

Optional floor strike for fire openings using threshold or flush floor mounting.  For use with the 7100 and 2100 devices.  Used as the Bottom Strike.

Yale Part # 794

The Von Duprin 050155 33/99 Cylinder Dogging Conversion Kit converts Hex Dogging Devices to the Cylinder Dogging.  For use with the 33A, 35A, 98 and 99 Devices.

Von Duprin Part # 050115

• Use with 7212, 7212V or 7222 3/4 Offset Pivot
• Handed
• Vertical adjustment 3/16", include positive locking.

Handing diagram

Yale 2100 Exit Device

Door Opening Width:
-36 for 30" - 36" (76.2cm - 91.4cm) doors, Actual width is 31-3/4"
-42 for 36" - 42" (91.4cm - 107cm) doors, Actual width is 37-3/4"
-48 for 36-1/2" - 48" (92.7cm - 121.9cm) doors, Actual width is 43-3/4"
Door Thickness: 1-3/4" (44mm) standard.
Minimum Stile Width: 4-1/2" (114mm)
Projection: 2-1/2" (64mm) active, 1-3/4" (44mm) depressed

Aluminum is in stock, Dark Bronze has a 2 week lead time

The LCN Door Closer 4031 is shipped with forged regular arm, metal cover and wood/self-tapping machine screw pack. Non-sized (1-4) 4031 cylinder for exterior doors to 36” (914 mm) and interior doors to 48” (1219 mm). Closer mounts hinge side, top jamb, and parallel arm, on either right or left swinging doors. Closer meets ADA requirements.  The hole spacing on this closer will not match the 4030's that LCN produced up to 1997, that was a completely different door closer.

We ship the 4031 Rw/PA

The LCN Door Closer 62PA Parallel Arm Shoe is constructed of steel and then powder coated to your color.  This is the shoe that LCN used on there universal door closers for the parallel arm mounted door closers. This is the bracket that is shipped with the Rw/PA and Hw/PA arms.  A parallel arm closer is a door closer that has the arm parallel to the door when the door is closed. This part is also known as the 1260-62PA, 1460-62PA, 4030-62PA, and 4040-62PA. Ships with mounting screws.

The International Door Closer Main Arm 520 is a replacement arms used on the 640, 650, 850 and 880 series.  This arm is probably used on other International Closers also.  The arm measures 12" overall length, and fits a 7/16" square shaft.

International Door Closer part # 520

Falcon Spring-n-Stop Hold Open Arm, non handed, extra duty forged parallel arm includes an integral spring stop and non-adjustable forearm assembly for high volume traffic or abusive conditions.

Function is the Doromatic/Falcon Door Closer Model

Falcon/Monarch 19 Series Hex Dogging Assembly and Cover have been changed.  As of April 12, 2022 the kit now includes a new style dogging assembly also.

We know this kit will work on the 19/24/25 Series, and are not sure if it will work on the Monarch 17/18 Series Dogging Cover goes over the dogging mechanism on the hinge side of the exit device. Sometimes when the end cap goes missing, this cover plate also disappears.

Monarch old part #s 195 and 194
Monarch/Falcon new part #'s 650297 and 650303

Size is the width of the Device, a 36 inch device is usally only 32 inches wide, a 48 inch device is usually about 42 inches wide.

The LCN Door Closer 4021 is also known as the Smoothee.  The 4021 ships with regular arm, standard plastic cover, and self reaming and tapping screws.  The 4021 is considered an application specific closer.  Meaning you have to specify left and right swing door, and can only be mounted top jamb.  A top jamb mount is when the closer is mounted on the top rail of the door frame and the arms hangs down and attaches to the door.  Top Jamb door closers are also mounted on the pull side of the door.  The Non sized cylinder will work on just about any size interior or exterior door and meets ADA requirements.  We ship the 4021 REG.

Sargent 97-3230 Cylinder Dogging Assembly

The Sargent 816 Cylinder Dogging Assembly, also known as the 97-3230, includes the cam that the cylinder dogging tends to wear out.

Sargent Part # 97-3230

The ALREX hinge is a full function hydraulic door closer hinge. It contains all the features of a door closer, closing and latching speed control, power adjustment, and optional hold open feature. They are available in 4, 4.5 and 5 inch (leaf height), and are currently available in Stainless and Black finishes.

Package includes 2 hydraulic closer hinges and one dummy, for a standard 3 x 7 foot door, 100 pound door.

Door Handing:

Dor-o-Matic 1390 Dogging Assembly. If you have a 1390 and the dogging is stripped, this is the part you need. The package includes the Dogging Cam (4270102815), Activating Cam (4270106551), Spacer (4270108584), and Retaining Ring (4299100732).  The 1390 was discontinued in about 2003. Also known as a PB-96 Dor-o-Matic 1390 Dogging Assembly

Doromatic part # 4270106669

The International Door Closer 5001P Series Adjustable Spring Power is a great closer to use as a replacement for the many 3/4" by 12" mounting holed closers.  This door closer is fully adjustable with sweep, latching and back check adjustments, a long with an adjustable spring tensoin control.  This closer can be adjusted to less then 8-1/2" pounds of resistance to meet ADA standards.  You can install this closer on the push, pull or top jamb, we ship the regular arm and a parallel arm bracket.  This closer has the same mounting holes as the Norton 8000 and Yale 3000 door closers.

Hole spacing 3/4" x 12"

The LCN Door Closer 4021 FL is shipped with fusible link arm, standard plastic cover, and self reaming and tapping screws. This closer is designed to hold open fire doors, when the fusible link melts, it releases the hold open arm, so the door will close.  Sized cylinders for interior doors to 5’0” and exterior doors to 4’0”. Non-sized cylinder adjustable for interior doors to 4’6” and exterior doors to 3’6”. Included arm has a fusible link that melts at 120 degrees, allowing to door to close. Door can be closed any time with a gentle pull.  Closer mounts top jamb (push side), specify right or left swinging door. 4021 cylinder meets ADA requirements.

Adams Rite Old Style Dogging Pin 24-0730

This Adams Rite part is a replacement for worn or stripped dogging pins. The pin has a 1/8" allen head hex.

Adams Rite part # 24-0730

The Sargent 20/30/60/80 Dogging Kit 68-2596 is used on the Sargent 20, Sargent 30, Sargent 60, and Sargent 80 Series Panic Hardware. This dogging assembly kit has been around since the 1980's.  We only sell the dogging assembly parts as a complete set.

Sargent part # 68-2596

Detex EAX Yale Mortise Cylinder

Mortise cylinder for the EAX300 and EAX500 Door Alarms. Brushed Chrome Finish.

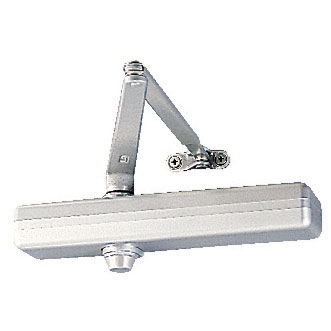

The LCN Door Closer 1461 series closer ships with regular arm, a slim line plastic cover, and self reaming and tapping screws. Non-sized (1-6) cylinder is adjustable for interior doors to 5’0” and exterior doors to 4’0”. Closer mounts hinge side, top jamb and parallel arm on either right or left swinging doors.  The narrow foot print allows this door closer to be mounted on the top jamb and narrow stile doors without a drop plate.

We ship the 1461 Rw/PA
