Cal Royal 7000 Alarmed Exit Device

Same as the Cal Royal 7700, but with these added features"

Alarm unit has internal horn. When the push rail is depressed, the horn sounds to provide an audible means of signaling that the door has been opened and violated. The unit has changeable 2 minute alarm cutoff or manual reset. Preset at factory for 2 minute alarm cut off. The key switch to turn alarm off is a standard 1 ¼” cylinder with “C” keyway. The alarm operates on one standard 9 volt transistor battery. When battery is weak the horn will emit an intermittent signal. Alarmed units are supplied with a switch that monitors push rail only. Unit includes “EMERGENCY EXIT ONLY • ALARM WILL SOUND” decal for application on door or unit.

The Global Door Closer TC4361 is recommended for use on heavy duty commercial, architectrual and institutional applications. It is ideal for business, new construction and renovations. It has a full selection of accessories to accomodate the requirements of any field installation. It is tri-packed standard and comes with all fasteners, brackets and soffit plates for versatility. Closers with non-hold open arms are UL listed for "A" label fire doors. Fully compliant with opening force requirements for ADA and ANSI/BHMA standards.

Options: Specify when Ordering

• Finish - AL, DU

The hole spacing is 1" by 7-1/2"

The Norton Door Closer 8301 is sometimes called the Omni Door Closer.  This door closer features a cast aluminum body, is a Grade 1 closer and has adjustable closing, latching, and back check speeds.  This closer is a non sized closer, meaning you adjust the spring tension to meet closing requirement for a ADA Barrier Free application all the way up to a 48” exterior door.  You cover might have 8301/8301BF 3301/3301BF, but the new version will cover the BF and non BF closers.  The difference between this closer and the 8501 is the size of the plastic cover.  The 8301 has a slim cover, and the 8501 has full cover.  The hole spacing on this door closer is 3/4” x 12”.

The Ives Wall Door Stop / Holder WS445 has been a staple of the Ives product line for at least the last 45 years, and is the same product as the WS443 except it has a holder function.  The stop features cast brass construction and then plated the the desired finish, which makes it ideal for interior or exterior use.   The rubber tip is a non marring rubber, that can be replaced and we keep in stock.  The stop has a 2-1/4" base diameter and a 3-11-16" projection from the wall.  This product ships with an expansion shield and lead shield.  This holder is considered a manually holder due to the fact you have to bend over and latch and unlatch it.

The Von Duprin 98 Rim Panic device has been around since the late 1970's and has gone through a couple of improvements.  One of the great things about the 98 is the availability of replacement parts.  Even when the device is upgraded, the upgraded parts will work with the older versions that can be close to 40 years old.  This device is for all types of single and double doors with mullions.  The device is UL Listed for Panic Exit Hardware and is considered Grade 1, the heaviest duty rating possible.  The Von Duprin 98 device has a smooth mechanism case and the Von Duprin 99 device has a grooved case. The rim device is non-handed, meaning it will work on Left and Right hand doors.   Ships with all the mounting screws and the 299 Strike.

Floor Door Stop / Holder FS41

This floor mounted door holder has been around since the 1960's. It used to go by the name Glynn Johnson GJF41A or F41A, and was brought over to the H.B. Ives line in the 1990's and now goes by the part # FS41. Many schools and hospitals have this door holder in use today. It features: Automatic door holders ideal for heavy-traffic situations that require a simple, fool-proof, Hold-Open device. Forged from brass. Unit is activated automatically when door is opened. A firm pull on door releases the mechanism. Strikes accommodate different door to floor clearances. Model numbers are determined by strike/door-to-floor clearances. Holder position on door is adjustable.

Door to Floor Clearance 9/16" to 1-1/16"
Holder Dimensions 3" Wide x 3-11/16" High

The Von Duprin Thumb Piece 970488 is just the thumb piece only, rivet not included. Cast bronze construction, and then plated to the selected finish. 5-1/8" overall length, but note that the length is usually cut down in the field depending on the thickness of your door.

Von Duprin Part # 970488
Old Part # 960303

Grade 1 Exit Device
Device is non handed
Standard sizes are 30", 36", 42" or 48"
Minimum stile width is 2"

Replacement parts are also available

The Norton Door Closer 8501 is sometimes called the Omni Door Closer.  This door closer features a cast aluminum body, is a Grade 1 closer and has adjustable closing, latching, and back check speeds.  This closer is a non sized closer, meaning you adjust the spring tension to meet closing requirement for a ADA Barrier Free application all the way up to a 48” exterior door.  You cover might have 8501/8501BF 3501/3501BF, but the new version will cover the BF and non BF closers.  The difference between this closer and the 8301 is the size of the plastic cover.  The 8301 has a slim cover, and the 8501 has full cover.  The hole spacing on this door closer is 3/4” x 12”.

Doromatic Exit Device 1490/1590 Act. Rod Spring Stop

Doromatic/Falcon/Allegion Part # 971660-79

Doromatic Door Closer Hold Open Arm Only

Doromatic Door Closer Hold Open Arm. Includes everything is the image. Can be used to convert you regular non hold arm to a Hold Open Door Closer. Arm holds the door open when door is rotated open. The hold open postion is adjustable. This is the hold open arm for the SC61 Hw/PA, SC71 Hw/PA, and the SC81 Hw/PA.

Doromatic Part numbers:
SC60 - SC60-3049/PA , SC70 - SC70-3049/PA , SC80 - SC80-3049/PA

The Adams Rite P8700 P8800 Roller Strike is the Standard Strike for the P8000 Series Pullman Latch Exit Devices. The strike measures 2-15/16 by 1-7/16 inches with a 2 inch on center hole spacing.

Adams Rite Part Number 91-0355 or 41-0975-02 Frame Kit.

1285 Series exit device blends the reliability of the 10 series with the sleek, contemporry style of the today's push-pad exit devices. Easy to retrofit existing 10 Series exits. Made of extruded aluminum.

The Dor-O-Matic 2390 231CA Cylinder Kit converts your 2390 exit only to a Night Latch or Hold Back function key lock.  All the hardware is included in the package to convert your device, except for the Mortise Cylinder.  Housing measures 4-1/2" tall by 1-11/16" wide with a 1-1/8" projection.  We send the 231CA which includes the Schlage B502-191 Cam.   The 239CA is the same kit, but without the Schlage Cam.

Discontinued item, we only have a few left in Dark Bronze.

Floor Door Stop / Holder FS43

This floor mounted door holder has been around since the 1960's. It used to go by the name Glynn Johnson GJF43A or F43A, and was brought over to the H.B. Ives line in the 1990's and now goes by the part # FS43. Many schools and hospitals have this door holder in use today. It features: Automatic door holders ideal for heavy-traffic situations that require a simple, fool-proof, Hold-Open device. Forged from brass. Unit is activated automatically when door is opened. A firm pull on door releases the mechanism. Strikes accommodate different door to floor clearances. Model numbers are determined by strike/door-to-floor clearances. Holder position on door is adjustable.

Door to Floor Clearance 1-5/8" to 2-11/16"
Holder Dimensions 3" Wide x 3-11/16" High

The Corbin 100, 110 and 120 Door Closer are no longer available. They have been replaced by the DC6210, which has the same hole spacings and arm. You will not have to redrill or modify your door to make the DC6210 work in place of your existing 100, 110 or 120 door closers. The DC6210 has a little bit larger body due to the increased functionality of this closer. This new closer will meet all the ADA requirements.

Corbin Russwin’s history combines high-quality product and innovative design. That tradition continues with the new Grade 1 DC6000 Series door closer, designed and engineered with quality features such as captured valves and a complete range of new arms. The DC6000 series is the perfect closer for high-use openings or openings that must meet ADA requirements, such as schools, office buildings, health care facilities, and retail complexes. The series also meets UL and UL10C positive pressure requirements for fire openings.
Uses the same mounting bracket as the 100, and 2800 series.

Older models may have SL72 or MS93 cast on the cylinders. You may also find Clarksdale, MS cast on the cylinder also.

The Sargent Door Closer 351 is the most heavy duty closer made by Sargent.  This closers meets ADA requirements, meets the Buy American Act, and is certified Grade 1, the heaviest rating possible.  The closer has the capability to be mounted on the push, pull or top jamb, and is non handed. It ships with arm, plastic cover, parallel arm bracket and all of the fasteners.  The hole spacing is 2-1/2" x 9"

4" Kickdown Door Holder FS544

The H.B. Ives FS544 Kick Down Door Holder has been a staple in schools for many years due to its heavy duty construction and inexpensive price.  This is one of our most popular Kickdown Door Holder/Stop for the past 35 years.  It is constructed of durable cast iron, which has great strength characteristics.  The shoe is made of a non-marring rubber, which is replaceable.  The shoe is also held in place with a screw, which makes it a great option in schools and area of high vandalism.  This holder will work on door to floor clearances of 2" or less.  The hole spacing is 7/8" x 1-9/16".

Made by H.B. Ives

Sargent Exit Device 80 Series Plastic End Cap And Bracket

includes the end cap, bracket and mounting screws. This plastic end cap always breaks. You might want to consider trying the new impact resistant end cap shown in the related products, on the right hand margin of the page.

Used on the Sargent 80 Series Exit Devices

Part #'s 68-0561, 68-0511 and 97-0052

Hager 5100 Series Door Closer

Hager 5100 Series Grade 1 door closer is constructed of cast iron, which makes it ideal for heavy duty, high use and abusive environments. Hager door closers are the only closers in the industry that are both BHMA certified and backed by a lifetime warranty.

The 5100 matches the hole spacing of the LCN 4040 or 4040XP

Hager 5300 Series Door Closer

Hager 5300 Series Grade 1 door closer is ideal for schools, hospitals, and other high abuse and high traffic environments. It is constructed of an aluminum alloy and provides smooth door control. The 5300 Series door closer is easy to install and maintain­­ keeping your building safe and secure.

The Hager 5300 Series Door Closer body has a hole spacing of 3/4" x 9-1/6".

The Cal-Royal NARL9800 is a time tested heavy duty Alarmed exit device.  Alarm works with a 9 volt battery.

The Adams Rite 8800EL Electric Latch Retraction Panic Hardware is the same as the 8800, but with an internal solenoid to retract the latch-bolt.   This is a very popular device in the Hotel Industry and is usually used in conjunction with a card reader.

The 8800 features the Starwheel locking bolt that interlocks door to the door frame.  The 36" version is in stock, we can also get the 30", 42" and 48" devices, lead time is 2-3 weeks.  This device is used exclusively on aluminum framed glass storefront doors.  Replacement parts are available.

To order specify your Door Width, Color or Finish, and Voltage (12 or 24 Volt).

The Russwin 2800, 2810 and 2820 are no longer available. They have been replaced by the Corbin Russwin DC6210, which has the same hole spacings and arm. You will not have to redrill or modify your door to make the DC6210 work in place of your existing 2800, 2810 or 2820 door closers. The Corbin Russwin DC6210 has a little bit larger body due to the increased functionality of this closer. This new closer will meet all the ADA requirements.

Corbin Russwin’s history combines high-quality product and innovative design. That tradition continues with the new Grade 1 DC6000 Series door closer, designed and engineered with quality features such as captured valves and a complete range of new arms. The DC6000 series is the perfect closer for high-use openings or openings that must meet ADA requirements, such as schools, office buildings, health care facilities, and retail complexes. The series also meets UL and UL10C positive pressure requirements for fire openings.
Uses the same mounting bracket as the 100, and 2800 series.

Older models may have SL72 or MS93 cast on the cylinders. You may also find Clarksdale, MS cast on the cylinder also.

For Doors Wood or metal. 1-3/4" (44 mm) thick standard.
minimum stile with trim and 3-1/2"
Mounting Supplied standard with wood and machine screws
Chassis Cover Cold drawn brass, bronze or stainless steel
Chassis Nonferrous alloy
Hand Handed. Specify RHRB or LHRB
Dogging Feature Allen-type dogging furnished standard.
Top and Bottom Bolts Brass, stainless steel

4" Kickdown Door Holder FS452

The H.B. Ives FS452 is another classic kick down door stop.  It features a simple hold and release, activated with a touch of the foot, and is constructed of cast bronze or brass depending on the finish you are ordering.  A simple stainless steel spring clip holds the stop in the up position.  The non-marring rubber shoe is replaceable, and they have a corrugated bottom to prevent sliding on the floor and a secure grip.  This stop is shipped with matching finish sheet metal screws.   The 4" model is for door to floor clearances of 2" or less.  The hole spacing is 19/32" x 1-47/64".

Ives Part # FS452

The Adams Rite P8800 is the same device as the 8800 Star Wheel exit device, except it has a Pullman Latch, which is more popular.  Push bar Length Standard sizes: dimensioned for 30, 36, 42, and 48 inch openings. Standard width bars can be field cut to the next smallest opening width.

Sargent Exit Device 80 Series Metal End Cap And Bracket

Use this end cap to replace all older versions and plastic end caps. It is much stronger then the orginals, more impact resistant.

sargent part # 565

The Von Dupin PS902 is used to supply power to their MEL Exits, along with the Dor-O-Matic, Falcon and Monarch MEL Exits. Standard features are UL294 Listed for Access Control, Class 2 Rated Power Input, Regulated and filtered DC Outputs.  The PS902 is a 2A @ 12 or 24 VDC.  We ship the PS902-2RS, which has 2 Relay board output.

The Yale Door Closer 3501 is constructed of a cast aluminum alloy.  It is considered a Grade 1 Closer, which is the highest grade possible.  The closer features an adjustable spring tension, and separate closing, latching and back check intensity valves.  The full plastic cover is standard on this closer.  This door closer replaces the older 3501BF closers. The new version is Barrier Free Complaint.  The hole spacing is 3/4" x 12", the cylinder is sometimes cast 20-3301-1001 on the back of the cast aluminum cylinder.  This closer ships with all of the mounting hardware and parallel arm bracket.

The Jackson 1085 Panic Device is one of a few original manufactures of Panic Hardware for aluminum framed glass doors, or storefront doors.  The 1085, 1095 along with their door closer the 20-330 were installed on about half of these doors in the 1970's and 1980's.  They were installed on Vistawall and Kawneer doors just to name a few.  Universally recognized as the standard for aluminum storefront hardware it is made of high tensile strength aluminum.  The device is Non Handed, Comes with 45" cross bar that is easily cut in the field.  Also includes the Concealed Vertical Rods, Screws and Strikes.

Replacement parts are available, in stock!

Corbin Russwin ED5200 Exit Device

Handing
Device is non-handed.
Lever trim is handed.
Bar Length
Easily field cut to size.
Standard: 36" (914mm) bar fits 30"- 36" door.
Stile
Minimum width 4-1/2" (114mm).

Replacement parts are also available

The Ives Wall Door Stop / Holder WS40 is a door holder that has some history.  We see this product in many schools, hospitals and churches that were built in the 50's, 60's and 70's.   The WS40 was originally made and designed by Glynn-Johnson out of Chicago, Illinois, and was called the W40 or GJW40.   H.B. Ives purchased Glynn-Johnson in 1990's and mergered this product into there offering, and changed the part # to WS40.  The holder is made of cast brass or bronze and plated to your desired finish.  The holding mechanism has a rubber bumper inside it to act as a door stop, and a brass spring loaded roller to act as a holder.   The product ships with a universal screw package to mount on all types of walls.   For the best results with this stop/holder the door and wall should be about 3-1/2" apart in the open position.

Base Height: 2"
Base Width: 2-1/2"
Base Projection: 2-1/4"
Engaged Projection: 3-1/2"
Strike Height: 2-1/16"
Strike Width: 3/4"
Strike Projection: 2"

Jackson Panic Device 1295 Push Pad End Cap Package

Package includes two end caps, one bracket mounting screw, and 4 end mounting screws. This product was just upgraded to a metal cover, which will replace the old plastic cover.

Old Jackson part # 30-2677
New Jackson Part # 30-2654

The Jackson 1095 Panic Hardware was one of the first devices universally recognized as the standard for aluminum storefront hardware. Made of high tensile strength aluminum.  It ships complete with both housings, crossbar, all the fasteners, and the strike.  Comes with 45" cross bar that is easily cut in the field.

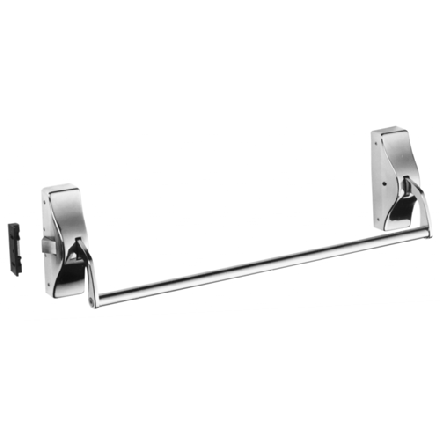

Yale 1500 Exit Device

1500-36 For openings up to 36" (0.91m) wide.
1500-48 For openings up to 48" (1.22m) wide.
Strikes 799 Rim Strike (Single Doors)
Stile Minimum Stile width: 4-1/2" (114mm)
Hand Field Reversible
