The 591 manual flush bolt is for wood doors and is UL listed. It is constructed of solid brass. The face plate is 1 x 6-3/4 inches. The mortised body is 6 inches high by 1-3/8 deep by 1 inch thick. The screw spacing is 1/2 by 6-1/4 inches on centers.

Floor Door Stop FS442

This Floor Mounted Door Stop used to go by the name Glynn Johnson GJFB19 or FB19. When Ingersoll Rand purchased H. B. Ives in the 1990's they brought it over under the Ives Floor Mounted Door Stop FS442. Features: Designed to blend well with all types of construction and provide a minimum of hindrance to cleaning efforts. Accommodates door undercut up to 2". Heavy-Duty cast brass or aluminum construction. Non-marring rubber bumper. This door stop has an overall height 2-7/8". Mounted shield and screws included.

The Norton Traditional Door Closer 78 B/D is a door closer used in historic buildings.  This is a replica of the original cast iron door closer used from the 1920’s to 1960’s.  The new version is made of a cast aluminum alloy material, and should only be used when you are trying to keep historic designations.  The hole spacing on this closer is 1-3/8" x 4-1/4”.

The Falcon / Dor-o-Matic Panic Device 2090 / 1790 Standard Strike is the strike shipped with all new Falcon 2090 and 1790 exit devices.  The strike measures 1-3/4" high, 1-3/4" deep and only comes in a Black Matte color.  This strike was known for a long time as the Dor-o-Matic SD36 Strike, but after changing there name to Falcon in about 2008, it is know known as the Falcon SD36 Strike.

The Yale Door Closer 3301 is constructed of a cast aluminum alloy.  It is considered a Grade 1 Closer, which is the highest grade possible.  The closer features an adjustable spring tension, and separate closing, latching and back check intensity valves.  The slim line plastic cover is standard on this closer.  This door closer replaces the older 3301BF closers. The new version is Barrier Free Complaint.  The hole spacing is 3/4" x 12", the cylinder is sometimes cast 20-3301-1001 on the back of the cast aluminum cylinder.  This closer ships with all of the mounting hardware and parallel arm bracket.

The Von Duprin Panic Device 88 Mounting Screws are used on the 88 Exit Device, there description is 88C/C or E/C Mtg Pkg (CS and MS). The package included 12 screws, 6 machine and 6 hybrid.

Von Duprin Part # 900503
.

New for 2024 the Falcon MEL 47867200 Mechanical Latch Retraction. Retrofits all 1690, 1790, 24 and 25 Series devices to Mechanical Latch Retraction. This new system uses the PS902 Power Supply.  The benefits for the MEL Series over the Older EL series are lower power draw (1 amp verse 16 amp), and more flexible power supply location, longer wire runs and thinner guage wires.

The LCN Door Closer 4031 is shipped with forged regular arm, metal cover and wood/self-tapping machine screw pack. Non-sized (1-4) 4031 cylinder for exterior doors to 36” (914 mm) and interior doors to 48” (1219 mm). Closer mounts hinge side, top jamb, and parallel arm, on either right or left swinging doors. Closer meets ADA requirements.  The hole spacing on this closer will not match the 4030's that LCN produced up to 1997, that was a completely different door closer.

We ship the 4031 Rw/PA

The Door Pull Handle 24 features a 6" center to center screw spacing. The handle is constructed of aluminum, stainless steel or brass depending on the desired finish.  The handle is 1" solid diameter stock and the mounting posts are 3/4" diameter stock.  It measures 8" overall length and projects from the door 2".  It ships with thru bolts and finish washers. Also known as a Door Handle or Door Grip.

Von Duprin Exit Device 88 Axle Package

Von Duprin 88 Axle Package

New style axle snaps together, and replaces the old style which were screwed together with allen wrenches. This style of axle has been around since about 1990. The piece on the right is only used for taking the axle apart.

Von Duprin Part # 090006 or 090082

Corbin Russwin ED4200 Narrow Stile Exit Device
This device is designed for use with a narrow framed glass door, and is recommend for use in high traffic, abusive areas.

Device
non-handed.
Trim handed.
Easily field cut to size.
Standard: 36" bar fits 30"- 36"
914mm) door.

Stile
Minimum width 2" (51mm).

Replacement parts are also available

The Doromatic 1790 rim device is typically used in applications where maintenance is a concern because the rim device has fewer parts and pieces than current exit devices. The result is less maintenance and adjustment. The streamlined design has no openings for chains, reducing the risk for code infringements and offering increased building security by eliminating the possibility of tampering and forced entry through the use of coat hangers and other tools. The Doromatic 1790 may also be used to retrofit a Doromatic 2090 series crossbar device.

Replacement parts are also available

Shipped with all screws and strikes. If you wish to use a key cylinder on the exterior, you will need the 1790 NL/HB Cylinder Assembly, 179CA.

The Norton Apollo Door Closer 7500 has been around for quite a long time, and was designed to replace the older 7700, which are still made. The beauty of the 7500 is that is can be mounted left or right, push, pull or top jamb, were as the 7700 you had to specify all those attributes, which made stocking them a head ache. This is a Grade 1 closer, and is extremely durable. If you are looking for a 7500BF, the barrier free version, the new 7500 is barrier free, and will do the trick. This closer has a 2-3/8" x 6-3/4" hole spacing.

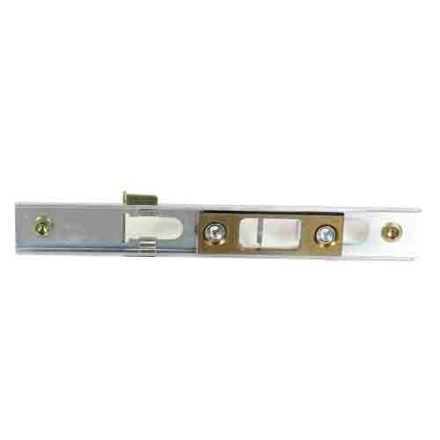

Doromatic EL1490 Lift Bracket

As known as a Falcon EL1490 Lift Bracket. This bracket connects the exit device to the rods. The bracket measures 7-1/4" long by 1" wide.

Dor-o-Matic Falcon Part # PB57 or 4270107495

Product Description & Features
• Concealed Wiring
• Total Floor Space Required:
6-5/8" (168mm)
• Mounting Requirements: Conduit
connects directly to floor plate
• UL listed door holder

The Von Duprin 050534 EL Potted Circuit Breaker measures 5" long by 1-1/4" wide and 7/16" thick including the wires. This piece spikes the current to the solenoid to open the door, then lowers the current to keep the device open.  The 050534 has a plug for the two wire input, and a plug for the 3 wire output. This Potted Circuit Breaker is also used on the Doromatic/Falcon Exit Devices, EL1490, EL1590, EL1690, EL1790, and EL2390. We sometimes find the number 101031-00 and 2148 on a sticker.

Old Von Duprin Part # 110741
Von Duprin Part # 050534
Doromatic/Falcon Part # 050534-00

Jackson 2095 Exit Device

Certified ANSI 156.3 Grade 1. Made of extruded aluminum, with stainless steel and hardened steel mechanical components.

The Cal Royal Products 300 Series Door Closer comes in two versions.   One version is the size 3 to 6 spring, which would be for larger exterior doors.  The 3 to 6 spring size is for doors 36" to 48" wide.  The second version is the size 1 to 4 spring size.  The 1 to 4 is considered a Barrier Free door closer, because the spring tension can be turned down to less than 8 pounds of resistance, making the door easy to open.  The 1 to 4 should be used on interior doors and smaller, less than 36" wide exterior doors.  This door closer is a standard template closer with a hole spacing of 3/4" x 9-1/16" center to center, which is what we find on many aluminum framed glass storefront doors.   This closer has a 5 year warranty and is considered a Grade 1 closer, the heaviest duty rating possible.

The International Door Closer 1804BC-P - Fixed Spring Closer is one of the heaviest duty closers in the International product line.   It offers a 10 year warranty, and is Grade 1 rated, which is the highest rating you can have.  The closer features three adjustment valves for closing,latching speeds and one for back check.  The cylinder is constructed of precision cast aluminum.   It ships with a regular arm and parallel arm bracket.   This is one of the last closers out there to still have sizing.  By sizing I mean each door closer has a spring size of different tension so the closer is selected depending on door size and wether it is interior or exterior.  These days we usually use this door closer as a replacement of existing doors.   This door closer is for use on doors up to 48” interior or 36” exterior doors.

3/4" X 9-1/16" Hole Spacing

The Monarch 4326 Spring Clip is used with the 4841 Spring in the older Monarch Lever Trims

Von Duprin 22 Cover Plate 968595 968596

Von Duprin 22 Dogging Cover Plate. Plate covers the dogging assy, or hinge side of the exit device. This plate sides off when the plastic end cap breaks or goes missing.

Von Duprin Part # 968595   measures 10-3/4" Long  for 3' devices
Von Duprin Part # 968596   measures 16-3/4" Long  for 4' devices

The International Door Closer 1802-P - Fixed Spring Closer is one of the heaviest duty closers in the International product line.   It offers a 10 year warranty, and is Grade 1 rated, which is the highest rating you can have.  The closer features three adjustment valves for closing,latching speeds and one for back check.  The cylinder is constructed of precision cast aluminum.   It ships with a regular arm and parallel arm bracket.   This is one of the last closers out there to still have sizing.  By sizing I mean each door closer has a spring size of different tension so the closer is selected depending on door size and wether it is interior or exterior.  These days we usually use this door closer as a replacement of existing doors.   This door closer is for use on doors up to 36” interior and is not recommended for exterior doors.

3/4" X 9-1/16" Hole Spacing

The Sargent Door Closer 1331  is a standard template closer with the 3/4” x 12” hole spacing.  This closer is a great replacement for the Norton 8000 Series or Yale 3000 Series Door Closers.  The closer is constructed of a cast aluminum body and has a heat treated steel pinion and rack.  The 1331 has the ability to be mounted on the push, pull or top jamb, and is non handed.  We stock the aluminum finish, but also have the dark bronze finish, it just might take an extra day or so.  We ship the 1331-JUO.

Cal Royal 7760 Surface Vertical Rod Exit Device

For use in institutions, schools, universities, commercial buildings where heavy duty reliable operation is a requirement. ANSI A156.3, Grade 1 heavy duty exit device in surface vertical rod and rim designs. Rail assemblies are heavy duty extruded aluminum body with stainless steel push pad and end caps are made of brass, bronze or stainless steel. Rail travels in direction of the door swing. Trims are thru bolted for additional security. Conforms & Meets ADA Regulations. UL Listed for Panic and ULC10C, UBC 7-2-1777 codes. UL Listed for Fire Exit Hardware.

Templating matches the Von Dupin 99 and 98

Cal Royal 7700 Rim Exit Device

For use in institutions, schools, universities, commercial buildings where heavy duty reliable operation is a requirement. ANSI A156.3, Grade 1 heavy duty exit device in surface vertical rod and rim designs. Rail assemblies are heavy duty extruded aluminum body with stainless steel push pad and end caps are made of brass, bronze or stainless steel. Rail travels in direction of the door swing. Trims are thru bolted for additional security. Conforms & Meets ADA Regulations. UL Listed for Panic and ULC10C, UBC 7-2-1777 codes. UL Listed for Fire Exit Hardware. Uncompromising security and safety in single and double fire exit doors. Chassis mounted unit construction. Rim and vertical rod devices are non-handed and easily reversible. Available in many different functions. Lever and escutcheon trims are grade 1 construction with clutch free-wheeling mechanism. Rose and escutcheon covers 161 cut out.

Templating matches the Von Dupin 99 and 98

The Von Duprin 88 Panic Device has been around since the 1950's, and is probably the device that put Von Duprin on the Map.  It is designed for all types of single and double doors with mullions.  It is field reversible, and ships with a 42" cross bar that can be cut down in the field.  The device is dogged down with a 5/32" hex key, and ships with all mounting screws and the 299 strike.

This CRL Jackson® Exit Deviceblends the reliability of the time-proven 10 Series Crossbar Device with the sleek, contemporary style of today's modern push-pad exit device. Available in a Rim, Concealed, and Surface Vertical Rod versions, this device is suitable for use with 1-3/4" (44.5 mm) narrow, medium, and wide stile aluminum, wood, or hollow metal doors. The base is easily trimmed for field sizing, and the vertical rods are shipped to fit up to 84" (2.13 m) tall doors. Extensions or longer rods for taller doors are available. This Exit Device features an easy-to-use dogging system, and is also available with keyed cylinder dogging.

The 1200 Series touch pad with "Soft-Touch" insert requires slight pressure anywhere on the bar insert for instant release of the locking mechanism. Overall projection is only 2-7/8" (73 mm) from the door surface, and mounting hardware is concealed. Active outside trim and other panic accessories are available.

Dor-o-Matic 1490/1590 Dogging Bracket PB222

If your Dor-o-Matic / Falcon exit device is not locking open when the hex key is turned, this is the most likely cause.

Dor-o-Matic / Falcon Part # 4270107046 or PB222

Yale 7100 Exit Device

Door Opening Width:
-36 for 30" - 36" (762 - 914mm) doors
-48 for 36-1/2" - 48" (927 - 1219mm) doors
Door Thickness: 1-3/4" (44mm) standard.
Minimum Stile Width: 4-1/2" (114mm)
Projection: 3-1/4" (83mm) active, 2-3/4" (70mm) dogged
Latchbolt: 3/4" (19mm) deadlocking stainless steel Pullman-type
Strike: 757 (panic),

The International Door Closer 5001P Series Adjustable Spring Power is a great closer to use as a replacement for the many 3/4" by 12" mounting holed closers.  This door closer is fully adjustable with sweep, latching and back check adjustments, a long with an adjustable spring tensoin control.  This closer can be adjusted to less then 8-1/2" pounds of resistance to meet ADA standards.  You can install this closer on the push, pull or top jamb, we ship the regular arm and a parallel arm bracket.  This closer has the same mounting holes as the Norton 8000 and Yale 3000 door closers.

Hole spacing 3/4" x 12"

The International Door Closer 44CI Adjustable Spring Power is one of there heaver duty closers.   It is designed to line up with the LCN 4040 hole spacing at more than half the price.  It features a rugged cast iron body with a forged steel arm.  It also uses all weather fluid, is non handed and is non sized, meaning you can adjust the door for any size door.  The door closer we are selling here come with a regular arm and parallel arm bracket, so the closer can be mounted on the left or right, push, pull or top jamp.  The closer has 4 adjustments, closing, latching, and back check valves, a long with a spring power adjustment.

Hager 5400 Series Door Closer

This Hager Door Closer is a Grade 2 closer.  The hole spacing is 3/4" x 9-1/16" center to center.  The closer comes with the ability to go left or right, push, pull or top jamb mounting.

We ship the 5400MLT04, aluminum is in stock, Dark Bronze has a 3 week lead time

Von Duprin 33A Exit Device Only

33A and 35A for all types of single and double doors with mullion, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. The 35A has a smooth mechanism case and the 33A has grooved case. 33A/35A fits door stiles as narrow as 1 3/4". Newly designed device has a one piece center case cover.

Von Duprin 9875/9975 mortise lock device for all types of single or double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. Fits stock hollow metal doors with 86 cutout and door stiles as narrow as 4-3/4" (121mm). The Von Duprin 9875 device has a smooth mechanism case and the Von Duprin 9975 device has a grooved case. The mortise lock device is non-handed

The Ives Plunger Door Holder / Stop FS1153 is manufactured by H.B. Ives and features a contemporary yet economical method of positive Hold-Open.  This was another one of the Glynn-Johnson door stops that was merged in the H.B. Iver product line in the 1990's, and went by the 1153 part number.  This door stop is constructed in sturdy cast aluminum for years of service.  The spring operated plunger activates with minimal pressure, releasing instantly with a light tap on the plat-form lever.  The stop has a 1-5/8" throw or projection for all types of doors.  The ribbed non-marring rubber shoe is securely fastened to unit with a screw and is easily replaced when worn.  These are sometimes called pop-up or push down stops.  Ships with mounting screws.

Aluminum finish only

The Global Door Closer TC200 is recommended for use on all aluminum store front doors, wood or hollow metal commercial applications. It is a versatile utility closer that provides narrow styling and has a full selection of accessories to accomodate the requirement of any field installation.

In this series, our Global Door Closer TC201 is a multi-size spring model that offers adjustable power with a choice of range sizes 2-5 where high rates of closing force are required. Our TC201ADA model also offers adjustable spring power sizes 1-4 for use on interior doors requireing less than 5 lbs. of opening force and exterior doors requiring less than 8.5 lbs. This complies with ADA handicap codes and ANSI/BHMA standard requirements. Both models will retrofit most full size closers with a 9 1/16" industry standard hole patten to update any opening for code compliance.
Hole Spacing is 3/4" x 9-1/16"

Options: Specify when ordering:

• Finish - AL, DU
• Size 1-4 or 3-6
