The Door Pull Plate 5010 is .050" wought solid aluminum, stainless steel, or brass depending on the finish. The Door Pull GHE10, handles come with thru bolts. The plate has counter sunk holes and sheet metal screws in matching finish.

Finishes

3" x 12" GPL312
3.5" x 15" GPL315
4" x 16" GPL416

The Door Push Plate 70 is our thickest plate we offer.  The plate is 1/8" thick, and is aluminum, brass, stainless steel, or bronze depending on the finish.  All 4 edges are beveled.  We offer this plate in many sizes, and it ships with matching mounting screws.

Finishes

The Burns Manufacturing 455 Adjustable Push/Push units consists of 2 454 push bars and and 1 453 pull bar. They are adustable up to 36". The tubes are 1 inch round and the bases are 2 inch diameter by 2-1/2 inch projection. The base metal is brass.

The Von Duprin 55 End Case is the housing on the hinge side of the door.   The function of this housing is to lift the cross bar, and support the function of the Active Case.  If your housing is on the right side when standing inside looking out, then you would order the Right Hand Case.  The package includes the housing, springs and back plate, the arm is not included.  The current part number on this part is 050196 and 050197, the old part number is 111931 and 111932.

Other finishes are available upon request.

The Von Duprin 98 Rim Panic device has been around since the late 1970's and has gone through a couple of improvements.  One of the great things about the 98 is the availability of replacement parts.  Even when the device is upgraded, the upgraded parts will work with the older versions that can be close to 40 years old.  This device is for all types of single and double doors with mullions.  The device is UL Listed for Panic Exit Hardware and is considered Grade 1, the heaviest duty rating possible.  The Von Duprin 98 device has a smooth mechanism case and the Von Duprin 99 device has a grooved case. The rim device is non-handed, meaning it will work on Left and Right hand doors.   Ships with all the mounting screws and the 299 Strike.

The Von Duprin 99 Rim Panic device has been around since the late 1970's and has gone through a couple of improvements.  One of the great things about the 99 is the availability of replacement parts.  Even when the device is upgraded, the upgraded parts will work with the older versions that can be close to 40 years old.  This device is for all types of single and double doors with mullions.  The device is UL Listed for Panic Exit Hardware and is considered Grade 1, the heaviest duty rating possible.  The Von Duprin 98 device has a smooth mechanism case and the Von Duprin 99 device has a grooved case. The rim device is non-handed, meaning it will work on Left and Right hand doors.   Ships with all the mounting screws and the 299 Strike.

4-1/4" long

Dorma part # AM385A

The Jackson Panic Device 1085 And 1095 Dogging Pin is the piece that keeps the hardware in the open position during business hours.  It is activated by pressing the crossbar and then turning the flat head screw driver head.  The pin is held in the housings with a screw, which is located on the back of the housing.  This pin has been used since about 1988 or so, the old style are no longer made, but they had a roll pin that was used to hold it in place.  This package comes with a new spring, set screw and the pin.  The Jackson part number on this is 30-1115.

International 7100 Concealed Vertical Rod Device

Modern flat touch bar Concealed Vertical Rod Device Panic exit device. This series offers durability, safety and meets the security demand and access control needs of today. Series 7300 Rim Panic exit devices are used with Narrow, Medium and Wide aluminum door and Hollow Metal and Wood Door applications. Series 7300 is non-handed, Field Reversible for LHRB or RHRB doors. Outside Unlatching and Dogging by Cylinder Key or Dogging by Hex Key in Touch Bar. Standard Units for 36” and 48” in widths (cut bar to fit). Can be used on 30” wide doors.

The Von Duprin 88 Tube Attaching Ring 090021 is also used on the Von Duprin 55.  The ring fits over the device lever arm, and is expanded by the Wedge (88R90) and the Wedge Tite Screw (88R100).  When the Wedge Tite Screw is tightened the Ring expands and keeps the crossbar parallel to the door.  Measures 15/16" long by 13/16" diameter.

Von Duprin Part #090021
Old Part # 965676

Push Bar Adjustable 453

Finishes:
US4/606 brushed brass
US26D/626 brushed chrome
US26/625 polished chrome
US3/605 polished brass

Material Brass
Material size 1" round tube adjustable up to 36"
Base 2" round x 2-1/2"
Clearance 1-1/2"
Projection 2-1/2"

The Von Duprin 88 and 55 Cross Bar 967738 has been in use since the 1950's.  The bar is 1" in diameter and is 42" long and can be cut down in the field.  One side of the bar will be cut for the wedge tite screw opening.

Von Duprin Part # 050004
Old Part # 967738

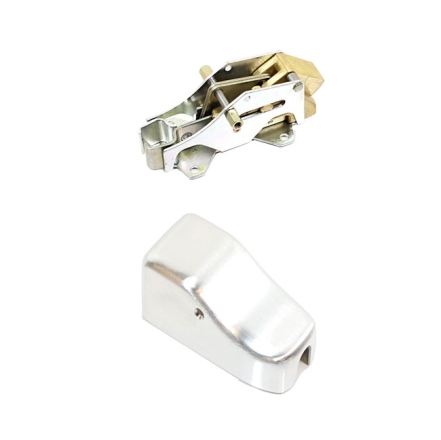

The Von Duprin 8827 050466 Top Latch And Cover is the 050460 (latch) and 050464 (cover) in one convenient package. The package includes the cover screws and mount screws.

Von Duprin Part # 050466

International 7300 Rim Device

Modern flat touch bar Rim Panic exit device. This series offers durability, safety and meets the security demand and access control needs of today. Series 7300 Rim Panic exit devices are used with Narrow, Medium and Wide aluminum door and Hollow Metal and Wood Door applications. Series 7300 is non-handed, Field Reversible for LHRB or RHRB doors. Outside Unlatching and Dogging by Cylinder Key or Dogging by Hex Key in Touch Bar. Standard Units for 36” and 48” in widths (cut bar to fit). Can be used on 30” wide doors.

The concealed LCN Door Closer 2031 -2035 Pacer® is a heavy duty closer designed to fit in a narrow, minimum 1 3/4” aluminum transom.  It is considered an application specific closer, due to the cylinder spring sizing and handing.  The standard 2030 series closer shipped with standard arm, standard track, mounting/finish plate, and wood and machine screw pack.  Aluminum frame requires minimum 1 3/4”  x 4”  tube.

Von Duprin 33A Exit Device Only

33A and 35A for all types of single and double doors with mullion, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. The 35A has a smooth mechanism case and the 33A has grooved case. 33A/35A fits door stiles as narrow as 1 3/4". Newly designed device has a one piece center case cover.

Arrow BM385A Spindle

3-3/4" long

Dorma part # BM385A

The Von Duprin 050390 Bottom Mullion Fitting is the Bottom Fitting for the 1654, 4754, 4854, and 4954 Von Duprin Mullions. The 050390 measures 5/8" thick by 2" wide and 3" long excluding the flange the projects out the one end.   We find the number 961040-70  ESE cast right in the fitting.  The mounting holes are 2-1/4" on center.  Mounting Screws included.

Von Duprin Part # 050390

The Von Duprin 2227 Panic Only surface mounted vertical rod exit device for all types of single and double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3, 2001, Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. Fits door stiles as narrow as 3-5/8". For doors as high as 7'1", if your door is higher than 7'1", please call.  Ships with all mounting screws and the 299, 304L and 248L-4 Strike

The Von Duprin 990K Trim is known as a Knob Trim.  This plate mounts on the exterior of the door, and the welded on mounting studs line up with the 99 device on the interior of the building.  If you have a different manufacture or a different Von Duprin series on the interior, it will not line up.  On the back of this plate we usually find the number 990 stamped on it.  The key locks and unlocks the knob.  The plate shown here is for the Rim and Surface Vertical Rod 99 and 98 devices.  If you have a Mortise or Concealed Vertical Rod, call us and we will order that model.  The plate measures 3" wide by 14-3/16" tall.   Order here for the 990K-R&V.

The Von Duprin 88 Active Case 050409 is for use with the Rim Device, which is the model that has the latch bolt sticking out the side of the housing.  This version of the housing is for use on the 88EO (Exit Only), 88DT (Dummy Trim) and 88NL (Night Latch) models only.  Call or email if you need the Thumb Piece, Knob or Lever Version.  The Center Case includes all of the internal workings.

Von Duprin Part # 050409
Old Part # 101662

The Von Duprin 970323 299 Strike Adjustor is the piece that secures the placement of the Strike to the door frame or mullion.

The Door Pull Plate 5025 is a solid .050" wought plate of solid aluminum, brass or stainless steel depending on the finish. The Door Pull GHE25 has 6" centers and is constructed of solid aluminum, brass or stainless steel, and is 3/4" in diameter, handles come with thru bolts. The plate come predrilled with counter sunk holes and sheet metal screws in matching finiish.  This is one of our most popular plates sold.

Finishes

The Von Duprin 2227 Center Case Cover 968888 comes in an Aluminum SP-28 or Dark Brown SP-313 color.  This piece is for used on the 2227 Surface Vertical Rod Panic Hardware.  Package also included mounting screws.

Von Duprin Part # 968888

The Von Duprin 2227 Bottom Vertical Rod 109362 has a length of 33-1/4" to 33-1/2" that is set at the factory.  All the bottom rods are the same length because of ADA standards. The top rods are field adjustable.

Von Duprin part # 109362

The Von Duprin 22 Rim Center Case Cover 968603 is for use on the 22 rim devices.  The cover comes with mounting screws and is available in aluminum SP-28 or dark brown SP-313.

Von Duprin part # 968603 SP28 or SP313

The Von Duprin Panic Device 88 Mounting Screws are used on the 88 Exit Device, there description is 88C/C or E/C Mtg Pkg (CS and MS). The package included 12 screws, 6 machine and 6 hybrid.

Von Duprin Part # 900503
.

The Von Duprin 050534 EL Potted Circuit Breaker measures 5" long by 1-1/4" wide and 7/16" thick including the wires. This piece spikes the current to the solenoid to open the door, then lowers the current to keep the device open.  The 050534 has a plug for the two wire input, and a plug for the 3 wire output. This Potted Circuit Breaker is also used on the Doromatic/Falcon Exit Devices, EL1490, EL1590, EL1690, EL1790, and EL2390. We sometimes find the number 101031-00 and 2148 on a sticker.

Old Von Duprin Part # 110741
Von Duprin Part # 050534
Doromatic/Falcon Part # 050534-00

The Von Duprin 9927 Center Case Cover 050072 replaces your old 1 or 3 piece cover.  The Von Duprin Cover comes with mounting bracket and all screws.

Von Duprin part # 050072

The 80 Series Push Plate is similar to the 70 series, but has a round bevel on the top and bottom of the plate. There is no bevel on the sides. These plates are  an 1/8 inch thick and are available many different finishes and size.  Custom sizes are available, and they ship with the matching finish mounting screws.

The Von Duprin Pull Handle 972466/972467 replacement Grip/Handle only, screws not included. Cast bronze construction, and then plated to the selected finish. The Grip measures 15/16" wide by 6" long. The center to center hole spacing is 5-1/2". This handle works on the Von Duprin 608, 696, 880, and 990 outside trim plates.

Von Duprin Part # 972466 and 972467
Old Part # 969925 and 959122

Von Duprin 050485 33/3547A/49A Center Case Cover

Replacement Von Duprin 33/3547A/49A Concealed Vertical Rod Center Case Cover Kit.  Screws come with the new cover.

Von Duprin Part # 050485

Von Duprin 8827 Rod Guide Assembly

Securely holds rod in place and protects rod from bending.

Von Duprin Part # 050482
Old Part # 101648

The Von Duprin 99 Mechanism End Cap 050014, also known as 33A/35A/98/99/330/350 Impact Resistant End Cap Kit.  Replaces all of the old versions of the 98/99 End Caps, the mounting holes may be different.  Includes end cap, bracket and all screws

Von Duprin Part # 050014

The Von Duprin ALK Alarm Kit converts the Von Duprin 22, 33A, 35A, 98 and 99 Devices to an alarmed exit device.   When you exit the 85 decibel alarm will sound.  Powered by a standard 9 volt battery and is controlled by a Mortise Cylinder with a straight cam.  When battery is low, the alarm will beep.

Mortise Cylinder NOT included.

Von Duprin Part # 22-ALK, 33A-ALK, 35A-ALK, 98-ALK AND 99-ALK
