Saddle Threshold 613 - 6" Wide By 1/4" High

Extruded aluminum construction. The thresholds are shipped with mounting screws (#10 x 1-1/2" FH zinc plated wood screws), Milled aluminum finish. This is considered a Handicap Saddle Threshold.

Other sizes and finishes are available, call for more information.

Air shipment is not available on this product. Please allow 7-10 days for delivery.

Von Duprin Exit Device 992L Hex Stud

This is the Hex Stud used on the 992L Lever Trim and the 991K Knob Trim. The threads are 1/4-20. Overall lenght is 1-3/4"

Von Duprin Part # 971440

The Door Push Plate 70 is our thickest plate we offer.  The plate is 1/8" thick, and is aluminum, brass, stainless steel, or bronze depending on the finish.  All 4 edges are beveled.  We offer this plate in many sizes, and it ships with matching mounting screws.

Finishes

1295 Series Jackson exit device blends the reliability of the 10 series with the sleek, contemporry style of the today's push-pad exit devices. Easy to retrofit existing 10 Series exits. Made of extruded aluminum.

The Doromatic Exit Device 2090 Active Case is for use on the 1090 and 2090 panic hardware.  This device has been around since the early 1970's, and is now called the Falcon 2090 Active Case, but it is the same piece.  Includes all of the interior hardware. Just unscrew or loosen the three set screws and remove your old case and install and tighten the three set screws. Housing measures 7-1/2" long by 1-3/16" wide, mounting studs have a 6-1/4" center to center distance.

LEFT HAND HOUSING SHOWN IN PICTURE

4270902740 Left Hand Aluminum Stock
4270902742 Left Hand Dark Brown Stock
4270902743 Left Hand Black * One week lead time
4270902746 Right Hand Aluminum Stock
4270902748 Right Hand Dark Brown Stock
4270902749 Right Hand Black * One week lead time

1990 parts breakdown

2090 parts breakdown

The Full Mortise Heavy Duty Hinges are standard butt hinge.  They are designed for heavy weight doors with a high frequency of usage.  These are ideal for exterior doors in schools, hospitals and other commercial venues.  The hinge offers four bearings, one between each leaf of the knuckle.  They are constructed of 7 gauge (.180”) steel that is then plated or paint primed.  We sell them in boxes of 3 hinges, and they ship with machine and wood screws.

Shown in brushed chrome

The Stainless Steel Engraved Push Plate is newer to our product line, but has been a very good seller.  This plate is constructed of 16 gauge (.050") thick stainless steel, and comes in two different sizes, the 3-1/2" x 15", and the 4" x 16".  The black engraved "PUSH" is 3/4" tall.  We can only get this is stainless steel at this time, and the mounting screws are included.

The Cal Royal 4400 Rim Exit Device has a Grade 2 rating. The device features a 3/4" Latchbolt, Roller Strike and a 1" diameter Crossbar. The device comes in a brushed chrome and dark bronze finish, and comes with either a 36" or 48" crossbar. You would need a 4-1/2" minimum stile width.

CG-10 Vinyl Corner Guard 3” x 3”

90 degree 3” x 3” vinyl corner guard with aluminum retainer.  Vinyl flex action absorbs impact, and is .100” thick, the aluminum retainer is .062 thick.  Available in 4, 8 and 9 foot lengths.  The CG-10 Corner Guards ship with a top and bottom end cap.

Sargent 3828 Series Exit Device

The 3828 is a rugged exit device in a rim design. The 3828 Non Configured Rim Exit Device has 7 functions, 4 available trims and is easy to mix and match the device and trim. Aluminum finish only.

Corbin Russwin 650F52 ED4000 / ED5000 Dogging Assembly

Used on Corbin Russwin ED4000 and ED5000 Panic Devices.  he plate measures 2” x 1-7/16”, the shaft measures 1-7/16” long by 1/2” diameter.

Corbin Russwin # 650F52-8

The Doromatic 1790 rim device is typically used in applications where maintenance is a concern because the rim device has fewer parts and pieces than current exit devices. The result is less maintenance and adjustment. The streamlined design has no openings for chains, reducing the risk for code infringements and offering increased building security by eliminating the possibility of tampering and forced entry through the use of coat hangers and other tools. The Doromatic 1790 may also be used to retrofit a Doromatic 2090 series crossbar device.

Replacement parts are also available

Shipped with all screws and strikes. If you wish to use a key cylinder on the exterior, you will need the 1790 NL/HB Cylinder Assembly, 179CA.

Saddle Threshold 426 - 6" Wide By 1/2" High

Extruded aluminum construction. The thresholds are shipped with mounting screws (#10 x 1-1/2" FH zinc plated wood screws), Milled aluminum finish. This is considered a Handicap Saddle Threshold.

Other sizes and finishes are available, call for more information.

Air shipment is not available on this product. Please allow 7-10 days for delivery.

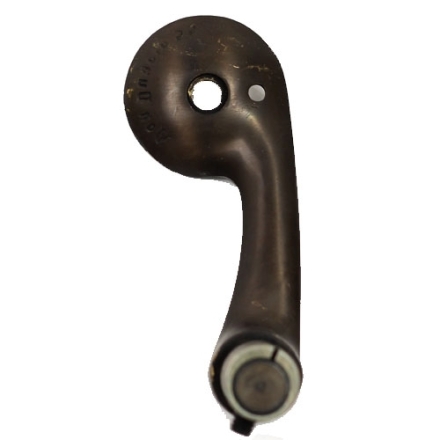

The Von Duprin Panic Device 55 Right Hand Arm 050136 includes the wedge, wedge ring, wedge tite screw and dog screw.

Von Duprin Part # 050136

The Panic Hex Key 1/8" is used on the new Adams Rite, Cal Royal, Jackson and many of the imported panic hardware like International Door Closer.  The key measures 1/8" by 1-13/16" long.  They are also known as Hex Key, Dog Key, Allen Key, and Dogging Key.

This is the same trusted Von Duprin 99 with Electric Latch Retraction, also known as EL.

CG-20 Vinyl Corner Guard 2” x 2”

90 degree 2” x 2” vinyl corner guard with aluminum retainer.  Vinyl flex action absorbs impact, and is .085” thick, the aluminum retainer is .062 thick.  Each corner guard includes the end caps.  Available in 4, 8 and 9 foot lengths.  The CG-20 includes the top and bottom end caps.

Dorma 8400 Surface Vertical Rod Exit Device minimize forced entry while offering a low-cost solution to life safety requirements. Certified/listed to ANSI/BHMA 156.3 Grade 1 for exit devices. 5 year limited warranty.

The Von Duprin 990K Trim is known as a Knob Trim.  This plate mounts on the exterior of the door, and the welded on mounting studs line up with the 99 device on the interior of the building.  If you have a different manufacture or a different Von Duprin series on the interior, it will not line up.  On the back of this plate we usually find the number 990 stamped on it.  The key locks and unlocks the knob.  The plate shown here is for the Rim and Surface Vertical Rod 99 and 98 devices.  If you have a Mortise or Concealed Vertical Rod, call us and we will order that model.  The plate measures 3" wide by 14-3/16" tall.   Order here for the 990K-R&V.

Floor Door Stop / Holder FS40

This floor mounted door holder has been around since the 1960's. It used to go by the name Glynn Johnson GJF40A or F40A, and was brought over to the H.B. Ives line in the 1990's. Many schools and hospitals have this door holder in use today. It features: Automatic door holders ideal for heavy-traffic situations that require a simple, fool-proof, Hold-Open device. Forged from brass. Unit is activated automatically when door is opened. A firm pull on door releases the mechanism. Strikes accommodate different door to floor clearances. Model numbers are determined by strike/door-to-floor clearances. Holder position on door is adjustable.

Door to Floor Clearance 1/2" or less
Holder Dimensions 3" Wide x 3-11/16" High

Floor Door Stop / Holder FS41

This floor mounted door holder has been around since the 1960's. It used to go by the name Glynn Johnson GJF41A or F41A, and was brought over to the H.B. Ives line in the 1990's and now goes by the part # FS41. Many schools and hospitals have this door holder in use today. It features: Automatic door holders ideal for heavy-traffic situations that require a simple, fool-proof, Hold-Open device. Forged from brass. Unit is activated automatically when door is opened. A firm pull on door releases the mechanism. Strikes accommodate different door to floor clearances. Model numbers are determined by strike/door-to-floor clearances. Holder position on door is adjustable.

Door to Floor Clearance 9/16" to 1-1/16"
Holder Dimensions 3" Wide x 3-11/16" High

The LCN Door Closer 4011 is known as the Smoothee.  The door closer ships with regular arm, standard plastic cover, and self reaming and tapping screws.  This is considered an application specific closer, meaning you have to specify left and right swing door, and it can only be mounted as a regular armed closer.  A regular armed closer is a closer that is mounted on the pull side of the door.  The non sized clinder will work on doors from 30" to 60" interior doors, or 26" to 48" exterior doors, and can be adjusted to meet ADA specifications.  This door closer is ideal for areas of high traffic and abuse, like schools or any other areas of extreme use.  We ship the 4011 REG.

The Von Duprin 106222 Racket Release Kit is used on the 3347, 3547, 9847 and 9947 Exit Devices.   The pin that projects from the block releases the top latch when the door closes, and locks the door shut.

Von Duprin Part # 106222

The Concealed Mount Push and Pull Plate Sets feature an 1/8 inch push plate with a 1/20 inch plate plate. The handle is surface mounted with thru mounted studs. 8 inch center handles are 3/4 inch diameter, 10 in and 12 inch center handles are 1 inch diameter.

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.

Floor Door Stop / Holder FS43

This floor mounted door holder has been around since the 1960's. It used to go by the name Glynn Johnson GJF43A or F43A, and was brought over to the H.B. Ives line in the 1990's and now goes by the part # FS43. Many schools and hospitals have this door holder in use today. It features: Automatic door holders ideal for heavy-traffic situations that require a simple, fool-proof, Hold-Open device. Forged from brass. Unit is activated automatically when door is opened. A firm pull on door releases the mechanism. Strikes accommodate different door to floor clearances. Model numbers are determined by strike/door-to-floor clearances. Holder position on door is adjustable.

Door to Floor Clearance 1-5/8" to 2-11/16"
Holder Dimensions 3" Wide x 3-11/16" High

The Panic Hex Key 3/16" is used on some of the Corbin Russwin panic hardware.  The key measure 3/16" hex by 2-1/4" long.  At this point we do not know of any other manufacture that uses this size key.  Also known as Hex Key, Dog Key, Allen Key, Dogging Key.

Floor Door Stop / Holder FS42

This floor mounted door holder has been around since the 1960's. It used to go by the name Glynn Johnson GJF42A or F42A, and was brought over to the H.B. Ives line in the 1990's and now goes by the part # FS42. Many schools and hospitals have this door holder in use today. It features: Automatic door holders ideal for heavy-traffic situations that require a simple, fool-proof, Hold-Open device. Forged from brass. Unit is activated automatically when door is opened. A firm pull on door releases the mechanism. Strikes accommodate different door to floor clearances. Model numbers are determined by strike/door-to-floor clearances. Holder position on door is adjustable.

Door to Floor Clearance 1-1/8" to 1-9/16"
Holder Dimensions 3" Wide x 3-11/16" High

New for 2024 the Falcon MEL 47867200 Mechanical Latch Retraction. Retrofits all 1690, 1790, 24 and 25 Series devices to Mechanical Latch Retraction. This new system uses the PS902 Power Supply.  The benefits for the MEL Series over the Older EL series are lower power draw (1 amp verse 16 amp), and more flexible power supply location, longer wire runs and thinner guage wires.

The Clear Plastic Corner Guards 312 are a good way to protect corners from hand carts and dollies.  If the area has a lot of traffic, like a warehouse, I would recommend the 310 or 311 which are made of metal. The are 2" by 2" and are usually 48" long, but we can do custom sizes.  They are constructed of .120" thick clear polycarbonate plastic.  Screws are included for mounting.

Von Duprin 373L 88 Lever Trim

Effective December 20, 2024 the EL2390 has been discontinued.  Falcon Doromatic is working on retro-fit plates to work with the MEL1690.

Doromatic EL2390 Exit Device

The Cal-Royal 45 Narrow Stile Rim Device is part of the new 4500 Series.  They are designed for Narrow Stile doors with a minimum of an 1-3/4" stile width.  This is a Grade 1 Exit Device, which is the highest traffic rating possible. Exit device ships with strike and mounting screws.

Shown is Left Hand Reverse
Opposite would be Right Hand Reverse

For Doors Wood or metal. 1-3/4"(44mm) and 2-1/4" (57mm) thick
Mounting Supplied standard with wood and machine screws
Chassis Cover Cold drawn brass, bronze or stainless steel
Chassis Nonferrous alloy
Hand Non-handed

Rim Cylinder

Standard Rim Cylinder for use on Rim Cylinder activated exit and panic devices.

The International Door Closer (IDC) 8710S is a narrow design rim device. The minimum stile width has to be 2-19/32 inches. The device features a 3/4 inch throw deadlocking latchbolt, hex key dogging, and ships with machine screws and strike. The device is Grade 1 Rated, which is the highest rating possible. The 36 inch device is 33-15/32 long and the 48 is 44-3/4 inches.

This new LCN 1450 Rw/PA Door Closer is a direct replacement for the Norton 8000,Yale 3000, and Falcon/Dor-o-Matic SC80 Series Door Closers, or any door closer that has the 3/4" x 12" hole spacing.  It features, a cast aluminum cylinder, 25 year warranty, powder coated finishes, and stick on mounting template.  This door closer comes with the ability to mount on the push, pull or top jamb and is non handed.   The door closer meets Grade 1-ANSI A156.4, UL/cUL, ADA and the Buy American Act certifications.

Hole Spacing 3/4” x 12”
