The LCN Door Closer 4111 FL is known as the Smoothee, and is one of the heaviest duty door closers made, the FL stands for Fusible Link. The Fusible Link is a lead clip that melts at roughly 115 degrees, and releases the door so it can close and contain a fire.  If you have a building were you have a high traffic and abusive, especially exterior doors, then this is the closer. The 4111 is an application specific closer, meaning it will only work when mounted on the door, on the push side. This is known as a parallel arm application. The cylinder is fully adjustable and will work on doors up to 56" exterior door, and can be adjust down to ADA required levels. We ship the 4111 FL model, which is a hold open fusible lind, on this page. The cylinder mounting holes are 2-1/2" by 6".

Von Duprin 22 Control Link Pin

The control link pin is the connector pin, that connects the latch head assembly to the push bar assembly. When the push bar is pushed in it retracts the latch bolt and the pin connects the two pieces. This Control Link Pin is used on the Von Duprin 22, 33A, 98 and 99 Panic Devices.

VON DUPRIN PART # 050529
Old Von Duprin Part # 969520

LCN Door Closer Fusible Link Arm

Adjustable nut allows door closer arm to lock when the preselect position is reached. Fusible Link will hold door until heat melts the "Link" and then the door will shut. Used on Fire Doors to control a spreading fire.

Specify your current closers model number when ordering.
Not all of the LCN closers have the same shape spindle on the door closer
cylinder. The LCN Part #'s on this Fusible Link Arm is: 4010-3049FL, 4020-3049FL, 4110-3049FL

The Doromatic 1990 Panic Device has a long history of reliable performance.  Although it is now called the Falcon 1990, they are the same device.  This device is non handed, meaning it can go on left hand or right hand door.  The standard included 41" crossbar will work on doors up 3'8" wide, and the stardard rods will work on a 7' door.  It is equipped with hardened steel latches and adjustable strike to ensure safety, security and quiet operation.  The package includes all of the mounting screws and strikes.

Hand: Field reversible, non handed.
Dogging Feature: Hex dogging standard.
Cylinder: Rim, key entry (NL) or hold back (HB) available
(field selectable)
Sizes: Field adjustable width, 41" crossbar standard fits 3' 8" x 7'
door, extra length cross bar available.
Doors: 1-3/4" thick metal doors.
Projections: 4-3/8" extended, 2-1/2" depressed.
Stile: 1-3/4" minimum.

The LCN Door Closer 4011FL is shipped with fusible link arm, standard plastic cover, and self reaming and tapping screws. Sized cylinders for interior doors to 5’0” and exterior doors to 4’0”. Non-sized cylinder (4011) adjustable for interior doors to 4’6” and exterior doors to 3’6”. Included arm has a fusible link that melts at 120 degrees, allowing to door to close. Door can be closed any time with a gentle pull. Closer mounts hinge side, specify right or left swinging door. 4011 cylinder meets ADA requirements.

We ship the 4011 FL

The LCN Door Closer 4021 FL is shipped with fusible link arm, standard plastic cover, and self reaming and tapping screws. This closer is designed to hold open fire doors, when the fusible link melts, it releases the hold open arm, so the door will close.  Sized cylinders for interior doors to 5’0” and exterior doors to 4’0”. Non-sized cylinder adjustable for interior doors to 4’6” and exterior doors to 3’6”. Included arm has a fusible link that melts at 120 degrees, allowing to door to close. Door can be closed any time with a gentle pull.  Closer mounts top jamb (push side), specify right or left swinging door. 4021 cylinder meets ADA requirements.

The Dor-o-Matic 1690/1990 Top Strike PB48 is used on the Dor-o-Matic 1690, 1990 and 2390 Concealed Vertical Rod Exit and Panic Devices. The plate measures 1" x 1-1/16" with 4 holes. The mounting holes are 11/16" x 11/16" on center. The diameter of the pin is 7/16" and projects out 5/32". Ships with mounting screws and 3 shim plates.  The Dor-o-Matic Panic Devices have been around since the late 1960’s, but have most recently been known as the Falcon Panic Device from a name change they had in about 2008.  They are basically the same device, with the same parts, just a different name plate.  Falcon part # PB48.

Dor-o-Matic/Falcon 990/1990 Repair Parts Breakdown
Dor-o-Matic/Falcon 1690 Repair Parts Breakdown

The Dor-O-Matic 1690/1790/1990/2090 Pinion PB5 has been in use since the 1970's.  This gear or pinion is what activates the latch or the rods on the 990, 1090, 1690, 1790, 1990 and 2090 devices.  The Dor-o-Matic Panic Devices have been around since the late 1960’s, but have most recently been known as the Falcon Panic Device from a name change they had in about 2008.  They are the same device, with the same parts, just a different name plate.  The manufacture part number on this is CAM.102, PB5 or PB140.

1690 parts breakdown

1790 parts breakdown

1990 parts breakdown

2090 parts breakdown

The SEM7810-514 LCN Ball Pivot Connection Link Coupler Assembly Kit, is required for each door needing extension(s). Kit includes coupler link and ball pivot (alone serves as an 1-1/2" extenison). The threaded end is 3/8-16.

LCN Part # SEM7810-514

The LCN Fusible Link melts at 165 degrees to release the hold open mechanism.   Link measures 1-3/8 long by a 1/2" wide, the center to center distance on the holes is 15/16".

LCN Part Numbers:
4010-28
4110-30
4020-31

The Door Pull Handle 16 has an overall length of 7-1/2". The base diameters are 2" with three holes each. The handle projects out 2-1/4" and has a clearance of 1-1/2". Also known as a Door Grip or Door Handle. This handle ships with 6 wood/sheet metal screws.

Dor-o-Matic 1690/1990 Top rod. Connects panic bar to the bottom latch

Doromatic Part # 4270100017 PB24

This rod is 35" tall

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1690 Repair Parts Breakdown

The Door Pull Handle 22 features an opened end and a closed end pull. This Door Pull is also known as a Door Handle or Door Grip. The dimensions are 14" overall length, 8" centers, with a 3/8" by 1-1/4" handle cross section.   The mounting posts have a 1" diameter, and the handle projects out 1-7/8".  The handle ships with thru bolts and finish washers.  It is constructed of aluminum, stainless steel or brass depending on the finish you are looking for.

Dor-o-Matic 1690/1990 bottom rod. Connects panic bar to the bottom latch

Doromatic Part # 4270101825 PB25 and GPB25

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1690 Repair Parts Breakdown

The Door Pull Handle 15 features 7-1/2" centers on the mounting screws. With 2" diameter bases. The Grip has a 2-1/4" projection with a 1-5/8" clearance. Also known as a Door Handle or Door Grip. This handle ships with thru bolts and finish washers.

The Door Pull Handle 12 has a 5-1/2" centers hole spacing and is 6" overall. It has 2" projection with 1-3/8" clearance and the base is 5/8" x 1-1/4". Also known as a Door Handle or Door Grip. Shipped with thru bolts and finish washers.

The Dor-o-Matic 1990 Housing and 1090 2090 Inactive Housing DCX has been around since the early 1970's.  Although it is now called a Falcon 1990, it is still the same device.  This housing is also the inactive housing on the Dor-O-Matic / Falcon 1090 and 2090 panic hardware.  The housing includes all of the interior springs, arm, and dogging screw.  Housing measures 7-1/2" long by 1-3/16" wide.  The center to center distance of the mounting studs is 6-1/4".

LEFT HAND SHOWN IN PICTURE

See diagrams for handing.

Doromatic part #
4270902784 - right hand dark brown
4270902782 - right hand aluminum
4270902785 -right hand black
4270902778- left hand dark brown
4270902776 - left hand aluminum
4270902779- left hand black

1990 parts breakdown

2090 parts breakdown

The Door Pull Handle 11  has 8" center to center screw spacing. The base is 3/4" diameter, the overall lenght is 9-1/4". The projection is 2-1/8" and the clearance is 1-1/2". Also known as a 8" Center Door Grip or Door Handle. This handle is shipped with thru bolts and finish washers.

The Door Pull Handle 17 has an overall length of 10". The base diameters are 2" with three holes each. The handle projects out 2-1/4" and has a clearance of 1-1/2". Also known as a Door Grip or Door Handle. This handle ships with 6 wood/sheet metal screws.

The Door Pull Handle 24 features a 6" center to center screw spacing. The handle is constructed of aluminum, stainless steel or brass depending on the desired finish.  The handle is 1" solid diameter stock and the mounting posts are 3/4" diameter stock.  It measures 8" overall length and projects from the door 2".  It ships with thru bolts and finish washers. Also known as a Door Handle or Door Grip.

The Dor-o-Matic 1990/2090 Cross Bar CBAR is used on the 990, 1090, 1990 and 2090 Dor-o-Matic and Falcon panic hardware.  The bar is 41" and 48" long and is easily cut in the field with a chop or hack saw.  The bar is constructed of extruded aluminum and then anodized to the correct finish.  The slot where the screw threads in is not threaded, but the screws, sold separately, are thread forming screws. The 41" bars are in stock, the 48" bars have a 3 week lead time

The Dark Bronze Cross Bars are a very dark bronze and will be closer to black.

Doromatic part # CBAR/  47285197 for the 41" bars, and 47286482 for the 48" bars.

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

ADA Sliding and Barn Door Push/Pull Set. Pull handle is 3/4" round stock with 6" center to centers and 2-1/2 inch clearance.  The flush pull is 4" x 7" x 1-1/8 inch ADA.

The Dor-O-Matic 1690/1790/1990/2090 Cylinder Bushing BUSH.102 fits around the Pinion gear to take up slack and reduce friction.  This piece is now known as the Falcon Panic Hardware BUSH.102, but for many years was called the Dor-o-Matic PB46.

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown
Dor-o-Matic 1690 Repair Parts Breakdown
Dor-o-Matic 1790 Repair Parts Breakdown

The Door Pull Offset #39 Handle is constructed of either solid aluminum, brass or stainless steel. The handle is 1" diameter tubing with a 2-3/4" offset and 2-3/4" projection. This is the most common type of handle you use today.  Just about every aluminum framed storefront door has a version of this handle. This handle is available in 8", 10", 12" and 18" centers on the mounting holes. The back to back mounting is for Metal or Wood Doors that are 1-3/4 thick. Included fastener is threaded into one of the handles, and the Stud End has fits into the inside handle and is held in place by a set screw on the handle.

Package includes two offset pull handles and fastening hardware. Shown in Polished Stainless Steel with 12 inch centers.

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks.

Dor-o-matic 2090 latch link

Dor-o-Matic 1090/2090 Repair Parts Breakdown

The Dor-o-Matic 1690/1990 Retractor PB35 has been used since the 1970's.  The manufacture has changed names in the last 5 years and now goes by Falcon Panic Hardware. This piece is used the 990, 1690 and 1990 devices.  The pinion rides inside this bracket to raise and lower the internal rods. Parts used with the retractor are the Pinion (G199005), Traveller (G199028) and the Pinion Bushing (G199046). Retractor measures 1-7/8" long by 7/8" wide by 1/4" thick.

Doromatic part # PB35 or RETRACT.101

The Door Pull Handle 23 features two closed ends. This Door Pull is also known as a Door Handle or Door Grip. The dimensions are 14" overall length, 8" centers, with a 3/8" by 1-1/4" handle cross section.   The mounting post has a 1" diameter, and the handle projects out 1-7/8".  The handle ships with thru bolts and finish washers.  It is constructed of aluminum, stainless steel or brass depending on the finish you are looking for.

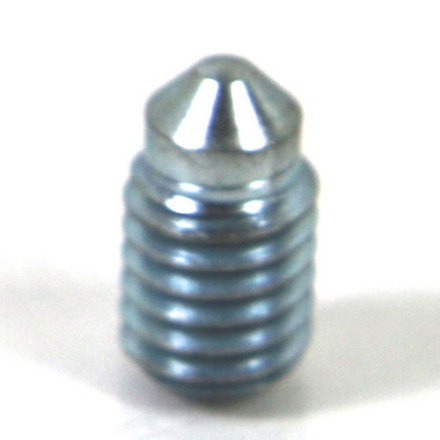

Dor-o-Matic 990/1090/199092090 dogging screw. This is the screw that holds down the cross bar when you tighten it.
The thread is 7/16-14.

Doromatic part # SCREW.1022

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

The Door Pull Handle 14 has 5-1/2" centers on the mounting screws. And has a 2" diameter base. It features a 2-1/4" projection with a 1-1/2" clearance. Also known as a Door Handle or Door Grip. The handle ships with thru bolts and finish washers.

The Door Pull Handle 10 has 5-1/2" center to center screw spacing. The base is 3/4" diameter, the overall lenght is 6-1/4". The projection is 2" and the clearance is 1-1/2". Also known as a Door Handle or Door Grip. This handle ships with thru bolts and finish washers.

Back to Back mounted 1 inch diameter stock.  One handle will be threaded and the other will be a female fitting that snugs the handle with a set screw.  The standard Stud that ships with the handle is for an 1-3/4 thick door.

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.

The Push Bar w/Handle 422X26 is usually found aluminum framed glass store front doors.  It is constructed of 1" diameter solid aluminum, brass, bronze or stainless steel, depending on the finish.  The handle or grip will have either a 8", 10", 12" or 18" center to center screw spacing.  The push bar center to center length is determined by you, we can do any reasonable size.  Establish the center to center dimension by subtracting the width of one stile from the width of the door. On solid doors, subtract 5" from the width of the door.  All the fasteners are included, and are determined by the material your door is made of (wood or metal).   Please allow 3-4 weeks on the Dark Bronze and Aluminum, and 2 weeks on the other finishes.

Finishes

The Jackson Panic Device 1085 Body Package includes 4 mounting studs, 3 housing set screws, 2 lever arm springs, 2 lever arm pins, and an actuator link.  Jackson part # 30-1409

The Door Pull Handle 21 has a cross section dimension of 1/2" x 1" and is made of half round (underside is round) stock. The handle projects out 2-1/8" with a clearance of 1-5/8". This handle is available in 6" and 8" center to center mounting holes, but can be made in different Center to Center dimensions. This product is also known as a Door Handle or Door Grip. The handle ships with thru bolts and matching finish washers.

The Dor-o-Matic 1690/1990 Top Rod Latch Assembly PB130 is also used on the 1390, 1490 and 2390.  This latch has been around since the 1970's,  and is usually the issue if your bottom rod is dragging on the floor.  Although we are calling it Dor-o-Matic, it is actually known as a Falcon SU Top Latch due to a name change 5 or 6 years ago.  This latch rolls over when the device is pressed in and then locks in that position.  When the door closes, the 'U" channel of the latch flips over to a vertical postion and drops the rods.  This latch always uses the PB48 Strike, our part # G199034.  The Dor-o-Matic Panic Devices have been around since the late 1960’s, but have most recently been known as the Falcon Panic Device from a name change they had in about 2008.  They are basically the same device, with the same parts, just a different name plate.  Falcon part # PB130 or 4270101806.

Dor-o-Matic Lever arm.

Doromatic part # DC15 Lh and DC40 Rh

Order G199015 for Left Hand and G199040 for Right Hand

Left hand lever shown for 1990 and the 2090 inactive case.

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown
