Search results for: 'dorma sizing door cal door minut von'

Dorma 7414 Door Closer

The Dorma 7414 Series door closer features back check and adjustable spring sizing and is the ideal solution in a wide variety of applications, including barrier-free. This Grade 1 hydraulic surface door closer is both flexible and easy to install. The 7414 Series offers a compact design and is available in a variety of sprayed finishes to complement any opening’s decor.

Dorma part # 7414ARP689

3/4" X 10-1/4" Hole Spacing

Dorma 8916 Door Closer

The Dorma 8916 door closer series designed to provide a highly flexible door control system suitable for institutional or high-traffic commercial applications. Its hydraulic control system features a full range spring power adjustment and back check, along with a narrow projection full cover and flatform style arm.

 Door closer certified for ANSI Grade 1.

we ship the Dorma Model # 8916-AF89P

2-1/8" x 5" hole spacing

Cal Royal 700 Series Door Closer

Adjustable closing and latching speeds
holes spacing  is 3/4" x8-3/16" for sizes 2 and 3, and 3/4 x 9-1/16" for the size 4.   Size 2 is ideal for reduced power on interior doors, size 3 will be more powerful.   Word of warning, the larger the spring size the harder it is to open the door.
Powder Coated Painted Finishes
5 year warranty

The Cal Royal Products 400 Series Door Closer is for lighter use interior doors.  This closer is considered a Grade 2, which means it is only rated for 1,000,000 cycles.  The 400 Series is a sized closer, meaning you can not adjust the spring tension, the spring size you select is what you get.  Also, make sure to note the hole spacing of the various sizes below.  These closers also offer adjustable closing and latching speeds.

Size 420 3/4" x 6-5/8" hole spacing
Size SM 430P 3/4" x 6-1/2" hole spacing
Size 430P 3/4" x 8-3/16" hole spacing
Size 440P 3/4" x 8-3/16" hole spacing

Cal Royal 400 Series Catalogue

Cal Royal 7000 Alarmed Exit Device

Same as the Cal Royal 7700, but with these added features"

Alarm unit has internal horn. When the push rail is depressed, the horn sounds to provide an audible means of signaling that the door has been opened and violated. The unit has changeable 2 minute alarm cutoff or manual reset. Preset at factory for 2 minute alarm cut off. The key switch to turn alarm off is a standard 1 ¼” cylinder with “C” keyway. The alarm operates on one standard 9 volt transistor battery. When battery is weak the horn will emit an intermittent signal. Alarmed units are supplied with a switch that monitors push rail only. Unit includes “EMERGENCY EXIT ONLY • ALARM WILL SOUND” decal for application on door or unit.

Cal Royal 2000 Alarmed Exit Device
Alarm units has an internal horn. When the push rail is depressed, the horn sounds to provide an audible means of signaling that the door has been opened and violated. The unit has changeable 2 minute alarm cutoff or manual reset. Preset at factory for 2 minute alarm cut off. Jumper cable is provided to swich to continuous alarm. The key switch to turn the alarm off is a standard 1” cylinder with “C” keyway. The alarm operates on one standard 9 volt transistor battery. When battery is weak the horn will emit an intermittent signal. Alarmed units are supplied with two switches. One switch monitors the push rail and the other switch monitors the latch bolt for full proof security.

Unit includes “EMERGENCY EXIT ONLY. ALARM WILL SOUND” decal for application on door or unit.

The Cal Royal Products 300 Series Door Closer comes in two versions.   One version is the size 3 to 6 spring, which would be for larger exterior doors.  The 3 to 6 spring size is for doors 36" to 48" wide.  The second version is the size 1 to 4 spring size.  The 1 to 4 is considered a Barrier Free door closer, because the spring tension can be turned down to less than 8 pounds of resistance, making the door easy to open.  The 1 to 4 should be used on interior doors and smaller, less than 36" wide exterior doors.  This door closer is a standard template closer with a hole spacing of 3/4" x 9-1/16" center to center, which is what we find on many aluminum framed glass storefront doors.   This closer has a 5 year warranty and is considered a Grade 1 closer, the heaviest duty rating possible.

Dorma 8616 Door Closer

The Dorma 8616 door closer series is a non-handed surface applied door closer with adjustable spring power and back check positioning adjustment. It provides the flexibility needed to meet the many demands of commercial and institutional applications, including ADA barrier-free accessibility requirements.

Door closer certified for ANSI Grade 1.

we ship the Dorma Model # 8616-AF89P

3/4" x 12" hole spacing

The Cal Royal Products 900 Series Door Closer is a unique one, it is the only closer that has the 3/4" x 11-1/8" hole spacing.  We have seen a few versions of this closer, some have 6 mounting holes, and some have 4.  If your closer has a spacing of 11-1/8", and has 3 holes on each size, this is the only closer I know of that is like that.  The 900 Series is a Grade 1 closer, the heaviest duty rating possible.  The door closer has adjustable spring tension, closing, latching and back check valves and is Barrier Free rated.  The package comes with all of the  mounting screws and a parallel arm bracket, so it can be mounted on the left, right, push, pull or top jamb for mounting.

Detex EAX-300 Battery Powered Door Prop Alarm

The Detex EAX-300 Series is designed for applications where doors may be used for egress or ingress, but may not be held or propped open. Door open times from 1 second to 4 minutes (15 second default) are field selectable. The smaller size makes installation quick and easy.

Cylinder not included!
Uses a standard 9 volt battery

Detex EAX-300 Installation Instructions

The Cal Royal Products CR441 Door Closer is an inexpensive replacement for the LCN 4040.  The mounting holes on the CR441 matches the 4040, at more than 1/2 the cost.  This closer will work on the left or right, push, pull or top jamb for mounting.   Just like the LCN 4040 it features adjustable spring tension, closing, latching and back check speeds.  It is considered a Grade 1 closer, which is the heaviest rating possible.

Cal Royal CR4040 Catalogue

The Dorma RTS88 Door Closer is an overhead concealed closer for both single and double-acting doors.  It is one of the more popular overhead concealed closers on the market today.  The RTS88 will consist of a steel cam, rollers, and springs housed in a compact cast iron body.  Closers will be capable of being installed in minimum 1-3/4" x 4" headers. RTS88 will have maximum door opening to 90º or 105º, trim conditions permitting. Sweep and latch speed will be controlled by two noncritical adjustment valves from 90º or 105º to closed. Built-in pressure relief valve will protect the closer from abuse caused by forced closing. A mechanical backcheck combined with a positive stop at 90º or 105º will be provided to protect the door and frame. The RTS88 closer will be available with hold open at 90º or 105º, or without hold open. The product shown here is just the replacement cylinder.

The Cal Royal Products 800 Door Closer is one of there newer closers.  The CR801 has a hole spacing of 3/4" x 12" and ships with either a full cover or slim cover.  The full cover will hide both spindles, were as the slim cover will not.  This closer is a Grade 1 closer, the heaviest rating possible.  The cylinder has adjustable spring tension, closing, latching and back check speeds.   It can be mounted on the push, pull or top jamb.  The CR801 will work in place of the Norton 8000 and Yale 3000 series door closers, with no new drilling.

CR801S - SLIM COVER

CR801 - FULL COVER

Ships within 24 hours from California.

The Cal-Royal 6600 Rim Device is a Grade 1 exit device.  It is designed for doors that have at least a 4-1/2 inch stile width. The 36 inch device has a 32 inch actual length and can cut down 6" (24 inch actual). The 48 inch device has an actual length of 44 inches and can be cut down 12 inch (34 inch actual).  Devices ships with 938 Strike and all the mounting screws.

The heavy-duty 8900 Series non-handed surface applied closer
with adjustable spring power and backcheck positioning adjustment.
The 8900 has intensity adjustable hydraulic backcheck
that will take effect at approximately 65º. The 8900 has two
independent, noncritical adjustment valves to control sweep and
latch closing speeds. The backcheck positioning valve maintains
an effective backcheck range on parallel arm applications. The
8916 will be available with field adjustable spring power from size
1 to 6 for barrier-free requirements.

2-1/8" x 5" hole spacing

The Dorma 8831 Top Arm for RTS88 is for use on Single and Double Acting doors.  This arm is known as a side load arm, and usually has a notch in the door at the top to access the arm fastening block.  This piece measures 10-1/2" long by 1-3/8" wide at the widest part, and is 1/2" thick.  This is the standard arm in the RST01 and RST02 Packages.

Dorma Part # 8831

Cal Royal A2200 Series Rim Device

Grade 1
Non handed
3/4" latch bolt throw
Heavy gauge steel, painted

Devices available for 32" and 24" wide doors. Please call 1-800-642-2403 for more information

Detex EAX-300W Weatherized Battery Powered Door Prop Alarm

The Detex EAX-300W Series is designed for applications where doors may be used for egress or ingress, but may not be held or propped open. Door open times from 1 second to 4 minutes (15 second default) are field selectable. The smaller size makes installation quick and easy.  The Weatherized version is designed for doors that open to the outdoors or environments.

Cylinder not included!
Uses a standard 9 volt battery

Detex EAX-300 Installation Instructions

The Dorma 8812 Offset Slide Arm for RTS88 is used on in the RST31, RST30, RTS29, RST28, RST27, RTS26 and RTS25 packages.  This arm is used on Single Acting Doors.  The track measures 13" long by 1-3/16" wide by 7/16" thick.   This is the arm you probably have if you are using 3/4" offset hinges or 4-1/2" wide butt hinges.

Dorma Part # 8812

Replacement Chassis Cover for the Dorma 9300 Rim Device

The Dorma 8835 Top Arm for RTS88 is for use on Double or Single Acting doors that have a 1" top rail.  This arm is used on aluminum framed glass storefront doors. The arm is 10-7/8" long and 1-3/8" wide.  The spindle lug 1" thick.  This is the standard arm on the RST07 and RST10 packages.

Dorma Part # 8835

The Dorma 8832 Top Arm with Channel for RTS88 is for use on Double and Single Acting Doors.   We usually find this arm on wood doors.  This arm is 10-5/8" long by 1-1/2" wide at the widest point, and is 5/8" thick.  It is the standard arm in the RST04, RST05 and RST06 packages.

Dorma Part # 8832

Replacement Dorma 9000 Series End Cap, sometimes know as the EC9

Shown in Dark Bronze

The Dorma 8400 Center Case Cover is used the 8000 Series Surface Vertical Rod Devices.  The cover is black plastic, the screws are not included.   Dorma Part # CHCOV84

Dorma 8400 Surface Vertical Rod Exit Device minimize forced entry while offering a low-cost solution to life safety requirements. Certified/listed to ANSI/BHMA 156.3 Grade 1 for exit devices. 5 year limited warranty.

The Dorma 4 Loop Torsion Spring is used on the 9000 Series Exit Device Escutheon Lever Trims. Spring measures 1 inch diameter by 5/16 thick.

Dorma Part # 780367270 or 6000-717-500

The Dorma 95059481 Lever Trim Return Spring is used on the 8000 series Lever Handles.   The spring has a 2-3/16" diameter.

The Dorma 9DRKIT Dogging Assembly is used on the 5000 and 9000 Series non Fire Rated hardware.

Escutcheon with R Lever Trim for Dorma 9300 Rim Device, Classroom Function, Key Locks or Unlocks Lever.

The Von Duprin 99 Push Bar Retrofit Kit-Pbkit updates your current version touch pad, to the newest version. Used on all the Von Duprin 33A, 35A, 99 and 98's.  For doors 30" to 36" order the 36" size. If your door is 36" to 48" order the 48" size.  The Push Bar is 18" wide on the 36" version.  Please allow 1 week for delivery.

Von Duprin part # PBKIT

The Dorma Rim Device Strike 463 is used on the 8300, 8300F, 9300 and 9300F exit devices. Mounting screws included.

Dorma 9400 Rod Guide and Screw Package, featuring two rod guides in the Stainless Steel finish.

The Dorma 8300 Center Case Cover is used the 8000 Series Rim Devices.  The cover is black plastic, the screws are not included.   Dorma Part # 18002177

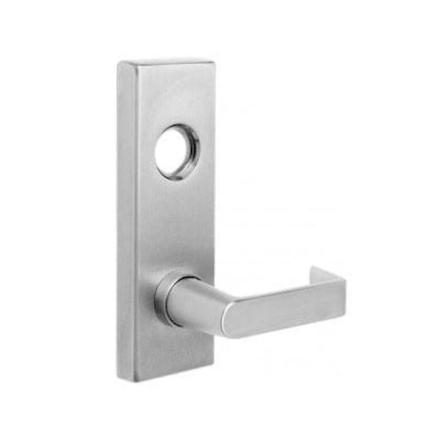

Dorma R08 Lever Trim, Key-In-Rectangular Lever Entrance by Lever Includes DORMA Key-In-Lever Cylinder 7013SC

The Cal-Royal 9800 Rim Device is a grade 1 Heavy Duty Exit Device.   The 9800 has the same template as the 8800 and 9800 with escutcheon lever trim. The 36 inch device will be 32 inches wide and can be cut down an additional 2" to fit doors as narrow as 30 inches.  The 48 inch will be 44 inches wide and can be cut down to fit doors 36 inches wide. The device is non handed, meaning it will work on a left hand reverse or right hand reverse door. Strike and mounting screws are included.

DORMA 8300 Series Exit Devices minimize forced entry while offering a low-cost solution to life safety requirements. Certified/listed to ANSI/BHMA 156.3 Grade 1 for exit devices. Package includes all the mounting screws and brackets, and the surface strike.  5 year limited warranty.
