Stops / Holders

The Ives Wall Bumper Stop WS407-CCV our economically price concave wall bumper.  The metal ring is a wrought stainless steel, otherwise known as stamping.  It features a concealed tamper-proof mounting, and is shipped pre-assembled to the back plate is reduce installation time.   Installation is easy, just insert the screw driver through the pin hole in the rubber and tighten.  The bumper is 2-1/2" in diameter and projects out 1".

The WS11 door stop used to be under the Glynn-Johnson product line as the WB11 until they merged with H.B. Ives.  At that point they became the WS11.  This stop only is constructed of cast brass and then plated to your desired finish.  The stop has a 2" diameter base and projects from the wall 3-3/4".  This particular model is the same as the WS11x, except that it is designed for wood or drywall mounting and ships with wood screws and anchors.

The Ives Wall Door Stop / Holder WS20 is another door holder from Glynn-Johnson.  The Chicago based manufacture made these for 40 plus years.  When they were purchased from H.B Ives and merged into there line they became the WS20.  This holder is constructed of cast brass and then plated to your desired finish.  The hinged holding clip can be released by a gentle pushing on the door, which causes the clip to flip up and release the door.  The piece ships with wood screws and anchors.

The Ives Wall Door Stop / Holder WS45 was introduced about 50 years ago as the Glynn-Johnson W45A or GJW45A.  When they were purchased by H.B. Ives, it became the WS45.  They are constructed of cast Brass or Bronze and then plated to the desired finish.  This door stop is unique because the wall does not have to be parallel to the door for it to latch and hold the door open.  Spring loaded roller rides up the face of the strike, seating itself on the strike, holding the door firmly in the open position.  A heavy rubber pad cushions the shock and absorbs the sound.  With unit mounted on door and the strike on wall, vertical adjustment is available on body.  The strike is adjustable 45 degrees left or right, both adjustments easily accomplished at time of installation or at a later date.  WS45 strike is furnished with wood screws for drywall mounting.

The WS11X door stop used to be under the Glynn-Johnson product line as the WB11X until they merged with H.B. Ives.  At that point they became the WS11X.  This stop only is constructed of cast brass and then plated to your desired finish.  The stop has a 2" diameter base and projects from the wall 3-3/4".  This particular model is the same as the WS11, except that it is designed for a masonry type mounting and ships with an expansion sheild.

The Ives Wall Mounted Door Stop WS33 is another hold back part from the Glynn-Johnson door stop era.  I can not remember the Glynn-Johnson part #, but when Ives purchased them, they changed it to WS33.  This stop is constructed of cast brass that is then plated to the desired finish.  It features a replaceable rubber bumper with offset shoulder screws into cavity on body to prevent loss or theft.  And a sloping design that discourages vandalism.The base height is 3" with a width of 2-1/4", and a projection of 3-3/4",  WS33 is furnished with wood screws for drywall mounting

The Ives Wall Door Stop WS443 has been a staple of the Ives product line for at least the last 45 years.  The stop features cast brass construction and then plated the the desired finish, which makes it ideal for interior or exterior use.   The rubber tip is a non marring rubber, that can be replaced and we keep in stock.  The stop has a 2-1/4" base diameter and a 3-11/16" projection from the wall.  This product ships with an expansion shield and lead shield.

The Ives Wall Door Stop WS65 is one of the most economical door stops we sell that is still commercial quality.  They are constructed of burnished cast aluminum.  The WS65 has a base diameter of 1-5/8" and a 3-3/4" projection. The rubber tip is replaceable.   This stop comes with the mounting screws.

The Ives Wall Door Stop / Holder WS445 has been a staple of the Ives product line for at least the last 45 years, and is the same product as the WS443 except it has a holder function.  The stop features cast brass construction and then plated the the desired finish, which makes it ideal for interior or exterior use.   The rubber tip is a non marring rubber, that can be replaced and we keep in stock.  The stop has a 2-1/4" base diameter and a 3-11-16" projection from the wall.  This product ships with an expansion shield and lead shield.  This holder is considered a manually holder due to the fact you have to bend over and latch and unlatch it.

Wood Door Automatic Flush Bolt FB41

H.B. Ives FB41 Series are sold has Top, Bottom or in Pairs (top and bottom). Fully automatic, inactive door is latched when active door closes, bolts retract when active door is opened. Top Bolt has no spring tension. They are non handed, but the top and bottom bolts are different. The body size is 1" wide, 8-1/2" tall and 2" deep, the bolts have a 3/4" throw with a 7/8" vertical adjustment.

Ives Part #'s
FB41P - Pairs
FB41T - Top
FB41B - Bottom

The Wall Door Holder/Stop 531 features cast brass or bronze finish which is then plated to the desired finish.  This is considered a manually operated door holder, because it does not latch automatically.  It features a 2-1/2" base with 3-5/8" projection, and ships complete with all of the needed fasteners.

Ives Dust Proof Strike DP1

• Designed for use with the bottom bolt of all flush bolts.
• Spring-loaded plunger returns to floor or threshold level anytime
flush bolt is retracted, eliminating need to clean standard
floor strikes.
• Strike hole is 3/4" Diameter and 1-1/8" Deep

DP1 Face Plate: 1-7/16" Diameter
Body: 1-3/16" Diameter x 1-7/8" Deep

• Designed for use with the bottom bolt of all flush bolts.
• Spring-loaded plunger returns to floor or threshold level anytime
flush bolt is retracted, eliminating need to clean standard
floor strikes.
• Strike hole is 3/4" Diameter and 1-1/8" Deep

DP2 Face Plate: 1-5/8" W x 3-1/2" L x 1/8" Thick
Body: 1-3/16" Diameter x 1-7/8" Deep

The International FG-1200 Flushbolt Guide is the piece that fits into the top or bottom of the door and acts as a guide for the Flushbolt Rod.  The piece measures 1-3/8" x 1-1/2".  The square hole in the piece is a 1/2" square.  The manufacture part number is FG-1200.

The Replacement Rubber Shoe For GJ1153M or Ives FS1153. Constructed of rubber.  Ives part # FSPART.1060

One of the most common issues with Roller Bumpers and Gravity Type Coordinators is that the rubber wheel dries out and eventually falls off.  With this Replacement Roller For Roller Bumper, you can now just change out the wheel.  The wheel has 15/16" diameter and is 7/16" wide.   The hub diameter is 3/16".  This package ships with the wheel and a replacement axle that features a "fast rivet" head.

These standard metal extensions can be used with the LCN SEM magnet door holders to increase the holder projection. The treads on this piece are 3/8-16.

LCN Part #'s
SEM7810-E050 1/2"
SEM7810-E075 3/4"
SEM7810-E100 1"
SEM7810-E200 2"
SEM7810-E400 4"

Gravity Door Coordinator

The Ives COR7G has been around for at least 50 years.   In the old days before electrically activated door closers fire doors would have fusible link armed door closers.  When the lnk melted, the door closed, and if there was not a mullion between door, they would use this style of door coordinator so the door with the astragal would close first.

When active door is open, coordinator prevents active door from closing until inactive door bypasses. Closing of inactive door causes strike plate on top of door to contact cam and lift arm, allowing active door to close. As inactive door continues closing, roller rides over strike plate on to door bracket, holding arm above active door.
Non-handed.

Gravity action arm and door bracket are adjustable on the job for ease of installation. Rubber roller provides quiet and efficient operation, and helps protect the astragal and doors from damage. Nylon roller on short arm glides smoothly over door bracket and strike, ensuring silent operation. Made of forged brass.
COR7G-26D for use on pairs of doors with astragal on active door up to 4' or with astragal on inactive door up to 3'4" or with astragal on both doors up to 2'10" Brushed Chrome Finish.

Ives part # COR7G-26D 7" Arm Projection

The 591 manual flush bolt is for wood doors and is UL listed. It is constructed of solid brass. The face plate is 1 x 6-3/4 inches. The mortised body is 6 inches high by 1-3/8 deep by 1 inch thick. The screw spacing is 1/2 by 6-1/4 inches on centers.

The Glynn-Johnson Overhead Door Holder 100 Series Concealed Mounting, provide the most reliable and versatile concealed overhead door control. They are designed for installation on virtually all types of doors mounted on conventional type butt hinges, pivots, continuous hinges, swing clear hinges and numerous other specialty hinges. When used in conjunction with many surface-applied door closers, Glynn-Johnson 100 series holders and stops provide the most effective control for entrance doors and vestibule doors of all types, as well as heavy or often used interior doors. Templates provided allow for variable mounting positions, ranging from 85° - 110° of opening.

Painted finishes are also available. Please Call 1-800-642-2403

GJ100 Catalogue

Kickdown Door Holder Rubber Shoe FSPART.1053

Replacement rubber shoe
1/2" insert diameter
1" base diameter
1" height

The 590 is made of solid brass and ships with matching screws.  The faceplate measures 1 x 6-3/4 inches, the strike is 15/16 x 2-1/4 inches and comes standard with a 12 inch rod.  The mountng screws are 1 x 6-1/4 inches on centers.

Gravity Door Coordinator Nylon Wheel and Screw

Nylon wheel measures 7/8" outside diameter by 3/8" inside diameter by 1/4" thick. Screw measures 5/8" overall lenth by 3/8" shaft diamter by 1/4-26 thread with a 1/2" hex head.

Ives part # CORPART.1024

The Glynn-Johnson 410 Series Overhead Door Holder/Stop Concealed Mounting is the perfect combination of form and function, Glynn-Johnson 410 series holders and stops offer effective door control and a low-profile design. Each model is constructed so that the channel is encased in the door and the jamb bracket is mortised in the frame. When the door is open, the arm and jamb bracket are visible. Conversely, when the door is in the closed position, the entire holder is completely concealed.

The 410 fits in a mortised channel on top of the door, if your doors are not mortised on the top of the door, you would have to mortise them out.  Replaces the older version GJ310, GJ320 and GJ330 series.

GJ410 Catalogue

The Ives Wall Bumper Stop WS407-CVX our economically price convex wall bumper.  The metal ring is a wrought stainless steel, otherwise known as stamping.  It features a concealed tamper-proof mounting, and is shipped pre-assembled to the back plate is reduce installation time.   Installation is easy, just insert the screw driver through the pin hole in the rubber and tighten.  The bumper is 2-1/2" in diameter and projects out 1".

Fully concealed mounting design which enhances appearance and security. Furnished with universal top strike and flat bottom strike. The bolt measures 8 x 1 inches and is constructed of extruded steel with a brushed chrome finish. Ships with mounting screws, and the latch is UL listed.

The Ives Surface Bolt 8" SB453 has a 1-3/16" throw.  The bar has a cross section measurement of 3/4" wide by 1/4" thick.  It features a strong tension springs to prevent the bolt from creeping.  The bolt is shipped with all of the fasteners and a universal top and a standard mortise strike.  It is constructed of heavy duty steel that is then cadmium plated.

Ives part # SB453-8-TB-2C

The 598-12 or 5599-24 feature heavy duty steel construction to ensure maximum strength and security. The bolt measures 1/4 x 3/4 x 12 or 24 inches and ships with strikes and mounting screws. The finish in Brushed Chrome. This bolt is UL approved.

The 594 is constructed of solid brass. The latch bolt is 5/8 inch half round with a 9/16 inch throw.  The bolt ships with mounting screws and strike. The latch bolt has a chamfered end to draw the door in.

Replacement Rubber Shoe for Mickey Door Holder

Replacement shoe for the GJX2M Grand Specialties 3" Mickey Door Stop.

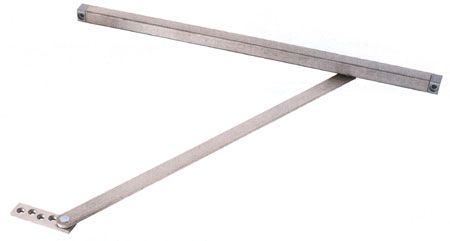

The Glynn-Johnson Overhead Door Holder 450 Series provide reliable and versatile surface-mounted overhead door control for all medium to light-duty applications. The visible components are available in a wide variety of architectural finishes to complement any design. The Glynn-Johnson 450 series holders and stops are designed for installation in virtually all types of doors and frames including doors with conventional butt hinges, offset pivots, continuous hinges, swing clear hinges and many other specialty hinges. The templates provided allow for variable mounting positions, ranging from 85° - 110° of opening.

The 450 Series replaces the older GJ360, GJ370 and GJ380 Series.

GJ450 Catalogue

The Ives Wall Door Stop / Holder WS40 is a door holder that has some history.  We see this product in many schools, hospitals and churches that were built in the 50's, 60's and 70's.   The WS40 was originally made and designed by Glynn-Johnson out of Chicago, Illinois, and was called the W40 or GJW40.   H.B. Ives purchased Glynn-Johnson in 1990's and mergered this product into there offering, and changed the part # to WS40.  The holder is made of cast brass or bronze and plated to your desired finish.  The holding mechanism has a rubber bumper inside it to act as a door stop, and a brass spring loaded roller to act as a holder.   The product ships with a universal screw package to mount on all types of walls.   For the best results with this stop/holder the door and wall should be about 3-1/2" apart in the open position.

Base Height: 2"
Base Width: 2-1/2"
Base Projection: 2-1/4"
Engaged Projection: 3-1/2"
Strike Height: 2-1/16"
Strike Width: 3/4"
Strike Projection: 2"



Glynn-Johnson 70 Series Overhead Door Holder Surface Mounted are constructed primarily of Brass and 300 series Stainless Steel substrates, with several components fabricated of Steel treated to resist corrosion. Models in the 70 series utilize a 1/2"-diameter stainless steel bar, while the 79 series uses a 3/4" stainless steel bar. The bar is always provided in US32D. The spring, washer and nut are provided in a clear zinc finish.

GJ70-79 Catalogue

Kickdown Door Holder Rubber Shoe For The Grand Standard

Replacement shoe for the GJ604, 605, 605,
606, 608, 610, and 612 Grand door stops.
Includes screw

The Glynn-Johnson 79 Series Overhead Door Holder Surface Mounted are constructed primarily of Brass and 300 series Stainless Steel substrates, with several components fabricated of Steel treated to resist corrosion. Models in the 70 series utilize a 1/2"-diameter stainless steel bar, while the 79 series uses a 3/4" stainless steel bar. The bar is always provided in US32D. The spring, washer and nut are provided in a clear zinc finish.

GJ70-79 Catalogue

LCN SEM7850-515 Magnet Hardware Package is used to mount the Armature or the Door Mounted part of the Magnetic Door Holders.   If you are currently using LCN door holders, you will not need to purchase this.   However, if you are using another brand and they have gone missing, you will need to purchase this component.
