Stops / Holders

The Floor Door Stop FS434 is another one the old Ives parts that has been around for about 40 plus years.   The FS434 is constructed of burnished wrought steel, with a soft, resilient gray rubber shoe.  The shoe is replaceable and is under related products.  The stop measures 2-5/8" overall height, and the base measures 1-1/2" wide by 2-3/4" long.  This door stop ships with all the fasteners and anchors needed.

Floor Door Stop FS434 09-318 Rubber Only

Replacement rubber shoe for the FS434.  Rubber measures 2-1/4" high by 1-7/16" wide by 5/8" thick.

Ives Part # 09-318

Floor Door Stop FS442

This Floor Mounted Door Stop used to go by the name Glynn Johnson GJFB19 or FB19. When Ingersoll Rand purchased H. B. Ives in the 1990's they brought it over under the Ives Floor Mounted Door Stop FS442. Features: Designed to blend well with all types of construction and provide a minimum of hindrance to cleaning efforts. Accommodates door undercut up to 2". Heavy-Duty cast brass or aluminum construction. Non-marring rubber bumper. This door stop has an overall height 2-7/8". Mounted shield and screws included.

Floor Door Stop FS444

This door stop has been around a long time. We have been selling it for the past 35 years, and it is one of our best sellers year in and year out.

Features: Ideal for interior or exterior use. Cast brass construction. Accommodates door undercut up to 2-1/2". Non-marring rubber tip. Packed with expansion shield and lead shield. This Floor Mounted Door Stop is 3" high, and the base has a 2-1/2" diameter.

Floor Door Stop Heavy Duty 540

This Floor Mounted Door Stop is a personal favorite. It is extremely heavy duty, and is ideal for areas of high vandalism. Includes the 4-1/2" lag bolt & lag shield. The rubber base is 3" in diameter and is 2-5/8" high.  Uses a 3/4" diameter hole for the lag sheild.

For use on commercial applications.
• Exceeds OSHA and BHMA strength test requirements.
• Packed with square head iron lag screw, expansion shield and screws.
• Cast Aluminum construction.

Dimensions
Base Diameter: 3-1/8"
Base to Rail Center: 3-1/8"

Floor Door Stop Dome 1-3/8" FS438

We ship the H.B. Ives FS438 Floor Dome Stop, another product made by Ives that has been around for 50 plus years.  Take a walk around a school made in the 1960's and you will probably find this door stop, or the hole were it used to be.  This Dome Stop is used on doors without thresholds that have a bottom of the door to floor clearance of less than 5/8".  The are constructed of cast aluminum or cast bronze depending on the finish you are looking for.  The rubber stop is non-marring and replaceable.  The stop has a base that is 1-3/4" x 2" oval, an overall height of 1-3/8" and a base height of 9/16".

Door Holder / Stop Rubber Shoe

Replacement Rubber Shoe
5/8" insert diameter
1" base diameter
7/8" overall height

Ives Part # HRT or FSPART.1075

Rubber Shoe For GJ1154M and GJL444-555 Kickdown Door Stop / Holder

Replacement rubber shoe
5/8" insert diameter
1" base diameter
8-32 threaded screw

Kickdown Door Stop / Holder Rubber Shoe

Rubber Shoe for old style GJL444/555 and old style style GJ44's

1" base diameter
13/16" over all height
5/8" outside thread diameter

SEM7850-828 Armature for LCN Electro Magnetic Door Holder features a metal die cast construction armature. The armature (door mount part) is 1-11/16" wide by 2-3/8" high with a 1-7/8" diameter. The armature projects out 2-5/8". Available in an aluminum or dark bronze color.  Armature extensions are available, along with replacement covers, magnets, and armatures.

The SEM7800 LCN Electro Magnetic Door Holder Metal Cover is constructed of a metal die cast. This cover will work on the SEM7830, SEM7840 and SEM7850. Available in aluminum and dark bronze finishes.

LCN Part # SEM7830-72, SEM7840-72 and SEM7850-72

The SEM-7800-825 Armature for LCN Electro Magnetic Door Holder is the door mounted piece for th LCN SEM7820-825 / SEM7830-825 / SEM7840-825 / SEM7870-825 series.  It features a metal die cast construction armature. The armature (door mount part) is 1-11/16" wide by 2-3/8" high with a 1-7/8" diameter. The armature projects out 1-5/8". Available in an aluminum or dark bronze color.  LCN Part # SEM7820-825, SEM7830-825, SEM7840-825, and SEM7870-825

The SEM7810-514 LCN Ball Pivot Connection Link Coupler Assembly Kit, is required for each door needing extension(s). Kit includes coupler link and ball pivot (alone serves as an 1-1/2" extenison). The threaded end is 3/8-16.

LCN Part # SEM7810-514

The SEM7820 LCN Electro Magnetic Door Holder features a metal die cast housing that is surface mounted on the floor. Tri-voltage design works with 12, 24 or 120 volts, with 35 lbs. of holding force. The magnet housing measures 5-1/8" long x 4-9/16" wide and 3-7/16" high. The armature (door mount part) is 1-11/16" wide by 2-3/8" high with a 1-7/8" diameter. The armature projects out 1-5/8". The total projection of both pieces is 6-3/4". Available in an aluminum or dark bronze color.  Armature extensions are available, along with replacement covers, magnets, and armatures.

LCN Part # SEM7820

The SEM7830 LCN Electro Magnetic Door Holder features a die cast metal housing that is surface wall mounted. Tri-voltage design works with 12, 24 or 120 volts, with 35 lbs. of holding force. The magnet housing measures 2-13/16" wide by 4-5/8" high. The armature (door mount part) is 1-11/16" wide by 2-3/8" high with a 1-7/8" diameter. The armature projects out 1-5/8". The total projection of both pieces is 4-1/8". Available in an aluminum or dark bronze color.  Armature extensions are available, along with replacement covers, magnets, and armatures.

The SEM7840 LCN Electro Magnetic Door Holder features a metal die cast housing that is surface wall mounted. Tri-voltage design works with 12, 24 or 120 volts, with 35 lbs. of holding force. The magnet housing measures 2-13/16" wide by 4-5/8" high. The armature (door mount part) is 1-11/16" wide by 2-3/8" high with a 1-7/8" diameter. The armature projects out 1-5/8". The total projection of both pieces is 2-5/8". Available in an aluminum or dark bronze color.  Armature extensions are available, along with replacement covers, magnets, and armatures.  Outlet box not included

LCN Part # SEM7840

The SEM7850 LCN Electro Magnetic Door Holder features a metal die cast housing that is surface wall mounted. Tri-voltage design works with 12, 24 or 120 volts, with 35 lbs. of holding force. The magnet housing measures 2-13/16" wide by 4-5/8" high. The armature (door mount part) is 1-11/16" wide by 2-3/8" high with a 1-7/8" diameter. The armature projects out 1-5/8". The total projection of both pieces is 3-5/8". Available in an aluminum or dark bronze color.   Armature extensions are available, along with replacement covers, magnets, and armatures.  Outlet box not included

LCN Part # SEM7850

Magnet Door Stop

Hands-free magnetic door stop/holder. All you need to do is open the door and a strong maget will keep it open until you close it. Mounts horizontally or vertically. Includes fasteners plus 1 concrete and 3 hollow wall anchors.

Not for use on doors with spring hinges or door closers.

Ives FB458 Metal Door Flush Bolt

The Ives FB458 is a UL Listed Flush Bolt for use on Fire Doors. The face plate measures 1" wide by 6-3/4" long with a depth of 1-1/8". Hole spacing is 1/2 inch by 6-1/4 inches on centers. The bolt has a 3/4" throw and is 1/2" diameter. This Flush Bolt is available in Polished Brass, Oil Rubbed Bronze (dark brown) and Brushed Chrome. We try to stock the 12" rods, which are standard, but we can also get 18", 24", 36" and 48"

Ives Part # FB458

The Plunger Type Door Holder / Stop 583 is constructed of solid cast brass, that is then plated to the desired finish.  It measures 5-3/8" by 2-1/4" base with a 1-1/4" projection.   The throw is 1-1/4".   These are sometimes called pop-up or push down stops.   This piece will ship with matching finish mounting screws.

The Ives Plunger Door Holder / Stop FS1153 is manufactured by H.B. Ives and features a contemporary yet economical method of positive Hold-Open.  This was another one of the Glynn-Johnson door stops that was merged in the H.B. Iver product line in the 1990's, and went by the 1153 part number.  This door stop is constructed in sturdy cast aluminum for years of service.  The spring operated plunger activates with minimal pressure, releasing instantly with a light tap on the plat-form lever.  The stop has a 1-5/8" throw or projection for all types of doors.  The ribbed non-marring rubber shoe is securely fastened to unit with a screw and is easily replaced when worn.  These are sometimes called pop-up or push down stops.  Ships with mounting screws.

Aluminum finish only

The Plunger Door Holder / Stop 582 is constructed of cast aluminum.  The stop measures 6-1/4" by 1-1/2" with a 1-5/8" throw.  The rubber shoe is gray.  It will ship with matching finish screws.  These are sometimes called pop-up or push down door stops.

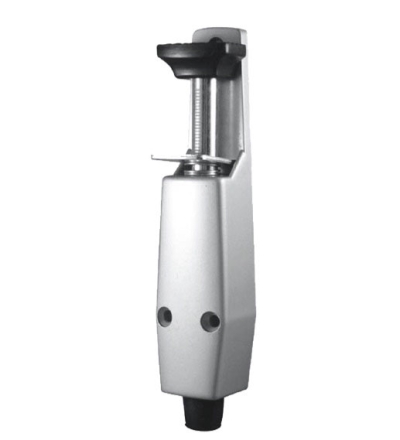

The Plunger Door Holder / Stop DH6000 is one of the most common plunger style door stops we offer.   They are constructed of a cast zinc alloy that is then electro statically painted to either an aluminum or dark brown color.   It features a non marring rubber tip that is replaceable, and we keep in stock.  The body measures approximately 7" long and is 1-5/8" wide.  The throw on this stop is 1-1/8".  These are sometimes called pop-up or push down door stops.  This product ships with the mounting screws.

Made by International Door Closer

The Ives Plunger Door Holder / Stop FS1154 has been around for about 50 years.  Before the 1990's is was known as the Glynn-Johnson 1154, and when they were merged in the H.B. Ives line, the part number was changed to FS1154.  This product is constructed of cast brass or bronze that is then plated to the desired finish.  Plunger and internal parts are plated steel and provide a 1-1/4" throw for all types of doors.  Plunger is easily activated with minimal pressure, releasing instantly with a light tap on the platform lever.  The shoe is non-marring rubber that is securely fastened with a screw in flanged cup to prevent movement or loss, and when worn, shoes are easily replaced and are kept in stock as the GJ1154.  These are sometimes called pop-up or push down stops.  Ships with matching finish mounting screws.

Kickdown Door Holder Rubber Shoe For The GJ6A

This shoe is for replacement of the 4" Kick Down Door Holder Deluxe, made by Grand Specialties.

The shoe has a 9/16" wide slot, included the screw.

The Ives Roller Bumper Offset RB470 are ideal if you have situations where doors meet each.   They are constructed cast brass or bronze and are then plated to the desired finish.   The arm projects 5" and the base has a 1-11/16" x 2-1/4".   The device was just like the Glynn-Johnson RB3 or GJRB3.

The Ives Roller Bumper Straight Arm 4" RB471 are ideal if you have situations where doors meet each.   They are constructed cast brass or bronze and are then plated to the desired finish.   The arm projects 4-1/2" and the base has a 2" diameter.   The device was just like the Glynn-Johnson RB4 or GJRB4.

The Ives Roller Bumper Straight Arm 6" RB472 are ideal if you have situations where doors meet each.   They are constructed cast brass or bronze and are then plated to the desired finish.   The arm projects 6" and the base has a 2" diameter.   The device was just like the Glynn-Johnson RB6 or GJRB6.

Ives RL30 Roller Latch

The Ives Roller Latch RL30 is constructed of Forged Brass and Plated to your finish.   Furnished with a Nylon Roller.   Body measures 1" wide by 3-3/8" high by 1-11/16" deep. The roller has a maximum projection of 3/8" and is easily adjustable.

Ives RL32 Roller Latch

The Ives RL32 Roller Latch is constructed of Brass and Plated to your desired finish.  The body measures 1-1/8" wide by 2-1/4" high and 2-1/4" deep.  The roller is constructed of Nylon, and has an adjustable projection up to 1/2".  Fits a standard heavy-duty cylindrical lock cutout.

Ives RL1152 Roller Latch

The IIves RL1152 Roller Latch is a combination of the RL30 and an Angle Stop.  Tension is easy to adjust with the two tension screws on the face plate.

Ives RLPART.1025 Roller and Rivet for RL30/RL1152

This replacement Nylon Roller and Rivet Package is for the Ives RL30 and RL1152 Roller Latches.  The Roller measures 3/4" high by 5/8" diameter.  The Rivet measures 1-1/16" long and is threaded on one side.

Ives Part # RLPART.1025

Ives RLPART.1045 RL32 Nylon Roller

This replacement Nylon Roller and Rivet Package is for the Ives RL32 Roller Latches.  The Roller measures 3/4" high by 5/8" diameter.  The Rivet measures 15/16" long and is threaded on one side.

Ives Part # RLPART.1045

The Ives WS402CVX Wall Door Stop is our heaviest duty wall stop of this design.  They are constructed of a heavy duty cast brass base that is then plated to your desired finish.   The wall stop is 2-1/2" in diameter and has a 1" projection.  It features a special retainer cup that makes the rubber tamper resistant.  This stop ships with screw and drywall anchor.

The Ives WS401CCV Wall Door Stop is our heaviest duty wall stop of this design.  They are constructed of a heavy duty cast brass base that is then plated to your desired finish.   The wall stop is 2-1/2" in diameter and has a 1" projection.  It features a special retainer cup that makes the rubber tamper resistant.  This stop ships with screw and drywall anchor.
