The Hands-Free/Foot Door Pull BM46 can be used as a ADA compliant hands-free door pull when mounted 42" above the finished floor. Or as foot pull when mounted at the bottom of the door. The Pull is 4" x 5" and is made of .090 thick stainless steel. Ships with sex bolts and screws for 1-3/4" door. Available in Brushed Stainless Steel, Flat Black Powder Coat and Dark Bronze Powder Coat.

The Corner Guard 301 are a great way to protect corners and edges of doors.  Fabricated from 16 gauge (.050") thick metal they measure 1" on one arm and 1-3/4" on the other, and can come in any length.  Standard lengths are 36", 42" and 48", but we have the capability to modify to your specifications. This product is ideal for high traffic or areas of high abuse.   They come standard with screw mounting, but other options are available.

Screws included for mounting

Finishes

Door Pull 46

12" overall
8" centers
1-1/2" x 1-1/2" base
2-3/8" projection

Floor Mounted Door Stop 535

Cast Brass or Bronze construction
2-1/2" diameter base x 3-1/8" high
Fasteners included

Automatic Floor Type Holder and Stop

A replacement holder and stop that has been around for many years.   This style of Holder can be found in many of the schools, churches and hospitals that were built in the 1960's and 1970's.  Cast brass construction, and then chrome plated. Measures 3-11/16" high by 3" wide with a 1-15/16" projection. The strike is 1-3/16" high. Spring loaded brass roller, rolls over the the strike to lock the door in the open position. To release, just give the door a tug.  Designed for doors with a door to floor clearance of less than a 1/2".

Push Bar Adjustable 454

Finishes:
US26/625 polished chrome
US26D/626 brushed chrome
US3/605 polished brass
US4/606 brushed brass

Material: Brass
Material Size: 1" round tube adjustable up to 36"
Base: 2" round x 2-1/2"
Clearance: 1-1/2"
Projection: 2-1/2"

Push Bar Adjustable 453

Finishes:
US4/606 brushed brass
US26D/626 brushed chrome
US26/625 polished chrome
US3/605 polished brass

Material Brass
Material size 1" round tube adjustable up to 36"
Base 2" round x 2-1/2"
Clearance 1-1/2"
Projection 2-1/2"

Push Bar Adjustable 451

Finishes:
US3/605 polished brass
US4/606 brushed brass
US10B/613 dark bronze
US26/625 polished chrome
US26D/626 brushed chrome

Material: Brass
Material Size 5/8" round tube adjustable to 36"
Base: 5/8" x 5-5/8"
Clearance: 1/2"
Projection: 1-1/8"

The Door Pull Handle 21 has a cross section dimension of 1/2" x 1" and is made of half round (underside is round) stock. The handle projects out 2-1/8" with a clearance of 1-5/8". This handle is available in 6" and 8" center to center mounting holes, but can be made in different Center to Center dimensions. This product is also known as a Door Handle or Door Grip. The handle ships with thru bolts and matching finish washers.

Back to Back mounted Off-Set Door Pull featuring 1-1/4 inch stock diameter stock. Handle has a 4 inch offset with a 2 inch clearance and 3 1/4" projection. Available in 12 or 18 inch centers. Sold as sets, 2 handles and 3/8-24 thread stud.

Back to Back fasteners are for a 1-3/4 inch thick door, if your door is a different thickness, please let us know in the comments.

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.

Door Pull 30

10" centers
11" overall
2-7/8" projection
1-3/4" offset

The Door Pull Handle 10 has 5-1/2" center to center screw spacing. The base is 3/4" diameter, the overall lenght is 6-1/4". The projection is 2" and the clearance is 1-1/2". Also known as a Door Handle or Door Grip. This handle ships with thru bolts and finish washers.

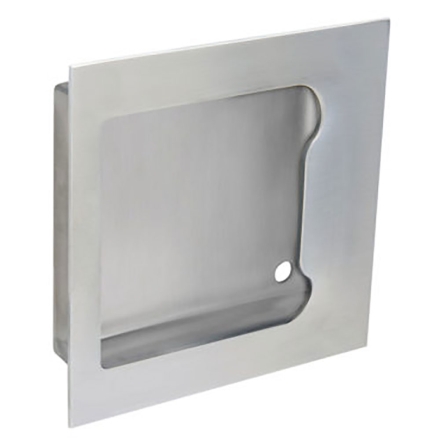

The 460 ADA Flush Pull measures 5 inches by 5 inches  and is made of 1/8 inch material.  The opening size is 3-1/2 inches by 3 inches. The pull is fastened to the door with 10-24 by 5/8 inch security torx with barrel nuts.  The pull is designed for 1-3/4 thick doors, please specify if your door is thicker than 1-3/4 inches.  Available in Brushed and Polished Stainless Steel and also Powder Coated Flat Black and Dark Bronze.

The Door Pull Offset #39 Handle is constructed of either solid aluminum, brass or stainless steel.  The handle is 1" diameter tubing with a 2-3/4" offset and 2-3/4" projection.  This is the most common type of handle you use today.  Just about every aluminum framed storefront door has a version of this handle.  This handle is available in 8", 10", 12" and 18" centers on the mounting holes.  If you have a 9" centered handle use the PH-4000.   It comes standard with thru bolts and finish washers, but can be special ordered if you would like the handle mounted back to back or surface mounted. Also known as a Offset Door Handle or Door Grip, and Storefront door handle.1" diameter material

Floor Door Stop Heavy Duty 540

This Floor Mounted Door Stop is a personal favorite. It is extremely heavy duty, and is ideal for areas of high vandalism. Includes the 4-1/2" lag bolt & lag shield. The rubber base is 3" in diameter and is 2-5/8" high.  Uses a 3/4" diameter hole for the lag sheild.

The Door Pull Handle 17 has an overall length of 10". The base diameters are 2" with three holes each. The handle projects out 2-1/4" and has a clearance of 1-1/2". Also known as a Door Grip or Door Handle. This handle ships with 6 wood/sheet metal screws.

The Door Pull Handle 14 has 5-1/2" centers on the mounting screws. And has a 2" diameter base. It features a 2-1/4" projection with a 1-1/2" clearance. Also known as a Door Handle or Door Grip. The handle ships with thru bolts and finish washers.

The Door Pull Handle 24 features a 6" center to center screw spacing. The handle is constructed of aluminum, stainless steel or brass depending on the desired finish.  The handle is 1" solid diameter stock and the mounting posts are 3/4" diameter stock.  It measures 8" overall length and projects from the door 2".  It ships with thru bolts and finish washers. Also known as a Door Handle or Door Grip.

The Burns 618 Locking Pocket Door Latch is 2-3/4 inches tall by 2-1/2 inches deep. The mortise dimensions are 2-5/16 inches tall by 1-7/8 inch deep. Base metal is Brass or Aluminum depending on the finish.

The Door Pull Handle 11  has 8" center to center screw spacing. The base is 3/4" diameter, the overall lenght is 9-1/4". The projection is 2-1/8" and the clearance is 1-1/2". Also known as a 8" Center Door Grip or Door Handle. This handle is shipped with thru bolts and finish washers.

The Door Pull 26 is made of 1" round stock in either solid, aluminum, brass or stainless steel. The handle has a projection of 2-3/4", and clearance of 1-3/4". It comes standard with thru bolts and finish washers, but can be special ordered if you would like the handle mounted back to back or surface mounted. Also known as a Door Handle or Door Grip.

Finishes

8" GDP810
10" GDP101
12" GDP121

The Door Pull Handle 15 features 7-1/2" centers on the mounting screws. With 2" diameter bases. The Grip has a 2-1/4" projection with a 1-5/8" clearance. Also known as a Door Handle or Door Grip. This handle ships with thru bolts and finish washers.

Solid offset door pull 1-1/4 inch diameter round stock.  Handle has a 4 inch offset with a 2 inch clearance and 3 1/4" projection. Available in 12 or 18 inch centers.

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.

The Plunger Door Holder / Stop 582 is constructed of cast aluminum.  The stop measures 6-1/4" by 1-1/2" with a 1-5/8" throw.  The rubber shoe is gray.  It will ship with matching finish screws.  These are sometimes called pop-up or push down door stops.

The Burns 617 Non-Locking Pocket Door Pull Set is 2-3/4 inches tall by 2-1/2 inches deep. The mortise dimensions are 2-5/16 inches tall by 1-7/8 inch deep. Base metal is Brass or Aluminum depending on the finish.

Floor Door Stop / Holder Heavy Duty 541

This Floor Mounted Door Stop is a personal favorite. It is extremely heavy duty, and is ideal for areas of high vandalism. Includes the 4-1/2" lag bolt & lag shield. The rubber base is 3" in diameter and is 3" high.  Uses a 3/4" diameter hole for the lag sheild.

The Door Pull Handle 16 has an overall length of 7-1/2". The base diameters are 2" with three holes each. The handle projects out 2-1/4" and has a clearance of 1-1/2". Also known as a Door Grip or Door Handle. This handle ships with 6 wood/sheet metal screws.

Push Bar Adjustable 450

Finishes:
US3/605 Polished brass
US4/606 Brushed brass
US10B/613 Dark bronze
US26/625 polished chrome
US26D/626 brushed chrome

Material: Brass
Material Size: 5/8" Rd Tube Adjustable up to 36"
Clearance: 1/2"
Projection: 1-1/8"
Fasteners: Surface Mount only

The Push Bar With Offset Grip M422XM39 is usually found aluminum framed glass store front doors.  It is constructed of 1-1/4" diameter solid aluminum, brass, bronze or stainless steel, depending on the finish.  The handle or grip will have either a 12" or 18" center to center screw spacing.  The push bar center to center length is determined by you, we can do any reasonable size.  Establish the center to center dimension by subtracting the width of one stile from the width of the door. On solid doors, subtract 5" from the width of the door.  All the fasteners are included, and are determined by the material your door is made of (wood or metal).   Please allow 3-4 weeks on the Dark Bronze and Aluminum, and 2 weeks on the other finishes.

Finishes

The Door Pull Offset #39 Handle is constructed of either solid aluminum, brass or stainless steel. The handle is 1" diameter tubing with a 2-3/4" offset and 2-3/4" projection. This is the most common type of handle you use today.  Just about every aluminum framed storefront door has a version of this handle. This handle is available in 8", 10", 12" and 18" centers on the mounting holes. The back to back mounting is for Metal or Wood Doors that are 1-3/4 thick. Included fastener is threaded into one of the handles, and the Stud End has fits into the inside handle and is held in place by a set screw on the handle.

Package includes two offset pull handles and fastening hardware. Shown in Polished Stainless Steel with 12 inch centers.

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks.

The Push Bar w/Handle 422X26 is usually found aluminum framed glass store front doors.  It is constructed of 1" diameter solid aluminum, brass, bronze or stainless steel, depending on the finish.  The handle or grip will have either a 8", 10", 12" or 18" center to center screw spacing.  The push bar center to center length is determined by you, we can do any reasonable size.  Establish the center to center dimension by subtracting the width of one stile from the width of the door. On solid doors, subtract 5" from the width of the door.  All the fasteners are included, and are determined by the material your door is made of (wood or metal).   Please allow 3-4 weeks on the Dark Bronze and Aluminum, and 2 weeks on the other finishes.

Finishes

The Push Bar W/Offset Grip 422X39 is usually found aluminum framed glass store front doors.  It is constructed of 1" diameter solid aluminum, brass, bronze or stainless steel, depending on the finish.  The handle or grip will have either a 8", 10", 12" or 18" center to center screw spacing.  The push bar center to center length is determined by you, we can do any reasonable size.  Establish the center to center dimension by subtracting the width of one stile from the width of the door. On solid doors, subtract 5" from the width of the door.  All the fasteners are included, and are determined by the material your door is made of (wood or metal).   Please allow 3-4 weeks on the Dark Bronze and Aluminum, and 2 weeks on the other finishes.

Finishes

Back to Back mounted 1 inch diameter stock.  One handle will be threaded and the other will be a female fitting that snugs the handle with a set screw.  The standard Stud that ships with the handle is for an 1-3/4 thick door.

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.
