The LCN Door Closer 4111 HEDA Hold Open is known as the Smoothee, and is one of the heaviest duty door closers made, the HEDA stands for Hold Open Extra Duty Arm.  If you have a building were you have a high traffic and abusive, especially exterior doors, then this is the closer. The 4111 is an application specific closer, meaning it will only work when mounted on the door, on the push side. This is known as a parallel arm application. The cylinder is fully adjustable and will work on doors up to 56" exterior door, and can be adjust down to ADA required levels. We ship the 4111 HEDA model, which is a hold open arm on this page. The cylinder mounting holes are 2-1/2" by 6".

The LCN Door Closer 4041XP-Hw/PA is the 4040XP, eXtra Protection closer with the 4040XP-3049 Hold Open Arm.  You get the same performance of one of the most revered closers with the functionality of the friction hold open arm.   The cylinder features cast iron construction, forged steel arm, double heat treated steel pinion, non-handed, LCN® “Green Dial” spring force indicator, Peel-n-Stick templates, UL and cUL Listed, 3⁄4″ journal diameter pinion, full compliment bearing, and tested and certified under ANSI standard A156.4, Grade 1.  With this package you have the flexibility to mount the closer on a left, right, push, pull or top jamb mount.  The hold open point is adjustable by loosening or tightening the hold open nut on the arm.

The LCN Door Closer Hold Open Arm 3049 has an adjustable nut that allows the door closer arm to lock when they reach a pre select position.  This arm can be used on most LCN Door Closers because the Hold Open function is in the arm.   If you have a regular armed LCN Closer currently, you can use this arm to make them have the Hold Open function.  Two words of warning, they can not be used on an interior fire rated door, and Hold Open arms usually break.   The manufactures sell more door closers with regular arms, but we tend to sell more Hold Open arms, meaning they wear out or break a lot easier then Regular Arms.

Specify your current closers model number when ordering.
Not all of the LCN closers have the same shape spindle on the door closer cylinder. The LCN Part #'s on this Regular Arm is: 1260-3049 (non handed), 1460-3049 (non handed), 4010-3049 (handed), 4020-3049 (handed), 4040-3049 (non handed).   The fitting for the 4040 is a six sided, the 4010, 4020 and 4110 have a flat sided oval, and the 1260 and 1460 have an eight sided star.

Provides hold-open function with templated stop/hold-open points.
Handle controls hold-open function.

Specify your current closers model number when ordering. Not all
of the LCN closers have the same shape spindle on the door closer
cylinder. This LCN Arm is known as these part numbers: 1260-3049CNS, 1460-3049CNS, 4040-3049CNS, 4110-3049CNS

LCN Door Closer 4111 HCUSH Hold Open

Standard 4110 series closer shipped with HOLD OPEN CUSH N STOP arm, standard plastic cover, 4110-201 FIFTH SCREW SPACER and self reaming and tapping screws. Sized cylinders adjustable for interior doors to 5’0” and exterior doors to 4’0”. Non-sized cylinder adjustable for interior doors to 4’6” and exterior doors to 3’6”. Closer mounts parallel arm, specify right or left swinging door. 4111 cylinder meets ADA requirements. The cush hold open arm allows for a stop and hold open positions up to 110 degrees. "T" handle on arm will release door for closing, locking pin can be retracted for normal door closing operation.

We ship the 4111 HCUSH

LCN Drop Plate for Pull Side Mounting

Use this LCN Drop Plate when mounting the door closer on the Pull or Hinge Side of the Door. Allows to door closer to me mounted on narrow stile doors.

LCN Part #'s
1260-18
1460-18
4040-18
4040XP-18
4010-18

The LCN Door Closer Hold Open Head And Tube 3048 - 3048L.  As the arm rotates the pivot point threads close on to the mounting bracket face and create a friction catch.  If yours is new, try rotating the mounting plate 180 degrees so the threads tighten as it closes. This replacement part from LCN either breaks or wears out.   The material some times wears out due to the friction of open and closing.  But the biggest issue seems to be the point where the tube mounts to the cast iron connector.

Specify your current closers model number when ordering. Not all of the LCN closers have the same shape spindle on the door closer cylinder. Model Available here are the:

1260-3048
1260-3048L
1460-3048
1460-3048L
4010-3048
4010-3048L
4020-3048
4020-3048L
4040-3048
4040-3048L

LCN Door Closer Spring Cush Hold Open Arm 3049SC

Optional, parallel arm for abusive applications features solid forged steel main arm and forearm with spring loaded stop in the soffit shoe. Handle controls hold-open function.

The LCN Door Closer 1461 series closer ships with regular arm, a slim line plastic cover, and self reaming and tapping screws. Non-sized (1-6) cylinder is adjustable for interior doors to 5’0” and exterior doors to 4’0”. Closer mounts hinge side, top jamb and parallel arm on either right or left swinging doors.  The narrow foot print allows this door closer to be mounted on the top jamb and narrow stile doors without a drop plate.

We ship the 1461 Rw/PA

The LCN Hold Open Arm Wrench T-1157 is used to adjust LCN Friction Hold Open Arms,  one side if for the 1-1/2" nut and the other is 1-3/16".  Friction Hold Open arm would be part number 3049, with the suffix being the closer model, like 4040-3049, ect..

LCN part # T-1157

The LCN 1370 was a door closer made in the late 1990's to 2006 or so. The closer had a special mounting plate that made installation very quick. Many people have this door closer in use and now they are starting to fail. The LCN 1370-18QF Quick Fix Plate converts the mounting holes of the 1370 to a standard template closer, which is 3/4" x 9-1/16". By using this plate you will not have to redrill holes in your door. The plate measures 2 by 10-1/4 inches with tapped holes that measure 3/4 x 9-1/16 inch.

LCN Drop Plate for Parallel Arm Mounting

The 18PA LCN Drop Plates are designed to lower the mounting holes on doors with glass at the top of the door. If your door has a narrow stile at the top of it surrounded by a metal frame, mount the door closer on this plate.

LCN Part #'s
1260-18PA
1460-18PA
4040-18PA
4040XP-18PA
4110-18PA

LCN Drop Plate for Top Jamb Mounting

Use the LCN Top Jamb Mounting Plate for applications where the door closer body is mounted on a narrow overhead jamb.

LCN Part #'s
1260-18TJ
1460-18TJ
4020-18TJ
4040-18TJ

The LCN Door Closer 4021 FL is shipped with fusible link arm, standard plastic cover, and self reaming and tapping screws. This closer is designed to hold open fire doors, when the fusible link melts, it releases the hold open arm, so the door will close.  Sized cylinders for interior doors to 5’0” and exterior doors to 4’0”. Non-sized cylinder adjustable for interior doors to 4’6” and exterior doors to 3’6”. Included arm has a fusible link that melts at 120 degrees, allowing to door to close. Door can be closed any time with a gentle pull.  Closer mounts top jamb (push side), specify right or left swinging door. 4021 cylinder meets ADA requirements.

The SEM7840-516 LCN Magnet Core Assembly is just the Tri Voltage Magnet Core. 35 pounds of holding force at nominal input voltage. Maximum current draw is .020 A @ 24 volt and 120 volt, and .030 A @ 12VDC. Cylinder is 1-3/4" diameter and projects out 7/8" out from the mounting plate.

LCN part number SEM7840-516

The LCN Door Closer 4041XP-HCUSH is the 4040XP, eXtra Protection closer with the 4040XP-3049HCUSH Hold Open Arm.  You get the same performance of one of the most revered closers with the functionality of the CUSH hold open arm.   The cylinder features cast iron construction, forged steel arm, double heat treated steel pinion, non-handed, LCN® “Green Dial” spring force indicator, Peel-n-Stick templates, UL and cUL Listed, 3⁄4″ journal diameter pinion, full compliment bearing, and tested and certified under ANSI standard A156.4, Grade 1.  With this package you have the flexibility to mount the closer on a left, right, but it has to be mounted in the push side of the door is a parallel arm type application.

The LCN Door Closer 4111 is known as the Smoothee, and is one of the heaviest duty door closers made. If you have a building were you have a high traffic and abusive, especially exterior doors, then this is the closer. The 4111 is an application specific closer, meaning it will only work when mounted on the door, on the push side. This is known as a parallel arm application. The cylinder is fully adjustable and will work on doors up to 56" exterior door, and can be adjust down to ADA required levels. We ship the 4111 EDA model, which is a non hold open arm, on this page. The cylinder mounting holes are 2-1/2" by 6".

The LCN Door Closer 4111 FL is known as the Smoothee, and is one of the heaviest duty door closers made, the FL stands for Fusible Link. The Fusible Link is a lead clip that melts at roughly 115 degrees, and releases the door so it can close and contain a fire.  If you have a building were you have a high traffic and abusive, especially exterior doors, then this is the closer. The 4111 is an application specific closer, meaning it will only work when mounted on the door, on the push side. This is known as a parallel arm application. The cylinder is fully adjustable and will work on doors up to 56" exterior door, and can be adjust down to ADA required levels. We ship the 4111 FL model, which is a hold open fusible lind, on this page. The cylinder mounting holes are 2-1/2" by 6".

The SEM7830-516 LCN Magnet Core Assembly is just the Tri Voltage Magnet Core. 35 pounds of holding force at nominal input voltage. Maximum current draw is .020 A @ 24 volt and 120 volt, and .030 A @ 12VDC.

LCN part number SEM7830-516

The LCN Fusible Link melts at 165 degrees to release the hold open mechanism.   Link measures 1-3/8 long by a 1/2" wide, the center to center distance on the holes is 15/16".

LCN Part Numbers:
4010-28
4110-30
4020-31

The concealed LCN Door Closer 2031 -2035 Pacer® is a heavy duty closer designed to fit in a narrow, minimum 1 3/4” aluminum transom.  It is considered an application specific closer, due to the cylinder spring sizing and handing.  The standard 2030 series closer shipped with standard arm, standard track, mounting/finish plate, and wood and machine screw pack.  Aluminum frame requires minimum 1 3/4”  x 4”  tube.

The LCN Sentronic Overhead Concealed Door Closer 3130SE is shipped with a standard arm, 24V or 120V SE track (please specify), track roller, and wood and machine screw pack. Sized cylinders for interior doors to 4’0”. Functions as full rack and pinion door closer when hold-open is not engaged or current is interrupted. Handed for right or left swinging door. Interfaces with fire alarm systems.

LCN Sentronic Door Closer 3130SE parts are also available.

The SEM7830-516 LCN Magnet Core Assembly is just the Tri Voltage Magnet Core. This core is used on the Floor Mounted SEM7830.  It has 35 pounds of holding force at nominal input voltage. Maximum current draw is .020 A @ 24 volt and 120 volt, and .030 A @ 12VDC.

LCN part number SEM7820-516

SEM Parts Manual

The LCN 1250 Rw/PA Door Closer is a direct replacement for the Norton 1600, Yale 50, Falcon/Dor-o-Matic SC60, LCN 1260 and International 8050 Series Door Closers.  It is  ideal for low frequency and low abusive traffic areas, such as store front doors and interior doors.  It features, a cast aluminum cylinder, 15 year warranty, powder coated finishes, and stick on mounting template.  This door closer comes with the ability to mount on the push, pull or top jamb and is non handed.   The door closer meets Grade 1-ANSI A156.4, UL/cUL, ADA and the Buy American Act certifications.
Hole Spacing 3/4” x 9-16”

The LCN 4050 Rw/PA Door Closer is a newer Closer and is a direct replacement for the Norton 7500, Yale 4400, and Falcon/Dor-o-Matic SC70 Series Door Closers.  It features, a cast aluminum cylinder, 25 year warranty, powder coated finishes, and stick on mounting template.  This door closer comes with the ability to mount on the push, pull or top jamb and is non handed.   The door closer meets Grade 1-ANSI A156.4, UL/cUL, ADA and the Buy American Act certifications.

Hole Spacing:   2-3/8” x 6-3/4”

This new LCN 1450 Rw/PA Door Closer is a direct replacement for the Norton 8000,Yale 3000, and Falcon/Dor-o-Matic SC80 Series Door Closers, or any door closer that has the 3/4" x 12" hole spacing.  It features, a cast aluminum cylinder, 25 year warranty, powder coated finishes, and stick on mounting template.  This door closer comes with the ability to mount on the push, pull or top jamb and is non handed.   The door closer meets Grade 1-ANSI A156.4, UL/cUL, ADA and the Buy American Act certifications.

Hole Spacing 3/4” x 12”

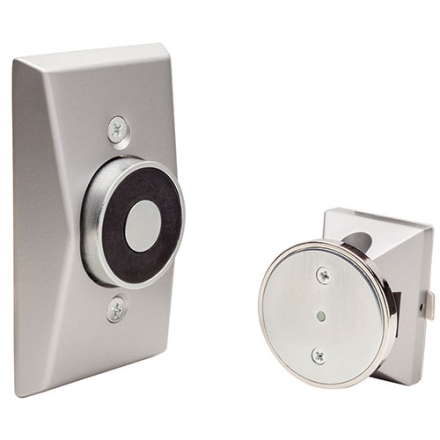

The SEM7830 LCN Electro Magnetic Door Holder features a die cast metal housing that is surface wall mounted. Tri-voltage design works with 12, 24 or 120 volts, with 35 lbs. of holding force. The magnet housing measures 2-13/16" wide by 4-5/8" high. The armature (door mount part) is 1-11/16" wide by 2-3/8" high with a 1-7/8" diameter. The armature projects out 1-5/8". The total projection of both pieces is 4-1/8". Available in an aluminum or dark bronze color.  Armature extensions are available, along with replacement covers, magnets, and armatures.

The SEM7840 LCN Electro Magnetic Door Holder features a metal die cast housing that is surface wall mounted. Tri-voltage design works with 12, 24 or 120 volts, with 35 lbs. of holding force. The magnet housing measures 2-13/16" wide by 4-5/8" high. The armature (door mount part) is 1-11/16" wide by 2-3/8" high with a 1-7/8" diameter. The armature projects out 1-5/8". The total projection of both pieces is 2-5/8". Available in an aluminum or dark bronze color.  Armature extensions are available, along with replacement covers, magnets, and armatures.  Outlet box not included

LCN Part # SEM7840

The SEM7850 LCN Electro Magnetic Door Holder features a metal die cast housing that is surface wall mounted. Tri-voltage design works with 12, 24 or 120 volts, with 35 lbs. of holding force. The magnet housing measures 2-13/16" wide by 4-5/8" high. The armature (door mount part) is 1-11/16" wide by 2-3/8" high with a 1-7/8" diameter. The armature projects out 1-5/8". The total projection of both pieces is 3-5/8". Available in an aluminum or dark bronze color.   Armature extensions are available, along with replacement covers, magnets, and armatures.  Outlet box not included

LCN Part # SEM7850

The SEM7820 LCN Electro Magnetic Door Holder features a metal die cast housing that is surface mounted on the floor. Tri-voltage design works with 12, 24 or 120 volts, with 35 lbs. of holding force. The magnet housing measures 5-1/8" long x 4-9/16" wide and 3-7/16" high. The armature (door mount part) is 1-11/16" wide by 2-3/8" high with a 1-7/8" diameter. The armature projects out 1-5/8". The total projection of both pieces is 6-3/4". Available in an aluminum or dark bronze color.  Armature extensions are available, along with replacement covers, magnets, and armatures.

LCN Part # SEM7820

LCN Door Closer Fusible Link Arm

Adjustable nut allows door closer arm to lock when the preselect position is reached. Fusible Link will hold door until heat melts the "Link" and then the door will shut. Used on Fire Doors to control a spreading fire.

Specify your current closers model number when ordering.
Not all of the LCN closers have the same shape spindle on the door closer
cylinder. The LCN Part #'s on this Fusible Link Arm is: 4010-3049FL, 4020-3049FL, 4110-3049FL

The LCN Door Closer 4041XP-CUSH is the same cylinder as the 4040XP, but with a CUSH arm (4040XP-3077CNS).  This closer can only be mounted in the parallel arm configuration.  With this closer you get the XP heavy duty cylinder with the heavy duty CUSH arm.

We ship the 4041XP-CUSH

The LCN 79 Door Closer Rod And Shoe  piece fits into the female part of all LCN Regular Arms. The old style had two concave set screws and a ball pressed into the rod. If the door over rotated the ball would pull out of the concave set screws. The new version has a pin holding the rod to the shoe which is designed to fail if the door is over rotated. This piece will work on the LCN 1260, 1460, 4010, 4020, 4030 and 4040 door closers with regular arms. Some of the really old models have multiple threaded holes, so you might have to drill a hole in the female tube. Part #'s 4040-79, 4040-79LR and 4040-79ELR. The 1260, 1460, 4010, or 4020 could replace the 4040 in those part numbers, they are the same.

The LCN Door Closer 4021 is also known as the Smoothee.  The 4021 ships with regular arm, standard plastic cover, and self reaming and tapping screws.  The 4021 is considered an application specific closer.  Meaning you have to specify left and right swing door, and can only be mounted top jamb.  A top jamb mount is when the closer is mounted on the top rail of the door frame and the arms hangs down and attaches to the door.  Top Jamb door closers are also mounted on the pull side of the door.  The Non sized cylinder will work on just about any size interior or exterior door and meets ADA requirements.  We ship the 4021 REG.

The LCN Door Closer 1261 Series combines the best features from the previous 1070 and 1370 into a single versatile and economical cast iron closer, with Tri mounting capability. The 1261 is the door closer I would recommend if you are tired of replacing your store front door closers because of leakage.  The 1261 is the most heavy duty standard template closer that is made.  This door closer will work on the push, pull or top jamb, and is non handed.  The 1261 is adjustable spring sizes 1-5 and mounts to the most common commercial footprint. The 1261 also features a complete line of regular and extra duty arms, LCN’s peel-n-stick installation templates, a convenient spring adjust pointer.  The hole spacing is 3/4" x 9-1/16", so it is considered a standard template closer.  LCN also offers a 20 year warranty on this closer. The Brass finish is Painted Brass.

We ship the 1261 Rw/PA

The 4040XP Rw/PA is LCN’s most durable and flexible heavy duty surface mounted closer, designed for institutional and other demanding high traffic applications. The LCN 4040XP Rw/PA sets a new standard for reliability, longevity and value with a better design and extraordinary performance testing that goes far beyond industry requirements. They built the 4040XP from the inside out, combining tougher, bolder construction with proven LCN technology. The result is a closer that’s stronger, smarter and delivers remarkable value in a variety of applications.

The patented green dial on the LCN 4040XP Rw/PA makes spring adjustments fast, easy and foolproof. The all-weather fluid reduces maintenance and ensures consistent performance through every season. High-traffic doors call for heavy-duty closers – closers that won’t let you down no matter how many people go through the door or how hard they kick, push or slam against it, or in the case of public schools the dreaded flying kung-fu kick. And when it comes to heavy-duty closers, no other closer performs like the LCN 4040XP Rw/PA.

The LCN 4040XP Rw/PA features cast iron construction, forged steel arm, double heat treated steel pinion, non-handed, LCN® “Green Dial” spring force indicator, Peel-n-Stick templates, UL and cUL Listed, 3⁄4″ journal diameter pinion, full compliment bearing, and tested and certified under ANSI standard A156.4, Grade 1.
