Von Duprin 4954 7' 6" Steel Mullion
The Von Duprin 4954 7' 6" Steel Mullion is the standard mullion used on most double doors with the Von Duprin Exit Devices. Mullions are easily removed by loosening bottom set screw and removing top fitting cover. The steel mullions are 2" wide and 3" deep, with an 1/8" thickness construction. We ship the 7'6" mullion, if you need the 8'6" or 10'6", please call. Package includes the 050390 and 050335 top and bottom brackets.
4954- -
Von Duprin 22, 33, And 99 Dogging Shaft 090040
The Von Duprin 22, 33, And 99 Dogging Shaft 090040 is the peice that the hex dogging key would fit into. The shaft is for a 5/32" dog key, but it has to be the long version. The shorter versions will not have enough reach to get all the way into the shaft. This is a very common problem area, the hole that the key fits in is only about 1/4" deep, and if you do not push down on the hex key when locking it open it will round out over time. To remove the shaft, just pull it straight out with a part of channel locks. We reinstalling the new one you might have to bend the ends of the adapter spring 090042 back down. This dogging shaft is for use on all Von Duprin Panic Exit Devices shipped after 1997.
G090040 -
Von Duprin Strike 264
The Von Duprin Strike 264 measures 2-7/8" tall by 1-1/4" wide with a roller projection of 9/16". Used on the Von Duprin 22, 88, 98 and 99 when a lower profile strike is need in place of the Von Duprin 299 Strike. The hole spacing is 2-1/8" on center, and it ships with mounting screws and a shim. Also known as a Von Duprin Surface Roller Strike.
Von Duprin Part # 264
264 -
Von Duprin 2227 Top Vertical Rod 109361
The Von Duprin 2227 Top Vertical Rod 109361 will work on all 2227's up to door heights of 7'1". The actual length of the rod is 37-3/8", less the fittings. If your door is taller you will need a rod extension. Call 1-800-642-2403 for longer top rods or rod extensions.
Von Duprin part # 109361
G22VR60- -
Von Duprin 154 Mullion Stabilizer Package
The Von Duprin Mullion Stabilizer Package are used with Von Duprin Mullions to stop any deflection on the mullion, which may cause the exit devices to release. We run into issues where people are able to shake the door, and the door opens. The package includes two sets of stabilizers and all the mounting screws.
G154- -
Von Duprin 9927 Bottom Vertical Rod 110574
The Von Duprin 9927 Bottom Vertical Rod 110574 is the replacement rod for broken or bent vertical rods. All of the 9927 bottom rods are the same length, this is set by Federal Building Codes, so the center line of the Panic Hardware is a certain height from the finished floor. The length of the rod is 31-1/4" long, less the fittings. The old part number on this was 110574, and the newer one is 050514.
G99VR50- -
Von Duprin 99 Push Bar Retrofit Kit-Pbkit
The Von Duprin 99 Push Bar Retrofit Kit-Pbkit updates your current version touch pad, to the newest version. Used on all the Von Duprin 33A, 35A, 99 and 98's. For doors 30" to 36" order the 36" size. If your door is 36" to 48" order the 48" size. The Push Bar is 18" wide on the 36" version. Please allow 1 week for delivery.
Von Duprin part # PBKIT
G99R35 -
Von Duprin 98 Exit Device
The Von Duprin 98 Rim Panic device has been around since the late 1970's and has gone through a couple of improvements. One of the great things about the 98 is the availability of replacement parts. Even when the device is upgraded, the upgraded parts will work with the older versions that can be close to 40 years old. This device is for all types of single and double doors with mullions. The device is UL Listed for Panic Exit Hardware and is considered Grade 1, the heaviest duty rating possible. The Von Duprin 98 device has a smooth mechanism case and the Von Duprin 99 device has a grooved case. The rim device is non-handed, meaning it will work on Left and Right hand doors. Ships with all the mounting screws and the 299 Strike.
98EO -
Von Duprin 8827 Bottom Vertical Rod Assembly 050455
Von Duprin 8827 Bottom Vertical Rod Assembly
This bottom vertical rod is used on non fire rated doors. The rod includes the bottom rod connector. The rod is 31-7/8 inches long, excluding the rod connector.
Von Duprin Part #050455
Old Part #101777 and 10323488VR150- -
Von Duprin Thumb Piece 970488
The Von Duprin Thumb Piece 970488 is just the thumb piece only, rivet not included. Cast bronze construction, and then plated to the selected finish. 5-1/8" overall length, but note that the length is usually cut down in the field depending on the thickness of your door.
Von Duprin Part # 970488
Old Part # 960303G970488- -
Von Duprin 99 Panic Device Only
The Von Duprin 99 Rim Panic device has been around since the late 1970's and has gone through a couple of improvements. One of the great things about the 99 is the availability of replacement parts. Even when the device is upgraded, the upgraded parts will work with the older versions that can be close to 40 years old. This device is for all types of single and double doors with mullions. The device is UL Listed for Panic Exit Hardware and is considered Grade 1, the heaviest duty rating possible. The Von Duprin 98 device has a smooth mechanism case and the Von Duprin 99 device has a grooved case. The rim device is non-handed, meaning it will work on Left and Right hand doors. Ships with all the mounting screws and the 299 Strike.
99EO -
Von Duprin 8827-F Top Latch Cover Kit 050465
The Von Duprin 8827-F Top Latch Cover Kit 050465 the Top Latch Cover for the Von Duprin 8827-F. The 8827-F is the Fire Rated Surface Vertical Rod device usually used on interior doors to contain a fire. The Fire Rated version would not have dog screws to lock the device in the retracted position.
Von Duprin Part # 050465
Old Part # 96120688VR30F -
Von Duprin 8827-F Top Latch Kit 050462
The Von Duprin 8827-F Top Latch Kit 050462 is the Top Latch Kit for the Von Duprin 8827-F. The 8827-F is the Fire Rated Surface Vertical Rod device usually used on interior doors to contain a fire. The Fire Rated version would not have dog screws to lock the device in the retracted postion.
Von Duprin Part # 050462
Old Part # 10267688VR10F -
Von Duprin 8827-F Bottom Latch Kit 050463
Von Duprin 8827-F Bottom Latch Kit 050463 is the Bottom Latch Kit for the Von Duprin 8827-F. The 8827-F is the Fire Rated Surface Vertical Rod device usually used on interior doors to contain a fire. The Fire Rated version would not have dog screws to lock the device in the retracted position.
Von Duprin Part # 050463
Old Part # 10268188VR170F -
Von Duprin 050190 Bottom Fitting for the 5654 / 5754
The Von Duprin 050190 Bottom Fitting is for the 5654 / 5754 Mullions. The package includes the bottom fitting and all of the fasteners. The Fitting measures approximately 11/16" wide on face closest to the door and 2-3/8" at the widest point. The depth is 3-7/8"
Von Duprin part # 050190
G050190- -
Von Duprin 107765 Plunger Release Bracket
The Von Duprin 107765 Plunger Release Bracket is used with the Fire Rated 8827-F Top Latch. When the door closes, the Release Pin on the 88VR10-F (050462) hits the post and releases the latch from the retracted position. Once the top latch is released, it drops the bottom latch into the floor.
Von Duprin # 107765
G107765- -
Von Duprin 33/35/98/99 EL Dogging Rod 3' 050531
Von Duprin 050531 EL Dogging Rod 3'
The EL Dogging Rod connects the Solenoid to the Push Bar Bracket. The 3' designates the model it is used on. The 3' model is used on doors 36" or under. The Rod measures roughly 11" long. This rod is used on the 33A, 35A, 98 and 99 Exit Devices
Von Duprin Part # 050531, Old Part # 110007
No longer manufactured
G050531 -
Von Duprin 88 End Case 050435
The Von Duprin 88 End Case 050435 is also known as the hinge case, meaning it is on the hinge side of the door. This End Cap is used on all of the Von Duprin 88 models, which include 88, 8827, 8847 and 8875. This piece does all the lifting of the cross bar, so it is an important component. The case includes the all of the internal workings and springs.
Von Dupin Part # 050435
88R20 -
Von Duprin 88 Tube Attaching Ring 090021
The Von Duprin 88 Tube Attaching Ring 090021 is also used on the Von Duprin 55. The ring fits over the device lever arm, and is expanded by the Wedge (88R90) and the Wedge Tite Screw (88R100). When the Wedge Tite Screw is tightened the Ring expands and keeps the crossbar parallel to the door. Measures 15/16" long by 13/16" diameter.
Von Duprin Part #090021
Old Part # 96567688R110 -
Von Duprin 55 End Case Kit 050196 and 050197
The Von Duprin 55 End Case is the housing on the hinge side of the door. The function of this housing is to lift the cross bar, and support the function of the Active Case. If your housing is on the right side when standing inside looking out, then you would order the Right Hand Case. The package includes the housing, springs and back plate, the arm is not included. The current part number on this part is 050196 and 050197, the old part number is 111931 and 111932.
Other finishes are available upon request.
55R30 -
Von Duprin 050135 Top Fitting and Cover for 5654 / 5754
The Von Duprin 050135 Top Fitting and Cover is for use on there 5654 / 5754 Mullions. Package includes the Top Fitting and Cover, and all of the fasteners. The Fitting measures approximately 11/16" wide on face closest to the door and 2-3/8" at the widest point. The depth is 3-1/8"
Von Duprin Part # 050135
G050135- -

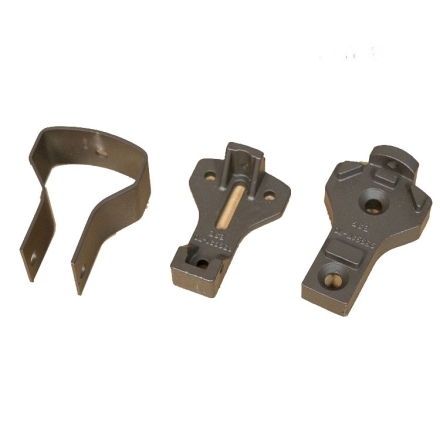

Von Duprin 050130 Fitting Set for 5654 / 5754
The Von Duprin 050130 Fitting Set is for the 5654 / 5754 Mullions. Set includes top and bottom fittings, all of the mounting screws. The Fitting measures approximately 11/16" wide on face closest to the door and 2-3/8" at the widest point. The depth is 3-1/8".
Von Duprin Part # 050130
G050130- -
Von Duprin 22 End Cap Only 968601
The Von Duprin 22 End Cap Only 968601 is the end cap that goes on the hinge side of the door. When the cap breaks off the Dogging Cover Plate just slides off. Works on all of the Von Duprin 22 exit devices. If you need the bracket also, please order part # G22R10. Black plastic construction. As of October 1, 2014, Von Duprin no longer sells just the Plastic Cap Only. The complete End Cap and Bracket 900981 will be shipped in its place.
Von Duprin Part # 968601
G22R25 -
Von Duprin 88 Panic Device
The Von Duprin 88 Panic Device has been around since the 1950's, and is probably the device that put Von Duprin on the Map. It is designed for all types of single and double doors with mullions. It is field reversible, and ships with a 42" cross bar that can be cut down in the field. The device is dogged down with a 5/32" hex key, and ships with all mounting screws and the 299 strike.
88EO- -
Von Duprin 8827 Top Latch Case 050460
The Von Duprin 8827 Top Latch Case 050460 is for non fire rated doors. A non fire rated device is one that has to positively latch every time it closes, you can usually tell, because a non fire rated device has the hex key dogging. This is the part that may be causing your bottom latch to drag on the floor. The Top Latch does all the work on the Von Duprin 8827. When the Top Latch is retracted, it holds the rods in the retracted position.
Von Duprin part # 050460
Old Part # 10175088VR10 -
Von Duprin Aluminum Mullion 7'2" | Von Duprin 5654
The Von Duprin 5654 Aluminum Mullion 7'2" comes prepped for two of the 299 strikes. The removable mullion also ships with the 154 Mullion Stabilizers. Mullions are 11/16" wide on face closest to the door and 2-3/8" at the widest point. The depth is 3-1/8" with a wall thickness of 1/8 ́ ́. The 5654 is constructed of aluminum. Everything is included, except the the 299 strikes. The taller ones are also available, please call for pricing.
G5654- -
Von Duprin NL Drive Screw 090074
Von Duprin NL Drive Screw 090074
The 090074 NL Drive Screw is used on the Von Duprin 22, 98 and 99 Exit Devices to control the rotation of the key cylinder cam. This small set screw, screws into the back of the chassis assembly next to the receptor for the Rim Key Cylinder. The set screw measures 5/16" long by 3/16" diameter. Note: When the NL drive screw is left in back of device, the outside cylinder will function only as a Night Latch. The Night Latch function means the door can only be opened, but not dogged open with the key cylinder.
Von Duprin Part # 090074
Old Von Duprin Part # 970441G090074
