Von Duprin 22 Mechanism End Cap 900981
The Von Duprin 22 Mechanism End Cap 900981 is the end cap and bracket that ships with the 22 and 2227 series. The bracket is constructed of zinc plated steel and the end cap is black plastic. Bracket also acts as mounting bracket that holds the exit device on the door. Von Duprin does offer a new Metal End Cap, look under related products.
Von Duprin part # 900981
G22R10 -
Von Duprin 050611 Lever Trim Shear Pin | Von Duprin Panic Hardware
Von Duprin Exit Device Lever Trim Shear Pin Kit
This is the component that is designed to break, if the lever handle is forced to open , this pin snaps so your trim is not destroyed. 3/16" diameter shaft by 5/8" overall length. Retaining Ring included. This shear pin is used on the 230L, 360L, 992L, 994L and 996L Von Duprin Lever Trims.
Von Duprin Part # 050611 Old Part # 971583
G050611 -
Von Duprin 22 End Cap Only 968601
The Von Duprin 22 End Cap Only 968601 is the end cap that goes on the hinge side of the door. When the cap breaks off the Dogging Cover Plate just slides off. Works on all of the Von Duprin 22 exit devices. If you need the bracket also, please order part # G22R10. Black plastic construction. As of October 1, 2014, Von Duprin no longer sells just the Plastic Cap Only. The complete End Cap and Bracket 900981 will be shipped in its place.
Von Duprin Part # 968601
G22R25 -
Von Duprin 050536 HD-EL Solenoid
Von Duprin 050536 HD-EL Solenoid
Electric Latch Retraction for Von Duprin Exit Devices with Hex Key Dogging. #4 on the diagram below large picture.
Von Duprin part # 050536
Old Part # was 110740No longer available, the only solution we have at this time is to upgrade to the HD-QEL Base Plate.
G050536 -
Von Duprin NL Drive Screw 090074
Von Duprin NL Drive Screw 090074
The 090074 NL Drive Screw is used on the Von Duprin 22, 98 and 99 Exit Devices to control the rotation of the key cylinder cam. This small set screw, screws into the back of the chassis assembly next to the receptor for the Rim Key Cylinder. The set screw measures 5/16" long by 3/16" diameter. Note: When the NL drive screw is left in back of device, the outside cylinder will function only as a Night Latch. The Night Latch function means the door can only be opened, but not dogged open with the key cylinder.
Von Duprin Part # 090074
Old Von Duprin Part # 970441G090074 -
Von Duprin 22, 33, And 99 Dogging Shaft 090040
The Von Duprin 22, 33, And 99 Dogging Shaft 090040 is the peice that the hex dogging key would fit into. The shaft is for a 5/32" dog key, but it has to be the long version. The shorter versions will not have enough reach to get all the way into the shaft. This is a very common problem area, the hole that the key fits in is only about 1/4" deep, and if you do not push down on the hex key when locking it open it will round out over time. To remove the shaft, just pull it straight out with a part of channel locks. We reinstalling the new one you might have to bend the ends of the adapter spring 090042 back down. This dogging shaft is for use on all Von Duprin Panic Exit Devices shipped after 1997.
G090040 -
Von Duprin 9927 Bottom Latch 050090
The Von Duprin 9927 Bottom Latch 050090 replaces and updates all 9827 and 9927 bottom latches to the new style, if your device was installed before October 1998. If your device is newer then October 1998, then use the G050401. Mounting screws and bracket are included.
Von Duprin Part # 050090
G99VR55 -

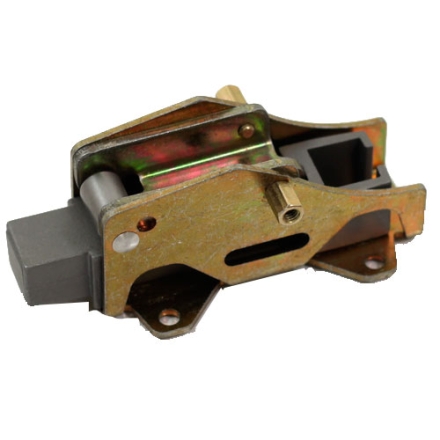

Von Duprin 8827-F Bottom Latch Kit 050463
Von Duprin 8827-F Bottom Latch Kit 050463 is the Bottom Latch Kit for the Von Duprin 8827-F. The 8827-F is the Fire Rated Surface Vertical Rod device usually used on interior doors to contain a fire. The Fire Rated version would not have dog screws to lock the device in the retracted position.
Von Duprin Part # 050463
Old Part # 10268188VR170F -
Von Duprin 99 Rim Center Case 050020
The Von Duprin 99 Rim Center Case 050020 replaces all previous versions of the Von Duprin 98/99 Rim Device Center Cases. One of the best things about a Von Duprin is when they redesign a part, they make it so your old device is not obsolete and you can update your device. All internal parts, springs, screws and cover mounting bracket included.
Von Duprin Part # 050020
G99R15 -
Von Duprin 22 Control Link Pin 050529
Von Duprin 22 Control Link Pin
The control link pin is the connector pin, that connects the latch head assembly to the push bar assembly. When the push bar is pushed in it retracts the latch bolt and the pin connects the two pieces. This Control Link Pin is used on the Von Duprin 22, 33A, 98 and 99 Panic Devices.
VON DUPRIN PART # 050529
Old Von Duprin Part # 969520G22R60 -
Von Duprin 2227 Bottom Latch 050090
The Von Duprin 2227 Bottom Latch 050090 replaces and updates all 2227 bottom latches to the new style if you device was shipped before October 1998. If your device was shipped after October 1998 then use the G050401.
Includes screws and bracket
Von Duprin Part # 050090
G22VR120 -
Von Duprin 2227/3327/9927 Bottom Latch 050401
Von Duprin 22, 33, 9927 Bottom latch.
Used to replace the bottom latch on the Von Duprin 2227, 3327A, and 9927 on devices shipped after October 1998.
Includes screws and sometimes the bracket
Von Duprin Part # 050401
G050401
