Von Duprin 386DT Dummy Trim

This Von Duprin 386DT Dummy Trim is just a pull handle. The bolt pattern of the trim plate lines up with the Von Duprin 33A on the inside so they are on cohesive unit. The base plate measures 7-15/16" by 1-5/8". The grip measures 8-1/2" by 4-5/16" with a 2-7/16" projection. This 386DT Dummy Trim is non handed.

Von Duprin 386NL Dummy Trim

This Von Duprin 386NL Night Latch Trim is just a pull handle. The bolt pattern of the trim plate lines up with the Von Duprin 33A on the inside so they are on cohesive unit. The base plate measures 7-15/16" by 1-5/8". The grip measures 8-1/2" by 4-5/16" with a 2-7/16" projection. This 386NL Night Latch Trim is handed. Uses a standard Rim Cylinder.

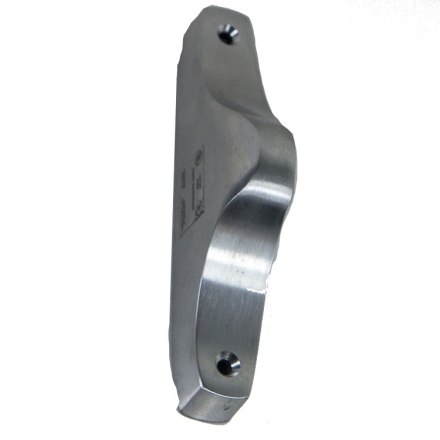

The Von Duprin Pull Handle 972466/972467 replacement Grip/Handle only, screws not included. Cast bronze construction, and then plated to the selected finish. The Grip measures 15/16" wide by 6" long. The center to center hole spacing is 5-1/2". This handle works on the Von Duprin 608, 696, 880, and 990 outside trim plates.

Von Duprin Part # 972466 and 972467
Old Part # 969925 and 959122

Von Duprin 22 Cover Plate 968595 968596

Von Duprin 22 Dogging Cover Plate. Plate covers the dogging assy, or hinge side of the exit device. This plate sides off when the plastic end cap breaks or goes missing.

Von Duprin Part # 968595   measures 10-3/4" Long  for 3' devices
Von Duprin Part # 968596   measures 16-3/4" Long  for 4' devices

The Von Duprin Panic Device 55 Left Hand Arm 050112 includes the wedge, wedge ring, wedge tite screw and dog screw.

Von Duprin Part # 050112

The Von Duprin 88 Lever Arm Left Hand 050439 replacement lever arm for all the Von Duprin 88 exit devices. Usually replaced due to the dogging screw stripping out.  The arm includes the Wedge, Wedge Ring, Wedge Tite Screw and Dog Screw, and sometimes the axle.

Von Dupin part # 050439
Old Part # 100729

The Von Duprin Panic Device 55 Right Hand Arm 050136 includes the wedge, wedge ring, wedge tite screw and dog screw.

Von Duprin Part # 050136

The Von Duprin 090039 is used in the push bar assembly to return the latch. It is known as the Base Plate Latch Return Spring or Latch Return Spring. It is used on the 22, 33A, 35A, 98 and 99 Devices. The spring is 2-1/4 inch long with a 3/8 inch diameter.

The Von Duprin 88 Lever Arm Right Hand 050438 replacement lever arm for all the Von Duprin 88 exit devices. Usually replaced due to the dogging screw stripping out.  The arm includes the Wedge, Wedge Ring, Wedge Tite Screw and Dog Screw, and sometimes the axle.

Von Dupin part # 050439
Old Part # 100729

The Von Duprin 99 Cover Plate 050114 is for use on the  33A, 35A, 98 and 99 devices.  Covers the dogging assembly on the hinge side of the door. The usually fall off when the End Cap is not on the exit device.  Von Duprin is only shipping a 20-1/2" cover plate now, which will work on 3' and 4' doors, you will have to cut more off if you have a 3' device with a hack saw or chop saw.

Von Duprin Part # 050114 and 050117 Hex Key Dog Conversion Kit

Von Duprin 99 Cover Plate 050114

Von Duprin 373L 88 Lever Trim

The Von Duprin Panic Device 210DT Trim is part of there economy series trims.  This trim is just a pull, but will line up with the chassis mounting holes of the 22 and 2227 devices.  The plate measures 5-3/8" x 4-25/32" x 3/32", with a projection of 1-31/32".

The Von Duprin Panic Device 210NL Trim is part of there economy series trims.  This trim iis a pull with a key cylinder hole, it will line up with the chassis mounting holes of the 22 and 2227 devices.  The key locks and unlocks the exit device.  The plate measures 5-3/8" x 4-25/32" x 3/32", with a projection of 1-31/32".

The Von Duprin 55 End Case is the housing on the hinge side of the door.   The function of this housing is to lift the cross bar, and support the function of the Active Case.  If your housing is on the right side when standing inside looking out, then you would order the Right Hand Case.  The package includes the housing, springs and back plate, the arm is not included.  The current part number on this part is 050196 and 050197, the old part number is 111931 and 111932.

Other finishes are available upon request.

The Von Duprin Panic Device 996L Lever Trim has an escutcheon plate that measures 2-3/4" wide by 10-3/4" high and projects out 27/32". The handle projection is 2-7/8". The key cylinder, not included, locks and unlocks the lever.  This lever handle is handed, but is field reversible. Key lock and unlocks lever.  We ship the 996L-R&V

The Von Duprin 55NL Cam is one of the handed parts in the housing, the other is the Arm.  If you need to change the hand of a housing, you just need to order the other hand Cam.

The Cam shown in the Picture is Right Hand

Von Duprin Part #'s 050355-Right Hand, 050356-Left Hand.

The Von Duprin Panic Device 230 DT Trim will work on the 22 and 2227 series only.  When the exit device is dogged open, the plate is operational.  The plate measures 3" wide by 12-1/16" high with a plate thickness of 3-/32".

The Von Duprin Panic Device 990NL Trim is known as a Night Latch Trim.  This plate mounts on the exterior of the door, and the welded on mounting studs line up with the 99 device on the interior of the building.  The key locks and unlocks the interior exit device.  If you have a different manufacture or a different Von Duprin series on the interior, it will not line up.  On the back of this plate we usually find the number 990 stamped on it.  The plate shown here is for the Rim and Surface Vertical Rod 99 and 98 devices.  If you have a Mortise or Concealed Vertical Rod, call us and we will order that model.  The plate measures 3" wide by 14-3/16" tall.   Order here for the 990NL-R&V.  The key cylinder is sold separately.

The Von Duprin 373L Lever Control Spring 090091 and 090092 are used on the 371, 373, 375 and 378 Lever Handles.  The spring is used to return the lever to the horizontal position.  Sold in packages of 4 springs.

Von Duprin Part #
090091 Left Hand Reverse
090092 Right Hand Reverse

The Von Duprin 990K Trim is known as a Knob Trim.  This plate mounts on the exterior of the door, and the welded on mounting studs line up with the 99 device on the interior of the building.  If you have a different manufacture or a different Von Duprin series on the interior, it will not line up.  On the back of this plate we usually find the number 990 stamped on it.  The key locks and unlocks the knob.  The plate shown here is for the Rim and Surface Vertical Rod 99 and 98 devices.  If you have a Mortise or Concealed Vertical Rod, call us and we will order that model.  The plate measures 3" wide by 14-3/16" tall.   Order here for the 990K-R&V.

The Von Duprin 99 Rim Panic device has been around since the late 1970's and has gone through a couple of improvements.  One of the great things about the 99 is the availability of replacement parts.  Even when the device is upgraded, the upgraded parts will work with the older versions that can be close to 40 years old.  This device is for all types of single and double doors with mullions.  The device is UL Listed for Panic Exit Hardware and is considered Grade 1, the heaviest duty rating possible.  The Von Duprin 98 device has a smooth mechanism case and the Von Duprin 99 device has a grooved case. The rim device is non-handed, meaning it will work on Left and Right hand doors.   Ships with all the mounting screws and the 299 Strike.

The Von Duprin 990TP Trim is known as a Thump Piece Trim.  The key cylinder locks and unlocks the thumb piece, key cylinder sold separately.  This plate mounts on the exterior of the door, and the welded on mounting studs line up with the 99 device on the interior of the building.  If you have a different manufacture or a different Von Duprin series on the interior, it will not line up.  On the back of this plate we usually find the number 990 stamped on it.  The plate shown here is for the Rim and Surface Vertical Rod 99 and 98 devices.  If you have a Mortise or Concealed Vertical Rod, call us and we will order that model.  The plate measures 3" wide by 14-3/16" tall.   Order here for the 990TP-R&V.

The Von Duprin 990DT Trim is known as a Dummy Trim.  This plate mounts on the exterior of the door, and the welded on mounting studs line up with the 99 device on the interior of the building.  If you have a different manufacture or a different Von Duprin series on the interior, it will not line up.  On the back of this plate we usually find the number 990 stamped on it.  The plate shown here is for the Rim and Surface Vertical Rod 99 and 98 devices.  If you have a Mortise or Concealed Vertical Rod, call us and we will order that model.  The plate measures 3" wide by 14-3/16" tall.  Order here for the 990DT-R&V.

The Von Duprin Panic Device 230TP Trim is for use on the 22 and 2227 series only.  The key cylinder locks and unlocks the thumb piece.  The plate measures 3" wide by 12-1/16" with a plate thickness of 3/32".

The Von Duprin Panic Device 230NL Trim is for use with the 22 Rim and 2227 Surface Vertical Road devices.  The key locks and unlocks the panic bar. The plate measures 3" wide by 12-1/16" high and has a plate thickness of 3/32".

The Von Duprin 970321 299 Strike Shim is for use with the Von Duprin 299 and Falcon FA299 strikes.   The plate measures 2-7/8 x 1-1/4" x 1-16" thick.   The product is sold individually.

The Von Duprin Panic Device 880NL Trim is for the 88 Series only.   The stanchions welded on the back of the plate line up with the88 device on the interior.  Optional key cylinder locks and unlocks the device, and can be used for dogging the door open.  Plate measures 3" wide by 14-3/16" long, with an 1-5/8" bore for cylinder.

Von Duprin part # 880NL-R

The Von Duprin Panic Device 880DT Trim is for 88 Series devices only.  Stanchions welded on the back line up with the device on the interior. The plate measures 3" wide by 14-3/16" long.

Von Duprin part # 880DT-R

Von Duprin 050536 HD-EL Solenoid

Electric Latch Retraction for Von Duprin Exit Devices with Hex Key Dogging.  #4 on the diagram below large picture.

Von Duprin part # 050536
Old Part # was 110740

No longer available, the only solution we have at this time is to upgrade to the HD-QEL Base Plate.

The Von Duprin Strike 385A is used on the floor for the Von Duprin 2227, 8827, 9827 and 9927 Surface Vertical Rods. Von Duprin recommends this strike if you are mounting the bottom strike in wood.  The strike face plate outside dimensions are 2-1/4" x 2-1/4" with an inside dimension of 1-1/8" by 1". This floor strike features a bolt that can be cemented into the floor.  This is an optional strike when added security is needed.  Zinc plated finish.

The Von Duprin 22 Center Case 109012 has been around for almost 40 years.  This case will replace all of the non fire rated center cases, meaning all of the devices that have a hex key dogging assembly on the hinge side cover plate.

Von Duprin Part # 109012

Von Duprin 880/990 Trim Hex Stud

This is the Hex Stud used on the 880 and 990 Trim Plates. The threads are 7/32-24. Overall lenght is 2"

Von Duprin Part # 956760

The Von Duprin Thumb Piece 970488 is just the thumb piece only, rivet not included. Cast bronze construction, and then plated to the selected finish. 5-1/8" overall length, but note that the length is usually cut down in the field depending on the thickness of your door.

Von Duprin Part # 970488
Old Part # 960303

The Von Duprin 22, 33, And 99 Dogging Shaft 090040 is the peice that the hex dogging key would fit into. The shaft is for a 5/32" dog key, but it has to be the long version.   The shorter versions will not have enough reach to get all the way into the shaft.  This is a very common problem area, the hole that the key fits in is only about 1/4" deep, and if you do not push down on the hex key when locking it open it will round out over time.  To remove the shaft, just pull it straight out with a part of channel locks.   We reinstalling the new one you might have to bend the ends of the adapter spring 090042 back down. This dogging shaft is for use on all Von Duprin Panic Exit Devices shipped after 1997.

The Von Duprin 98 Rim Panic device has been around since the late 1970's and has gone through a couple of improvements.  One of the great things about the 98 is the availability of replacement parts.  Even when the device is upgraded, the upgraded parts will work with the older versions that can be close to 40 years old.  This device is for all types of single and double doors with mullions.  The device is UL Listed for Panic Exit Hardware and is considered Grade 1, the heaviest duty rating possible.  The Von Duprin 98 device has a smooth mechanism case and the Von Duprin 99 device has a grooved case. The rim device is non-handed, meaning it will work on Left and Right hand doors.   Ships with all the mounting screws and the 299 Strike.

The Von Duprin 9927 Rod Guide Assembly 112063 works on all of the Von Duprin 98 and 9927's. The guide keeps the rods from bowing or getting bent by hand carts, or rowdy patrons.  Replaces the old style which had the cover and springs.

Von Duprin part # 112063
