The LCN Sentronic Door Closer Roller - 3034 is used on all of the LCN Track Closers, and Sentronic Closers. Nylon wheel is 1-1/16" diameter by 3/8" thick. The shaft is has a 1/2" diameter by 1-1/8" long.  However in November of 2015 they started shipping the roller with the Slider 168 attached to it, with a retaining ring. LCN Started using this Roller Assembly in December 2018.

LCN part # 4040SE-3034

The International Door Closer 526 Parallel Arm Bracket is one of two they offer.  This bracket us usually used with the Hold Open Arm 522, and is stronger than the 525 Parallel Arm bracket that ships with the closers.

4" Kickdown Door Holder FS452

The H.B. Ives FS452 is another classic kick down door stop.  It features a simple hold and release, activated with a touch of the foot, and is constructed of cast bronze or brass depending on the finish you are ordering.  A simple stainless steel spring clip holds the stop in the up position.  The non-marring rubber shoe is replaceable, and they have a corrugated bottom to prevent sliding on the floor and a secure grip.  This stop is shipped with matching finish sheet metal screws.   The 4" model is for door to floor clearances of 2" or less.  The hole spacing is 19/32" x 1-47/64".

Ives Part # FS452

The LCN 4040SE Sentronic Door Closer is a heavy duty, non-handed, non-sized closer/holder designed to provide single point hold-open for fire and smoke barrier doors. The door is held open until current interruption releases the holding mechanism and the door closes. Single lever (track) arm closer is specifically designed for interior doors. Choice of finishes, track functions, and installation accessories meet virtually all life safety requirements.  The SE stands for Single Point Electronic, with this closer the hold open point can only be one point, so the closer has to be positioned on the door to get the proper hold open point.

This technology has been around since 1972, but back then you would order the 4110SE or 4010SE.  These were  application specific closers, so you had to specify the hand of the door, door size,  and the type of mounting.  If you do have an older version, the 4040SE will replace it.

12" Kickdown Door Holder Grand Standard

Frequently we are asked, “What is the heaviest duty kick down holder you sell?”  The answer to that question is any of  Grand Specialty door holders.  These door stops are American made and simply the best out there.   They have a shoe that is held in place by a screw, a rivet instead of a roll pin for the hinging mechanism, and a “wedge” instead of a piece of spring steel to hold up the leg.  They are constructed of steel, and not cast like all of the other door holders made.

Another feature is their well constructed rubber shoe can be adjusted down as the rubber shoe wears making the holder last way longer than their competitors. Another use for them is as a door floor lock if mounted on the other side of the door. Once kicked down there's no entry possible unless you slide a flat item under the door to lift the door holder leg out of the way and push the door open. It can be opened from the inside as normal with your foot or hand. A very inexpensive security lock.

• No roll pin at pivot point
• Mallable with a pair of pliers
• Rubber shoe held on by a screw
• American Made
• Zinc plated steel

 The bottom mounting screws holes would be 11-3/8" to the Floor when mounted.

 Made by Grand Specialties in USA Part # 612z

Floor Door Stop FS434 09-318 Rubber Only

Replacement rubber shoe for the FS434.  Rubber measures 2-1/4" high by 1-7/16" wide by 5/8" thick.

Ives Part # 09-318

The Corbin Russwin Hold Open Arm Parallel Bracket is the standard bracket shipped with the Hold Open Arm.  This replacement bracket will work on the older Corbin 100, 110, and 120's, and the Russwin 2800, 2810 and 2820's.  Along with the DC3210 and DC6210 Door Closers.  This bracket used by the hold open arm for parallel arm applications only.  Corbin Russwin part # 509F49.

5" Kickdown Door Holder FS452

The H.B. Ives FS452 is another classic kick down door stop.  It features a simple hold and release, activated with a touch of the foot, and is constructed of cast bronze or brass depending on the finish you are ordering.  A simple stainless steel spring clip holds the stop in the up position.  The non-marring rubber shoe is replaceable, and they have a corrugated bottom to prevent sliding on the floor and a secure grip.  This stop is shipped with matching finish sheet metal screws.   The 5" model is for door to floor clearances of 3" or less.  The hole spacing is 19/32" by 1-47/64".

Ives Part # FS452

The Jackson Door Closer Center Hung Arm - 20-2010 is used with the 20-330 concealed closer.  The arm measures 9-1/2" long by 1-3/8" wide at the hub by 13/16" thick at the hub.

Jackson part # 20-2010

The Norton Door Closer 1601BF Barrier Free has been around for about 10 years. With the advent of aluminum framed glass doors, Norton was one of the first manufactures to come up with a narrow stile door closer. Because of this, it is still one of the most popular door closer models out there. It is a Grade 1 closer and has adjustable closing, latching, and back check speeds. The Barrier Free version just means you can turn the spring tension down to a size 1 spring, which will meet the ADA codes (less than 5 pounds of resistance). The model we ship also has adjustable spring tension to work on a wider range of doors. The hole spacing is 3/4” x 9-1/16”.

Norton 1600 Installation Instructions

Gravity Door Coordinator 9"

The Ives COR9G has been around for at least 50 years.   In the old days before electrically activated door closers fire doors would have fusible link armed door closers.  When the lnk melted, the door closed, and if there was not a mullion between door, they would use this style of door coordinator so the door with the astragal would close first.

When active door is open, coordinator prevents active door from closing until inactive door bypasses. Closing of inactive door causes strike plate on top of door to contact cam and lift arm, allowing active door to close. As inactive door continues closing, roller rides over strike plate on to door bracket, holding arm above active door.
Non-handed.

Gravity action arm and door bracket are adjustable on the job for ease of installation. Rubber roller provides quiet and efficient operation, and helps protect the astragal and doors from damage. Nylon roller on short arm glides smoothly over door bracket and strike, ensuring silent operation. Made of forged brass.
COR9G-26D for use on pairs of doors with astragal on active door over 4' or with astragal on inactive door over 3'4" or with astragal on both doors over 2'10" Brushed Chrome Finish.

Ives part # COR9G-26D 9" Arm Projection

Gravity Door Coordinator

The Ives COR7G has been around for at least 50 years.   In the old days before electrically activated door closers fire doors would have fusible link armed door closers.  When the lnk melted, the door closed, and if there was not a mullion between door, they would use this style of door coordinator so the door with the astragal would close first.

When active door is open, coordinator prevents active door from closing until inactive door bypasses. Closing of inactive door causes strike plate on top of door to contact cam and lift arm, allowing active door to close. As inactive door continues closing, roller rides over strike plate on to door bracket, holding arm above active door.
Non-handed.

Gravity action arm and door bracket are adjustable on the job for ease of installation. Rubber roller provides quiet and efficient operation, and helps protect the astragal and doors from damage. Nylon roller on short arm glides smoothly over door bracket and strike, ensuring silent operation. Made of forged brass.
COR7G-26D for use on pairs of doors with astragal on active door up to 4' or with astragal on inactive door up to 3'4" or with astragal on both doors up to 2'10" Brushed Chrome Finish.

Ives part # COR7G-26D 7" Arm Projection

The Jackson Door Closer Offset Arm  20-900-LC is used with the 20-330 concealed closer for single acting offset mounted doors.  The arm measures 12-15/16" long by 1/2" thick with a 1.012" offset.  The track measures 25/32" deep by 29/32" wide by 14" long.  The track includes the nylon slide, pin and retaining clips.

Jackson Part # 20-900-LC

Door Finger Protector - Interior Push Side

These patented door guards fold against the jamb, allowing them to swing completely 180 degrees. The guard is attached to the face of the door and frame with the provided strong adhesive tape. Clear-frosted color to compliment any color scheme. Finger-Gard for use on Interior Doors, on the push side. Available in 54" or 78" lengths

LCN Sentronic Door Closer 4040SE-3436 On/Off Switch

The LCN 4040SE On/Off Switch measures 1" by 1/2" and the button projects up 1" from the base. This component is usually mounted by two way foam tape to isolate if for undesirable shock.

LCN Part # 4040SE-3436

The International Door Closer Arm 3010-PT is for end loading top arm assembly (7/8" depth top rail). All screws included with package.  This arm is for center hung concealed closer applications.   For use with the 2000, 3000 and 5000 series International Door Closers.

The International Door Closer 525 Parallel Bracket is the standard bracket shipped with most of there closers.

Von Duprin 1606 Rim Device Strike for Panic Devices only.  Strike measure 1-3/8 x 2-7/8 with a 3/8 inch projection. The hole spacing is 2-1/8 inches.

Cal Royal 7000 Alarmed Exit Device

Same as the Cal Royal 7700, but with these added features"

Alarm unit has internal horn. When the push rail is depressed, the horn sounds to provide an audible means of signaling that the door has been opened and violated. The unit has changeable 2 minute alarm cutoff or manual reset. Preset at factory for 2 minute alarm cut off. The key switch to turn alarm off is a standard 1 ¼” cylinder with “C” keyway. The alarm operates on one standard 9 volt transistor battery. When battery is weak the horn will emit an intermittent signal. Alarmed units are supplied with a switch that monitors push rail only. Unit includes “EMERGENCY EXIT ONLY • ALARM WILL SOUND” decal for application on door or unit.

Sargent Hold Open Pa Bracket

Sargent part # 125-PH9

Cal Royal A2200 Series Rim Device

Grade 1
Non handed
3/4" latch bolt throw
Heavy gauge steel, painted

Devices available for 32" and 24" wide doors. Please call 1-800-642-2403 for more information

The International 300 Series Adjustable Power Door Closer is one of there new closers to meet ADA requirements.  With this door closer you can adjust the spring tension, closing and latching speed, even after it was installed.  The Spring Power is adjustable all the way down to 8-1/2 pounds of resistance, making it ideal for areas with the elderly and children.

Hydraulic Cylinder only

3000-B-310 105 with Hold Open
3000-B-311 105 with No Hold Open
3000-B-312 90 with Hold Open
3000-B-313 90 with No Hold Open

The Jackson Door Closer Offset Arm 20-1134LC is the arm and track assembly for the 20-330 concealed closer.  The arm measures 12-15/16" long with .919" offset, and the track measures 1/2" thick by 12-7/8" long by 1-9/32" wide.  The track includes the nylon slide, pin and retaining ring.

Jackson part # 20-1134-LC

The Global Door Closer TC4361 is recommended for use on heavy duty commercial, architectrual and institutional applications. It is ideal for business, new construction and renovations. It has a full selection of accessories to accomodate the requirements of any field installation. It is tri-packed standard and comes with all fasteners, brackets and soffit plates for versatility. Closers with non-hold open arms are UL listed for "A" label fire doors. Fully compliant with opening force requirements for ADA and ANSI/BHMA standards.

Options: Specify when Ordering

• Finish - AL, DU

The hole spacing is 1" by 7-1/2"

Crash Chain Door Stop CS115

• Specially designed for full-size exterior doors.
• Tear resistant, grey vinyl cover.
• Heavy duty compression spring assembled to both ends of chain
  and end brackets.
• Packed with sheet metal screws.
• Cast Brass brackets with solid, welded steel chain.

Available in 20-1/2", 25-1/2" and 30-1/2" lengths. Length is determined
by the location of your door closer

PART # LENGTH
GCC205 20-1/2"
GCC255 25-1/2"
GCC305 30-1/2"

Corbin Russwin 650F52 ED4000 / ED5000 Dogging Assembly

Used on Corbin Russwin ED4000 and ED5000 Panic Devices.  he plate measures 2” x 1-7/16”, the shaft measures 1-7/16” long by 1/2” diameter.

Corbin Russwin # 650F52-8

The Detex 40 Series rim exit device is a supper heavy duty panic device for use on narrow stile doors. Device features an angled end cap to deflect damage away from the unit. This device is designed for years of trouble free service in high use, high abuse enviroments.

The International Door Closer Arm and Track 3020-VO is for offset top arm assemblies, with the track mortised in the top of the door.  This track and arm are for the 7/8" depth of top rail application.  Track measures 12-5/8" long by 1/2" high by 1-1/4" wide.  For use with the 2000, 3000 and 5000 series concealed closers.

The Cal-Royal 221 Bottom Strike is used on the 2000, 5000, 7000 and 9000 Panic Bars with Surface Vertical Rods. Strike measures 2-7/16 inches long with a 5/16 inch projection.  The hole spacing is 1-7/8 inches.

Von Duprin 050535 El Solenoid Assy-Discontinued.  All of our stock is gone, the only way to have your current device work with Electric Latch Retraction would be to up grade to the newer version.  The newer version is the QEL or QEL-HD Conversion Kit.  Here is a link to the QEL Conversion Kit.

Screws are 1" on center, the cylinder measures 3" long by 1-3/4" diameter. Used on the 33A, 35A, 98 and 99 exit and panic devices. This Solenoid Assembly is also used on the Doromatic/Falcon EL1690, EL1790 and EL2390

We sometimes find the number 971687, along with 4011 VDC 24

Von Duprin Part Number 050535
Doromatic/Falcon Part # 971687-00

The Von Duprin 050046 98/99 Maintenance Kit has all the pieces and screws to keep your 98 or 99 device operating for years.  Kit includes 17 pounds of replacement parts for the panic hardware and the outside trim.

Von Duprin part # 050046

98/99 Maintenance Kit Instruction Manual

The International Door Closer Arm 3010-K is for end loading top arm assembly (5/8" depth top rail). All screws included with package.  This arm is for center hung concealed closer applications.   For use with the 2000, 3000 and 5000 series International Door Closers.

Floor Door Stop FS444

This door stop has been around a long time. We have been selling it for the past 35 years, and it is one of our best sellers year in and year out.

Features: Ideal for interior or exterior use. Cast brass construction. Accommodates door undercut up to 2-1/2". Non-marring rubber tip. Packed with expansion shield and lead shield. This Floor Mounted Door Stop is 3" high, and the base has a 2-1/2" diameter.

The F20 or GJF20 was a mainstay of Glynn-Johnson for years.  When the Glynn-Johnson door stop line merged with H.B. Ives it became the FS20.  This door stop has been discontinued from Ives, but we have been able find a large stock.   This Floor Mounted Door Stop also holds the door open, when in the latched position you can push the door and the holding latch will flip up and unlock thee holding clip.   It is constructed of cast bronze or brass and then plated to your desired finish.   This stop has a 2-1/2" long base that is 1-1/2" wide.  The overall height is 3-1/8" with a 2-5/16" floor to rubber stop centerline.    For use with door undercut up to 2-1/2".

Sargent Exit Device Et Spindle Adapter

7/16" diameter x 1-1/2"
input square shaft is 5/16"

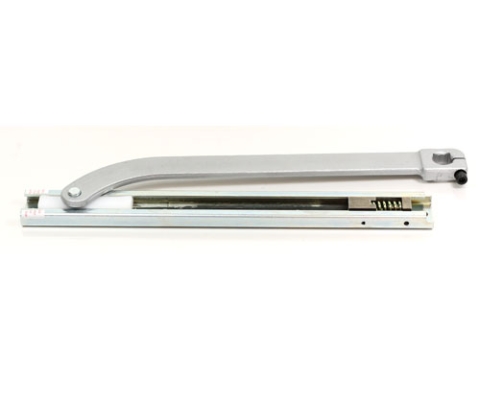

The International Door Closer Arm and Track 3010-JO for Offset Top Arm Assembly Mortised Type (9/16" Depth of Top Rail) installations. Track measures 15-1/4" long by 3/4" high by 15/16" wide.  For use with the 2000, 3000, and 5000 series concealed door closers.
