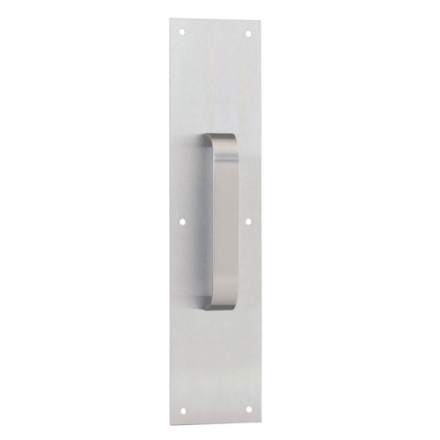

The Door Pull Plate 5012 is a .050" wought plate with Door Pull #12-6" center. The handle and plate are solid aluminum, brass or stainless steel depending on the finish ordered. Handles come with thru bolts and plate steel metal screws.

Finishes

The Ives Wall Door Stop / Holder WS445 has been a staple of the Ives product line for at least the last 45 years, and is the same product as the WS443 except it has a holder function.  The stop features cast brass construction and then plated the the desired finish, which makes it ideal for interior or exterior use.   The rubber tip is a non marring rubber, that can be replaced and we keep in stock.  The stop has a 2-1/4" base diameter and a 3-11-16" projection from the wall.  This product ships with an expansion shield and lead shield.  This holder is considered a manually holder due to the fact you have to bend over and latch and unlatch it.

Norton Unitrol Non Hold Open Arm

Used on the Norton 1600, 8000 and 7500 door closers. Parallel Arm mounting only.

Norton # Door Size
6100-11 28-32"
6100-13 33-41"
6100-14 42-48"

The Ives WS401CCV Wall Door Stop is our heaviest duty wall stop of this design.  They are constructed of a heavy duty cast brass base that is then plated to your desired finish.   The wall stop is 2-1/2" in diameter and has a 1" projection.  It features a special retainer cup that makes the rubber tamper resistant.  This stop ships with screw and drywall anchor.

Norton Unitrol Hold Open Arm

Used on the Norton 1600, 8000 and 7500 door closers. Parallel Arm mounting only.

Norton # Door Size
6100-1 28-32"
6100-3 33-41"
6100-4 42-48"

Our Dark Bronze Oil Rubbed Bronze Door Kick Plates (US10B) are a baked on powder coat on brass base metal. We switched to this finish 5 years ago due to color variations in the US10B Oil Rubbed Bronze finishes. The US version was much lighter than the Asian version, which is where most the door hardware is made these days. The cost of Oil Rubbing was going through the roof and many platers were having issue with the environmental impact and EPA regulations in the United States. Our Oil Rubbed Kick Plates are 16 gauge (.050″) thick.

Kick Plates can be mounted by screws, two way tape, and they can be glued to the door. Our plates come standard with screw mounting. The manufacture sends #6 x 5/8″ Oval Phillips Undercut dark brown screw. The number of holes on the screw mounted plates is determined by an industry wide standardize template. A height between 6-10″ will have 10 holes for plates up to 33″ and 12 holes for plates between 33 and 40″.

You can order these plates with tape mounting, but on larger plates, it is not recommended. Large plates are too heavy and they most likely will not stick. We can also ship them with no holes, if you want to drill your own holes. You can glue them on, I would recommend liquid nails, and some C Clamps with the door on saw horses.

Custom sizes available starting around $0.49 per square inch depending quantity

Please allow 2 week shipping time

LCN SEM7850-515 Magnet Hardware Package is used to mount the Armature or the Door Mounted part of the Magnetic Door Holders.   If you are currently using LCN door holders, you will not need to purchase this.   However, if you are using another brand and they have gone missing, you will need to purchase this component.

The TH1300 YKK Offset Pivot Hinge Set is found on YKK Aluminum Framed Storefront Doors.

The Door Push Plate 61 is constructed of 16 gauge stainless steel, aluminum, brass or bronze.  This plate is handed left and right, the one shown on the website is a Left Hand plate.  They measure 7-1/2" wide by 15" long, and ships with the matching finish mounting screws.

Finishes

The Lifetime Brushed Brass Door Kick Plates are the same as the Lifetime Polished Brass Door Kick Plates, solid stainless steel base metal, 16 gauge (.050" thick), but the surface is Satin or Brushed.  Because it is an artifical finish they will not tarnish.  Custom sizes available starting around $0.41 per square inch depending quantity.  Kick Plate comes with screws for mounting.  Please allow 1 week shipping time.

The International FG-1200 Flushbolt Guide is the piece that fits into the top or bottom of the door and acts as a guide for the Flushbolt Rod.  The piece measures 1-3/8" x 1-1/2".  The square hole in the piece is a 1/2" square.  The manufacture part number is FG-1200.

These standard metal extensions can be used with the LCN SEM magnet door holders to increase the holder projection. The treads on this piece are 3/8-16.

LCN Part #'s
SEM7810-E050 1/2"
SEM7810-E075 3/4"
SEM7810-E100 1"
SEM7810-E200 2"
SEM7810-E400 4"

The Norton PPTO PowerTrack for P7705 is a replacement piece for the P7705PTO Door Closer.  The Track includes the Slider, Soleniod and new mounting screws.  The PPTO Track is for the Push Side of the door, also known as the Stop Side because the track mounts on the jamb stop. Not available in 120 Volt.

Norton Part # PPTO24

The Door Pull Plate 5020B is constructed of .050" wrought metal, in either solid aluminum, brass or stainless steel, with Door Pull GHE20 -8" center. Handles come with thru bolts, finish washers and the plates come with sheet metal screws that fit the countersunk holes.

Finishes

The Duranodic Aluminum (Dark Brown) Door Kick Plates are dark bronze or brown and match the Dark Brown color we find on Storefront doors.  These plates have an aluminum base metal, which is 18 gauge (.040") thick that is then Anodized in the Dark Brown Color.  These plates relatively inexpensive.  Custom sizes are available, they run about $0.25 per square inch.

You can order these plates with tape mounting, but on larger plates and especially plates with a stainless steel base metal, it is not recommended.  Stainless Steel plates are too heavy and they most likely will not stick.  We can also ship them with no holes, if you want to drill your own holes.  This is fine on the Brass and Aluminum base metals, but again Stainless Steel is very hard and a drill press would be recommended.   You can glue them on, I would recommend liquid nails, and come C Clamps with the door on saw horses.

The International Door Closer 8730S is designed for narrow stiles. The minimum stile width is 2-19/32 inches. It will not work on a true narrow stile door witch is usually 1-3/4 inch. The 36 inch version is 33-15/32 inches and the 48 inch version is 44-3/4 inches. The device is rated Grade 1, which is the highest rating. Rods are 1/2 inch diameter tubular with rod guides. The exit ships will all screws and strikes need for instillation.

Replacement Rod for the LCN 4630 Door Closer, LCN Part # 4630-82

The SEM7810-514 LCN Ball Pivot Connection Link Coupler Assembly Kit, is required for each door needing extension(s). Kit includes coupler link and ball pivot (alone serves as an 1-1/2" extenison). The threaded end is 3/8-16.

LCN Part # SEM7810-514

Intermediate Hinge IP-1901 and IP-1902

Cast aluminum construction with steel bearings. The hinge measures 5" high by 2-1/2" wide. This hinge has a 3/4" offset. We find this hinge in the middle section of the door between the top and bottom hinges. Available in the Aluminum color and Dark Brown. See the dimensional information under more views.

Manufacture Part # IP-1901 and IP-1902
IP-1901 is for Left Hand Doors
IP-1902 is for Right Hand Doors

The Lifetime Polished Brass Door Kick Plate has a 16 gauge (.050″ thick) base metal, that is then plated with a artificial brass finish that is then polished. The process is called Poly Vapor Deposition or PVD, which is why we hear the name Lifetime Polished Brass Kick Plate PVD. Because the finish is an artificial brass, it does not have to be clear coated, so it will never tarnish. The Lifetime Polished Brass finish cost the same as the Solid Brass Polished Kick Plates.

Our plates come standard with screw mounting. The manufacture sends #6 x 5/8″ Oval Phillips Undercut brass screws. The number of holes on the screw mounted plates is determined by an industry wide standardize template. A height between 6-10″ will have 10 holes for plates up to 33″ and 12 holes for plates between 33 and 40″.   You can order these plates with tape mounting, but on larger plates, it is not recommended, the plates are too heavy and they most likely will not stick. We can also ship them with no holes, if you want to drill your own holes, but they are made of Stainless Steel, which is a tough metal to drill. You can glue them on, I would recommend liquid nails, and come C Clamps with the door on saw horses.

Custom sizes available starting around $0.40 per square inch depending quantity

Please allow 1 week shipping time

The Door Pull Plate 5021 is a .050" solid wought plate in either aluminum, brass or stainless steel depending on the finish. The Door Pull GHE21 has 6" centers, handles come with thru bolts. The plates are pre drilled with counter sunk holes and come with sheet metal screws.

Finishes

The TH1100-HK1 is the perfect solution for existing hinges that have failed, and is a quick and easy fix for compromised door openings.  Deluxe Hinge Kit TH1100-HK1 comes in a package of two hinges, 2 1/4" shims, and 12 one-way mounting screws.   The hinges are non handed, will work on Flush, and 1/8" offset door applications, have a self lubricating pin that rotates on anti-friction bearings, and have a vertical adjustment screw.   They are constructed of an aluminum alloy.

The Push Bar W/Offset Grip PP-2000 is what we usually find on most aluminum framed glass store front doors.  This particular set can usually ship within 24 hours, and comes in grip sizes of 9", 10" and 12" centers.  The push bar has 33-1/16" centers.   It is constructed of 1" solid aluminum that is anodize clear (aluminum) or dark brown.  It ships with all of the hardware needed for an 1-3/4" thick door.  At this time we are not able to sell the fasteners separately.

Sargent H.D. Holder Stop Arm

Sargent part #25-PSH

Lifetime Satin Nickel PVD Door Kick Plate

The Satin Nickel is a popular finish we have been seeing the last 15 years. These plates are 16 gauge or .050″ thick.
The Lifetime Satin Nickel Door Kick Plate has a 16 gauge (.050″ thick) base metal, that is then plated with a artificial satin finish that is then brushed. The process is called Poly Vapor Deposition or PVD, which is why we hear the name Lifetime Satin Nickel Kick Plate PVD. Because the finish is an artificial satin nickel, it does not have to be clear coated, so it will never tarnish.

Our plates come standard with screw mounting. The manufacture sends #6 x 5/8″ Oval Phillips Undercut Stainless Steel screws. The number of holes on the screw mounted plates is determined by an industry wide standardize template. A height between 6-10″ will have 10 holes for plates up to 33″ and 12 holes for plates between 33 and 40″.   You can order these plates with tape mounting, but on larger plates, it is not recommended, the plates are too heavy and they most likely will not stick. We can also ship them with no holes, if you want to drill your own holes. You can glue them on, I would recommend liquid nails, and come C Clamps with the door on saw horses.

Custom sizes available starting around $0.49 per square inch depending quantity

Please allow 1 week shipping time

The Brushed Bronze Door Kick Plates are solid bronze plates that are finished in a Satin or Brushed finish and then clear coated.  The Bronze Kick Plates are similar to the Brass Kick Plates, but they have more of an orange hue, were as the brass plates have a yellow hue.  This was a very popular finish in the 1950's, 60's and early 70's.  Custom sizes are available starting around $0.49 per square inch depending quantity.  Kick Plates come pre drilled with screws.  Please allow 2 week shipping time.

The Gold Aluminum Door Kick Plate are constructed of .040" thick aluminum base material that is then anodized to a polished brass finish. These plates are a great alternative to the Solid Polished Brass and Lifetime Brass kick plates. Custom sizes are available, they run about $0.24 per square inch or less.  Ships with matching Phillips type sheet metal screws..  Please allow 7-10 days for delivery
.

Solid brass kick plate, polished to mirror finish.  We can no longer get the solid brass plates, the lifetime polished brass will be shipped in its place.

The standard Polished Brass Door Kick Plate is a solid brass kick plate that is polished and then clear coated to prevent oxidation. These plates are 16 gauge or .050″ thick. A draw back of the Polished Brass Plates is oxidation. If the plate becomes scratched or dented, there is a good probability that the clear coat delaminates and moist could get under the surface. When this happens, the plate will tarnish. The brass base material is softer, so the chances of them becoming scratched or dented in commercial applications is pretty high.

Our plates come standard with screw mounting. The manufacture sends #6 x 5/8″ Oval Phillips Undercut brass screws. The number of holes on the screw mounted plates is determined by an industry wide standardize template. A height between 6-10″ will have 10 holes for plates up to 33″ and 12 holes for plates between 33 and 40″.   You can order these plates with tape mounting, but on larger plates, it is not recommended, the plates are too heavy and they most likely will not stick. We can also ship them with no holes. You can glue them on, I would recommend liquid nails, and come C Clamps with the door on saw horses.

I would highly recommend the Lifetime Brass if these plates are going to be mounted outside. Solid brass is soft, and tends to dent easily and the clear coat can be compromised. The Lifetime Brass plates do not require a clear and will last a lot, lot longer!

Custom sizes available starting around $0.40 per square inch depending quantity

The Door Push Plate 62 is constructed of 16 guage (.050") thick aluminum, stainless steel, brass or bronze depending on your finish.  They measure 7-1/2" by 15" tall.  This plate is handed left and right, the one shown on the website is a Left Hand.  Plate comes with matching finish mounting screws.

Finishes

The Diamond Plate Aluminum Door Kick Plate are solid aluminum.   They are 1/8" thick and have a gloss or polished finish.  These plates have the Diamond pattern, and the diamonds are 1-1/8" long.  Custom sizes are available, they run about $0.39 per square inch.  The lead time on these plates is about 7-10 days.

The Brushed Stainless Steel Door Kick Plate 14 Gauge .062 is the heaviest duty plate we offer .  Stainless steel offers one of the best material for commercial applications. They are very hard, and do not dent easily. The also offer the best corrosion resistances out there.  We use only type 304 stainless.

 Stainless Steel Kick Plates can be mounted by screws, two way tape, and they can be glued to the door. Our plates come standard with screw mounting. The manufacture sends #6 x 5/8″ Oval Phillips Undercut Stainless Steel screws. The number of holes on the screw mounted plates is determined by an industry wide standardize template. A height between 6-10″ will have 10 holes for plates up to 33″ and 12 holes for plates between 33 and 40″.

 You can order these plates with tape mounting, but on larger plates and especially plates with a stainless steel base metal, it is not recommended. Stainless Steel plates are too heavy and they most likely will not stick. We can also ship them with no holes, if you want to drill your own holes.  Stainless Steel is very hard and a drill press would be recommended. You can glue them on, I would recommend liquid nails, and come C Clamps with the door on saw horses.

 Custom sizes available starting around $0.40 per square inch depending quantity

Please allow 1 week shipping time

The Door Pull Plate 5025 is a solid .050" wought plate of solid aluminum, brass or stainless steel depending on the finish. The Door Pull GHE25 has 6" centers and is constructed of solid aluminum, brass or stainless steel, and is 3/4" in diameter, handles come with thru bolts. The plate come predrilled with counter sunk holes and sheet metal screws in matching finiish.  This is one of our most popular plates sold.

Finishes

Intermediate Hinge IP-2202 and IP-2201

Cast aluminum construction with steel bearings and axle. The set measures 3-1/2" tall with an 1-3/8" projection. This hinge is usually used an an intermediate hinge in between the top and bottom hinge.

Manufacture part # IP-2202 and IP-2201
IP-2202 is for Right Hand Doors
IP-2201 is for Left Hand Doors

The International Door Closer (IDC) 8710S is a narrow design rim device. The minimum stile width has to be 2-19/32 inches. The device features a 3/4 inch throw deadlocking latchbolt, hex key dogging, and ships with machine screws and strike. The device is Grade 1 Rated, which is the highest rating possible. The 36 inch device is 33-15/32 long and the 48 is 44-3/4 inches.

The Door Pull Plate 5026 is a solid .050" wought plate of solid aluminum, brass or stainless steel depending on the finish. The Door Pull GHE26 has 8" centers and is constructed of solid aluminum, brass or stainless steel, and is 1" in diameter, handles come with thru bolts. The plate come predrilled with counter sunk holes and sheet metal screws in matching finiish.

Finishes

The Von Duprin 9927 Top Vertical Rod 110573 is the standard top rod for door heights up to 7'1".  The length of this rod is 35", less the fittings.  For larger doors you can order a Rod Extension Kit, which at this point we do not have online.  The rod is field adjustable if your doors are less then 7'1".  The Old Von Duprin part # is 110573, and the Newer Von Duprin part # is 050512.
