Doromatic Exit Device 2090 Lever Arm

Right hand dark brown shown in picture

Dor-o-Matic 1090/2090 Repair Parts Breakdown

Effective December 20, 2024 the EL1590 has been discontinued.  Falcon Doromatic is working on retro-fit plates to work with the MEL1690.

Dor-o-Matic/Falcon EL1590 Panic Device with Electric Latch Retraction

The Dor-o-matic 1590 is our heaviest device and offers a clean appearance with push pad styling and a variety of practical features. The Dor-o-matic 1590 is built with rugged steel operating mechanisms, and durable aluminum push bars and end caps.

Requires a Power Supply

Replacement parts are also available

Shipped with all screws and strikes.

The Von Duprin 55NL Cam is one of the handed parts in the housing, the other is the Arm.  If you need to change the hand of a housing, you just need to order the other hand Cam.

The Cam shown in the Picture is Right Hand

Von Duprin Part #'s 050355-Right Hand, 050356-Left Hand.

Monarch Trim Spring 4841

2-1/2" long x 3/16" diameter

Monarch part # 4841

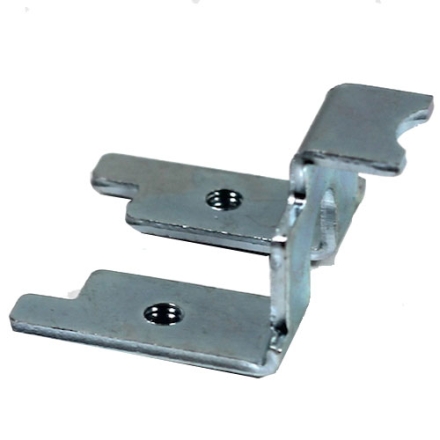

Doromatic Exit Device 1690/1790 Pushbar Anchor Bracket

Doromatic Part # PB321 or BRKT.128

Doromatic 2090 Latchbolt spring. Pushes out the latch bolt.

Doromatic part # SPRING.104

Dor-o-Matic 1090/2090 Repair Parts Breakdown

Doromatic Exit Device 1490/1590 Act. Rod Spring Stop

Doromatic/Falcon/Allegion Part # 971660-79

Von Duprin 9875/9975 mortise lock device for all types of single or double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. Fits stock hollow metal doors with 86 cutout and door stiles as narrow as 4-3/4" (121mm). The Von Duprin 9875 device has a smooth mechanism case and the Von Duprin 9975 device has a grooved case. The mortise lock device is non-handed

Dor-o-Matic 1690 Hex Socket Set Screw-PB317

1/4-20 x 3/8"

Doromatic part # SCREW.1067 or PB317

Dor-o-Matic 1690 Repair Parts Breakdown

Monarch 19 Series End Cap

Black plastic end cap measures 2-1/16" high by 1-5/8" wide with a 1-7/16" projection. Cap mounts on to the two mounting holes fo the End Cap Bracket which are about 9/16" on center.

Monarch Falcon Part # 650343 or old part # 6135

Top Latch for the Yale 7120 Concealed Vertical Rod Exit Device.  Yale part number 60-7020-0057-000

The Von Duprin 5547 Concealed Vertical Rod Exit Device is used primarily on aluminum framed glass doors, otherwise known as Narrow Stile Doors.   It is one of the most heavy duty cross bar devices made, and has been in production since at least the 1970's.  It will fit on Stile widths of 1-3/4", and ships with all the mounting screws, dog key and all the necessary strikes.  The device is also non handed.

To order select Finish and Type of Door Construction.   For Metal Doors select Metal Door, for Wood Doors, make sure you select Wood Door, the Wood Door model has additional brackets for mounting.

Application
Interior Doors
Weight to 250 lbs.*
Door Width up to 3'6"(1067mm)
Includes 180 Top Pivot
Handed

Handing diagram

The Doromatic Exit Device 2090 Active Case is for use on the 1090 and 2090 panic hardware.  This device has been around since the early 1970's, and is now called the Falcon 2090 Active Case, but it is the same piece.  Includes all of the interior hardware. Just unscrew or loosen the three set screws and remove your old case and install and tighten the three set screws. Housing measures 7-1/2" long by 1-3/16" wide, mounting studs have a 6-1/4" center to center distance.

LEFT HAND HOUSING SHOWN IN PICTURE

4270902740 Left Hand Aluminum Stock
4270902742 Left Hand Dark Brown Stock
4270902743 Left Hand Black * One week lead time
4270902746 Right Hand Aluminum Stock
4270902748 Right Hand Dark Brown Stock
4270902749 Right Hand Black * One week lead time

1990 parts breakdown

2090 parts breakdown

The Dor-o-Matic 1990 and 2090 Set Screw PB38. This set screw goes in the housing to secure it on the mounting studs.  There is 3 of these screws on each housing, two on the left and right side toward the top, and one on the bottom.   The manufacture is now Falcon.

Doromatic part # SCREW.1039 PB38

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

The Dor-o-Matic 1990 Housing and 1090 2090 Inactive Housing DCX has been around since the early 1970's.  Although it is now called a Falcon 1990, it is still the same device.  This housing is also the inactive housing on the Dor-O-Matic / Falcon 1090 and 2090 panic hardware.  The housing includes all of the interior springs, arm, and dogging screw.  Housing measures 7-1/2" long by 1-3/16" wide.  The center to center distance of the mounting studs is 6-1/4".

LEFT HAND SHOWN IN PICTURE

See diagrams for handing.

Doromatic part #
4270902784 - right hand dark brown
4270902782 - right hand aluminum
4270902785 -right hand black
4270902778- left hand dark brown
4270902776 - left hand aluminum
4270902779- left hand black

1990 parts breakdown

2090 parts breakdown

The Von Duprin 050155 33/99 Cylinder Dogging Conversion Kit converts Hex Dogging Devices to the Cylinder Dogging.  For use with the 33A, 35A, 98 and 99 Devices.

Von Duprin Part # 050115

The Ives 112HD Continuous Full Mortise Hinge Geared Hinge measures 83" long and is constructed of extruded aluminum.  This hinge is non handed, and will work on doors up to 48" wide and 450 pounds.  You can easily cut this hinge in the field if your door is less than 83" high.

The Von Duprin 8827 Bottom Latch Case 050461 is used on all Von Duprin 8827 non fire rated exits.  A non fire rated device is one that has to positively latch every time it closes, you can usually tell, because a non fire rated device has the hex key dogging.  Included mounting screws.

Von Duprin Part # 050461
Old part # 101751

The Dor-o-Matic Falcon Actuator Arm Bracket Assembly is used on the 1690 and 2390 devices.

Doromatic part # BRKTASY.107 or PB338

Dor-o-Matic 1690 Repair Parts Breakdown

Von Duprin 050575 98/9947 Adjustable Bottom Rod

Von Duprin 050575 98/9947 Adjustable Bottom Rod.  This rod is used on the 9847, 9847-F, 9947 and 9947-F

Von Dupin Part # 050575
Old Part #112342

Dor-o-Matic 1790 Slider. This is one on the components used in the NL/HB Cylinder Assy

Doromatic part # SLIDER.101 or PB344

Dor-o-Matic 1790 Repair Parts Breakdown

This Von Duprin Strike 304L Bottom Strike is used for the bottom latch of the 2227, 8827, 9827 and 9927. The strike measures 1-7/8" by 1-7/8" out dimension of the square flange, with an inside dimension of 1-1/8" by 1-1/8". The part that is inserted into the floor is 1-5/16" x 1-5/16" and drops down 13/16". Also known as a Von Duprin Floor Mounted Mortise Strike.

Von Duprin Part # 304L

Adams Rite Dogging Assembly

Adams Rite Part # 31-0265

The Von Duprin Exit Device 5547 Blind Fastener Kit 900539 is used to connect the Rod Control Housing to the Rods.  This part is used on the 5547 Concealed Vertical Rod only.

Von Duprin Part # 900539

Jackson 1095 RH Backplate Assembly

Jackson Part # 30-846

Yale 2100 Exit Device

Door Opening Width:
-36 for 30" - 36" (76.2cm - 91.4cm) doors, Actual width is 31-3/4"
-42 for 36" - 42" (91.4cm - 107cm) doors, Actual width is 37-3/4"
-48 for 36-1/2" - 48" (92.7cm - 121.9cm) doors, Actual width is 43-3/4"
Door Thickness: 1-3/4" (44mm) standard.
Minimum Stile Width: 4-1/2" (114mm)
Projection: 2-1/2" (64mm) active, 1-3/4" (44mm) depressed

Aluminum is in stock, Dark Bronze has a 2 week lead time

Von Duprin Push Bar Guide 090049

Fits on the end of the push bar assembly, reduces noise and friction. Used on the Von Duprin 33A, and 99 / 98's

Von Duprin Part # 090049
Old Von Duprin Part # 971993

Dor-o-matic 1690 Lock Stile Screw

1/4-20 Phillips Head Screw, a liite less than 1/2" overall lenght.

Doromatic part # SCREW.1069 or PB114

Dor-o-Matic 1690 Repair Parts Breakdown

Von Duprin 8827 Special Chassis Nut 050277

The 8827 Special Chassis Nut goes on the ends of the 8827 Chassis Tie Rod. The Nut is threaded all the way through so the cover mounting screws can then be threaded on it also. The nut is 3/8" long by 1/4" hex.

Von Duprin Part # 050277
Old Von Duprin Part # 960652

Dor-o-Matic 1490/1590 Dogging Compression Spring

Doromatic part # 4299101020 or PB224

The Von Duprin Exit Device 2227 Center Case 109358 replaces worn out Von Duprin 2227 Surface Vertical Rod Center Cases.  The center case has been the same for the last 30 years.

Von Duprin Part # CASE.107
Old Von Duprin Part # 109358

The Von Duprin 3348/9948 Bottom Latch Kit 050495 is used on the 33A, 35A, 98 and 99 exit devices.  Replaces previous versions of the 33/3548 and 98/9948 bottom latches.

Von Duprin Part # 050495
Von Duprin Old Part # 112907

The Von Duprin 99 Rim Center Case 050020 replaces all previous versions of the Von Duprin 98/99 Rim Device Center Cases. One of the best things about a Von Duprin is when they redesign a part, they make it so your old device is not obsolete and you can update your device.  All internal parts, springs, screws and cover mounting bracket included.

Von Duprin Part # 050020

Dor-o-Matic 1790 Latch Assembly

Doromatic Part # LBOLT.105 or PB325

Jack Nut 10-24

The Jack Nut is used on hollow metal doors to fasten door closers, door closer arms, exit devices and continuous hinges.
