Falcon 25-R Center Case Kit 650239

The Falcon 25-R Center Case Kit 650239 for non Fire Rated Doors.  A non Fire Rated door is usually an exterior door, or a door that is not designed to contain the spread of fire.

Falcon Part # 650239

Von Duprin 9875/9975 mortise lock device for all types of single or double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. Fits stock hollow metal doors with 86 cutout and door stiles as narrow as 4-3/4" (121mm). The Von Duprin 9875 device has a smooth mechanism case and the Von Duprin 9975 device has a grooved case. The mortise lock device is non-handed

Application
Interior Doors
Weight to 250 lbs.*
Door Width up to 3'6"(1067mm)
Includes 180 Top Pivot
Handed

Handing diagram

The Command Access MLRK1-VD22 is a motorized electric latch retraction with REX for the Von Duprin 22.  This motor is 24 to 28 volts and has a Standard : 900 mA (Avg Current Peak); 215 mA (Avg Current Hold). This unit requires 18 ga wire.  And ships with (1) Motor Mount with MM5; (2) 40002 - 8/32 x 1/4 inch Phillips Head Screw; (1) 50030 8/Lead with vd Connector; (1) 50944 Molex Pigtail; (1) 40144 Dogging Hole Cap; (1) 50991 Fire Rated Drilling Template; (1) Replacement Dogging Tail Piece.

The MLRK1-VD22 is a cost-effective and straightforward way to upgrade your Von Duprin 22 series device to motor-driven latch retraction in the field. UL Listed + 3 Year Warranty

The Sargent Parallel Arm Bracket 125-P is for use with the 25-O regular arm, to convert it to a parallel arm mount.   A parallel arm mount is when the door closer is mounted on the push side of the door and the arm is parallel to the door when in the closed position.

Sargent part # 125-P9

The Ives 112HD Continuous Full Mortise Hinge Geared Hinge measures 83" long and is constructed of extruded aluminum.  This hinge is non handed, and will work on doors up to 48" wide and 450 pounds.  You can easily cut this hinge in the field if your door is less than 83" high.

The Dor-o-Matic 1690/1990 Top Strike PB48 is used on the Dor-o-Matic 1690, 1990 and 2390 Concealed Vertical Rod Exit and Panic Devices. The plate measures 1" x 1-1/16" with 4 holes. The mounting holes are 11/16" x 11/16" on center. The diameter of the pin is 7/16" and projects out 5/32". Ships with mounting screws and 3 shim plates.  The Dor-o-Matic Panic Devices have been around since the late 1960’s, but have most recently been known as the Falcon Panic Device from a name change they had in about 2008.  They are basically the same device, with the same parts, just a different name plate.  Falcon part # PB48.

Dor-o-Matic/Falcon 990/1990 Repair Parts Breakdown
Dor-o-Matic/Falcon 1690 Repair Parts Breakdown

Yale 2100 Exit Device

Door Opening Width:
-36 for 30" - 36" (76.2cm - 91.4cm) doors, Actual width is 31-3/4"
-42 for 36" - 42" (91.4cm - 107cm) doors, Actual width is 37-3/4"
-48 for 36-1/2" - 48" (92.7cm - 121.9cm) doors, Actual width is 43-3/4"
Door Thickness: 1-3/4" (44mm) standard.
Minimum Stile Width: 4-1/2" (114mm)
Projection: 2-1/2" (64mm) active, 1-3/4" (44mm) depressed

Aluminum is in stock, Dark Bronze has a 2 week lead time

The 80 Series Push Plate is similar to the 70 series, but has a round bevel on the top and bottom of the plate. There is no bevel on the sides. These plates are  an 1/8 inch thick and are available many different finishes and size.  Custom sizes are available, and they ship with the matching finish mounting screws.

The Dorma Surface Vertical Rod Top Strike 426 is used on the 8400, 8400F, 9400 and 9400F devices. Shims and mounting screws included.

Falcon 650389 19-24-25-XX Top Latch

Falcon 650389 17V-18V-19V-24V-25V-XXV Top Latch for non Fire Rated Doors.  This latch has a long history, the old number is 588, and the new number is 650389.  A non Fire Rated door is usually an exterior door, or a door that is not designed to contain the spread of fire.

Falcon Part # 650389
Old Monarch Part # 588

Jack Nut 10-24

The Jack Nut is used on hollow metal doors to fasten door closers, door closer arms, exit devices and continuous hinges.

Adams Rite 8800 Panic Device

The 8800 features the Starwheel locking bolt that interlocks door to the door frame.  The 36" version is in stock, we can also get the 30", 42" and 48" devices, lead time is 2-3 weeks.  This device is used exclusively on aluminum framed glass storefront doors.  Replacement parts are available.

Jack Nut 1/4-20

The Jack Nut is used on hollow metal doors to fasten door closers, door closer arms, exit devices and continuous hinges.

The Glynn-Johnson Overhead Door Holder 100 Series Concealed Mounting, provide the most reliable and versatile concealed overhead door control. They are designed for installation on virtually all types of doors mounted on conventional type butt hinges, pivots, continuous hinges, swing clear hinges and numerous other specialty hinges. When used in conjunction with many surface-applied door closers, Glynn-Johnson 100 series holders and stops provide the most effective control for entrance doors and vestibule doors of all types, as well as heavy or often used interior doors. Templates provided allow for variable mounting positions, ranging from 85° - 110° of opening.

Painted finishes are also available. Please Call 1-800-642-2403

GJ100 Catalogue

Yale 7100 Exit Device

Door Opening Width:
-36 for 30" - 36" (762 - 914mm) doors
-48 for 36-1/2" - 48" (927 - 1219mm) doors
Door Thickness: 1-3/4" (44mm) standard.
Minimum Stile Width: 4-1/2" (114mm)
Projection: 3-1/4" (83mm) active, 2-3/4" (70mm) dogged
Latchbolt: 3/4" (19mm) deadlocking stainless steel Pullman-type
Strike: 757 (panic),

• Handed
• Top, header mount
• Bottom, base plate mount
• Use with 1-3/4" minimum door thickness, with 1/8" bevel in 2"
• Maximum door load 200 pounds
• Vertical adjustment range 3/16", with positive locking

Handing diagram

Corbin Russwin ED5200 Active Head

Used on the Corbin Russwin ED5000 Rim Devices, for non fire rated doors. For fire rated doors, order the G650F36-8. A non fire rated door is a door were you can use your allen wrench to dog, or lock, the door in the open position during business hours.

Corbin Russwin part # 650F35-8

Rim Cylinder Hub Position for the ED5200

Exterior or Interior Doors
Weight to 500 lbs.
Door Sizes up to 3'8"x 8'6"
Includes 340 top pivot
Non-handed

The Von Duprin 100316 is used on the 5547 on the top of the door.   The top rod goes through the square hole on the plate.  The plate shown in the Picture has both sides or LHR and RHR doors.  One side of the strike is usually broken off depending on the hand of the door.

The Dorma Rim Device Strike 463 is used on the 8300, 8300F, 9300 and 9300F exit devices. Mounting screws included.

Von Duprin 9827/9927 surface mounted vertical rod device for all types of single or double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. The Von Duprin 9827 device has a smooth mechanism case and the Von Duprin 9927 device has a grooved case. The surface vertical rod device is non-handed.

Corbin Russwin ED4200 Active Head

Used on the Corbin Russwin ED4000 Rim Devices, for non fire rated doors. A non fire rated door is a door were you can use your allen wrench to dog, or lock, the door in the open position during business hours.

Corbin Russwin part # 650F37-8

The Hub Position for the ED4200

• For 1-3/4" (44mm) doors standard
• Through-bolted with 3 mortise nuts
• Pulls project 1-1/2" (38mm) from door face
• GTB Design trim will cover a 161 cutout

Von Duprin 050574 98/9947 Adjustable Top Rod

Von Duprin 98/9947 Adjustable Top Rod for 6'8" to 8'4" doors.  This rod is used on the 9847, 9847-F, 9947 and 9947-F

Von Dupin Part # 050574
Old Part #110375

Application
includes 180 top pivot
Interior Doors
Weight to 300 lbs.*
Door Width up to 3'6"(1067mm)
Handed

Handing diagram

The 4311HSA SENTRONIC is an electrically controlled closer/holder designed to provide easy passage for groups of pedestrians through high traffic doors. Pedestrians, moving through the doorway, trigger the built-in scanner. When the door is opened to 80° or more, the door is electrically held open to minimize wear and tear on applied door hardware. After the last pedestrian in a group passes through the doorway, the system timer releases the hold-open, closing the door under control of the heavy duty closer. Single lever (track) arm closer is specifically designed for pull side mounting. Choice of finishes and accessories meet virtually all high traffic installation requirements.

The 4412HSA SENTRONIC® is an electrically controlled closer/holder designed to provide easy passage for groups of pedestrians through high traffic doors. Pedestrians, moving through the doorway, trigger the built-in scanner. When the door is opened to 80° or more, the door is electrically held open to minimize wear and tear on applied door hardware. After the last pedestrian in a group passes through the doorway, the system timer releases the hold-open, closing the door under control of the heavy duty closer. Double lever arm closer is specifically designed for push side mounting. Choice of finishes and accessories meet virtually all high traffic installation requirements.

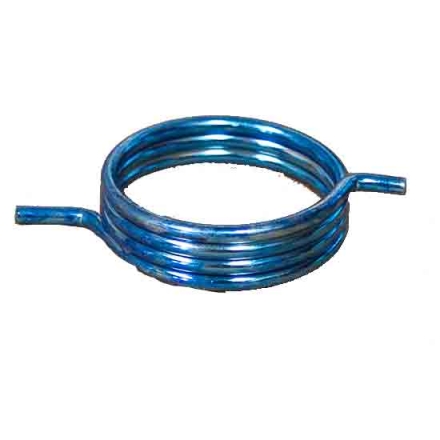

Yale Trim Spring Blue

Also used on Corbin Russwin and Yale Lever trims. The Blue Spring is for RHR or LH doors. The spring has an outside diameter of 1-1/4".

Yale Part # 60-7000-1224-999
Corbin Russwin # 651F62

Interior Doors
Weight to 200 lbs.
Door Sizes up to 3'6"x 8'6"
Includes 320 top pivot
Non-handed

Interior Doors
Weight to 250 lbs.
Door Sizes up to 3'6"x 8'6"
Includes 320 top pivot
Non-handed

The Adams Rite EX88 Interlocking Rim Exit Device is designed for heavy duty use on narrow stile aluminium door applications. The EX88 has a unique latch bolt design that interlocks with the frame of the door. This device is non handed, requires a minimum stile width of 2" and will work on aluminum, hollow metal or wood doors.The device is constructed of extruded aluminum with matching metal angled end caps. To order specify your door width, and the color.

Von Duprin 3327A Exit Device Only

3327A and 3527A for all types of single and double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. The 3527A has a smooth mechanism case and the 3327A has grooved case. 3327A/3527A fits door stiles as narrow as 1-3/4". Newly designed device has a one piece center case cover.

Von Duprin 33A Exit Device Only

33A and 35A for all types of single and double doors with mullion, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. The 35A has a smooth mechanism case and the 33A has grooved case. 33A/35A fits door stiles as narrow as 1 3/4". Newly designed device has a one piece center case cover.

Cal Royal 2000 Series Exit Device Lever Trim

Non-handed Grade 1 (Clutch Style)
Cylindrical body hardened steel heavy duty tailpiece. For
1¾” and 2 ¼” doors. Prefix THI before part # for 2 ¼” door
thickness. Available for fire and non fire rated rim and
vertical rod exit devices.
Rose diameter 3 ½”, lever length 4 ¾”.
