The TH1100-HK1 is the perfect solution for existing hinges that have failed, and is a quick and easy fix for compromised door openings.  Deluxe Hinge Kit TH1100-HK1 comes in a package of two hinges, 2 1/4" shims, and 12 one-way mounting screws.   The hinges are non handed, will work on Flush, and 1/8" offset door applications, have a self lubricating pin that rotates on anti-friction bearings, and have a vertical adjustment screw.   They are constructed of an aluminum alloy.

The TH1300 YKK Offset Pivot Hinge Set is found on YKK Aluminum Framed Storefront Doors.

Norton 7700/7705PT Hook-Up Boxes come in two voltages, 24 and 120, and two configurations Hinge Side and Stop Side. Hinge Side means the track is on the side of the door that you can see the Hinges, also know as the pull side.   Stop Side means the track is on the push side of the door.

The Full Mortise Medium Duty Hinge are a standard butt hinge.  They are designed for medium weight doors with a high frequency of usage, but usually interior doors with a door closer.  The hinge offers two bearings, to provide easy rotation.  They are constructed of 10 gauge (.134”) steel that is then plated or paint primed.  We sell them in boxes of 3 hinges, and they ship with machine and wood screws.

Shown in brushed chrome

The Full Mortise Regular Weight Hinge are for lighter weight interior doors without a door closer.  They are constructed of 10 gauge (.134”) steel that is then plated or paint primed.  We sell them in boxes of 3 hinges, and they ship with machine and wood screws.

Shown in brushed brass

Von Duprin 88 Hinge Case Spring

Used on all Von Duprin 88, 8847, 8827 and 8827 Exit Devices. 4-1/2" long x 5/16" diameter.

Von Duprin Part # 090080

The Von Duprin 55 Hinge Case Axle 090051 is used the Rim inactive housing, and all of the other 55 panic hardware.  Such as the 5547, and older 5575's.

Von Duprin Part # 090051 or 090026

Heavy duty knob set. Replaces the Corbin #1419 with #32 spindle.
Outside knob is pinned to spindle and inside knob is held by
two 5/16" case hardened set screws. Spindle is on 3/8" diameter
center on outside half and inside spindle is threaded 3/8-20

The Von Duprin 55 Hinge Case Spring 090052 is the spring in the inactive case.  This spring does all of the lifting of the cross bar, and is used on the 55 Rim, 5547 Concealed Vertical Rod and 5575 Mortise Device.  It measures 1-5/8" long by 5/8" diameter.

Von Duprin part # 090052

The Surface Mounted Glynn-Johnson 90 Series Overhead Door Holder are the most rugged models available for heavy-duty applications. The channel is surface-mounted to the door, most often with barrel nuts, and the jamb bracket is surface mounted to the jamb, requiring minimal door and frame preparation.

GJ90 Catalogue

The Dor-o-Matic Falcon 1690/1790 Hinge End Cap Kit PB314 includes both pieces and the mounting screws.  It is made of die cast metal that is powder coat painted to a black color.  This piece is mounted on the hinge side of the door.  Doromatic / Falcon part # ECAP.130 or PB314. Formly known as the ECAP.129

Dor-o-Matic 1690 Repair Parts Breakdown
Dor-o-Matic 1790 Repair Parts Breakdown

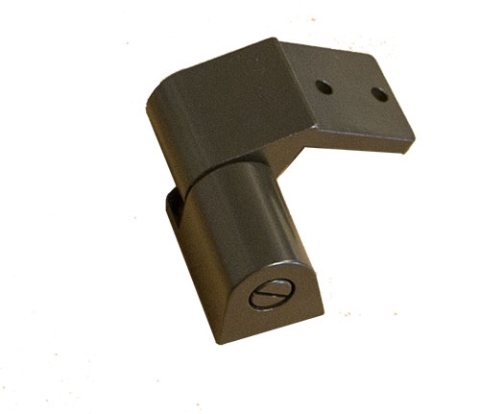

Kawneer Style Intermediate TH1121 Hinge

Male mounting bracket measures 1-5/16” wide by 2-3/16” high, with a hole spacing of 13/16”.  Female mounting leaf measures 1-7/16” high by 1-9/16”, with a hole spacing of 3/4” center to center. These hinges are non handed.

Straightens bent full mortise hinges. Slide cylinder over the butt of the hinge and rotate. Extra long handle provides the torque to bring the hinge back inline. t measures 19-1/2" long, with barrels on each end of 3/4" and 1" diameters.

The LCN Concealed Door Closer 3031 is mortised into the top of the door.  Standard 3030 series closer shipped with regular arm and wood and machine screw pack. Sized cylinders for interior doors to 4’0”.  Handed for right or left swinging doors.  Closers to meet ADA requirements.

LCN Door Closer 4111 HCUSH Hold Open

Standard 4110 series closer shipped with HOLD OPEN CUSH N STOP arm, standard plastic cover, 4110-201 FIFTH SCREW SPACER and self reaming and tapping screws. Sized cylinders adjustable for interior doors to 5’0” and exterior doors to 4’0”. Non-sized cylinder adjustable for interior doors to 4’6” and exterior doors to 3’6”. Closer mounts parallel arm, specify right or left swinging door. 4111 cylinder meets ADA requirements. The cush hold open arm allows for a stop and hold open positions up to 110 degrees. "T" handle on arm will release door for closing, locking pin can be retracted for normal door closing operation.

We ship the 4111 HCUSH

Cal Royal 7760 Surface Vertical Rod Exit Device

For use in institutions, schools, universities, commercial buildings where heavy duty reliable operation is a requirement. ANSI A156.3, Grade 1 heavy duty exit device in surface vertical rod and rim designs. Rail assemblies are heavy duty extruded aluminum body with stainless steel push pad and end caps are made of brass, bronze or stainless steel. Rail travels in direction of the door swing. Trims are thru bolted for additional security. Conforms & Meets ADA Regulations. UL Listed for Panic and ULC10C, UBC 7-2-1777 codes. UL Listed for Fire Exit Hardware.

Templating matches the Von Dupin 99 and 98

• Not load-bearing
• Maintains door alignment
• Non-ferrous base metal
• 3/4"(19mm) offset
• Furnished with wood and machine screws

LCN Sentronic Door Closer 4310ME

Standard LCN Sentronic Door Closer 4310ME series closer shipped with a 24V or 120V cylinder (please specify) on a mounting plate, metal cover, Swing-Free arm, track, track roller, and wood and machine screw pack. See 4310ME Series pages 23 & 24 for options. Sized cylinders for interior doors to 4’0”. Functions as full rack and pinion door closer when hold-open is not engaged or current is interrupted with Swing-Free arm engaged. Handed for right or left swinging door. Concealed or exposed electrical connections. Built-in “On/Off” switch controls hold-open function. Swing-Free arm allows door to be moved without door closer resistance. Interfaces with fire alarm systems. LCN Sentronic Door Closer 4310ME part are also available.

Corbin Russwin Door Closer H.D. Parallel Arm

Recommended for high-use, high-abuse environments, Tamper-resistant, solid forged steel riveted arm, Mounted on push side, and Not available in plated finishes

Corbin Russwin part # 689F02

Corbin Russwin Door Closer H.D. Hold Open Arm

Recommended for high-use, high-abuse environments, Tamper-resistant, solid forged steel riveted arm, Mounted on push side, and Not available in plated finishes.

Corbin Russwin part # 689F04

Universal Intermediate Storefront Door Pivot.  Comes with all the screws need to install right out of the box.

Application
includes 180 top pivot
Interior Doors
Weight to 300 lbs.*
Door Width up to 3'6"(1067mm)
Handed

Handing diagram

Monarch / Falcon 24-R Series Rim Exit Device

Robust and aesthetically pleasing, the Falcon 25 Series exit devices provide you a full range of functions and are able to fit narrow and wide stile door types. Falcon is focused on providing you solid products with solid performance at a solid price. The sleek architectural design is perfect for a variety of applications to assure every door opening provides safe egress while also integrating with the overall building design. Combining functionality and design allows you to have confidence that your exit device is built to last and will look great - all at an affordable price.

• Hand: Non-handed.
• Finishes: US3 (605); US4 (606); US10 (612); US26 (625); US26D (626);
  US32 (629); US32D (630); US28 (628), 313AN.
• Strikes: 299 strike standard.
• Latchbolt: Stainless steel, 3⁄4" throw.
• Deadlocking Latchbolt: Standard.
• Dogging Feature: 1⁄2 turn hex dogging standard. No threaded parts to wear out.
• Doors: 1-3⁄4" thick, wood or metal. Specify thickness if other than 1-3⁄4".
• Projection: 2-3⁄4" maximum, 2” dogged.
• Mounting Height: 40-1⁄4" from CL to finished floor.
• Fasteners: All mounting screws are concealed, sheet metal screws and machine
  screws standard.
• ANS I: Certified ANSI A156.3-2001 Grade 1 standards.
• Center Case & Working Parts: Center case is heavy wrought and sintered metal parts.

Call for pricing on non listed finishes
2 week lead time

The LCN Door Closer 4021 is also known as the Smoothee.  The 4021 ships with regular arm, standard plastic cover, and self reaming and tapping screws.  The 4021 is considered an application specific closer.  Meaning you have to specify left and right swing door, and can only be mounted top jamb.  A top jamb mount is when the closer is mounted on the top rail of the door frame and the arms hangs down and attaches to the door.  Top Jamb door closers are also mounted on the pull side of the door.  The Non sized cylinder will work on just about any size interior or exterior door and meets ADA requirements.  We ship the 4021 REG.

The LCN Sentronic Overhead Concealed Door Closer 3130SE is shipped with a standard arm, 24V or 120V SE track (please specify), track roller, and wood and machine screw pack. Sized cylinders for interior doors to 4’0”. Functions as full rack and pinion door closer when hold-open is not engaged or current is interrupted. Handed for right or left swinging door. Interfaces with fire alarm systems.

LCN Sentronic Door Closer 3130SE parts are also available.

LCN Sentronic Door Closer 4414ME

Standard LCN Sentronic Door Closer 4410ME series closer shipped with a 24V or 120V cylinder (please specify) on a mounting plate, metal cover, regular arm, and wood and machine screw pack. Sized cylinders for interior doors to 4’0”. Functions as full rack and pinion door closer when hold-open is not engaged or current is interrupted. Handed for right or left swinging door. Concealed or exposed electrical connections. Built-in “On/Off” switch controls hold-open function. Interfaces with fire alarm systems.

LCN SENTRONIC DOOR CLOSER 4410ME parts are also available.

Cal Royal 7700 Rim Exit Device

For use in institutions, schools, universities, commercial buildings where heavy duty reliable operation is a requirement. ANSI A156.3, Grade 1 heavy duty exit device in surface vertical rod and rim designs. Rail assemblies are heavy duty extruded aluminum body with stainless steel push pad and end caps are made of brass, bronze or stainless steel. Rail travels in direction of the door swing. Trims are thru bolted for additional security. Conforms & Meets ADA Regulations. UL Listed for Panic and ULC10C, UBC 7-2-1777 codes. UL Listed for Fire Exit Hardware. Uncompromising security and safety in single and double fire exit doors. Chassis mounted unit construction. Rim and vertical rod devices are non-handed and easily reversible. Available in many different functions. Lever and escutcheon trims are grade 1 construction with clutch free-wheeling mechanism. Rose and escutcheon covers 161 cut out.

Templating matches the Von Dupin 99 and 98

• Not load-bearing
• Available 3/4"(19mm) offset only
• Non-ferrous base material
• Used with 117, 117-1/4, 195, UNI closers,
127 closer
• Maintains door alignment
• Furnished with wood and machine screws

Handing diagram

The LCN Door Closer 4021 FL is shipped with fusible link arm, standard plastic cover, and self reaming and tapping screws. This closer is designed to hold open fire doors, when the fusible link melts, it releases the hold open arm, so the door will close.  Sized cylinders for interior doors to 5’0” and exterior doors to 4’0”. Non-sized cylinder adjustable for interior doors to 4’6” and exterior doors to 3’6”. Included arm has a fusible link that melts at 120 degrees, allowing to door to close. Door can be closed any time with a gentle pull.  Closer mounts top jamb (push side), specify right or left swinging door. 4021 cylinder meets ADA requirements.

Monarch / Falcon 25-R Series Rim Exit Device

Robust and aesthetically pleasing, the Falcon 25 Series exit devices provide you a full range of functions and are able to fit narrow and wide stile door types. Falcon is focused on providing you solid products with solid performance at a solid price. The sleek architectural design is perfect for a variety of applications to assure every door opening provides safe egress while also integrating with the overall building design. Combining functionality and design allows you to have confidence that your exit device is built to last and will look great - all at an affordable price.

Hand: Non-handed.
Finishes: US3 (605); US4 (606); US10 (612); US26 (625); US26D (626);
US32 (629); US32D (630); US28 (628), 313AN.
Strikes: 299 strike standard.
Latchbolt: Stainless steel, 3⁄4" throw.
Deadlocking Latchbolt: Standard.
Dogging Feature: 1⁄2 turn hex dogging standard. No threaded parts to wear out..
Doors: 1-3⁄4" thick, wood or metal. Specify thickness if other than 1-3⁄4".
Projection: 2-3⁄4" maximum, 2" dogged.
Mounting Height: 40-1⁄4" from CL to finished floor.
Fasteners: All mounting screws are concealed, sheet metal screws and machine
screws standard.
ANS I: Certified ANSI A156.3-2001 Grade 1 standards.
Center Case & Working Parts: Center case is heavy wrought and sintered metal parts.

Call for pricing on non listed finishes
2 week lead time

The LCN Door Closer 4111 HEDA Hold Open is known as the Smoothee, and is one of the heaviest duty door closers made, the HEDA stands for Hold Open Extra Duty Arm.  If you have a building were you have a high traffic and abusive, especially exterior doors, then this is the closer. The 4111 is an application specific closer, meaning it will only work when mounted on the door, on the push side. This is known as a parallel arm application. The cylinder is fully adjustable and will work on doors up to 56" exterior door, and can be adjust down to ADA required levels. We ship the 4111 HEDA model, which is a hold open arm on this page. The cylinder mounting holes are 2-1/2" by 6".

The Door Pull Plate 5810 is 7/32" thick forged plate made of solid aluminum, brass or stainless steel depending on the finish. The Door Pull GHE10, handles come with thru bolts and finish washers. The plate has counter sunk holes and sheet metal screws for mounting. 3-1/2 x 15 inch plate only.

Finishes

Floor Door Stop / Holder FS41

This floor mounted door holder has been around since the 1960's. It used to go by the name Glynn Johnson GJF41A or F41A, and was brought over to the H.B. Ives line in the 1990's and now goes by the part # FS41. Many schools and hospitals have this door holder in use today. It features: Automatic door holders ideal for heavy-traffic situations that require a simple, fool-proof, Hold-Open device. Forged from brass. Unit is activated automatically when door is opened. A firm pull on door releases the mechanism. Strikes accommodate different door to floor clearances. Model numbers are determined by strike/door-to-floor clearances. Holder position on door is adjustable.

Door to Floor Clearance 9/16" to 1-1/16"
Holder Dimensions 3" Wide x 3-11/16" High

The LCN Door Closer 4041XP-CUSH is the same cylinder as the 4040XP, but with a CUSH arm (4040XP-3077CNS).  This closer can only be mounted in the parallel arm configuration.  With this closer you get the XP heavy duty cylinder with the heavy duty CUSH arm.

We ship the 4041XP-CUSH

The LCN Door Closer 4111 is known as the Smoothee, and is one of the heaviest duty door closers made. If you have a building were you have a high traffic and abusive, especially exterior doors, then this is the closer. The 4111 is an application specific closer, meaning it will only work when mounted on the door, on the push side. This is known as a parallel arm application. The cylinder is fully adjustable and will work on doors up to 56" exterior door, and can be adjust down to ADA required levels. We ship the 4111 EDA model, which is a non hold open arm, on this page. The cylinder mounting holes are 2-1/2" by 6".

The Ives Wall Door Stop / Holder WS20 is another door holder from Glynn-Johnson.  The Chicago based manufacture made these for 40 plus years.  When they were purchased from H.B Ives and merged into there line they became the WS20.  This holder is constructed of cast brass and then plated to your desired finish.  The hinged holding clip can be released by a gentle pushing on the door, which causes the clip to flip up and release the door.  The piece ships with wood screws and anchors.
