The International 8600 Dogging Assembly is used on the 8510S, 8710S, 8610S, 8810S, 8501S, 8710S, and many more.

Corbin Russwin ED5200A Active Head

Used on the Corbin Russwin ED5000 Rim Devices, for fire rated doors. For non fire rated doors, order the G650F35-8. A fire rated door is a door were you can NOT use your allen wrench to dog, or lock, the door in the open position during business hours.

Corbin Russwin part # 650F36-8

Rim Cylinder Hub Position for the ED5200A

The Ives Wall Mounted Door Stop WS33 is another hold back part from the Glynn-Johnson door stop era.  I can not remember the Glynn-Johnson part #, but when Ives purchased them, they changed it to WS33.  This stop is constructed of cast brass that is then plated to a brushed chrome finish.  It features a replaceable rubber bumper with offset shoulder screws into cavity on body to prevent loss or theft.  And a sloping design that discourages vandalism.The base height is 3" with a width of 2-1/4", and a projection of 3-3/4",  WS33 is furnished with wood screws for drywall mounting.

The Von Duprin 990DT Trim is known as a Dummy Trim.  This plate mounts on the exterior of the door, and the welded on mounting studs line up with the 99 device on the interior of the building.  If you have a different manufacture or a different Von Duprin series on the interior, it will not line up.  On the back of this plate we usually find the number 990 stamped on it.  The plate shown here is for the Rim and Surface Vertical Rod 99 and 98 devices.  If you have a Mortise or Concealed Vertical Rod, call us and we will order that model.  The plate measures 3" wide by 14-3/16" tall.  Order here for the 990DT-R&V.

Replacement Rubber Shoe for Mickey Door Holder

Replacement shoe for the GJX2M Grand Specialties 3" Mickey Door Stop.

Crash Chain Door Stop CS115

• Specially designed for full-size exterior doors.
• Tear resistant, grey vinyl cover.
• Heavy duty compression spring assembled to both ends of chain
  and end brackets.
• Packed with sheet metal screws.
• Cast Brass brackets with solid, welded steel chain.

Available in 20-1/2", 25-1/2" and 30-1/2" lengths. Length is determined
by the location of your door closer

PART # LENGTH
GCC205 20-1/2"
GCC255 25-1/2"
GCC305 30-1/2"

The Von Duprin 99 Rim Center Case 050020 replaces all previous versions of the Von Duprin 98/99 Rim Device Center Cases. One of the best things about a Von Duprin is when they redesign a part, they make it so your old device is not obsolete and you can update your device.  All internal parts, springs, screws and cover mounting bracket included.

Von Duprin Part # 050020

The Plunger Door Holder / Stop 582 is constructed of cast aluminum.  The stop measures 6-1/4" by 1-1/2" with a 1-5/8" throw.  The rubber shoe is gray.  It will ship with matching finish screws.  These are sometimes called pop-up or push down door stops.

The WS11X door stop used to be under the Glynn-Johnson product line as the WB11X until they merged with H.B. Ives.  At that point they became the WS11X.  This stop only is constructed of cast brass and then plated to your desired finish.  The stop has a 2" diameter base and projects from the wall 3-3/4".  This particular model is the same as the WS11, except that it is designed for a masonry type mounting and ships with an expansion sheild.

The LCN Head and Tube 78H and 78HL comes in two versions.  One is 5-3/4" long and the other is 8-5/8".  The square hole is 5/8".  The head and tube usually breaks where the cast ring attaches to the tube.  This part usually goes by the part number 4040-78H, 4040-78HL, 4040XP-78H, 4040XP-78HL, 1260-78H, 1260-78HL, ect.,.

Sargent 25-CPSH Heavy Duty Compression Holder Arm

Forged Steel Arm 11-1/4" long, non handed, will work left or right for Parallel Armed Sargent Closers.  Permits 105 degree opening with built in compression stop and holder mechanism.

Sargent Part # 25-CPSH

The Von Duprin 9927 Bottom Latch 050090 replaces and updates all 9827 and 9927 bottom latches to the new style, if your device was installed before October 1998. If your device is newer then October 1998, then use the G050401. Mounting screws and bracket are included.

Von Duprin Part # 050090

Detex EAX-500W Weatherized Battery Powered Door Exit Alarm

The Detex EAX-500W Series is designed for applications requiring a battery-powered alarm on secured doors. The alarm, with approximately 100dB, will sound when an unauthorized exit occurs. The redesigned shape and smaller size of the EAX-500W makes it the ideal choice for quick and easy installations on emergency exit and restricted doors.  The weatherized version is for use on out swinging doors that may get wet due to rain, or wet environments.

Gray Only

Mortise cylinder sold separately
Uses a standard 9 volt batthery

Detex EAX-500 Installation Instructions

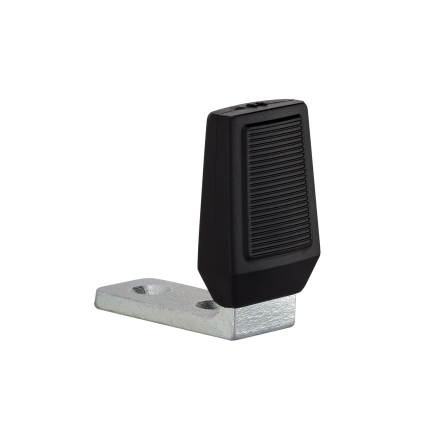

The Floor Door Stop FS434 is another one the old Ives parts that has been around for about 40 plus years.   The FS434 is constructed of burnished wrought steel, with a soft, resilient gray rubber shoe.  The shoe is replaceable and is under related products.  The stop measures 2-5/8" overall height, and the base measures 1-1/2" wide by 2-3/4" long.  This door stop ships with all the fasteners and anchors needed.

Automatic Floor Type Holder and Stop

A replacement holder and stop that has been around for many years.   This style of Holder can be found in many of the schools, churches and hospitals that were built in the 1960's and 1970's.  Cast brass construction, and then chrome plated. Measures 3-11/16" high by 3" wide with a 1-15/16" projection. The strike is 1-3/16" high. Spring loaded brass roller, rolls over the the strike to lock the door in the open position. To release, just give the door a tug.  Designed for doors with a door to floor clearance of less than a 1/2".

Floor Door Stop Heavy Duty 540

This Floor Mounted Door Stop is a personal favorite. It is extremely heavy duty, and is ideal for areas of high vandalism. Includes the 4-1/2" lag bolt & lag shield. The rubber base is 3" in diameter and is 2-5/8" high.  Uses a 3/4" diameter hole for the lag sheild.

The LCN Sentronic Door Closer Roller - 3034 is used on all of the LCN Track Closers, and Sentronic Closers. Nylon wheel is 1-1/16" diameter by 3/8" thick. The shaft is has a 1/2" diameter by 1-1/8" long.  However in November of 2015 they started shipping the roller with the Slider 168 attached to it, with a retaining ring. LCN Started using this Roller Assembly in December 2018.

LCN part # 4040SE-3034

Floor Door Stop FS434 09-318 Rubber Only

Replacement rubber shoe for the FS434.  Rubber measures 2-1/4" high by 1-7/16" wide by 5/8" thick.

Ives Part # 09-318

Step N Pull®

Stop the spread of germs with this ingenious product. Simple step on the plate and pull the door without grabbing the door pull.

Includes:

1. One StepNpull®
2. Required mounting screws
3. Two stickers, one for the door and the other for the mirror, paper towel dispenser or hand dryer. Actual dimensions are 5"x4"

Currently we only have Aluminum in stock.
Available in Aluminum, Gold or Copper Finish-See Color under "More Views"

The Adams Rite 41-0131-119 Metal End Cap Assembly is used on the Latching Side of the device. It is used on the P8700 and P8800 Narrow Stile Pullman Exit Device.

Rubber Shoe For GJ1154M and GJL444-555 Kickdown Door Stop / Holder

Replacement rubber shoe
5/8" insert diameter
1" base diameter
8-32 threaded screw

Von Duprin 88 Master Cam

This is inside the Von Duprin 88 Rim Device and is the piece that the key cylinder moves to lock and unlock the exit device.

Von Durprin part # 050501
Old Part # 951960

The Securitron EPT Electric Pwer Transfer provides concealed, secure power and data conduit between a frame and the door.   Transmitting power to electrified locks and exit devices and more.  The EPT comes in two lengths, 10 inch cord and 18 inch cord.

Product Description & Features
• Concealed Wiring
• Total Floor Space Required:
6-5/8" (168mm)
• Mounting Requirements: Conduit
connects directly to floor plate
• UL listed door holder

For use on metal frames featuring
pneumatic design that, once installed,
forms an air pocket to absorb sound and
reduce noise of door closing.

Diameter: 1/2"
Thickness: 1/8"

The LCN Hold Open Arm Wrench T-1157 is used to adjust LCN Friction Hold Open Arms,  one side if for the 1-1/2" nut and the other is 1-3/16".  Friction Hold Open arm would be part number 3049, with the suffix being the closer model, like 4040-3049, ect..

LCN part # T-1157

Kickdown Door Holder Rubber Shoe FSPART.1053

Replacement rubber shoe
1/2" insert diameter
1" base diameter
1" height

Falcon 25-R 650255 Center Case Cover Kit

Replacement cover for the Monarch Falcon 25-R Exit Device.   Kit includes cover and the mounting screws.

Falcon Part # 650255

Dome Door Stop 1-5/8" Height 521

The 521 is a larger version of the other dome stops we offer.  It offers forged brass construction with a gray rubber bumper.  The base measures 1-3/4" diameter x 1-5/8" High, with a 1/4"  thickness.  That this point only US26D-Brushed Satin Chrome is available.  It ships with wood screws and machine screws  and floor anchors.

Von Duprin 050403 33/35A Rim Center Case

Replacement Von Duprin 33/35A Rim Device Center Case.

Von Duprin Part # 050403

The LCN Sentronic Door Closer 4040SE-168 Slider used to be just the slider, the metal part.   In October of 2015 they changed the part so the roller is now included and they are held together by a snap ring or E-clip.

The slider is not longer sold separately, it is sold with the roller.  You have to take the Assembly apart to get just the slider.

Floor Door Stop Dome 1" Height 522

This contemporary looking Dome Stop has been a hot selling in the last few years.  The stop is constructed of forged brass, that is then chrome plated and brushed to the satin finish.  At this time, only brushed or satin chrome is available.  The base is 1-11/16" wide by 4" long and 1" tall.  The base is 5/16" thick.  This door stop ships with wood and machine screws and all of the anchors.

Von Duprin 050405 33/3547A Center Case

Replacement Von Duprin 33/3547A Concealed Vertical Rod Device Center Case.

Von Duprin Part # 050405

Fabricated from B & S 16 ga. (.050). Standard lengths are 36", 42" and 48". Custom capabilities include variations of all of the above parts including frame protectors and vertical rod protectors.
Custom sizes are available!

Screws included for mounting

Please allow 7-10 for shipment.

Finishes

LCN Sentronic Door Closer 4040SE-3436 On/Off Switch

The LCN 4040SE On/Off Switch measures 1" by 1/2" and the button projects up 1" from the base. This component is usually mounted by two way foam tape to isolate if for undesirable shock.

LCN Part # 4040SE-3436

3" Kickdown Door Holder / Stop Zinc Plated Mickey

Zinc plated cold rolled steel,
Made in the USA
3" Arm Length

made by Grand Specialties
