Von Duprin Exit Device 47 Bottom Latch Kit 050493

This Von Duprin Concealed Bottom Latch is used on the 33A, 35A, 98 and 99 exit devices.

Von Duprin Part # 050493
Von Duprin Old Part # 106780

Metal end cap for all Adams Rite Concealed Vertical Rod and Mortise devices.

Adam Rite Part # 41-0902-05IP

The Adams Rite 8100 / 8200 Old Style End Cap is used on the older version of there Surface Vertical Rod Devices.  Adams Rite Part # 41-0801-03-IP

Escutcheon with R Lever Trim for Dorma 9300 Rim Device, Classroom Function, Key Locks or Unlocks Lever.

The Falcon Monarch 8500NL is used on the 25-M exit devices, and was used on the Monarch 18-M and XX-M exit devices.

The Adams Rite 31-0964 is used on the 3500, 8600, 8675 and 4781 Devices. The assembly comes with the nylon bushing.

The Falcon/Monarch Fire Rated Top Latch is used on the F-19-V, F-24-V, F-25-V, F-18-V and F-XX-V Surface Vertical Rods.  The new number from Falcon is 650375, the old Monarch Number was F588.  This latch is used on the above devices that are Fire Rated, meaning you can not dog these device in the Unlock Position.  If your device has the ability to be dogged open, then use the G588 Non Fire Rated Version

Falcon 24-V 650251 Center Case Cover Kit

Replacement cover for the Monarch Falcon 24-V Narrow Stile Exit Device.   Kit includes cover and the mounting screws.

Falcon Part # 650251

Falcon 650389 19-24-25-XX Top Latch

Falcon 650389 17V-18V-19V-24V-25V-XXV Top Latch for non Fire Rated Doors.  This latch has a long history, the old number is 588, and the new number is 650389.  A non Fire Rated door is usually an exterior door, or a door that is not designed to contain the spread of fire.

Falcon Part # 650389
Old Monarch Part # 588

The Door Pull Plate 5810 is 7/32" thick forged plate made of solid aluminum, brass or stainless steel depending on the finish. The Door Pull GHE10, handles come with thru bolts and finish washers. The plate has counter sunk holes and sheet metal screws for mounting. 3-1/2 x 15 inch plate only.

Finishes

Yale 7000 Exit Device Dogging Assembly

Dogging assembly uses a 5/32" dog key

Yale Part # 60-7000-406-999
Sometimes call the 60-7000-0406-048

Replacement Chassis Cover for the Dorma 9300 Rim Device

Falcon 650233 / 650234 24-R Center Case

Replacement Center Case for the Monarch-Falcon 24-R Narrow Stile Rim Device.  This Center Case is for use on both the Fire Rated and Non Fire Rated devices.  This was changed in the summer of 2018.  The 650233 has been replaced by the 650234, which was the Fire Rated version part number.

Falcon Part # 650233 / 650234

The Von Duprin 8827 Bottom Latch Case 050461 is used on all Von Duprin 8827 non fire rated exits.  A non fire rated device is one that has to positively latch every time it closes, you can usually tell, because a non fire rated device has the hex key dogging.  Included mounting screws.

Von Duprin Part # 050461
Old part # 101751

The Adams Rite 4581 Universal Cam is used on the 4500 and 4700 Dead Latches.  The handing is easily switched between Right Hand and Left Hand. We ship the 4581-01 Cam for the 1-3/4" thick doors, if your door is more thick, please email us for a price quote.

The Von Duprin 970323 299 Strike Adjustor is the piece that secures the placement of the Strike to the door frame or mullion.

Von Duprin Exit Device 47 Top Latch Kit 050492

This Von Duprin Concealed Top Latch is used on the 33A, 35A, 98 and 99 exit devices. The Latch Kit includes Latch, Mounting Brackets and all screws.

Von Duprin Part # 050492
Von Duprin Old Part # 109759

Falcon 2130 Bottom Latch Strike

The Falcon 2130 Bottom Latch Strike is used on the 19-V, 24-V, 25-V and XX-V devices.  This strike usually fits into the threshold or is recessed into the floor.

Falcon Part # 2130

The Door Push Plate 89 is drop forged plate that is .125" thick, and is made of Aluminum, Stainless Steel, Bronze or Brass, depending on the finish.  The plate measures 3-1/2" wide by 15-3/4" long with a 1" projection.  This plate is considered a combination push pull plate.    Package ships with matching mounting screws.

Finishes

Von Duprin 88 Latch Tail Springs

This is the spring that pushes the latch bolt out. Used on all Von Duprin 88 Rim Devices. The spring measures 2-5/8" long by 3/16" diameter.

Sold in packages of 2.

Von Duprin Part #050393

Von Duprin 050404 33/3527A Center Case

Replacement Von Duprin 33/3527A Surface Vertical Rod Device Center Case.

Von Duprin Part # 050404

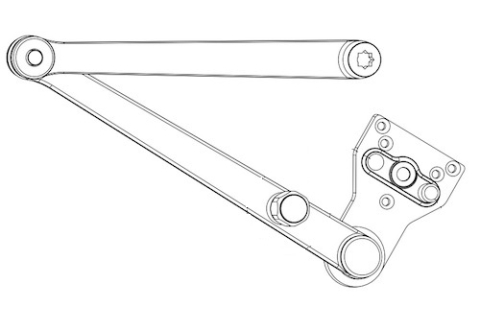

Norton CloserPlus Hold Open Arm

This heavy duty Parellel Arm can be used with the Norton 1600, 9300, 8000 and 7500 door closers. The knob on the main are locks and unlocks the arm to hold your door open.

Aluminum is in stock, Dark Bronze is 2-3 week lead time.
Norton Part # 6870T-8

Sargent Exit Device 80 Series Plastic End Cap

This part is the weak link in this exit device. When the end cap falls off the Dogging Cover Plate falls out also! The end cap is 1-1/8" wide by 2-7/16" tall and projects out 1-7/8".

Sargent Part # 68-0561

Adams Rite 91-0897-02 RX Monitor Dual Switch is a retrofit kit for all the 3000/8000 exit devices.  The switch has 6 wires to connect to your system.

Adams Rite Part # 91-0897-02

The Von Duprin 050155 33/99 Cylinder Dogging Conversion Kit converts Hex Dogging Devices to the Cylinder Dogging.  For use with the 33A, 35A, 98 and 99 Devices.

Von Duprin Part # 050115

The EPT-10 Von Duprin Power Transfer is a 10 wire, 24 gauge, means to transfer power from the door frame to the door.   The kit includes everything that is need to complete the installation.

Von Duprin Part # EPT-10

Von Duprin 22, 33, 9927 Bottom latch.

Used to replace the bottom latch on the Von Duprin 2227, 3327A, and 9927 on devices shipped after October 1998.

Includes screws and sometimes the bracket

Von Duprin Part # 050401

Adams Rite 22-0430-IP 8700/8800 Strike is used on the rim devices that have the Star Wheel Latching System.  The strike measures 2-3/4" long by 1-3/4" wide and projects out approximately 3/8".

The Door Push Plate 60 has the classic half round design.  The plate measure 8" wide and 16" tall, and is constructed of 16 gauge metal, which is .050" thick.  This plate is similar to the GPH59 (Push Plate 59), but is a 1/2" wider and 1" taller.  This plate ships with the matching finish screws.

Finishes

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.

Concealed Top Latch for the ED5800 exit device.  Corbin Russwin part number 650F718.

The Anodized Black Aluminum Door Kick Plate 315AN are a flat black and match the black color we find on Storefront doors.  These plates have an aluminum base metal, which is 18 gauge (.040") thick that is then Anodized in the Black Color.  These plates relatively inexpensive.  Custom sizes are available, they run about $0.25 per square inch.

You can order these plates with tape mounting, but on larger plates and especially plates with a stainless steel base metal, it is not recommended.  Stainless Steel plates are too heavy and they most likely will not stick.  We can also ship them with no holes, if you want to drill your own holes.  This is fine on the Brass and Aluminum base metals, but again Stainless Steel is very hard and a drill press would be recommended.   You can glue them on, I would recommend liquid nails, and come C Clamps with the door on saw horses.

Von Duprin 33/35/98/99 push bar stock absorbers. This is the piece that makes these Von Duprin exit devices one of the quietest devices made.

Von Duprin Part # 050491

The Adams Rite G86 Mounting Cap and Label with only work on the G86 Device.  The Cap measures 3-3/4" high by 1-1/8" with a 1-5/8" projection.

Yale 7110 Latch Cover 60-7010-7040

This latch cover is used on the Yale 7110 Surface Vertical Rod Device.  We stock these in Brushed Stainless Steel, other finishes will take longer.

Yale Part # 60-7010-7040

Monarch 19-V Series Chassis Cover 650385 / 6134

This is the cover for the Monarch Falcon 19-V Rim Device. The cover measures 5-7/8" tall by 2-1/2" wide with a projection of 1-7/8".

Monarch/Falcon part # 650385
Old Part # 6134

The Von Duprin Tail Piece Guide Lead Kit Package Of 10 - 050156 is used to guide rim cylinder tail piece into the back of the Von Duprin 22, 33A, 98, and 99 exit devices.  We sell these in bags of 10 pieces.

Slot is 5/16" x 3/16" x 1" long
Von Duprin Part # 050156
