The Von Duprin Pull Handle 972466/972467 replacement Grip/Handle only, screws not included. Cast bronze construction, and then plated to the selected finish. The Grip measures 15/16" wide by 6" long. The center to center hole spacing is 5-1/2". This handle works on the Von Duprin 608, 696, 880, and 990 outside trim plates.

Von Duprin Part # 972466 and 972467
Old Part # 969925 and 959122

Falcon 650233 / 650234 24-R Center Case

Replacement Center Case for the Monarch-Falcon 24-R Narrow Stile Rim Device.  This Center Case is for use on both the Fire Rated and Non Fire Rated devices.  This was changed in the summer of 2018.  The 650233 has been replaced by the 650234, which was the Fire Rated version part number.

Falcon Part # 650233 / 650234

LCN Sentronic Door Closer Arm - 4010SE-3077T

LCN part # 4010SE-3077T

This arm will only work on the 4010SE. If you have another LCN Sentronic Model, we can order the arm you need. For us to do that we would need to know which model you have (4110SE, 4010SE, ect..) and the hand of the door, see diagram. This arm is for a discontinued LCN Door Closer. We can not allow returns, each arm is specail ordered.

The arm shown in the picture is a 4040SE arm, the 4010SE arm is the same, but the shaft hole is an oval.

3-1/2" straight spindle thread is 16 tpi. 2-1/4" knob

This is the New Style International Door Closer 522 Hold Open Fore Arm. In July of 2014, the old style was discontinued. Look under "More Views" to see the Old Style. Shown in Dark Bronze, ships with all components in the picture.

International part # 522

The heavy-duty 8900 Series non-handed surface applied closer
with adjustable spring power and backcheck positioning adjustment.
The 8900 has intensity adjustable hydraulic backcheck
that will take effect at approximately 65º. The 8900 has two
independent, noncritical adjustment valves to control sweep and
latch closing speeds. The backcheck positioning valve maintains
an effective backcheck range on parallel arm applications. The
8916 will be available with field adjustable spring power from size
1 to 6 for barrier-free requirements.

2-1/8" x 5" hole spacing

The Replacement Rubber Shoe For GJ1153M or Ives FS1153. Constructed of rubber.  Ives part # FSPART.1060

International 8610S Rim Device-Grade 1

DC 8000 Series Exit Devices are heavy duty and designed for heavy traffic applications. The devices are Underwriters Laboratory (UL, USA and ULC, Canada) listed for Panic Exit Hardware or Fire Exit Hardware, and are certified to ANSI A156.3-2001 Grade 1.

Non handed, 4-1/2" minimum stile width. Smooth Surface.

The Panic Hex Key 7/32" is used on Dor-O-Matic Falcon and Sargent Panic Hardware to name a few.  The key measures 7/32" hex by 3-1/4" long.   Also known as a Hex Key, Dog Key, Allen Key or Dogging Key.

The Von Duprin Strike 264 measures 2-7/8" tall by 1-1/4" wide with a roller projection of 9/16". Used on the Von Duprin 22, 88, 98 and 99 when a lower profile strike is need in place of the Von Duprin 299 Strike. The hole spacing is 2-1/8" on center, and it ships with mounting screws and a shim. Also known as a Von Duprin Surface Roller Strike.

Von Duprin Part # 264

The Von Duprin 99 Rim Panic device has been around since the late 1970's and has gone through a couple of improvements.  One of the great things about the 99 is the availability of replacement parts.  Even when the device is upgraded, the upgraded parts will work with the older versions that can be close to 40 years old.  This device is for all types of single and double doors with mullions.  The device is UL Listed for Panic Exit Hardware and is considered Grade 1, the heaviest duty rating possible.  The Von Duprin 98 device has a smooth mechanism case and the Von Duprin 99 device has a grooved case. The rim device is non-handed, meaning it will work on Left and Right hand doors.   Ships with all the mounting screws and the 299 Strike.

Adams Rite 91-0993-IP 8700/8800 Strike is used on the rim devices that have the Star Wheel Latching System.  The strike measures 2-3/4" long by 1-3/4" wide and projects out approximately 1/2".   Kit comes with mounting screws and two shims.

Provides hold-open function with templated stop/hold-open points.
Handle controls hold-open function.

Specify your current closers model number when ordering. Not all
of the LCN closers have the same shape spindle on the door closer
cylinder. This LCN Arm is known as these part numbers: 1260-3049CNS, 1460-3049CNS, 4040-3049CNS, 4110-3049CNS

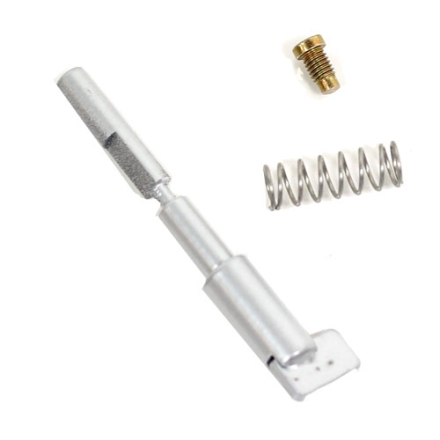

The Jackson Panic Device 1085 and 1095 Thumb Piece Dogging Pin 30-1117 is a replacement for the Screw Driver Headed Dogging Pin.  Now instead of using a screw driver you can use the handy thumb piece instead.   The package comes with new set screw, spring, and of course the pin.  Jackson part number 30-1117.

The Von Duprin 88 Lever Arm Left Hand 050439 replacement lever arm for all the Von Duprin 88 exit devices. Usually replaced due to the dogging screw stripping out.  The arm includes the Wedge, Wedge Ring, Wedge Tite Screw and Dog Screw, and sometimes the axle.

Von Dupin part # 050439
Old Part # 100729

Dor-o-Matic 1990 repair kit. The kit includes the following:
4 Mounting Studs
1 Hex Key 7/32"
1 Allen Key 1/8"
1 Pinion
1 Cylinder Bushing
2 Rod Bushings
1 Retractor
1 Traveller Assy

Doromatic part # 4270902091 or PBX-2

1990 parts breakdown

One inch diameter solid push bar, 2-1/4 inch projection with 1-1/4 inch clearance and 33-1/16 inch centers.  One side is thru bolted the other is mounted on a surface mounted stud.

The Glynn-Johnson 79 Series Overhead Door Holder Surface Mounted are constructed primarily of Brass and 300 series Stainless Steel substrates, with several components fabricated of Steel treated to resist corrosion. Models in the 70 series utilize a 1/2"-diameter stainless steel bar, while the 79 series uses a 3/4" stainless steel bar. The bar is always provided in US32D. The spring, washer and nut are provided in a clear zinc finish.

GJ70-79 Catalogue

The Sargent 649 Surface Strike is used on the 20, 30, 60 and 90 Series Rim Panic Hardware.  The Strike measures 1-5/32" x 3-11/16"  with a 3/4" projection.   Strike features a black coated epoxy finish.

Sargent Part #649

The Von Duprin Strike 299F is used on the 22, 88, 98, and 99 Fire Rated Rim Devices (no hex or cylinder dogging). The 299F strike measures 1-1/4" wide by 2-7/8" high with a slotted hole spacing of 2-1/8". The roller projects out 13/16". The non fire rated version would be the Von Duprin Strike 299.  Ships with shim and mounting screws.

Von Duprin Part # 299F

Von Duprin 386DT Dummy Trim

This Von Duprin 386DT Dummy Trim is just a pull handle. The bolt pattern of the trim plate lines up with the Von Duprin 33A on the inside so they are on cohesive unit. The base plate measures 7-15/16" by 1-5/8". The grip measures 8-1/2" by 4-5/16" with a 2-7/16" projection. This 386DT Dummy Trim is non handed.

LCN 4640 Low Energy Door Closer

LCN 4630 Low Energy Door Closer

Single Left Door Latch -- Rests firmly against door jamb. Shown without lock. Optional lock prevents theft.

Single Right Door Latch -- Rests firmly against door jamb. Shown without optional lock. Lock prevents theft.

The Von Duprin Panic Device 55 Center Case 050183 is a replacement housing for the 55 Rim Device.  The housing includes all of the internal workings and latch bolt.  Von Duprin Part # 050183.

The International Door Closer 3010-S Side Load Arm is used with the 200, 300 and 500 Series Concealed Overhead Door Closer for Center Hung Doors.   The arm is constructed of cast iron and measures 10" long, and 7/16" thick.   The package includes all the mounting screws.

Dor-o-matic 1390 PB43 Spring

The Dor-o-matic 1390 Spring PB43 is also known as Part # 4270106635.   This spring was used on the obsolete 1390 exit device to push out the touch pad.  Spring measures 15/16" long by 5/16" by 3/8".

Falcon 650236 24-V Center Case

Replacement Center Case for the Falcon 24-V Narrow Stile Surface Vertical Rod Device.  This Center Case is the same for the Fire Rated and Non Fire Rated devices.

Falcon Part # 650236

Door Finger Protector - Exterior Push Side

This model is specifically designed for exterior doors on the push side of the door. This patented Finger-Gard product is designed for both exterior and interior doors and thus will operator in very cold and very hot tempetures. Flexible to minus 40 degrees. They are made of a special rubber that is resistant to harsh sunlight. They will allow the door to swing up to 180 degrees. This product is available in Brown or White, 78" or 83" lenghts

Our part # on this is GFG5 for the 78" length, and GFG5+ for the 83" length.

The Ives Wall Door Stop / Holder WS45 was introduced about 50 years ago as the Glynn-Johnson W45A or GJW45A.  When they were purchased by H.B. Ives, it became the WS45.  They are constructed of cast Brass or Bronze and then plated to the desired finish.  This door stop is unique because the wall does not have to be parallel to the door for it to latch and hold the door open.  Spring loaded roller rides up the face of the strike, seating itself on the strike, holding the door firmly in the open position.  A heavy rubber pad cushions the shock and absorbs the sound.  With unit mounted on door and the strike on wall, vertical adjustment is available on body.  The strike is adjustable 45 degrees left or right, both adjustments easily accomplished at time of installation or at a later date.  WS45 strike is furnished with wood screws for drywall mounting.

Corbin Russwin DC8210 Door Closer
Applications
High-quality products and innovative designs are the foundation for the long
history and reputation of Corbin Russwin Architectural Hardware. That tradition
continues with the Grade 1 DC8000 Series door closer, the perfect choice for
high-use openings and doors that must meet ADA requirements. A variety of
arms, finishes and quality features make the easy-to-install DC8000 ideal for
schools, office buildings, health care facilities and retail complexes.

Single Right Door Latch -- Rests firmly against door jamb. Shown without lock. Optional lock prevents theft.

The Detex BN ValueSeries Lever Trim measures 1-29/32 wide by 8-1/4 inches tall, and the escutcheon is 15/16 inches thick.  We ship the Classroom Function where the keys locks and unlocks the lever, other functions are available. The Lever trim does not ship with the Mortise Cylinder.

The LCN 4040SE-3077T Sentronic Door Closer Arm is only for use with the 4040SE. If you have another LCN Sentronic Model, we can special order the arm you need. For us to do that we would need to know which model you have (4110SE, 4010SE, ect..) and the hand of the door.

LCN Part # 4040SE-3077T
