The Jackson 20368 is used with the 20330 Door Closer offset arms. Track measures 25/32 inches tall by 29/32 inches wide and 14 inches long.

The Panic Hex Key 1/8" is used on the new Adams Rite, Cal Royal, Jackson and many of the imported panic hardware like International Door Closer.  The key measures 1/8" by 1-13/16" long.  They are also known as Hex Key, Dog Key, Allen Key, and Dogging Key.

Monarch 19-R Exit Panic Device

• Hand: Non-Handed.
• Functions: All functions built into “EO” device.
• Finishes: Powder-coated aluminum–SP28; powder-coated duranodic–SP313; Stainless Steel-US32D
• Latchbolt: Stainless steel, 3⁄4" throw.
• Deadlocking Latchbolt: Standard.
• Dogging Feature: 1⁄2 turn hex dogging standard. No threaded parts to wear out.
• Stock Sizes: 3'0" and 4'0"
• Doors: 1-3⁄4" thick, wood or metal. Specify thickness if other than 1-3⁄4".
• Projection: 2-1⁄2" maximum; 1-7⁄8" dogged.

36" device is only 33-1/2" wide
48" device is only 43-1/2" wide

For Doors Wood or metal. 1-3/4"(44mm) and 2-1/4" (57mm) thick
Mounting Supplied standard with wood and machine screws
Chassis Cover Cold drawn brass, bronze or stainless steel
Chassis Nonferrous alloy
Hand Non-handed

The Jackson 1085 30-1242 / 30-1243 Lever Arms are for use with the Jackson 1085 Housings, both sides.  And the Jackson 1095 Inactive (hinge side) Housings.  To determine hand, stand inside and look out the door, what is side is the arm on?  If it is on the Right then order Right.

Standard duty 2-1/4" knob is factory pinned to swivel spindle
to 1-3/4" door. Spindle has two 3/8" centers. Inside knob has
two case hardened set screws and spindle is threaded 3/8-18

Sargent Exit Device 80 Series Bracket

Used on to hold exit device on door, plastic end cap mounts to it.

Sargent part # 68-0511

The 4590 Deadlatch Paddle is constructed of extruded aluminum and anodized to clear 628, dark bronze 313 or black 335. The Paddle is available in four modes, Push to Left, Push to Right, Pull to Left, and Pull to Right. The latches on our website are for 1-3/4 inch thick doors, email us if your door is more thick. This product is for use with the 4500/4700/4900 Deadlatches.

The Door Pull Offset #39 Handle is constructed of either solid aluminum, brass or stainless steel. The handle is 1" diameter tubing with a 2-3/4" offset and 2-3/4" projection. This is the most common type of handle you use today.  Just about every aluminum framed storefront door has a version of this handle. This handle is available in 8", 10", 12" and 18" centers on the mounting holes. The back to back mounting is for Metal or Wood Doors that are 1-3/4 thick. Included fastener is threaded into one of the handles, and the Stud End has fits into the inside handle and is held in place by a set screw on the handle.

Package includes two offset pull handles and fastening hardware. Shown in Polished Stainless Steel with 12 inch centers.

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks.

The SEM7830-516 LCN Magnet Core Assembly is just the Tri Voltage Magnet Core. 35 pounds of holding force at nominal input voltage. Maximum current draw is .020 A @ 24 volt and 120 volt, and .030 A @ 12VDC.

LCN part number SEM7830-516

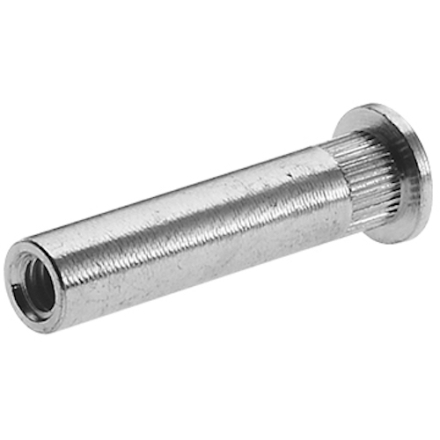

Sex Nut 1/4-20

1-3/4" Long X 3/8" diameter constructed of steel

screw not included

Yale 793 Strike for 2100 and 7100 Devices

Used on the Yale 7100 and 2100 Series Rim Exit Devices.  Optional strike for double door applications without a mullion.

Yale Part # 793

The SEM7840-516 LCN Magnet Core Assembly is just the Tri Voltage Magnet Core. 35 pounds of holding force at nominal input voltage. Maximum current draw is .020 A @ 24 volt and 120 volt, and .030 A @ 12VDC. Cylinder is 1-3/4" diameter and projects out 7/8" out from the mounting plate.

LCN part number SEM7840-516

The Ives Roller Bumper Straight Arm 4" RB471 are ideal if you have situations where doors meet each.   They are constructed cast brass or bronze and are then plated to the desired finish.   The arm projects 4-1/2" and the base has a 2" diameter.   The device was just like the Glynn-Johnson RB4 or GJRB4.

Corbin Russwin ED4000/5000 C9 Trim

Passage -Entrance by knob or lever. Door is always unlocked.
Classroom-Entrance by knob or lever. Key locks or unlocks knob or lever.

Corbin Russwin ED4000/5000 N9 Trim

Passage -Entrance by knob or lever. Door is always unlocked.
Classroom-Entrance by knob or lever. Key locks or unlocks knob or lever.

Zipper Pile Weatherstrip .270" Backing - .200" Pile Height - 100' Roll

Replaces Old or Worn-Out Pile Weatherstripping in Doors and Windows. New Zipper Tooth Design Allows Pile to Easily Snap in from Above the Extrusion Slot. High Density Gray Pile with Double Center Fin.

Zipper Pile Weatherstrip .270" Backing - .250" Pile Height - 100' Roll

Replaces Old or Worn-Out Pile Weatherstripping in Doors and Windows. New Zipper Tooth Design Allows Pile to Easily Snap in from Above the Extrusion Slot. High Density Gray Pile with Double Center Fin.

The Sargent 20/30/60  End Cap Bracket is used with the larger end cap.  This end cap has been manufactured for the last 40 years and started its life on the obsolete 60 Series.  The bracket holds the hinge side of the exit device on the door, and the G20300C fits over the top of it.

Sargent part #68-2141

The Jackson 1095 30-1247 / 30-1248 Lever Arm.  Replacement Lever Arm for the Jackson 1095 Active Housings.   This arm will only work on the 1095 Active Case!  The difference between this arm and the 1085 arm is the Pin in in the top of the arm.   The pin fits into the triangular linkage clip, which actuates the latch bolt.  Handing is determined by standing inside and looking out, if the arm in on the right hand side of the door, it is a right hand lever that you would order.

The Adams Rite 4580 cam is used on the the 4500 and 4900 Dead Latch Paddles.  The 4580-500 is for Left Hand, and the 4580-600 is for Right Hand Doors.

Sex Nut 1/4-20

1-3/4" Long X 3/8" diameter constructed of aluminum

screw not included

Doromatic Mounting Stud. Male stud mounts to the door and the housing slides over.

Doromatic part # PB2 and also STUD.101

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Dor-o-matic bottom rod guide. Fits up inside the door to take up slack in bottom rod. Also known as the GPB134 and G1990134

Doromatic part # 4270107176

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1690 Repair Parts Breakdown
Falcon / Dor-o-Matic 2390 Parts Break Down

The Falcon Doromatic Latch Screw PB17 is also known as the SCREW.1029 and the GPB17.  The screw is a 10-32-1/4" with an undercut head.  This screw is used to hold the top and bottom latches on the door for the 1690 and 1990 series devices.

Non-Handed Offset Storefront Pivot Hinge Set, includes top and bottom pivots and all the fasteners.

The Door Push Plate 70 is our thickest plate we offer.  The plate is 1/8" thick, and is aluminum, brass, stainless steel, or bronze depending on the finish.  All 4 edges are beveled.  We offer this plate in many sizes, and it ships with matching mounting screws.

Finishes

Cal Royal 7000 Alarmed Exit Device

Same as the Cal Royal 7700, but with these added features"

Alarm unit has internal horn. When the push rail is depressed, the horn sounds to provide an audible means of signaling that the door has been opened and violated. The unit has changeable 2 minute alarm cutoff or manual reset. Preset at factory for 2 minute alarm cut off. The key switch to turn alarm off is a standard 1 ¼” cylinder with “C” keyway. The alarm operates on one standard 9 volt transistor battery. When battery is weak the horn will emit an intermittent signal. Alarmed units are supplied with a switch that monitors push rail only. Unit includes “EMERGENCY EXIT ONLY • ALARM WILL SOUND” decal for application on door or unit.

The Corbin Russwin 651F62 Blue Lever Spring is same part as the Yale Lever Trim Spring. Used on Yale and Corbin Russwin RHR or LH Doors outside trim lever handles. The spring has an 1-1/4" OD and 1-1/8" ID.

Yale Part # 60-7000-1224-999
Corbin Russwin # 651F62

The Norton 7700AS Arm Stud is for use on the 7700PT Power Track Closers.  The stud connects the arm to the slider (7700SLD) and is held in place by the Retaining Ring (7700ASR).   This piece is approximately 1" long.

• Standard top pivot for heavy-duty offset
pivot sets
• Heavy-duty needle bearings are standard
• Non-ferrous base metal
• 3/4"(19mm) offset (measured from
centerline of pivot to face of door)
• Furnished with wood and machine screws

Handing diagram

The same as the Falcon / Dor-o-Matic 1690 with Mechanical Electric Latch Retraction. Some of the features are listed below. A power supply is required.

Hand: Field reversible, non-handed.
Centercase and end cap are powder-coated black only.
Strikes: PB48 top.
Latches: Hex bottom latch (standard), RL - rod bottom latch, PL - Pullman bottom latch
Cylinder: Rim, key entry (NL) or hold back (HB) feature available.
Field selectable.
Sizes: 30", 36", 42", and 48".
Doors: 1-3/4" thick metal doors, specify if other.
Projections: 3-3/8" in neutral position, 23/8" in dogged position.
Pushbar height is 2-1/2.
Stile: 1-3/4" minimum.

Replacement parts are also available

Shipped with all screws and strikes.

The Norton 7700SLD Slider for replacement of the 7700PT Series Power Track Closers.  This is the piece that slides in the track and the arm attaches to.  The unit measures 2-1/16" long by 1-1/4" wide and 5/8" thick, not including the metal clip on the back.

The LCN Fusible Link melts at 165 degrees to release the hold open mechanism.   Link measures 1-3/8 long by a 1/2" wide, the center to center distance on the holes is 15/16".

LCN Part Numbers:
4010-28
4110-30
4020-31

Sargent 2828 / 2838 Center Case Cam

The Sargent 2828 / 2838 Center Case Cam is the Cam that the key cylinder actuates to open the door.   The Cam is located in the middle of the Center Case.  We can no longer get the retaining ring to hold it in place.

Sargent Part # 28-0109

The design of the Doromatic 1690 is ideal for demanding, high-traffic applications. The vertical rods and latch mechanisms are concealed in the vertical door stile, ensuring trouble-free operation. Cast metal cover plates and end caps hold up to rigorous use. A quick, singlepoint dogging feature in the housing deactivates the device, permitting unrestricted traffic flow. The Doromatic 1690 may also be used to retrofit a Doromatic 1990 Series crossbar device.

Replacement parts are also available

Shipped with all screws and strikes. The 1690NL Cylinder Assembly (169CA) is required if you wish to use a key cylinder on the exterior, SEE RELATED PRODUCTS toward the bottom of the page.
