Corbin Russwin DC6210 Door Closer

Corbin Russwin’s history combines high-quality product and innovative design. That tradition continues with the new Grade 1 DC6000 Series door closer, designed and engineered with quality features such as captured valves and a complete range of new arms. The DC6000 series is the perfect closer for high-use openings or openings that must meet ADA requirements, such as schools, office buildings, health care facilities, and retail complexes. The series also meets UL and UL10C positive pressure requirements for fire openings.
Uses the same mounting bracket as the 100,110, 120 and 2800, 2810 and 2820 series and also the , DC220, DC2400, and DC2600

Older models may have SL72 or MS93 cast on the cylinders.
You may also find Clarksdale, MS cast on the cylinder also.

The Falcon / Doromatic Door Closer SC81 is an affordable, higher quality, standard template closer.  This closer offers adjustable closing, latching and back check speeds, along with adjustable spring tension.  It has the ability to be mounted on the push, pull or top jamb and is non handed.  This closer is considered a Grade 1 closer, which is the highest grade you can get.  The hole spacing is 3/4” x 12”, which is the same hole spacing as the Norton 8301, 8501 and the Yale 3301, 3501 Door Closers.  We ship the SC81 Rw/PA.

On this Adams Rite End Cap we sometimes find the number HX0471 cast into the Black Plastic construction.  It measures 2-3/8" high by 1" deep, with a projection of 1-1/4". It is used on the 8099, 8100, 8200, 8300, 8400, 8500, 8600, 8700, 8800 and 8900.

Adams Rite Part # 25-0471-IP

Adams Rite old Style end cap for the 8700 and 8800. Dogging in the head.
The black cap measures 2-3/8" high x 1-5/8" wide x 1-1/4" projection

Adams Rite Part # 41-0801-08

Adams Rite old Style end cap for the 8300, 8400, and 8600, with dogging in the head. Plastic Cap measures 2-5/16" high x 1-1/16" wide with a 1-1/4" projection.

Adams Rite Part # 41-0801-01

The Jackson 1285/1295 Push Bar End Cap Package comes complete with the right and left side caps, mounting bracket and screws.  This piece is available in aluminum (silver) and dark bronze (dark brown).

Jackson Part # 30-2650

Sargent H.D. Holder Stop Arm

Sargent part #25-PSH

Von Duprin 8827 Special Chassis Nut 050277

The 8827 Special Chassis Nut goes on the ends of the 8827 Chassis Tie Rod. The Nut is threaded all the way through so the cover mounting screws can then be threaded on it also. The nut is 3/8" long by 1/4" hex.

Von Duprin Part # 050277
Old Von Duprin Part # 960652

The Von Duprin 9927 Center Case 050021 center case replaces all earlier versions of the 9827 and 9927 Center Cases. Everything shown in the picture is included with the product. Along with all the mounting screws.

Von Duprin part # 050021

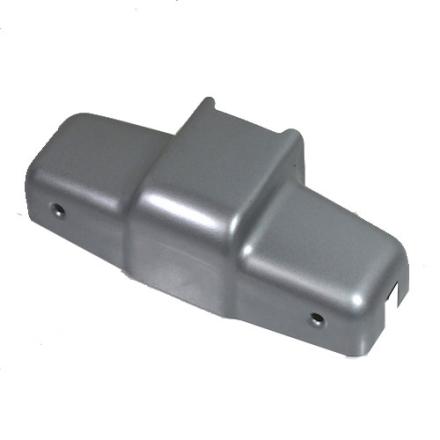

Von Duprin 050073 98/9947 98/9949 98/9975 Case Cover

Cover for the Von Duprin 050022, 050029 and 050030 Center Chassis Assemblies.  Cover includes mounting bracket and screws.

Von Duprin Part # 050073

Dor-o-matic 1790 Center Case Cover Screw

For devices shipped before September, 2004

Doromatic part # SCREW.1025 or PB324

Dor-o-Matic 1790 Repair Parts Breakdown

Von Duprin 880/990 Trim Hex Stud

This is the Hex Stud used on the 880 and 990 Trim Plates. The threads are 7/32-24. Overall lenght is 2"

Von Duprin Part # 956760

Floor Mounted Door Stop 535

Cast Brass or Bronze construction
2-1/2" diameter base x 3-1/8" high
Fasteners included

The Russwin 2800, 2810 and 2820 are no longer available. They have been replaced by the Corbin Russwin DC6210, which has the same hole spacings and arm. You will not have to redrill or modify your door to make the DC6210 work in place of your existing 2800, 2810 or 2820 door closers. The Corbin Russwin DC6210 has a little bit larger body due to the increased functionality of this closer. This new closer will meet all the ADA requirements.

Corbin Russwin’s history combines high-quality product and innovative design. That tradition continues with the new Grade 1 DC6000 Series door closer, designed and engineered with quality features such as captured valves and a complete range of new arms. The DC6000 series is the perfect closer for high-use openings or openings that must meet ADA requirements, such as schools, office buildings, health care facilities, and retail complexes. The series also meets UL and UL10C positive pressure requirements for fire openings.
Uses the same mounting bracket as the 100, and 2800 series.

Older models may have SL72 or MS93 cast on the cylinders. You may also find Clarksdale, MS cast on the cylinder also.

The Door Pull Handle 17 has an overall length of 10". The base diameters are 2" with three holes each. The handle projects out 2-1/4" and has a clearance of 1-1/2". Also known as a Door Grip or Door Handle. This handle ships with 6 wood/sheet metal screws.

Floor Dome Door Stop 1" Height FS436

We ship the H.B. Ives FS436 Floor Dome Stop, another product made by Ives that has been around for 50 plus years.  Take a walk around a school made in the 1960's and you will probably find this door stop, or the hole were it used to be.  This Dome Stop is used on doors without thresholds that have a bottom of the door to floor clearance of less than 5/8".  The are constructed of cast aluminum or cast bronze depending on the finish you are looking for.  The rubber stop is non-marring and replaceable.  The stop has a base that is 1-3/4" x 2" oval, an overall height of 1" and a base height of 3/16".

Sargent Door Closer Covers

Replacement Sargent Door Closer Covers, made of impact resistance plastic.  Covers are available for the 281, 350, and 1430 Door Closers.

Von Duprin 090069 33/3547 99/9947 Ratchet Lever Spring (2)

One of two springs located in the 33/3547 and 98/9947 Top Latch 050492.  Sold in packages of 2.

Von Duprin Part # 090069

The Von Duprin 8827 050466 Top Latch And Cover is the 050460 (latch) and 050464 (cover) in one convenient package. The package includes the cover screws and mount screws.

Von Duprin Part # 050466

The Cal Royal Products 900 Series Door Closer is a unique one, it is the only closer that has the 3/4" x 11-1/8" hole spacing.  We have seen a few versions of this closer, some have 6 mounting holes, and some have 4.  If your closer has a spacing of 11-1/8", and has 3 holes on each size, this is the only closer I know of that is like that.  The 900 Series is a Grade 1 closer, the heaviest duty rating possible.  The door closer has adjustable spring tension, closing, latching and back check valves and is Barrier Free rated.  The package comes with all of the  mounting screws and a parallel arm bracket, so it can be mounted on the left, right, push, pull or top jamb for mounting.

The 594 is constructed of solid brass. The latch bolt is 5/8 inch half round with a 9/16 inch throw.  The bolt ships with mounting screws and strike. The latch bolt has a chamfered end to draw the door in.

Cal Royal 700 Series Door Closer

Adjustable closing and latching speeds
holes spacing  is 3/4" x8-3/16" for sizes 2 and 3, and 3/4 x 9-1/16" for the size 4.   Size 2 is ideal for reduced power on interior doors, size 3 will be more powerful.   Word of warning, the larger the spring size the harder it is to open the door.
Powder Coated Painted Finishes
5 year warranty

The Command Access MLRK1-JAC12 Motorized Latch Retraction Kit With REX is for use on the Jackson CRL 1285 and 1295 Series Exit Devices. The unit is 24 volt with Standard : 900 mA (Avg Current Peak); 200 mA (Avg Current Hold). The unit requires 18 ga wires. The package includes:  1) Motor Mount with MM5; (1) 50944 Molex Pigtail; (1) 50030 6 Feet Lead with VD Connector; (2) 40124 10-24 x 3/8inch Phillips Screws (Silver); (2) 40125 10-24 x 3/8inch Phillips Screws (Black).

The MLRK1-JAC12 is a cost-effective and straightforward way to upgrade your Jackson 12, Kawneer 16/17 and PD16 series device to motor-driven latch retraction in the field. UL Listed + 3 Year Warranty.

The Yale Door Closer 3301 is constructed of a cast aluminum alloy.  It is considered a Grade 1 Closer, which is the highest grade possible.  The closer features an adjustable spring tension, and separate closing, latching and back check intensity valves.  The slim line plastic cover is standard on this closer.  This door closer replaces the older 3301BF closers. The new version is Barrier Free Complaint.  The hole spacing is 3/4" x 12", the cylinder is sometimes cast 20-3301-1001 on the back of the cast aluminum cylinder.  This closer ships with all of the mounting hardware and parallel arm bracket.

The Norton PTO PowerTrack for 7705 is a replacement piece for the 7705PTO Door Closer.  The Track includes the Slider, Soleniod and new mounting screws.  The Track measures 21-1/4" long with a hole spacing of 19" on centers.   The PTO Track is for the Pull Side of the door, also known as the Hinge Side because you can see the hinges on that side.  On the PTO Track Assembly you can see the Two Mounting Holes

Norton Part # PTO24 or PTO120

The Heavy Duty Cal Royal CRCODE101 is for use on the 7700 and 9800 Rim and Surface Vertical Rods. This lock features Single Code with up to 8000 code combinations, weather resistant, non handed, and code can be changed without removing the lock. Comes in Brushed Chrome finish only.

Installation and Programming Instructions

Replacement Rod for the LCN 4630 Door Closer, LCN Part # 4630-82

The Von Duprin 9927 Center Case Cover 050072 replaces your old 1 or 3 piece cover.  The Von Duprin Cover comes with mounting bracket and all screws.

Von Duprin part # 050072

This Von Duprin Strike 304L Bottom Strike is used for the bottom latch of the 2227, 8827, 9827 and 9927. The strike measures 1-7/8" by 1-7/8" out dimension of the square flange, with an inside dimension of 1-1/8" by 1-1/8". The part that is inserted into the floor is 1-5/16" x 1-5/16" and drops down 13/16". Also known as a Von Duprin Floor Mounted Mortise Strike.

Von Duprin Part # 304L

The Von Duprin 8827 050467 Bottom Latch And Cover is the 050461 (latch) and 050464 (cover) in one convenient package. The package includes the cover screws and mount screws.

Von Duprin Part # 050467

Hager 5300 Series Door Closer

Hager 5300 Series Grade 1 door closer is ideal for schools, hospitals, and other high abuse and high traffic environments. It is constructed of an aluminum alloy and provides smooth door control. The 5300 Series door closer is easy to install and maintain­­ keeping your building safe and secure.

The Hager 5300 Series Door Closer body has a hole spacing of 3/4" x 9-1/6".

Falcon Dor-O-Matic STK45 Surface Strike

This strike is used when we have a double door application without a center post. By using this strike we can have one door with a surface vertical rod and one door a rim device, which will save money because vertical rods are usually expensive. This strike can be used with the 1590, 1790 and 2090 Rim Devices. The strike base measures 1-5/16" wide by 3-1/4" high, and 1/4" thick. The three slots are 1-1/4" on center. This strike ships with the mounting screws.

US19-Black finish

The Ives Wall Door Stop WS65 is one of the most economical door stops we sell that is still commercial quality.  They are constructed of burnished cast aluminum.  The WS65 has a base diameter of 1-5/8" and a 3-3/4" projection. The rubber tip is replaceable.   This stop comes with the mounting screws.

Dorma 8616 Door Closer

The Dorma 8616 door closer series is a non-handed surface applied door closer with adjustable spring power and back check positioning adjustment. It provides the flexibility needed to meet the many demands of commercial and institutional applications, including ADA barrier-free accessibility requirements.

Door closer certified for ANSI Grade 1.

we ship the Dorma Model # 8616-AF89P

3/4" x 12" hole spacing
