Sargent 90 Lever Arm Spring

Used on the 9800 series Sargent Exit Devices. 1-3/4" LONG by 9/16" DIAMETER

Sargent Part # 97-0012

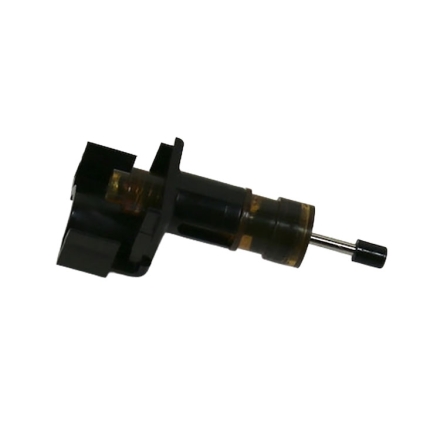

Von Duprin 050535 El Solenoid Assy-Discontinued.  All of our stock is gone, the only way to have your current device work with Electric Latch Retraction would be to up grade to the newer version.  The newer version is the QEL or QEL-HD Conversion Kit.  Here is a link to the QEL Conversion Kit.

Screws are 1" on center, the cylinder measures 3" long by 1-3/4" diameter. Used on the 33A, 35A, 98 and 99 exit and panic devices. This Solenoid Assembly is also used on the Doromatic/Falcon EL1690, EL1790 and EL2390

We sometimes find the number 971687, along with 4011 VDC 24

Von Duprin Part Number 050535
Doromatic/Falcon Part # 971687-00

Adams Rite 91-0897-01 RX Monitor Single Switch is a retrofit kit for all the 3000/8000 exit devices.  The switch has 3 wires to connect to your system.

Adams Rite Part # 91-0897-01

Concealed Top Latch for the ED5800 exit device.  Corbin Russwin part number 650F718.

The Von Duprin 9927 Bottom Vertical Rod 110574 is the replacement rod for broken or bent vertical rods.  All of the 9927 bottom rods are the same length, this is set by Federal Building Codes, so the center line of the Panic Hardware is a certain height from the finished floor. The length of the rod is 31-1/4" long, less the fittings.  The old part number on this was 110574, and the newer one is 050514.

Von Duprin 22 / 2227 Push Bar End Cap

Cap fits on the ends of the Von Duprin 22 Series Push Bar.

Von Duprin Part # 968598

Interior Doors
Weight to 200 lbs.
Door Sizes up to 3'6"x 8'6"
Includes 320 top pivot
Non-handed

Interior Doors
Weight to 250 lbs.
Door Sizes up to 3'6"x 8'6"
Includes 320 top pivot
Non-handed

The Von Duprin Latch Mounting Bracket 050546 is used on the 2227, 3327 and 9927.   It is for use with the 050400, 050401, 050091 and 050090 Surface Vertical Latches.

Von Duprin Part # 050546
Old Von Duprin Part # 971567

The Adams Rite EX88 Interlocking Rim Exit Device is designed for heavy duty use on narrow stile aluminium door applications. The EX88 has a unique latch bolt design that interlocks with the frame of the door. This device is non handed, requires a minimum stile width of 2" and will work on aluminum, hollow metal or wood doors.The device is constructed of extruded aluminum with matching metal angled end caps. To order specify your door width, and the color.

Von Duprin Exit Device 992L Hex Stud

This is the Hex Stud used on the 992L Lever Trim and the 991K Knob Trim. The threads are 1/4-20. Overall lenght is 1-3/4"

Von Duprin Part # 971440

The Replacement Rubber Shoe For GJ1153M or Ives FS1153. Constructed of rubber.  Ives part # FSPART.1060

Standard duty brass 2-1/4" knob is pinned to swivel spindle for 1-3/4" door.
Outside spindle is 3/8" solid center and inside spindle is 9/32". Inside knob
threaded 3/8-20 with two case hardened set screws.

Falcon 24 / 25 Series 650294 Channel End Cap Kit

This end cap is used on the Falcon 24 and 25 series devices.  Used to go by then number 600270, but the factory is now using the number 650294.  Includes bracket, screws and end cap.

Falcon Part # 650294

The Push Bar w/Handle 422X26 is usually found aluminum framed glass store front doors.  It is constructed of 1" diameter solid aluminum, brass, bronze or stainless steel, depending on the finish.  The handle or grip will have either a 8", 10", 12" or 18" center to center screw spacing.  The push bar center to center length is determined by you, we can do any reasonable size.  Establish the center to center dimension by subtracting the width of one stile from the width of the door. On solid doors, subtract 5" from the width of the door.  All the fasteners are included, and are determined by the material your door is made of (wood or metal).   Please allow 3-4 weeks on the Dark Bronze and Aluminum, and 2 weeks on the other finishes.

Finishes

Doromatic 1490 PB56 Lift Bracket

7-1/2" x 1" wide

Doromatic part # PB56 or 4270106796

Dor-o-Matic Lock stile Push Bar End Cap

The Dor-o-Matic -Falcon 1690/1790 Lock Stile Push Bar End Cap PB318 is used on the 1690 concealed vertical rod and 1790 rim device.This is the end cap for the push bar and is located closest to the active housing.  Doromatic part # ECAP.129 or PB318

Dor-o-Matic 1690 Repair Parts Breakdown
Dor-o-Matic 1790 Repair Parts Breakdown

The Ives Roller Bumper Offset RB470 are ideal if you have situations where doors meet each.   They are constructed cast brass or bronze and are then plated to the desired finish.   The arm projects 5" and the base has a 1-11/16" x 2-1/4".   The device was just like the Glynn-Johnson RB3 or GJRB3.

The Full Mortise Regular Weight Hinge are for lighter weight interior doors without a door closer.  They are constructed of 10 gauge (.134”) steel that is then plated or paint primed.  We sell them in boxes of 3 hinges, and they ship with machine and wood screws.

Shown in brushed brass

The Dor-o-Matic 1690/1990 Retractor PB35 has been used since the 1970's.  The manufacture has changed names in the last 5 years and now goes by Falcon Panic Hardware. This piece is used the 990, 1690 and 1990 devices.  The pinion rides inside this bracket to raise and lower the internal rods. Parts used with the retractor are the Pinion (G199005), Traveller (G199028) and the Pinion Bushing (G199046). Retractor measures 1-7/8" long by 7/8" wide by 1/4" thick.

Doromatic part # PB35 or RETRACT.101

The Von Duprin 900620 35/3348 98/9947 Adjusting Screw Package is used to adjust the concealed vertical rods.  This package is used on the 3347, 3547, 3347-F, 3547-F, 9847, 9847-F, 9947 and 9947-F.   This is a package of 2.

Von Duprin Part # 900620
Old Part # 109811

Von Duprin 33/35/98/99 push bar stock absorbers. This is the piece that makes these Von Duprin exit devices one of the quietest devices made.

Von Duprin Part # 050491

4-1/4" long

Dorma part # AM385A

The Dorma 4 Loop Torsion Spring is used on the 9000 Series Exit Device Escutheon Lever Trims. Spring measures 1 inch diameter by 5/16 thick.

Dorma Part # 780367270 or 6000-717-500

The Jackson Panic Device Center Case 1085/1095 is for use with the 1085 devices for both and left, and the inactive case of the 1095.  Case is easily removed by loosening the two 1/8" Allen screws and one on the bottom.  Includes everything in the housing.  The distance between the mounting studs on this Case is 6-5/16"

Jackson part # 30-982 Right Hand Body and Arm Assembly
Jackson part # 30-983 Left Hand Body and Arm Assembly

Housing Shown in Aluminum

The Jackson 1095P Paddle Panic Hardware is an alternative to the cross bar or push pad style panic hardware.  The device is the same as the Jackson 1095, but with a paddle instead of the cross bar.   This device is for use on aluminum or steel doors only.   The device is mounted on surface studs that are tapped into the door.  On a wood door they will pull out.

Right Hand Reverse Shown

The Full Mortise Spring Hinge is found in many hotels and motels across the United States.  They are an inexpensive way to meet Fire Codes.   An internal adjustable spring in the hinge closes the door when they are opened.  So instead of using a door closer, you can use these spring hinges.  One draw back is you can not slow the door down and they will slam shut.  We do not recommend these self closing hinges if your door swings more than 110 degrees, chances are the spring will break.  They are constructed of 10 gauge (.134”) steel that is then plated or paint primed.   We ship them in boxes of 3 hinges, and they ship with machine and wood screws.

Shown in brushed brass

Detex 101822 Value Series End Cap

Made of black molded plastic.  End Cap is has the numbers 101822 cast on the inside.  The hole spacing is 1-1/2" on center.

Detex part # 101822

Jackson 1095 Gear Package

Jackson part # 30-852

The Von Duprin Pull Handle 972466/972467 replacement Grip/Handle only, screws not included. Cast bronze construction, and then plated to the selected finish. The Grip measures 15/16" wide by 6" long. The center to center hole spacing is 5-1/2". This handle works on the Von Duprin 608, 696, 880, and 990 outside trim plates.

Von Duprin Part # 972466 and 972467
Old Part # 969925 and 959122

Von Duprin 880/990 Trim Hex Stud

This is the Hex Stud used on the 880 and 990 Trim Plates. The threads are 7/32-24. Overall lenght is 2"

Von Duprin Part # 956760

The Von Duprin Mullion Stabilizer Package are used with Von Duprin Mullions to stop any deflection on the mullion, which may cause the exit devices to release.  We run into issues where people are able to shake the door, and the door opens.   The package includes two sets of stabilizers and all the mounting screws.

Doromatic PS914x900-2RS Power Supply

The Cal-Royal 9800 Rim Device is a grade 1 Heavy Duty Exit Device.   The 9800 has the same template as the 8800 and 9800 with escutcheon lever trim. The 36 inch device will be 32 inches wide and can be cut down an additional 2" to fit doors as narrow as 30 inches.  The 48 inch will be 44 inches wide and can be cut down to fit doors 36 inches wide. The device is non handed, meaning it will work on a left hand reverse or right hand reverse door. Strike and mounting screws are included.

Arrow BM385A Spindle

3-3/4" long

Dorma part # BM385A

Von Duprin 090069 33/3547 99/9947 Ratchet Lever Spring (2)

One of two springs located in the 33/3547 and 98/9947 Top Latch 050492.  Sold in packages of 2.

Von Duprin Part # 090069
