Corbin Russwin ED5400 Bottom Latch, Corbin Russwin part # 650F58-8

Cal Royal 2000 Night Latch Trim

3" X 7-3/4"

Cal Royal Part # 2200NL

The Full Mortise Regular Weight Hinge are for lighter weight interior doors without a door closer.  They are constructed of 10 gauge (.134”) steel that is then plated or paint primed.  We sell them in boxes of 3 hinges, and they ship with machine and wood screws.

Shown in brushed brass

Yale 2100 Series Latch Assembly

Latch assembly for the Yale 2100 Rim Panic Device.   Assembly base measures 7-3/4" high by 5-1/2" wide with a projection of 2-1/4".

Yale Part # 60-2100-0010-048

• For 1-3/4" (44mm) doors standard
• Through-bolted with 3 mortise nuts
• Pulls project 1-1/2" (38mm) from door face
• GTB Design trim will cover a 161 cutout

The Von Duprin Panic Device 880DT Trim is for 88 Series devices only.  Stanchions welded on the back line up with the device on the interior. The plate measures 3" wide by 14-3/16" long.

Von Duprin part # 880DT-R

LCN 8310-3857TW Actuator Package

Actuator package, 4-3/4" Square, includes:
2 8310-853T Wireless Wall Mount Actuator
2 8310-867S Surface Mount Boxes
2 8310-801  Weather Ring
2 8310-844 Jamb Mount Transmitter
1 8310-865 Receiver

LCN Part # 8310-3857TW

Cal Royal 2000 Series Thumb Pc Trim

2-5/8" X 16"

Cal Royal part # THP00

The Von Duprin Mullion Stabilizer Package are used with Von Duprin Mullions to stop any deflection on the mullion, which may cause the exit devices to release.  We run into issues where people are able to shake the door, and the door opens.   The package includes two sets of stabilizers and all the mounting screws.

The Falcon 600293 E Trim Solenoid PKG is used on the 25 Series Electrified Lever Trim.  The unit can be used for Fail Safe or Fail Secure applications, depending on how the unit is installed.  The piece measures 3/4" diameter by 1-1/2" long, with a 3/4" hole spacing.  We sometimes find the numbers 661375-00 and 610306-00 on a stick on this piece.  The package ships with two mounting screws.   This unit is called the FSA/FSE Solenoid Kit on their parts breakdowns and in their price book.  The Falcon/Monarch part number is 600293.

Yale 790 Bottom Strike

Used on the Yale 7110, 7110F, 7120F, 7210MF, 7220MF, 2110F and 2110 Series Vertical Rod Exit Devices.  Used as the Bottom Strike.

Yale Part # 790

Von Duprin 992/994 Lever Lift Spring 971573

The spring measures 1-5/8" long with a 7/16" diameter. We find two of these springs per 992 and 994 series lever trims. These springs help support the lever handle and return it to the proper position.

Von Duprin Part # 971573-00

Yale 757F Strike for 7100F and 2100F Devices

Used on the Yale 7100F, 7150F, 7200ME and the 2100F Exit Devices.  Furnished in a Black Finish.

Yale Part # 757F

The Cal-Royal 9800 Rim Device is a grade 1 Heavy Duty Exit Device.   The 9800 has the same template as the 8800 and 9800 with escutcheon lever trim. The 36 inch device will be 32 inches wide and can be cut down an additional 2" to fit doors as narrow as 30 inches.  The 48 inch will be 44 inches wide and can be cut down to fit doors 36 inches wide. The device is non handed, meaning it will work on a left hand reverse or right hand reverse door. Strike and mounting screws are included.

The Von Duprin 373L Lever Control Spring 090091 and 090092 are used on the 371, 373, 375 and 378 Lever Handles.  The spring is used to return the lever to the horizontal position.  Sold in packages of 4 springs.

Von Duprin Part #
090091 Left Hand Reverse
090092 Right Hand Reverse

Grade 1 Exit Device
Device is non handed
Standard sizes are 30", 36", 42" or 48"
Minimum stile width is 2"

Replacement parts are also available

No longer manufactured.  We do have some of the PB115, which is the die cast disc that has the receiver for the rim cylinder and the plastic nub.

Dor-O-Matic 1490 Cylinder Assembly 149CA-NL

Doromatic part # 149CA-NL or 4270107272

The Full Mortise Spring Hinge is found in many hotels and motels across the United States.  They are an inexpensive way to meet Fire Codes.   An internal adjustable spring in the hinge closes the door when they are opened.  So instead of using a door closer, you can use these spring hinges.  One draw back is you can not slow the door down and they will slam shut.  We do not recommend these self closing hinges if your door swings more than 110 degrees, chances are the spring will break.  They are constructed of 10 gauge (.134”) steel that is then plated or paint primed.   We ship them in boxes of 3 hinges, and they ship with machine and wood screws.

Shown in brushed brass

Dor-o-Matic 1590 NL Cam Assembly

Doromatic part # 4270107283

No longer Manufactured

Von Duprin 88 Hinge Case Spring

Used on all Von Duprin 88, 8847, 8827 and 8827 Exit Devices. 4-1/2" long x 5/16" diameter.

Von Duprin Part # 090080

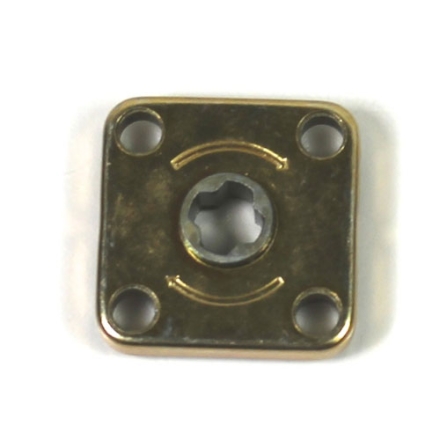

Schlage Mortise Spring Cage

Spring cage measures 1-1/2" x 1-1/2" x 1/4" thick. Screw spacing is 1-1/16" on center.

Schlage Part # L283-040

The Von Duprin 99 Rim Center Case Cover 050071 replaces your old 1 or 3 piece covers.  Included in the package is the cover and the mounting screws.

Von Duprin part # 050071

The Von Duprin 2227 Latch Covers 050566 is used on the top and bottom latches.  Package includes mounting screws

Von Duprin part # 050566

The Full Mortise Heavy Duty Hinges are standard butt hinge.  They are designed for heavy weight doors with a high frequency of usage.  These are ideal for exterior doors in schools, hospitals and other commercial venues.  The hinge offers four bearings, one between each leaf of the knuckle.  They are constructed of 7 gauge (.180”) steel that is then plated or paint primed.  We sell them in boxes of 3 hinges, and they ship with machine and wood screws.

Shown in brushed chrome

Sargent Exit Device 80 Series Metal End Cap And Bracket

Use this end cap to replace all older versions and plastic end caps. It is much stronger then the orginals, more impact resistant.

sargent part # 565

The Von Duprin 970323 299 Strike Adjustor is the piece that secures the placement of the Strike to the door frame or mullion.

Sargent 97-3230 Cylinder Dogging Assembly

The Sargent 816 Cylinder Dogging Assembly, also known as the 97-3230, includes the cam that the cylinder dogging tends to wear out.

Sargent Part # 97-3230

The Full Mortise Medium Duty Hinge are a standard butt hinge.  They are designed for medium weight doors with a high frequency of usage, but usually interior doors with a door closer.  The hinge offers two bearings, to provide easy rotation.  They are constructed of 10 gauge (.134”) steel that is then plated or paint primed.  We sell them in boxes of 3 hinges, and they ship with machine and wood screws.

Shown in brushed chrome

Dor-o-Matic 1590 C/Case CVR PB203

Covers the latch bolt assembly on the 1590 Rim Device.  Made of die cast metal and electrostatically painted black.

Doromatic Part # 4270106863 or PB203

LCN 8310-3822TW Wireless Actuator Package

This package is recommended for interior use only!   Actuator package, 1-1/2" x 4-3/4", includes:
2 8310-818T Wireless Jamb Mount Actuator
2 8310-819S Surface Mount Boxes
2 8310-844J Jamb Mount Transmitter
1 8310-865 Receiver

LCN Part # 8310-3822TW

Dor-o-Matic 1690 Falcon Center Case Cover Kit

Color: Black

Doromatic part # COVER.113 or PB313

The Sargent Regular Arm 25-O is now used on all of there commercial grade closers.   This is the standard arm shipped with about 90 percent of there closers.  This arm is for use with the 350, 1430, and 281 closers, and will work on the 1230 and 1250 models also.

Sargent Part # 25-0

The Falcon Automatic Opener 8231 is a smart and easy solution to improve accessibility and meet ADA Codes.  The 8231 is a non handed, surface mounted, 115 volt closer for a pull side mounting.   If your door is an outswinging door you would use the 8242.   This self contained package features, an on board power supply, LED light on the control box to signal accurate installation and helps with connection diagnostics.

This closer features:
SmartLatch-senses and overcomes external pressure conditions with a Graduated energy assist of secure latching.
Push N Go-selectable feature allows door to open automatically as soon as it feels pressure.
Open Position Learning-automatically sets the opening position to eliminate wall and door damage.
Obstacle Obstruction Detection-safety feature stops and reverses door direction when distress or an obstruction is sensed.
Pre-Load Strike Assist-removes load on strike lip with a one second delay allowing the door to release and automatically open.
LED Light Illumination-Light illumination on control box signals accurate installation and helps with connection diagnostics.
On Board Power Supply-powers the accessories without the need to install an external power supply-12 vac
Adjustable hold open time delay, backcheck/latch position, backcheck speed, and opening and closing speeds.

The package includes everything except for the actuators.  Uses LCN Actuators.

Falcon 8200 Catalog

Falcon 8200 Installation Instructions

Rubber Shoe for DH6000

Replacement rubber shoe for the GDH6000

The Ives Roller Bumper Straight Arm 6" RB472 are ideal if you have situations where doors meet each.   They are constructed cast brass or bronze and are then plated to the desired finish.   The arm projects 6" and the base has a 2" diameter.   The device was just like the Glynn-Johnson RB6 or GJRB6.

The Von Duprin 8827 050466 Top Latch And Cover is the 050460 (latch) and 050464 (cover) in one convenient package. The package includes the cover screws and mount screws.

Von Duprin Part # 050466
