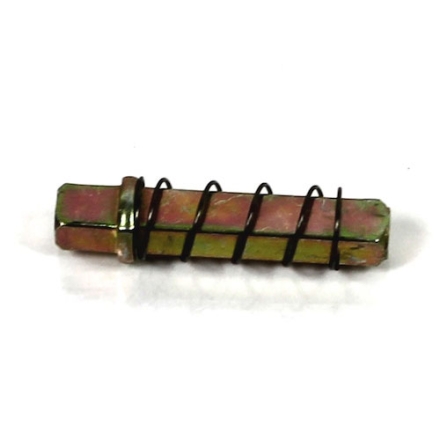

Schlage Mortise Spindle and Spring

The spindle measures 2" long by 5/16".

Schlage Part # L283-060

Doromatic 1490 PB56 Lift Bracket

7-1/2" x 1" wide

Doromatic part # PB56 or 4270106796

Adams Rite old Style end cap for the 8300, 8400, and 8600, with dogging in the head. Plastic Cap measures 2-5/16" high x 1-1/16" wide with a 1-1/4" projection.

Adams Rite Part # 41-0801-01

The Falcon 650388 Latch Cover is for use on the Monarch and Falcon 19-V Series.  The latch is made of high impact black plastic and ships with the mounting screws.  The manufactures part number is 650388, the old Monarch part number was 3781.

Yale 7000 Series End Cap

Yale Part # ECK7

Newer impact resistant end cap. Replaces all of the older version end caps for the Yale 7000 series.

Shown in stainless steel.

Standard duty brass 2-1/4" knob is pinned to swivel spindle for 1-3/4" door.
Outside spindle is 3/8" solid center and inside spindle is 9/32". Inside knob
threaded 3/8-20 with two case hardened set screws.

Grade 1 exit device
Device is non handed
Standard widths are 30", 36", 42" or 48"
3-3/4" minimum stile width

Replacement parts are also available

The Von Duprin 8827 050467 Bottom Latch And Cover is the 050461 (latch) and 050464 (cover) in one convenient package. The package includes the cover screws and mount screws.

Von Duprin Part # 050467

Metal end cap for all Adams Rite Concealed Vertical Rod and Mortise devices.

Adam Rite Part # 41-0902-05IP

Dor-o-Matic 1790 Drive Bushing Set Screw, 10-16 3.8" UFPHMS SCREW

Doromatic part # SCREW.1150 or PB327

The Adams Rite EX88 Interlocking Rim Exit Device is designed for heavy duty use on narrow stile aluminium door applications. The EX88 has a unique latch bolt design that interlocks with the frame of the door. This device is non handed, requires a minimum stile width of 2" and will work on aluminum, hollow metal or wood doors.The device is constructed of extruded aluminum with matching metal angled end caps. To order specify your door width, and the color.

Von Duprin 3327A Exit Device Only

3327A and 3527A for all types of single and double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. The 3527A has a smooth mechanism case and the 3327A has grooved case. 3327A/3527A fits door stiles as narrow as 1-3/4". Newly designed device has a one piece center case cover.

The Dorma 4 Loop Torsion Spring is used on the 9000 Series Exit Device Escutheon Lever Trims. Spring measures 1 inch diameter by 5/16 thick.

Dorma Part # 780367270 or 6000-717-500

Von Duprin 33A Exit Device Only

33A and 35A for all types of single and double doors with mullion, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. The 35A has a smooth mechanism case and the 33A has grooved case. 33A/35A fits door stiles as narrow as 1 3/4". Newly designed device has a one piece center case cover.

Von Duprin 050520 33/3547A/48A Bottom Rod

Replacement Von Duprin 050520 33/3547A/48A Bottom Rod.

Von Duprin Part # 050520

Interior Doors
Weight to 200 lbs.
Door Sizes up to 3'6"x 8'6"
Includes 320 top pivot
Non-handed

Interior Doors
Weight to 250 lbs.
Door Sizes up to 3'6"x 8'6"
Includes 320 top pivot
Non-handed

Detex 101822 Value Series End Cap

Made of black molded plastic.  End Cap is has the numbers 101822 cast on the inside.  The hole spacing is 1-1/2" on center.

Detex part # 101822

Yale 759 Strike for the 7250 Devices

Used on the Yale 720X Exit Devices.  The Strike measures 2" wide by 3" high and 1/2" thick. Furnished in a Black Finish.

Yale Part # 759

The Von Duprin Pull Handle 972466/972467 replacement Grip/Handle only, screws not included. Cast bronze construction, and then plated to the selected finish. The Grip measures 15/16" wide by 6" long. The center to center hole spacing is 5-1/2". This handle works on the Von Duprin 608, 696, 880, and 990 outside trim plates.

Von Duprin Part # 972466 and 972467
Old Part # 969925 and 959122

Doromatic 2390 Fixed Cover

The Doromatic 2390 Fixed Cover also known as the center case cover. The cover is 1-1/2" wide by 3-7/16" high and projects out 2 inches. The mounting screws are 3" on center.

Doromatic / Falcon Part # COVER.127 or PB341

Von Duprin 880/990 Trim Hex Stud

This is the Hex Stud used on the 880 and 990 Trim Plates. The threads are 7/32-24. Overall lenght is 2"

Von Duprin Part # 956760

Doromatic PS914x900-2RS Power Supply

Yale 791 Top Strike

Used on the Yale 7110, 7110F, 7120F, 7210MF, 7220MF, 2110F and 2110 Series Vertical Rod Exit Devices.  Used as the Top Strike.  This is the same strike as the Corbin Russwin 650F54 or 650F54-8.  This strike no longer uses a roller.

Yale Part # 791

The Ives Roller Bumper Offset RB470 are ideal if you have situations where doors meet each.   They are constructed cast brass or bronze and are then plated to the desired finish.   The arm projects 5" and the base has a 1-11/16" x 2-1/4".   The device was just like the Glynn-Johnson RB3 or GJRB3.

Cal Royal 2000 Dummy Trim

3" X 7-3/4"

Cal Royal Part # 2200DTP

Von Duprin 090069 33/3547 99/9947 Ratchet Lever Spring (2)

One of two springs located in the 33/3547 and 98/9947 Top Latch 050492.  Sold in packages of 2.

Von Duprin Part # 090069

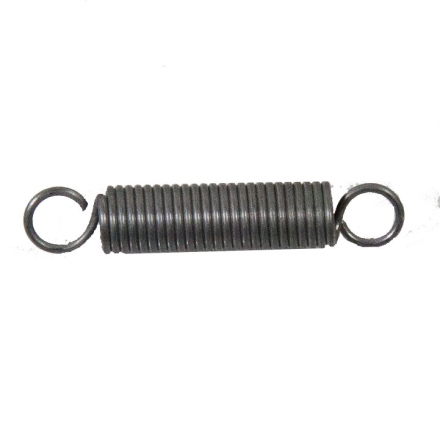

Sargent 97-0050 Knob Return Spring

This Sargent Knob Return Spring measures 1-1/16" overall length by 3/16" diameter

Sargent Part # 97-0050

Von Duprin 22 Cover Plate 968595 968596

Von Duprin 22 Dogging Cover Plate. Plate covers the dogging assy, or hinge side of the exit device. This plate sides off when the plastic end cap breaks or goes missing.

Von Duprin Part # 968595   measures 10-3/4" Long  for 3' devices
Von Duprin Part # 968596   measures 16-3/4" Long  for 4' devices

Yale 1500 Dogging Piece

Yale Part # 60-1500-6185

Monarch 19 Series Chassis Assembly Cover

This is the cover for the Monarch Falcon 19-R Rim Device. The cover measures 5-7/8" tall by 2-1/2" wide with a projection of 1-7/8". We sometimes find the number 6133 - 000 cast into the inside of the cover.

Monarch/Falcon part # 650384
Old Part # 6133

Von Duprin 050023 98/9975-F Center Case Kit

The Von Duprin 050023 98/9975-F Center Case Kit less cover is used on the 9875 and 9975, Panic and Fire Rated Hardware.

Von Duprin Part # 050023

Yale 7250 Series Latch Assembly

This latch assembly is used on the Yale 7250 Rim Device with the Square Bolt Latch.

Yale Part #60-7250-0001-048

Note the Hub Position for this Assembly is the  7200

• Through-bolted: 1-3/4" (44mm) door standard. For doors through 2-1/4" (54mm)
• Plate Dimensions: 3-1/2" x 3-3/4" x 3/32" (89mm x 95mm x 3mm)
• Finger Pull Dimensions: 3-1/2" x 6-3/4" x 1/8" (89mm x 171mm x 3mm)

The Falcon Dor-O-Matic RM70 Mullion Bracket Kit includes the top and bottom brackets and all of the mounting screws.

Falcon part # 4270108954

Jackson 1095 LH Backplate Assembly

Jackson Part # 30-847
