The Adams Rite P8700 P8800 Roller Strike is the Standard Strike for the P8000 Series Pullman Latch Exit Devices. The strike measures 2-15/16 by 1-7/16 inches with a 2 inch on center hole spacing.

Adams Rite Part Number 91-0355 or 41-0975-02 Frame Kit.

Corbin Russwin ED4000/5000 A9 Trim

Passage -Entrance by knob or lever. Door is always unlocked.
Classroom-Entrance by knob or lever. Key locks or unlocks knob or lever.

Sargent Exit Device 80 Series Plastic End Cap And Bracket

includes the end cap, bracket and mounting screws. This plastic end cap always breaks. You might want to consider trying the new impact resistant end cap shown in the related products, on the right hand margin of the page.

Used on the Sargent 80 Series Exit Devices

Part #'s 68-0561, 68-0511 and 97-0052

Discontinued December 2024

Doromatic 2390 Moving Pushbar End Cap

Doromatic 2390 Moving Pushbar End Cap is the piece that fits on the end of the pushbar. The Endcap is 3-3/8" high by 1/4" thick, with an 1-7/8" projection. The Pushbar End Cap is constructed of die cast metal that is painted black.

Doromatic / Falcon Part # PB342 or ECAP.143

The Push Bar 1' Diameter 422 can be used on any door, but is usually found on aluminum framed glass store front doors.  They are constructed of 1" diameter solid aluminum, stainless steel, bronze or brass depending on your select finish.  The bar has a 2-1/8" projection and 1-1/8" clearance.  The push bar ships with thru bolts and finish washer in matching finish.  Please allow 4 weeks on Aluminum, Polished Brass, and Oil Rubbed Bronze. Stainless Steel and Polished Stainless Steel take about 2 weeks.

Corbin Russwin Adjusting Nut 483F35-8

This Corbin Russwin Adjusting Nut is used on the Corbin Russwin Mortise Lever Locks. It threads into the end of the spindle. 2-3/8" overall length, 9/16" thread length, 1-15/16" bolt length. The threads are 1/4-28.

Corbin Russwin part # 483F35-8

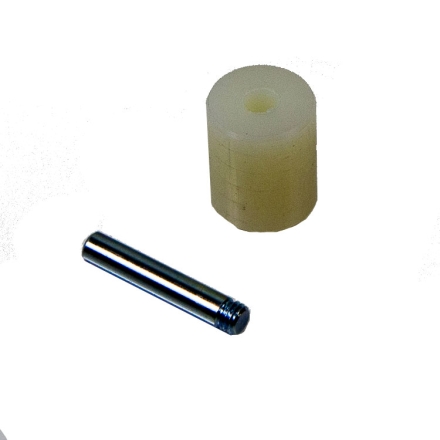

Ives RLPART.1025 Roller and Rivet for RL30/RL1152

This replacement Nylon Roller and Rivet Package is for the Ives RL30 and RL1152 Roller Latches.  The Roller measures 3/4" high by 5/8" diameter.  The Rivet measures 1-1/16" long and is threaded on one side.

Ives Part # RLPART.1025

Monarch 912L Panic Device Lever Trim

The Monarch / Falcon 912L Lever Trim is for use on the Monarch / Falcon 19 Series.  The 912L measures 7-1/4" high by 1-3/4" wide and the mounting plate is 5/8" thick.  We ship these with the Dane Lever, which projects out 2-7/8" in the Classroom function.  On the Classroom function the key locks and unlocks the lever handle, the Key Cylinder is not included.  We offer this Lever Trim in Painted Aluminum, Painted Dark Bronze, and Brushed Satin Nickel.

Monarch Part # 912L Dane

The Corner Guard 311 are a great way to protect corners in areas of high traffic and high abuse, such as warehouses and hospitals.  Fabricated from 16 gauge (.050") thick metal they measure 2" on both arms, and can come in any length.  Standard lengths are 36", 42" and 48", but we have the capability to modify to your specifications. They come standard with screw mounting, but other options are available.

 Screws included for mounting

Finishes

The Von Duprin 050335 1654/4954 Top Mullion Fitting and Cover are the replacement top fittings for the 1654 and 4954 removable mullions.

The Corner Guard 310 are a great way to protect corners in areas of high traffic and high abuse, such as warehouses and hospitals.  Fabricated from 16 gauge (.050") thick metal they measure 3-1/2" on both arms, and can come in any length.  Standard lengths are 36", 42" and 48", but we have the capability to modify to your specifications. They come standard with screw mounting, but other options are available.

 Screws included for mounting

Finishes

The Von Duprin Panic Device 210NL Trim is part of there economy series trims.  This trim iis a pull with a key cylinder hole, it will line up with the chassis mounting holes of the 22 and 2227 devices.  The key locks and unlocks the exit device.  The plate measures 5-3/8" x 4-25/32" x 3/32", with a projection of 1-31/32".

• For 1-3/4" (44mm) doors standard
• Through-bolted with 3 mortise nuts
• Pulls project 1-1/2" (38mm) from door face
• GTB Design trim will cover a 161 cutout

The Sargent 646 Surface Strike is used on the 20, 30 and 80 Series Surface Vertical Rod Panic Hardware and Fire Rated Hardware.  It is used as a strike for the top latch. The strike measures 1-5/32" x 3-11/16"  with a 3/4" projection.   Strike features a black coated epoxy finish.

Sargent Part #646

The Von Duprin 55 Hinge Case Spring 090052 is the spring in the inactive case.  This spring does all of the lifting of the cross bar, and is used on the 55 Rim, 5547 Concealed Vertical Rod and 5575 Mortise Device.  It measures 1-5/8" long by 5/8" diameter.

Von Duprin part # 090052

Plastic end cap for all Adams Rite Concealed Vertical Rod and Mortise devices, specifically the 8300, 8500, and 8600 Series.

Plastic cap measures 2-3/8" high by 1-1/16" wide by 1-1/4" projection. The metal tab measures 1-3/16" wide by 5" long.

Adam Rite Part # 41-0901-05-IP

The Jackson 1095P Paddle Panic Hardware is an alternative to the cross bar or push pad style panic hardware.  The device is the same as the Jackson 1095, but with a paddle instead of the cross bar.   This device is for use on aluminum or steel doors only.   The device is mounted on surface studs that are tapped into the door.  On a wood door they will pull out.

Right Hand Reverse Shown

Von Duprin Exit Device 88 Axle Package

Von Duprin 88 Axle Package

New style axle snaps together, and replaces the old style which were screwed together with allen wrenches. This style of axle has been around since about 1990. The piece on the right is only used for taking the axle apart.

Von Duprin Part # 090006 or 090082

Von Duprin 3327A Exit Device Only

3327A and 3527A for all types of single and double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. The 3527A has a smooth mechanism case and the 3327A has grooved case. 3327A/3527A fits door stiles as narrow as 1-3/4". Newly designed device has a one piece center case cover.

The Von Duprin 9927 Rod Guide Assembly 112063 works on all of the Von Duprin 98 and 9927's. The guide keeps the rods from bowing or getting bent by hand carts, or rowdy patrons.  Replaces the old style which had the cover and springs.

Von Duprin part # 112063

Von Duprin 33A Exit Device Only

33A and 35A for all types of single and double doors with mullion, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. The 35A has a smooth mechanism case and the 33A has grooved case. 33A/35A fits door stiles as narrow as 1 3/4". Newly designed device has a one piece center case cover.

The Von Duprin 050400 Top Latch is used on the 2227, 3327A, 3427A, 9827 and 9927 exit devices. It is used the Fire-Rated along with the standard Panic Devices.  The 050400 is sold without the the Mounting Bracket, if you need the Mounting Bracket you can order the 050546, or order the G99VR10 (050091) which will come with the Bracket. This latch is for use on devices shipped after October 1998. This is usually the problem if your bottom rod is dragging on the floor. Includes screws.

Von Duprin Part # 050400

The Von Duprin 88 and 55 Wedge Tite Screw 090081 is used on the 55 and 88 panic hardware.  This screw applies pressure to the wedge which then expands the wedge ring to key the Von Duprin 88 and 55's crossbars tite.  The screw is a 5/16-18 x 5/8 hollow set point.

Von Duprin Part # 090081

The Cal-Royal CRCODE204 is for use with the 2200, 7700 and 9800 Rim and Surface Vertical Rod Devices. The Lever Mechanism features a Break Away Lever, for use with 1-3/4 inch to 2 inch thick doors, non-handed, Single Code User, Key Override, easy on the door code change, weather resistant, and more than 8000 non-sequential possible code combinations.

Installation and Programming Instructions

Doromatic PB48 Strike Shim Package Of 10 Pieces

This Dor-o-Matic product is for the PB48 Top Strike. This is the shim that goes under the top strike. The plate measures 1" x 1-1/16" with 4 holes. The mounting holes are 11/16" x 11/16" on center. They are only sold in packages of 10.

Doromatic Part # SHIM.112

Standard duty 2-1/4" knob is factory pinned to swivel spindle
to 1-3/4" door. Spindle has two 3/8" centers. Inside knob has
two case hardened set screws and spindle is threaded 3/8-18

The Ives Universal Dome Floor Stop FS439 is constructed of cast zinc or stainless steel, depending on the finish.   The stop measures 1-1/2" high, with a base height of 1/4" and base diameter of 1-7/8".   The pad has a height of 1-1/8" from the floor.

Ives Part Number FS439

Corbin Russwin ED4200S Latch Assembly

The Corbin Russwin ED4200S 681F618 Latch Assembly is used on the Narrow Stile SecureBolt Exit Device.  The difference between the ED5200S and ED4200S Latch Assembly is the location of the Hub.  Hub on the ED4200S Latch Assembly is located on the center line of the Assembly Mounting Screws.

Corbin Russwin Part # 651F618

The Hub Position on this Latch is the ED4200

The Door Pull Offset #39 Handle is constructed of either solid aluminum, brass or stainless steel. The handle is 1" diameter tubing with a 2-3/4" offset and 2-3/4" projection. This is the most common type of handle you use today.  Just about every aluminum framed storefront door has a version of this handle. This handle is available in 8", 10", 12" and 18" centers on the mounting holes. The back to back mounting is for Metal or Wood Doors that are 1-3/4 thick. Included fastener is threaded into one of the handles, and the Stud End has fits into the inside handle and is held in place by a set screw on the handle.

Package includes two offset pull handles and fastening hardware. Shown in Polished Stainless Steel with 12 inch centers.

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks.

The Adams Rite 4581 Universal Cam is used on the 4500 and 4700 Dead Latches.  The handing is easily switched between Right Hand and Left Hand. We ship the 4581-01 Cam for the 1-3/4" thick doors, if your door is more thick, please email us for a price quote.

The Von Duprin 22 Mechanism Metal End Cap 900397 is new for 2016.  This new kit replaces the 900397 with a metal end cap, which is has always been a weak link of the 22 series.  The package includes the End Cap, Bracket and the Mounting Screws.  This cap and bracket will work on all of the 22 and 2227 series.

Von Duprin part # 900397

Falcon Dor-O-Matic STK45 Surface Strike

This strike is used when we have a double door application without a center post. By using this strike we can have one door with a surface vertical rod and one door a rim device, which will save money because vertical rods are usually expensive. This strike can be used with the 1590, 1790 and 2090 Rim Devices. The strike base measures 1-5/16" wide by 3-1/4" high, and 1/4" thick. The three slots are 1-1/4" on center. This strike ships with the mounting screws.

US19-Black finish

Zipper Pile Weatherstrip .270" Backing - .200" Pile Height - 100' Roll

Replaces Old or Worn-Out Pile Weatherstripping in Doors and Windows. New Zipper Tooth Design Allows Pile to Easily Snap in from Above the Extrusion Slot. High Density Gray Pile with Double Center Fin.

Zipper Pile Weatherstrip .270" Backing - .250" Pile Height - 100' Roll

Replaces Old or Worn-Out Pile Weatherstripping in Doors and Windows. New Zipper Tooth Design Allows Pile to Easily Snap in from Above the Extrusion Slot. High Density Gray Pile with Double Center Fin.

The Von Duprin Panic Device 210DT Trim is part of there economy series trims.  This trim is just a pull, but will line up with the chassis mounting holes of the 22 and 2227 devices.  The plate measures 5-3/8" x 4-25/32" x 3/32", with a projection of 1-31/32".

The Von Duprin 2227 Top Latch 050091 latch is used on devices shipped before October 1998, see related products for the new style latch if your device is newer. This is usually the problem if your bottom rod is dragging on the floor.  Latch measures:   1-1/16" wide x 4-5/16" long (less latch bolt) x 1-7/8" projection at the highest point.  Includes screws.

Von Duprin Part # 050091
