Search results for: 'bolt tube 8000 screw t door cover'

Dor-o-Matic 1790 Drive Bushing Set Screw, 10-16 3.8" UFPHMS SCREW

Doromatic part # SCREW.1150 or PB327

Dor-o-Matic 1790

Dor-o-Matic 1790 Repair Parts Breakdown

Floor Door Stop / Holder Heavy Duty 541

This Floor Mounted Door Stop is a personal favorite. It is extremely heavy duty, and is ideal for areas of high vandalism. Includes the 4-1/2" lag bolt & lag shield. The rubber base is 3" in diameter and is 3" high.  Uses a 3/4" diameter hole for the lag sheild.

This package connects to the rods on the Dorma 9400 Surface Vertical Rod Devices. Plate measures 3/4 x 1/2 inch, finger sticks up 3/4 of an inch. Package includes 2 plates and 2 screws.

This is the same trusted Von Duprin 99 with Electric Latch Retraction, also known as EL.

The International Door Closer 1804BC-P - Fixed Spring Closer is one of the heaviest duty closers in the International product line.   It offers a 10 year warranty, and is Grade 1 rated, which is the highest rating you can have.  The closer features three adjustment valves for closing,latching speeds and one for back check.  The cylinder is constructed of precision cast aluminum.   It ships with a regular arm and parallel arm bracket.   This is one of the last closers out there to still have sizing.  By sizing I mean each door closer has a spring size of different tension so the closer is selected depending on door size and wether it is interior or exterior.  These days we usually use this door closer as a replacement of existing doors.   This door closer is for use on doors up to 48” interior or 36” exterior doors.

3/4" X 9-1/16" Hole Spacing

Floor Door Stop Heavy Duty 540

This Floor Mounted Door Stop is a personal favorite. It is extremely heavy duty, and is ideal for areas of high vandalism. Includes the 4-1/2" lag bolt & lag shield. The rubber base is 3" in diameter and is 2-5/8" high.  Uses a 3/4" diameter hole for the lag sheild.

The SEM7840 LCN Electro Magnetic Door Holder features a metal die cast housing that is surface wall mounted. Tri-voltage design works with 12, 24 or 120 volts, with 35 lbs. of holding force. The magnet housing measures 2-13/16" wide by 4-5/8" high. The armature (door mount part) is 1-11/16" wide by 2-3/8" high with a 1-7/8" diameter. The armature projects out 1-5/8". The total projection of both pieces is 2-5/8". Available in an aluminum or dark bronze color.  Armature extensions are available, along with replacement covers, magnets, and armatures.  Outlet box not included

LCN Part # SEM7840

Dor-o-matic Falcon 1690 and 1790 End Cap Bracket Screw. This screws holds the bracket that holds the end cap.

Doromatic part # SCREW.1070 or PB315

Dor-o-Matic 1690 Repair Parts Breakdown
Dor-o-Matic 1790 Repair Parts Breakdown

The SEM7850 LCN Electro Magnetic Door Holder features a metal die cast housing that is surface wall mounted. Tri-voltage design works with 12, 24 or 120 volts, with 35 lbs. of holding force. The magnet housing measures 2-13/16" wide by 4-5/8" high. The armature (door mount part) is 1-11/16" wide by 2-3/8" high with a 1-7/8" diameter. The armature projects out 1-5/8". The total projection of both pieces is 3-5/8". Available in an aluminum or dark bronze color.   Armature extensions are available, along with replacement covers, magnets, and armatures.  Outlet box not included

LCN Part # SEM7850

The SEM7820 LCN Electro Magnetic Door Holder features a metal die cast housing that is surface mounted on the floor. Tri-voltage design works with 12, 24 or 120 volts, with 35 lbs. of holding force. The magnet housing measures 5-1/8" long x 4-9/16" wide and 3-7/16" high. The armature (door mount part) is 1-11/16" wide by 2-3/8" high with a 1-7/8" diameter. The armature projects out 1-5/8". The total projection of both pieces is 6-3/4". Available in an aluminum or dark bronze color.  Armature extensions are available, along with replacement covers, magnets, and armatures.

LCN Part # SEM7820

Dor-o-Matic 1690 Hex Socket Set Screw-PB317

1/4-20 x 3/8"

Doromatic part # SCREW.1067 or PB317

Dor-o-Matic 1690 Repair Parts Breakdown

The Von Duprin 88 and 55 Wedge Tite Screw 090081 is used on the 55 and 88 panic hardware.  This screw applies pressure to the wedge which then expands the wedge ring to key the Von Duprin 88 and 55's crossbars tite.  The screw is a 5/16-18 x 5/8 hollow set point.

Von Duprin Part # 090081

The SEM-7800-825 Armature for LCN Electro Magnetic Door Holder is the door mounted piece for th LCN SEM7820-825 / SEM7830-825 / SEM7840-825 / SEM7870-825 series.  It features a metal die cast construction armature. The armature (door mount part) is 1-11/16" wide by 2-3/8" high with a 1-7/8" diameter. The armature projects out 1-5/8". Available in an aluminum or dark bronze color.  LCN Part # SEM7820-825, SEM7830-825, SEM7840-825, and SEM7870-825

The Door Pull Handle 12 has a 5-1/2" centers hole spacing and is 6" overall. It has 2" projection with 1-3/8" clearance and the base is 5/8" x 1-1/4". Also known as a Door Handle or Door Grip. Shipped with thru bolts and finish washers.

The Door Pull Handle 23 features two closed ends. This Door Pull is also known as a Door Handle or Door Grip. The dimensions are 14" overall length, 8" centers, with a 3/8" by 1-1/4" handle cross section.   The mounting post has a 1" diameter, and the handle projects out 1-7/8".  The handle ships with thru bolts and finish washers.  It is constructed of aluminum, stainless steel or brass depending on the finish you are looking for.

International 5530S Surface Vertical Rod Device-Light Duty

All devices are non-handed design
Auxiliary guarded latch deadlocks latch bolt automtically locks when the door is closed
High shock-resistant latching mechanical design or protection from vandalism
All inside components are made of high rust-resistant alloy or heavy electroplated steel

Standard 36”: Device length is 33 15/32” (850mm) for 3’ door use, with a standard push bar.
Long 48”: Device length is 44 3/4” (1137mm) for 4’ door use, with long push bar.

Standard vertical rod accommodates 7’ or 8’ doors

We offer the aluminum and dark bronze finish online, the polished brass and stainless steel finishes are available.

The LCN Concealed Door Closer 3031 is mortised into the top of the door.  Standard 3030 series closer shipped with regular arm and wood and machine screw pack. Sized cylinders for interior doors to 4’0”.  Handed for right or left swinging doors.  Closers to meet ADA requirements.

The Cal Royal GLS7700 Rim Device is for use on Aluminum Framed Glass Doors when the Stile width is 1-3/4 inch or more.  The exit device ships with wood and machine screws, along with the Strike plate.  The stainless steel latch bolt has a 3/4 inch throw. This device is a Grade 1, which is the heaviest duty rating.

Cal Royal 7700 Rim Exit Device

For use in institutions, schools, universities, commercial buildings where heavy duty reliable operation is a requirement. ANSI A156.3, Grade 1 heavy duty exit device in surface vertical rod and rim designs. Rail assemblies are heavy duty extruded aluminum body with stainless steel push pad and end caps are made of brass, bronze or stainless steel. Rail travels in direction of the door swing. Trims are thru bolted for additional security. Conforms & Meets ADA Regulations. UL Listed for Panic and ULC10C, UBC 7-2-1777 codes. UL Listed for Fire Exit Hardware. Uncompromising security and safety in single and double fire exit doors. Chassis mounted unit construction. Rim and vertical rod devices are non-handed and easily reversible. Available in many different functions. Lever and escutcheon trims are grade 1 construction with clutch free-wheeling mechanism. Rose and escutcheon covers 161 cut out.

Templating matches the Von Dupin 99 and 98

Cal Royal 5000 Lever Trim

Cal Royal Part # 8000/L

The Sargent Door Closer 351 is the most heavy duty closer made by Sargent.  This closers meets ADA requirements, meets the Buy American Act, and is certified Grade 1, the heaviest rating possible.  The closer has the capability to be mounted on the push, pull or top jamb, and is non handed. It ships with arm, plastic cover, parallel arm bracket and all of the fasteners.  The hole spacing is 2-1/2" x 9"

The Door Pull 25 is made of 3/4" round stock in either solid, Aluminum, Brass or Stainless Steel. The handle has a 2-3/8" projection from the door, and 1-5/8" clearance from the door to the back of the handle.  It comes standard with thru bolts and finish washers, but can be special ordered if you would like the handle mounted back to back or surface mounted. Also known as a Door Handle or Door Grip.

International 5510S Rim Device-Light Duty

All devices are non-handed design
Auxiliary guarded latch deadlocks latch bolt automtically locks when the door is closed
High shock-resistant latching mechanical design or protection from vandalism
All inside components are made of high rust-resistant alloy or heavy electroplated steel

Standard 36”: Device length is 33 15/32” (850mm) for 3’ door use, with a standard push bar.
Long 48”: Device length is 44 3/4” (1137mm) for 4’ door use, with long push bar.

All PR80 Closers are UL listed and warranted for ten years. Parallel Arm Brackets and mounting hardware are included with each closer permitting universal installation for regular, top jamb or parallel arm applications. The closer is supplied with a standard plastic slim style cover.

The closer is sized for 2 to 5 spring tension and will work on doors 24" to 54" Wide and 33 to 264 Lbs. This closer has a hole spacing of 3/4 x 9-1/16 inches.

The Dorma 95059481 Lever Trim Return Spring is used on the 8000 series Lever Handles.   The spring has a 2-3/16" diameter.

The Von Duprin 090076 Spring is located in top latch of the Surface Vertical Rod.  It is used on the 2227, 3327A, 3427A, 9827 and 9927 models. It is number 18 in the attached diagram. They are sold in packages of 10.

The Yale Door Closer 3301 is constructed of a cast aluminum alloy.  It is considered a Grade 1 Closer, which is the highest grade possible.  The closer features an adjustable spring tension, and separate closing, latching and back check intensity valves.  The slim line plastic cover is standard on this closer.  This door closer replaces the older 3301BF closers. The new version is Barrier Free Complaint.  The hole spacing is 3/4" x 12", the cylinder is sometimes cast 20-3301-1001 on the back of the cast aluminum cylinder.  This closer ships with all of the mounting hardware and parallel arm bracket.

Dor-o-Matic 990/1090/1990/2090 Cross Bar Screw

Doromatic part # SCREW.1027

1/4-20 x 1" Self Tapping Threads

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

The International Door Closer 5001P Series Adjustable Spring Power is a great closer to use as a replacement for the many 3/4" by 12" mounting holed closers.  This door closer is fully adjustable with sweep, latching and back check adjustments, a long with an adjustable spring tensoin control.  This closer can be adjusted to less then 8-1/2" pounds of resistance to meet ADA standards.  You can install this closer on the push, pull or top jamb, we ship the regular arm and a parallel arm bracket.  This closer has the same mounting holes as the Norton 8000 and Yale 3000 door closers.

Hole spacing 3/4" x 12"

The Door Sweep 1" Long Rubber has an over height of 1-7/8", with 1" of it being the gray rubber seal.  The mounting rail is constructed of extruded aluminum and is available in aluminum or dark brown finishes.  This sweep ships with screws.

International Part # IDC-97V

This Barn Door Pull Set features back to back handles that are thru-bolt mounted for a hassle-free setup.  The Grip is 6 inches on centers and is constructed of 3/4 inch round stock, and projects out 2-3/8 inch. The flush pull face dimensions are 2-1/2 by 7 inches. The mortise size of the flush pull are 2 x 7/8 deep x 1/4 inch.

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.

Floor Door Stop / Holder 536

The Stop and Holder 536 is considered a manual door holder.   It is a manual door holder because you have to physically bend over and hook and unhook the holder.  This holder is constructed cast brass or cast bronze and then plated to your desired finish.  The stop measures 2-1/2" in diameter and 3-7/8" overall height, with a center line height of 2-1/2" from the base to the center of the rubber stop.  It ships with all of the fasteners.

The Door Pull Handle 22 features an opened end and a closed end pull. This Door Pull is also known as a Door Handle or Door Grip. The dimensions are 14" overall length, 8" centers, with a 3/8" by 1-1/4" handle cross section.   The mounting posts have a 1" diameter, and the handle projects out 1-7/8".  The handle ships with thru bolts and finish washers.  It is constructed of aluminum, stainless steel or brass depending on the finish you are looking for.

The Von Duprin 55 Dog Screw-090053 is the newer version, meaning less then 25 years old.  It measures 3/8" diameter by 1/2" long with 14 threads per inch.  They did have an old style that was available up to a few years ago that had 15 threads per inch.  If you have any old style I would recommend the D100 Panic Bar Retainer.

Von Duprin part # 090053

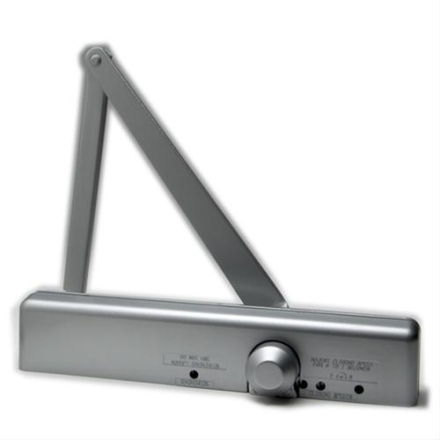

The Global Door Closer TC4361 is recommended for use on heavy duty commercial, architectrual and institutional applications. It is ideal for business, new construction and renovations. It has a full selection of accessories to accomodate the requirements of any field installation. It is tri-packed standard and comes with all fasteners, brackets and soffit plates for versatility. Closers with non-hold open arms are UL listed for "A" label fire doors. Fully compliant with opening force requirements for ADA and ANSI/BHMA standards.

Options: Specify when Ordering

• Finish - AL, DU

The hole spacing is 1" by 7-1/2"
