The Cal-Royal 45 Narrow Stile Rim Device is part of the new 4500 Series.  They are designed for Narrow Stile doors with a minimum of an 1-3/4" stile width.  This is a Grade 1 Exit Device, which is the highest traffic rating possible. Exit device ships with strike and mounting screws.

Shown is Left Hand Reverse
Opposite would be Right Hand Reverse

The International Door Closer 853P Series is a common closer we see on a lot of storefront aluminum framed doors.  This is one of the last closers out there to still have sizing.  By sizing I mean each door closer has a spring size of different tension so the closer is selected depending on door size and whether it is interior or exterior.  These days we usually use this door closer as a replacement of existing doors.   The closer features two adjustment valves for closing and latching speeds.  The cylinder is constructed of precision cast aluminum.  If you have an exterior door I would recommend the 880 Series, which is the same door closer, but has a back check valve.  The back check valves will slow the door down if it is caught by a gust of wind.  It ships with a regular arm and parallel arm bracket.  This door closer is for use on doors up to 32” interior or 28” exterior doors.

Direct replacement for the older style Norton 1602 and 1603, and Yale 52 and 53, that had the 3/4" x 8-3/16" mounting holes

The International Door Closer Main Arm 520 is a replacement arms used on the 640, 650, 850 and 880 series.  This arm is probably used on other International Closers also.  The arm measures 12" overall length, and fits a 7/16" square shaft.

International Door Closer part # 520

LCN Door Closer Fusible Link Arm

Adjustable nut allows door closer arm to lock when the preselect position is reached. Fusible Link will hold door until heat melts the "Link" and then the door will shut. Used on Fire Doors to control a spreading fire.

Specify your current closers model number when ordering.
Not all of the LCN closers have the same shape spindle on the door closer
cylinder. The LCN Part #'s on this Fusible Link Arm is: 4010-3049FL, 4020-3049FL, 4110-3049FL

Can be used with all Doromatic devices. Comes complete with mounting studs (G199002S)
9-1/4" center to center
2-7/8" projection
1-3/4" clearance

The International Door Closer 883P Series is a common closer we see on a lot of storefront aluminum framed doors.  This is one of the last closers out there to still have sizing.  By sizing I mean each door closer has a spring size of different tension so the closer is selected depending on door size and wether it is interior or exterior.  These days we usually use this door closer as a replacement of existing doors.   The closer features three adjustment valves for closing,latching speeds and one for back check.  The cylinder is constructed of precision cast aluminum.   It ships with a regular arm and parallel arm bracket.  This door closer is for use on doors up to 32” interior or 28” exterior doors.

Direct replacement for the older style Norton 1602 and 1603, and Yale 52 and 53

3/4" x 8-3/16" mounting holes

The Norton Door Closer 1601 has been around for the past 40 years.  With the advent of aluminum framed glass doors, Norton was on for the first manufactures to come up with a narrow stile door closer.  Because of this, it is still one of the most popular door closer model out there.  It is a Grade 1 closer and has adjustable closing, latching, and back check speeds.  The model we ship also has adjustable spring tension to work on a wider range of doors.  The hole spacing is 3/4” x 9-1/16”.

Older models may be stamped with Scoville or Eaton, which are the companies that used to own Norton.  We sometimes find 20-1624-4001, or 20-1604-4001 stamped on the back of the closer. If your door closer is stamped 20-1603-4001 or 20-1623-4001, you might want to double check the hole spacing. The 20-1603-4001 usually has a hole spacing of 3/4" x 8-3/16", you could use the International Door Closer 853 as a replacement.

The LCN 1250 Rw/PA Door Closer is a direct replacement for the Norton 1600, Yale 50, Falcon/Dor-o-Matic SC60, LCN 1260 and International 8050 Series Door Closers.  It is  ideal for low frequency and low abusive traffic areas, such as store front doors and interior doors.  It features, a cast aluminum cylinder, 15 year warranty, powder coated finishes, and stick on mounting template.  This door closer comes with the ability to mount on the push, pull or top jamb and is non handed.   The door closer meets Grade 1-ANSI A156.4, UL/cUL, ADA and the Buy American Act certifications.
Hole Spacing 3/4” x 9-16”

The LCN Door Closer Hold Open Arm 3049 has an adjustable nut that allows the door closer arm to lock when they reach a pre select position.  This arm can be used on most LCN Door Closers because the Hold Open function is in the arm.   If you have a regular armed LCN Closer currently, you can use this arm to make them have the Hold Open function.  Two words of warning, they can not be used on an interior fire rated door, and Hold Open arms usually break.   The manufactures sell more door closers with regular arms, but we tend to sell more Hold Open arms, meaning they wear out or break a lot easier then Regular Arms.

Specify your current closers model number when ordering.
Not all of the LCN closers have the same shape spindle on the door closer cylinder. The LCN Part #'s on this Regular Arm is: 1260-3049 (non handed), 1460-3049 (non handed), 4010-3049 (handed), 4020-3049 (handed), 4040-3049 (non handed).   The fitting for the 4040 is a six sided, the 4010, 4020 and 4110 have a flat sided oval, and the 1260 and 1460 have an eight sided star.

The LCN Door Closer 62PA Parallel Arm Shoe is constructed of steel and then powder coated to your color.  This is the shoe that LCN used on there universal door closers for the parallel arm mounted door closers. This is the bracket that is shipped with the Rw/PA and Hw/PA arms.  A parallel arm closer is a door closer that has the arm parallel to the door when the door is closed. This part is also known as the 1260-62PA, 1460-62PA, 4030-62PA, and 4040-62PA. Ships with mounting screws.

The 4040XP Rw/PA is LCN’s most durable and flexible heavy duty surface mounted closer, designed for institutional and other demanding high traffic applications. The LCN 4040XP Rw/PA sets a new standard for reliability, longevity and value with a better design and extraordinary performance testing that goes far beyond industry requirements. They built the 4040XP from the inside out, combining tougher, bolder construction with proven LCN technology. The result is a closer that’s stronger, smarter and delivers remarkable value in a variety of applications.

The patented green dial on the LCN 4040XP Rw/PA makes spring adjustments fast, easy and foolproof. The all-weather fluid reduces maintenance and ensures consistent performance through every season. High-traffic doors call for heavy-duty closers – closers that won’t let you down no matter how many people go through the door or how hard they kick, push or slam against it, or in the case of public schools the dreaded flying kung-fu kick. And when it comes to heavy-duty closers, no other closer performs like the LCN 4040XP Rw/PA.

The LCN 4040XP Rw/PA features cast iron construction, forged steel arm, double heat treated steel pinion, non-handed, LCN® “Green Dial” spring force indicator, Peel-n-Stick templates, UL and cUL Listed, 3⁄4″ journal diameter pinion, full compliment bearing, and tested and certified under ANSI standard A156.4, Grade 1.

The Door Pull Handle 16 has an overall length of 7-1/2". The base diameters are 2" with three holes each. The handle projects out 2-1/4" and has a clearance of 1-1/2". Also known as a Door Grip or Door Handle. This handle ships with 6 wood/sheet metal screws.

The Von Duprin 88 End Case 050435 is also known as the hinge case, meaning it is on the hinge side of the door.   This End Cap is used on all of the Von Duprin 88 models, which include 88, 8827, 8847 and 8875.   This piece does all the lifting of the cross bar, so it is an important component.  The case includes the all of the internal workings and springs.

Von Dupin Part # 050435

The International Door Closer Arm and Track 3020-VO is for offset top arm assemblies, with the track mortised in the top of the door.  This track and arm are for the 7/8" depth of top rail application.  Track measures 12-5/8" long by 1/2" high by 1-1/4" wide.  For use with the 2000, 3000 and 5000 series concealed closers.

The SEM7830 LCN Electro Magnetic Door Holder features a die cast metal housing that is surface wall mounted. Tri-voltage design works with 12, 24 or 120 volts, with 35 lbs. of holding force. The magnet housing measures 2-13/16" wide by 4-5/8" high. The armature (door mount part) is 1-11/16" wide by 2-3/8" high with a 1-7/8" diameter. The armature projects out 1-5/8". The total projection of both pieces is 4-1/8". Available in an aluminum or dark bronze color.  Armature extensions are available, along with replacement covers, magnets, and armatures.

The Von Duprin 22 Mechanism End Cap 900981 is the end cap and bracket that ships with the 22 and 2227 series.  The bracket is constructed of zinc plated steel and the end cap is black plastic. Bracket also acts as mounting bracket that holds the exit device on the door.  Von Duprin does offer a new Metal End Cap, look under related products.

Von Duprin part # 900981

The Door Pull Offset 1" Diameter PH-4000 is usually used on aluminum frame glass doors. This handle offers three different mounting options, one is surface mounted, where the handle is mounted over a mounting stud and then you tighten the set screw to hold the handle in place. The second method is thru bolted, the bolt goes all the way thru the door. And the third is back to were you have two handles mounted back to back.  This handle projects 3-1/4", has a 2-1/4" door clearance, comes in 9", 10" and 12" centers.  One of the most popular handles we sell.

The Door Pull Handle 11  has 8" center to center screw spacing. The base is 3/4" diameter, the overall lenght is 9-1/4". The projection is 2-1/8" and the clearance is 1-1/2". Also known as a 8" Center Door Grip or Door Handle. This handle is shipped with thru bolts and finish washers.

The International Door Closer 8051-TP Series is an ideal replacement closer for just about any Store Front Door. We recommend this closer because it will fit any size door, and you can adjust the spring tension to make it easier for the elderly, smaller children and the handicapped. The 8051 will work in interior or exterior doors, and will meet ADA codes.  This door closer will work on a Right or Left Hand Door, Push or Pull side or Top Jamb mounting, it ships with a parallel arm bracket, arm and mounting screws along with a full plastic cover.   We ship the 8051-TP DU or 8051-TP AL depending on the color you choose.  Length of Closer is 9-3/4”, Horizontal Mounting Holes 9-1/16”, Vertical Mounting Holes 3/4”, overall height is 4-21/32” with height of l1-21/32”, and projects  2-29/32” from the door face.    The 4 adjustment valves are Closing and Latching Speed, Power and Back Check.

Norton 7701-11 Rod and Shoe

The Norton Rod and Shoe 7701-11 and 7701-11A come in two different lengths, 8-7/8" and 12-1/2".  The length is measured from the end of the bar to the center of the eyelet.

Norton Part #'s:
8-7/8" Long  7701-11
12-1/2" Long 7701-11A

The LCN 79 Door Closer Rod And Shoe  piece fits into the female part of all LCN Regular Arms. The old style had two concave set screws and a ball pressed into the rod. If the door over rotated the ball would pull out of the concave set screws. The new version has a pin holding the rod to the shoe which is designed to fail if the door is over rotated. This piece will work on the LCN 1260, 1460, 4010, 4020, 4030 and 4040 door closers with regular arms. Some of the really old models have multiple threaded holes, so you might have to drill a hole in the female tube. Part #'s 4040-79, 4040-79LR and 4040-79ELR. The 1260, 1460, 4010, or 4020 could replace the 4040 in those part numbers, they are the same.

Floor Door Stop / Holder FS43

This floor mounted door holder has been around since the 1960's. It used to go by the name Glynn Johnson GJF43A or F43A, and was brought over to the H.B. Ives line in the 1990's and now goes by the part # FS43. Many schools and hospitals have this door holder in use today. It features: Automatic door holders ideal for heavy-traffic situations that require a simple, fool-proof, Hold-Open device. Forged from brass. Unit is activated automatically when door is opened. A firm pull on door releases the mechanism. Strikes accommodate different door to floor clearances. Model numbers are determined by strike/door-to-floor clearances. Holder position on door is adjustable.

Door to Floor Clearance 1-5/8" to 2-11/16"
Holder Dimensions 3" Wide x 3-11/16" High

The Global Door Closer TC4361 is recommended for use on heavy duty commercial, architectrual and institutional applications. It is ideal for business, new construction and renovations. It has a full selection of accessories to accomodate the requirements of any field installation. It is tri-packed standard and comes with all fasteners, brackets and soffit plates for versatility. Closers with non-hold open arms are UL listed for "A" label fire doors. Fully compliant with opening force requirements for ADA and ANSI/BHMA standards.

Options: Specify when Ordering

• Finish - AL, DU

The hole spacing is 1" by 7-1/2"

The International 300 Series Adjustable Power Door Closer is one of there new closers to meet ADA requirements.  With this door closer you can adjust the spring tension, closing and latching speed, even after it was installed.  The Spring Power is adjustable all the way down to 8-1/2 pounds of resistance, making it ideal for areas with the elderly and children.

Hydraulic Cylinder only

3000-B-310 105 with Hold Open
3000-B-311 105 with No Hold Open
3000-B-312 90 with Hold Open
3000-B-313 90 with No Hold Open

The concealed LCN Door Closer 2031 -2035 Pacer® is a heavy duty closer designed to fit in a narrow, minimum 1 3/4” aluminum transom.  It is considered an application specific closer, due to the cylinder spring sizing and handing.  The standard 2030 series closer shipped with standard arm, standard track, mounting/finish plate, and wood and machine screw pack.  Aluminum frame requires minimum 1 3/4”  x 4”  tube.

The International Door Closer 1804BC-P - Fixed Spring Closer is one of the heaviest duty closers in the International product line.   It offers a 10 year warranty, and is Grade 1 rated, which is the highest rating you can have.  The closer features three adjustment valves for closing,latching speeds and one for back check.  The cylinder is constructed of precision cast aluminum.   It ships with a regular arm and parallel arm bracket.   This is one of the last closers out there to still have sizing.  By sizing I mean each door closer has a spring size of different tension so the closer is selected depending on door size and wether it is interior or exterior.  These days we usually use this door closer as a replacement of existing doors.   This door closer is for use on doors up to 48” interior or 36” exterior doors.

3/4" X 9-1/16" Hole Spacing

Von Duprin 98/9947-F 98/9949-F Center Case

Replacement Center Case for the 9847/9947 and 9849/9949 Exit Devices

Von Duprin Part # 050022

The Norton Door Closer Parallel Arm Bracket is the bracket shipped with the Norton 1600, 7500, 8301, 8501 and 9300 series closers.  This bracket is also used by Yale on there 2300, 50, 3301, 3501 and 4400 door closers.  The factory part number on this is 1618A for Norton and 289A for Yale.

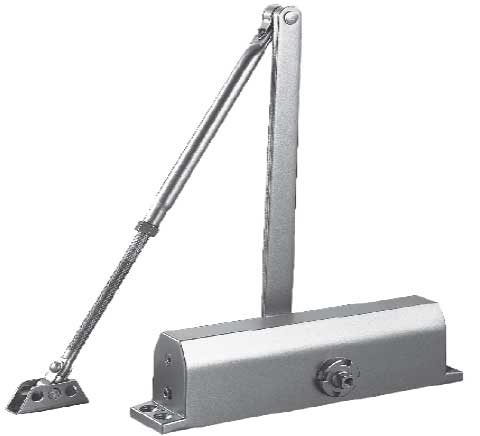

The International Door Closer 1802-P - Fixed Spring Closer is one of the heaviest duty closers in the International product line.   It offers a 10 year warranty, and is Grade 1 rated, which is the highest rating you can have.  The closer features three adjustment valves for closing,latching speeds and one for back check.  The cylinder is constructed of precision cast aluminum.   It ships with a regular arm and parallel arm bracket.   This is one of the last closers out there to still have sizing.  By sizing I mean each door closer has a spring size of different tension so the closer is selected depending on door size and wether it is interior or exterior.  These days we usually use this door closer as a replacement of existing doors.   This door closer is for use on doors up to 36” interior and is not recommended for exterior doors.

3/4" X 9-1/16" Hole Spacing

The Door Pull Handle 15 features 7-1/2" centers on the mounting screws. With 2" diameter bases. The Grip has a 2-1/4" projection with a 1-5/8" clearance. Also known as a Door Handle or Door Grip. This handle ships with thru bolts and finish washers.

The LCN Door Closer Spring cush Arm 3077SC is an optional arm offered by LCN.  The arm features a solid forged steel main arm and forearm with a spring loaded stop in the soffit shoe, which makes this arm ideal for abusive parallel arm applications.  Specify your current closers model number when ordering. Not all of the LCN closers have the same shape spindle on the door closer cylinder. The LCN Part #'s on this Regular Arm is: 1460-3077SC, 4040-3077SC, 4110-3077SC

LCN Sentronic Door Closer Arm - 4010SE-3077T

LCN part # 4010SE-3077T

This arm will only work on the 4010SE. If you have another LCN Sentronic Model, we can order the arm you need. For us to do that we would need to know which model you have (4110SE, 4010SE, ect..) and the hand of the door, see diagram. This arm is for a discontinued LCN Door Closer. We can not allow returns, each arm is specail ordered.

The arm shown in the picture is a 4040SE arm, the 4010SE arm is the same, but the shaft hole is an oval.

With the Handicap Door Pull 19 you are able to get a closed fist behind the pull, which makes it a great ADA Door Pull. Constructed of cast aluminum or cast brass and plated to the desired finish.  The overall length is 8-3/4", the bases are 1-1/2" x 1-5/8", and it projects 3-1/4".   Shipped with screws. Also known as a Double Arm Pull, Handicap Grip, ADA Door Pull or Handle.

The Door Sweep 1" Long Rubber has an over height of 1-7/8", with 1" of it being the gray rubber seal.  The mounting rail is constructed of extruded aluminum and is available in aluminum or dark brown finishes.  This sweep ships with screws.

International Part # IDC-97V
