The Door Pull Offset 3/4" Diameter #29 is constructed of either solid, Aluminum, Brass or Stainless Steel. The handle 3/4" diameter tubing with a 2-1/2" projection and 2-1/2" offset.  We find these on narrow stile aluminum framed glass storefront doors.  It comes standard with thru bolts and finish washers, but can be special ordered if you would like the handle mounted back to back or surface mounted. Also known as a Door Handle or Door Grip.

The Panic Hex Key 5/32" x 3-1/16" Long is a must for Von Duprin 22, 33, 35, 98 and 99 panic hardware.   This key has a longer shaft to reach deeper into the Von Duprin Panic Devices.   This key is also known as Hex Key, Dog Key, Allen Key,  and Dogging Key.

Back to Back mounted Off-Set Door Pull featuring 1-1/4 inch stock diameter stock. Handle has a 4 inch offset with a 2 inch clearance and 3 1/4" projection. Available in 12 or 18 inch centers. Sold as sets, 2 handles and 3/8-24 thread stud.

Back to Back fasteners are for a 1-3/4 inch thick door, if your door is a different thickness, please let us know in the comments.

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.

Von Duprin 88 Dog Screw. Newer style, after 1975 or so. If you have an older exit device they no longer make that screw.  I would recommend the D100, Panic Bar Retainer, for dogging down your device.

Von Duprin 88 dog screw 14 threads per inch

Von Duprin Part # 090083

Single Door; Easy-To-Use Pushpad for Quick Egress and ADA Compliance; Low Profile and Projection for Barrier-Free Code Compliance; No Projecting Parts to Inhibit Egress; Single Point Latching. School and University; Health Care; Government and Public; Commercial and Industrial; Office and Retail; Transportation and Utilities; Hotels and Conference Centers; Religious

For 36" doors, aluminum finish only.

The Hands Free Foot Operated Door Pull is a low cost solution to keep your hands off of high traffic handles. It is constructed of cast aluminum, and measures 4" wide by 1-7/32" high with a 2-3/8" projection. The package includes fasteners, door decal and installation tool.

For Doors Wood or metal. 1 3/4" (44.5mm) thick standard. 2 1/4"(57mm) thick on order.
4 1/8" (105mm) miminum stile
Mounting Supplied standard with wood and machine screws.
Chassis Cover Brass, bronze or stainless steel
Chassis Nonferrous alloy
Crossbar 1" brass, bronze and stainless steel tubing.
Hand Reversible
Dogging Standard Allen key dogging

Doromatic 1490 PB56 Lift Bracket

7-1/2" x 1" wide

Doromatic part # PB56 or 4270106796

The Cal-Royal 45 Narrow Stile Rim Device is part of the new 4500 Series.  They are designed for Narrow Stile doors with a minimum of an 1-3/4" stile width.  This is a Grade 1 Exit Device, which is the highest traffic rating possible. Exit device ships with strike and mounting screws.

Shown is Left Hand Reverse
Opposite would be Right Hand Reverse

Simplicity
• Engineered with minimum components and maintenance-free
• Modular design allows for phased component installation. Chassis assembly can be mounted separately to secure the door during construction
• Retrofits to all applications
• One chassis design to accept all available functions/trims
Durability
• Reinforced cast (ZA) alloy chassis – exceptional strength and durability. Withstands 2X more static load forces compared to a stamped steel chassis
• Endures over 4 times the ANSI/BHMA A156.3 2001 Grade 1 cycle testing standard
• Non-handed rim; reversible vertical rod
• Solid stainless steel latch. Meets UL panic test requirements without roller strikes which compromise strength and durability
• Three year warranty

International Door Closer T1 Push Pull Mounting Screw is used PH-4000, PB-2000, and PP-2000.  The screw measures 2-9/16 inches long, with a 3/8 inch diameter and 18 threads per inch.

Rim Cylinder

Standard Rim Cylinder for use on Rim Cylinder activated exit and panic devices.

The Concealed Mount Push and Pull Plate Sets feature an 1/8 inch push plate with a 1/20 inch plate plate. The handle is surface mounted with thru mounted studs. 8 inch center handles are 3/4 inch diameter, 10 in and 12 inch center handles are 1 inch diameter.

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.

The Corbin Russwin ED4000/5000 Rim Strike 650F29 is used on the ED4200 and ED5200 Rim Panic Hardware.  A Rim device is an exit device that has the latch bolt protruding from the center case.

Corbin Russwin part # 650F29

The International 300 Series Adjustable Power Door Closer is one of there new closers to meet ADA requirements.  With this door closer you can adjust the spring tension, closing and latching speed, even after it was installed.  The Spring Power is adjustable all the way down to 8-1/2 pounds of resistance, making it ideal for areas with the elderly and children.

Hydraulic Cylinder only

3000-B-310 105 with Hold Open
3000-B-311 105 with No Hold Open
3000-B-312 90 with Hold Open
3000-B-313 90 with No Hold Open

Corbin Russwin DC3210 Door Closer

The mid-priced, cost-effective choice for high-traffic situations. Corbin Russwin DC3000 Series Door Closers fulfill security and life safety requirements by ensuring reliable latching for access control and fire code compliance, along with ease of operation and precise adjustability for barrier-free code compliance. Ideal for virtually all door openings and draft conditions in both new construction and renovations.

Fits on the same mounting bracket as the 100, 110, 120, 2800, 2810 and 2820 Corbin Russwin Door Closers

Idea for interior doors.

The Clear Plastic Corner Guards 312 are a good way to protect corners from hand carts and dollies.  If the area has a lot of traffic, like a warehouse, I would recommend the 310 or 311 which are made of metal. The are 2" by 2" and are usually 48" long, but we can do custom sizes.  They are constructed of .120" thick clear polycarbonate plastic.  Screws are included for mounting.

Von Duprin 8827 Bottom Vertical Rod Assembly

This bottom vertical rod is used on non fire rated doors. The rod includes the bottom rod connector. The rod is 31-7/8 inches long, excluding the rod connector.

Von Duprin Part #050455
Old Part #101777 and 103234

The Dor-o-Matic 1690/1990 Top Strike PB48 is used on the Dor-o-Matic 1690, 1990 and 2390 Concealed Vertical Rod Exit and Panic Devices. The plate measures 1" x 1-1/16" with 4 holes. The mounting holes are 11/16" x 11/16" on center. The diameter of the pin is 7/16" and projects out 5/32". Ships with mounting screws and 3 shim plates.  The Dor-o-Matic Panic Devices have been around since the late 1960’s, but have most recently been known as the Falcon Panic Device from a name change they had in about 2008.  They are basically the same device, with the same parts, just a different name plate.  Falcon part # PB48.

Dor-o-Matic/Falcon 990/1990 Repair Parts Breakdown
Dor-o-Matic/Falcon 1690 Repair Parts Breakdown

Yale 793 Strike for 2100 and 7100 Devices

Used on the Yale 7100 and 2100 Series Rim Exit Devices.  Optional strike for double door applications without a mullion.

Yale Part # 793

The Von Duprin 050400 Top Latch is used on the 2227, 3327A, 3427A, 9827 and 9927 exit devices. It is used the Fire-Rated along with the standard Panic Devices.  The 050400 is sold without the the Mounting Bracket, if you need the Mounting Bracket you can order the 050546, or order the G99VR10 (050091) which will come with the Bracket. This latch is for use on devices shipped after October 1998. This is usually the problem if your bottom rod is dragging on the floor. Includes screws.

Von Duprin Part # 050400

The Detex V40 ValueSeries Rim Device is their economical exit device.  The device only comes in powder coated aluminum or black. The standard 36 inch model measures 32-7/8 inches wide.  The unit ships with strike all the mounting screws and a hex dog key.

The Panic Hex Key 1/8" is used on the new Adams Rite, Cal Royal, Jackson and many of the imported panic hardware like International Door Closer.  The key measures 1/8" by 1-13/16" long.  They are also known as Hex Key, Dog Key, Allen Key, and Dogging Key.

The Dorma Rim Device Strike 463 is used on the 8300, 8300F, 9300 and 9300F exit devices. Mounting screws included.

The Von Duprin 990K Trim is known as a Knob Trim.  This plate mounts on the exterior of the door, and the welded on mounting studs line up with the 99 device on the interior of the building.  If you have a different manufacture or a different Von Duprin series on the interior, it will not line up.  On the back of this plate we usually find the number 990 stamped on it.  The key locks and unlocks the knob.  The plate shown here is for the Rim and Surface Vertical Rod 99 and 98 devices.  If you have a Mortise or Concealed Vertical Rod, call us and we will order that model.  The plate measures 3" wide by 14-3/16" tall.   Order here for the 990K-R&V.

International Door Closer T5 Push Pull Back to Back Mounting Screw is used on the PB-2000, PP-2000 and the PH-4000. Overall length is 3-3/16 inches including the head, and has a 3/8 inch diameter. The head has a 7/16 diameter and stick out 5/8 inches.

The Cal Royal GLS7700 Rim Device is for use on Aluminum Framed Glass Doors when the Stile width is 1-3/4 inch or more.  The exit device ships with wood and machine screws, along with the Strike plate.  The stainless steel latch bolt has a 3/4 inch throw. This device is a Grade 1, which is the heaviest duty rating.

The Cal-Royal 6600 Rim Device is a Grade 1 exit device.  It is designed for doors that have at least a 4-1/2 inch stile width. The 36 inch device has a 32 inch actual length and can cut down 6" (24 inch actual). The 48 inch device has an actual length of 44 inches and can be cut down 12 inch (34 inch actual).  Devices ships with 938 Strike and all the mounting screws.

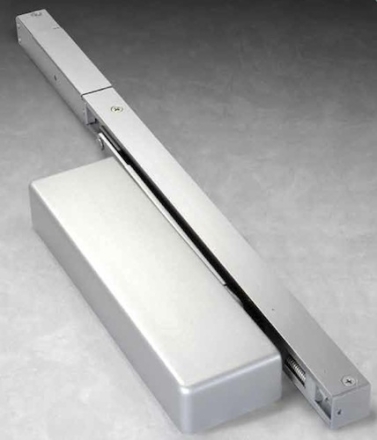

The Norton Door Closer 7700 Series Power Track combine the functions of a single point electromechanical door holder with the proven reliability of a 7700 Series Door Closer. The track assembly contains an arm slide and solenoid operated hold open mechanism and is available with or without an integral smoke detector. The closer is mounted on the door. The Power Track and hook-up box are mounted to the frame face for pull side installations or the frame soffit for push side installations.
Two versions, the Master Unit (PTDO) and the Support Unit (PTO). The PTDO has an integral smoke detector. The PTO can be plugged into the PTDO or into your existing fire alarm system. Both units can be mount pull side of the closed door, or the push side, please specify when ordering. Specify voltage (24 volt or 120 volt) and color (aluminum or dark brown). Dark Brown is a 3 week lead time, Aluminum is in stock.

The PTDO Master Unit is no longer available, they were discontinued in the 2024.

Falcon 3788 Top Latch Strike

The Falcon 3788 Top Latch Strike is used on the 18-V, 19-V, 24-V, 25-V and XX-V panic and fire rated devices.

Falcon Part # 3788

Von Duprin 8827 Rod Guide Assembly

Securely holds rod in place and protects rod from bending.

Von Duprin Part # 050482
Old Part # 101648

Von Duprin 1606 Rim Device Strike for Panic Devices only.  Strike measure 1-3/8 x 2-7/8 with a 3/8 inch projection. The hole spacing is 2-1/8 inches.

The Dor-O-Matic 1690/1790/2390 Dogging Hex Shaft is the piece that your dog key (allen wrench) fits into the lock the device in the open or dogged position.  This shaft is used on the 1690, 1790, and 2390 device.  The Dor-o-Matic Panic Devices have been around since the late 1960’s, but have most recently been known as the Falcon Panic Device from a name change they had in about 2008.  They are basically the same device, with the same parts, just a different name plate.  The part that the hex key fits into is only about 1/4" deep, because of that these tend to get rounded out, so the key will not move the shaft.

To remove the old shaft just pull with a pair of Channel Locks or Pliers.  To reinstall, just press it back in to position, you might have to bend the holding tabs back down, but we very rarely have to do this.  The manufacture part number on this is SHAFT.101.

The Panic Hex Key 3/16" is used on some of the Corbin Russwin panic hardware.  The key measure 3/16" hex by 2-1/4" long.  At this point we do not know of any other manufacture that uses this size key.  Also known as Hex Key, Dog Key, Allen Key, Dogging Key.

The Von Duprin 55 Center Case Axle 090050 is used on the Rim Panic Hardware only.  The Rim device is one that has a latch bolt sticking out of the housing.

Von Duprin Part # 090050 or 090022

The Cal-Royal 9800 Rim Device is a grade 1 Heavy Duty Exit Device.   The 9800 has the same template as the 8800 and 9800 with escutcheon lever trim. The 36 inch device will be 32 inches wide and can be cut down an additional 2" to fit doors as narrow as 30 inches.  The 48 inch will be 44 inches wide and can be cut down to fit doors 36 inches wide. The device is non handed, meaning it will work on a left hand reverse or right hand reverse door. Strike and mounting screws are included.
