Step N Pull®

Stop the spread of germs with this ingenious product. Simple step on the plate and pull the door without grabbing the door pull.

Includes:

1. One StepNpull®
2. Required mounting screws
3. Two stickers, one for the door and the other for the mirror, paper towel dispenser or hand dryer. Actual dimensions are 5"x4"

Currently we only have Aluminum in stock.
Available in Aluminum, Gold or Copper Finish-See Color under "More Views"

Von Duprin 9827/9927 surface mounted vertical rod device for all types of single or double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. The Von Duprin 9827 device has a smooth mechanism case and the Von Duprin 9927 device has a grooved case. The surface vertical rod device is non-handed.

The Falcon Automatic Opener 8242 is a smart and easy solution to improve accessibility and meet ADA Codes.  The 8242 is a non handed, surface mounted, 115 volt closer for a push side mounting.   If your door is an inswinging door you would use the 8231.   This self contained package features, an on board power supply, LED light on the control box to signal accurate installation and helps with connection diagnostics.

This closer features:
SmartLatch-senses and overcomes external pressure conditions with a Graduated energy assist of secure latching.
Push N Go-selectable feature allows door to open automatically as soon as it feels pressure.
Open Position Learning-automatically sets the opening position to eliminate wall and door damage.
Obstacle Obstruction Detection-safety feature stops and reverses door direction when distress or an obstruction is sensed.
Pre-Load Strike Assist-removes load on strike lip with a one second delay allowing the door to release and automatically open.
LED Light Illumination-Light illumination on control box signals accurate installation and helps with connection diagnostics.
On Board Power Supply-powers the accessories without the need to install an external power supply-12 vac
Adjustable hold open time delay, backcheck/latch position, backcheck speed, and opening and closing speeds.

The package includes everything except for the actuators.  Uses LCN Actuators.

Falcon 8200 Catalog

Falcon 8200 Installation Instructions

The Falcon Automatic Opener 8231 is a smart and easy solution to improve accessibility and meet ADA Codes.  The 8231 is a non handed, surface mounted, 115 volt closer for a pull side mounting.   If your door is an outswinging door you would use the 8242.   This self contained package features, an on board power supply, LED light on the control box to signal accurate installation and helps with connection diagnostics.

This closer features:
SmartLatch-senses and overcomes external pressure conditions with a Graduated energy assist of secure latching.
Push N Go-selectable feature allows door to open automatically as soon as it feels pressure.
Open Position Learning-automatically sets the opening position to eliminate wall and door damage.
Obstacle Obstruction Detection-safety feature stops and reverses door direction when distress or an obstruction is sensed.
Pre-Load Strike Assist-removes load on strike lip with a one second delay allowing the door to release and automatically open.
LED Light Illumination-Light illumination on control box signals accurate installation and helps with connection diagnostics.
On Board Power Supply-powers the accessories without the need to install an external power supply-12 vac
Adjustable hold open time delay, backcheck/latch position, backcheck speed, and opening and closing speeds.

The package includes everything except for the actuators.  Uses LCN Actuators.

Falcon 8200 Catalog

Falcon 8200 Installation Instructions

Rixson Checkmate Overhead Door Holder 9 Series

Product Description & Features
• Doors are single acting
• Non-handed
• Slide track design
• Recommended for high traffic, heavy
abuse installations
• Heavy shock absorber spring provides
5-7° compression before deadstop

Size is the Door Width

International 89L Escutcheon Trim

Clutched lever trim for use with the 8000 Series International Door Closer Exit Devices. Escutcheon measures 8-27/32" high by 2-15/16" wide by 15/16" thick. Trim is non handed and easily converted in the field. We offer 3 functions, Classroom, Passage and Storeroom.

Classroom - cylinder (not included) locks and unlocks lever handle
Passage - no cylinder hole, lever always active
Storeroom (Night Latch) - cylinder (not included) unlocks lever, but lever is always locked when key is removed.

The Heavy Duty Cal Royal CRCODE101 is for use on the 7700 and 9800 Rim and Surface Vertical Rods. This lock features Single Code with up to 8000 code combinations, weather resistant, non handed, and code can be changed without removing the lock. Comes in Brushed Chrome finish only.

Installation and Programming Instructions

Von Duprin 386DT Dummy Trim

This Von Duprin 386DT Dummy Trim is just a pull handle. The bolt pattern of the trim plate lines up with the Von Duprin 33A on the inside so they are on cohesive unit. The base plate measures 7-15/16" by 1-5/8". The grip measures 8-1/2" by 4-5/16" with a 2-7/16" projection. This 386DT Dummy Trim is non handed.

Trim Protector Bar

A great product for applications were your door knobs and levers are getting damaged due to hand carts and other items hitting door trim. Mount this product above or below existing items on walls and doors to protect and sheild them from damage.

Material: Brass, Bronze, Stainless Steel
Material Size: 3/8" x 1-1/2"
Base: 1-3/4" x 3-1/2"
Projection: 3-1/4"

The Cal-Royal 4500 Series Lever Trim is for use on the 45-RIM and 45-SVR Exit Devices. The Lever Trim is non handed and ships with a 6-pin C Keyway Cylinder. The function is Classroom, which means the key will lock or unlock the lever. The lever also incorporates a clutch function so the mechanism will not break when excessive force is applied to the lever.

The Sargent 281 Door Closer is also known as the Powerglide, This closers meets ADA requirements, meets the Buy American Act, and is certified Grade 1, the heaviest rating possible.  The closer has the capability to be mounted on the push, pull or top jamb, and is non handed.  This closer is the replacement for the 1250 and 1251 series closers.  This closer has been the replacement for the 1250 since about 2000.  It is manufactured of an aluminum alloy.

Replaces the older Sargent 1250 and 1251 door closers, mounting holes will match

Von Duprin 9875/9975 mortise lock device for all types of single or double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. Fits stock hollow metal doors with 86 cutout and door stiles as narrow as 4-3/4" (121mm). The Von Duprin 9875 device has a smooth mechanism case and the Von Duprin 9975 device has a grooved case. The mortise lock device is non-handed

The Von Duprin Panic Device 996L Lever Trim has an escutcheon plate that measures 2-3/4" wide by 10-3/4" high and projects out 27/32". The handle projection is 2-7/8". The key cylinder, not included, locks and unlocks the lever.  This lever handle is handed, but is field reversible. Key lock and unlocks lever.  We ship the 996L-R&V

Gravity Door Coordinator 9"

The Ives COR9G has been around for at least 50 years.   In the old days before electrically activated door closers fire doors would have fusible link armed door closers.  When the lnk melted, the door closed, and if there was not a mullion between door, they would use this style of door coordinator so the door with the astragal would close first.

When active door is open, coordinator prevents active door from closing until inactive door bypasses. Closing of inactive door causes strike plate on top of door to contact cam and lift arm, allowing active door to close. As inactive door continues closing, roller rides over strike plate on to door bracket, holding arm above active door.
Non-handed.

Gravity action arm and door bracket are adjustable on the job for ease of installation. Rubber roller provides quiet and efficient operation, and helps protect the astragal and doors from damage. Nylon roller on short arm glides smoothly over door bracket and strike, ensuring silent operation. Made of forged brass.
COR9G-26D for use on pairs of doors with astragal on active door over 4' or with astragal on inactive door over 3'4" or with astragal on both doors over 2'10" Brushed Chrome Finish.

Ives part # COR9G-26D 9" Arm Projection

TH1114KM Pitco Style Offset Pivots are used for both flush face frame installation and 1/8" recessed door applications. Pivots replace most major door manufactures. Suitable for aluminum doors weighing up to 125 pounds. These pivots are engineered and designed for durability, style and are easy to install. To order pivot: For LHRB door order RH pivot For RHRB door order LH pivot Specifications * 3/4" offset pivots for aluminum doors and frames * For flush door / frame and 1/8" recessed door applications * Weather resistant * Aluminum case construction * Vertical adjustment 1/8" * Full race ball bearing and design, provides smooth operation on bottom pivot door portion * No sag, entire weight of doors rests on floor mounted pivot portion * Completely temper proof, yet easily removable, replaceable in unlocked position * All pivots are handed- specify LH, RH * Finish: AL-Aluminum, DU-Duronotic

The Clear Plastic Corner Guards 313 are a good way to protect corners from hand carts and dollies in areas of lighter traffic.  If the area has a lot of traffic, like a warehouse, I would recommend the 310 or 311 which are made of metal.  The are 2-1/2" by 2-1/2"" and are usually 48" long, but we can do custom sizes.  They are constructed of .120" thick clear polycarbonate plastic.  Screws are included for mounting.

The Clear Plastic Corner Guards 312 are a good way to protect corners from hand carts and dollies.  If the area has a lot of traffic, like a warehouse, I would recommend the 310 or 311 which are made of metal. The are 2" by 2" and are usually 48" long, but we can do custom sizes.  They are constructed of .120" thick clear polycarbonate plastic.  Screws are included for mounting.

Gravity Door Coordinator

The Ives COR7G has been around for at least 50 years.   In the old days before electrically activated door closers fire doors would have fusible link armed door closers.  When the lnk melted, the door closed, and if there was not a mullion between door, they would use this style of door coordinator so the door with the astragal would close first.

When active door is open, coordinator prevents active door from closing until inactive door bypasses. Closing of inactive door causes strike plate on top of door to contact cam and lift arm, allowing active door to close. As inactive door continues closing, roller rides over strike plate on to door bracket, holding arm above active door.
Non-handed.

Gravity action arm and door bracket are adjustable on the job for ease of installation. Rubber roller provides quiet and efficient operation, and helps protect the astragal and doors from damage. Nylon roller on short arm glides smoothly over door bracket and strike, ensuring silent operation. Made of forged brass.
COR7G-26D for use on pairs of doors with astragal on active door up to 4' or with astragal on inactive door up to 3'4" or with astragal on both doors up to 2'10" Brushed Chrome Finish.

Ives part # COR7G-26D 7" Arm Projection

Kawneer Style Intermediate TH1121 Hinge

Male mounting bracket measures 1-5/16” wide by 2-3/16” high, with a hole spacing of 13/16”.  Female mounting leaf measures 1-7/16” high by 1-9/16”, with a hole spacing of 3/4” center to center. These hinges are non handed.

The heavy-duty 8900 Series non-handed surface applied closer
with adjustable spring power and backcheck positioning adjustment.
The 8900 has intensity adjustable hydraulic backcheck
that will take effect at approximately 65º. The 8900 has two
independent, noncritical adjustment valves to control sweep and
latch closing speeds. The backcheck positioning valve maintains
an effective backcheck range on parallel arm applications. The
8916 will be available with field adjustable spring power from size
1 to 6 for barrier-free requirements.

2-1/8" x 5" hole spacing

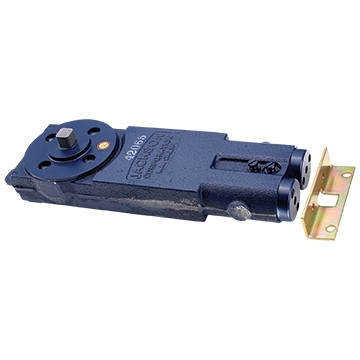

The Jackson 20330 Concealed Door Closer has been around since the late 1960's early 1970's.  They are used on aluminum framed storefront doors, that have a narrow stile (frame) around the glass.  The closer is tucked up in the header of the door frame.  Jackson has been a leader in this style of door closer for almost 50 years.   The closer is manufactured in the U.S.A. under strict ISO 9001 guidelines and is designed to give long lasting, maintenance-free performance. One basic closer mechanism allows for single or double acting, center-hung, or offset applications and is non-handed. The adjustable spring power makes this closer suitable for aluminum, wood or steel doors.

Mechanism only, Spindle Length is 1/2"
See Jackson arms for replacement arms.

Von Duprin 386NL Dummy Trim

This Von Duprin 386NL Night Latch Trim is just a pull handle. The bolt pattern of the trim plate lines up with the Von Duprin 33A on the inside so they are on cohesive unit. The base plate measures 7-15/16" by 1-5/8". The grip measures 8-1/2" by 4-5/16" with a 2-7/16" projection. This 386NL Night Latch Trim is handed. Uses a standard Rim Cylinder.

The Yale Door Closer 51 Series has been around since the early 1970's.  With the advent of the aluminum framed storefront doors, this door closer was a perfect fit.  The 50 series is a non-sized, non-handed closer that can be mounted on the push (parallel arm), pull (regular arm) or top jamb.   A Grade 1 closer certification, means it is one of the more heavy duty closers out there.  Older models may be stamped with Scoville or Eaton, which are the companies that used to own Yale.  We some times find 20-0054-4001 or 20-0254-4001 stamped on the back of the closer.   Ships with all mounting screws and a parallel arm bracket.  The hole spacing is 3/4" by 9-1/16".

International 8630S Surface Vertical Rod Device-Grade 1

DC 8000 Series Exit Devices are heavy duty and designed for heavy traffic applications. The devices are Underwriters Laboratory (UL, USA and ULC, Canada) listed for Panic Exit Hardware or Fire Exit Hardware, and are certified to ANSI A156.3-2001 Grade 1.

Non handed, 4-1/2" minimum stile width. Smooth Surface.

For doors 29" to 36" wide order the Size 30 to 36"
For doors 36" to 48" wide order the Size 48"

International 5510S Rim Device-Light Duty

All devices are non-handed design
Auxiliary guarded latch deadlocks latch bolt automtically locks when the door is closed
High shock-resistant latching mechanical design or protection from vandalism
All inside components are made of high rust-resistant alloy or heavy electroplated steel

Standard 36”: Device length is 33 15/32” (850mm) for 3’ door use, with a standard push bar.
Long 48”: Device length is 44 3/4” (1137mm) for 4’ door use, with long push bar.

Foot Pull

The Foot Pull is a device for public restroom doors that allows one the option of opening the door using their foot instead of their clean hands. The Foot Pull has been installed in thousands of schools, hospitals, restaurants and office buildings across the US and Internationally, and a 99.95% approval rating, the Foot Pull is truly a "why didn't I think of that" idea with a wide open future. The pull measures 8" across by 7" tall with a 3-3/8" projection. The plate is made of die cast alumunum with a distressed finish.
Package Includes:
1 Foot Pull, Instructions, door signs and all
hardware needed for installation.

12" Kickdown Door Holder Grand Standard

Frequently we are asked, “What is the heaviest duty kick down holder you sell?”  The answer to that question is any of  Grand Specialty door holders.  These door stops are American made and simply the best out there.   They have a shoe that is held in place by a screw, a rivet instead of a roll pin for the hinging mechanism, and a “wedge” instead of a piece of spring steel to hold up the leg.  They are constructed of steel, and not cast like all of the other door holders made.

Another feature is their well constructed rubber shoe can be adjusted down as the rubber shoe wears making the holder last way longer than their competitors. Another use for them is as a door floor lock if mounted on the other side of the door. Once kicked down there's no entry possible unless you slide a flat item under the door to lift the door holder leg out of the way and push the door open. It can be opened from the inside as normal with your foot or hand. A very inexpensive security lock.

• No roll pin at pivot point
• Mallable with a pair of pliers
• Rubber shoe held on by a screw
• American Made
• Zinc plated steel

 The bottom mounting screws holes would be 11-3/8" to the Floor when mounted.

 Made by Grand Specialties in USA Part # 612z

The Sargent Door Closer 1331  is a standard template closer with the 3/4” x 12” hole spacing.  This closer is a great replacement for the Norton 8000 Series or Yale 3000 Series Door Closers.  The closer is constructed of a cast aluminum body and has a heat treated steel pinion and rack.  The 1331 has the ability to be mounted on the push, pull or top jamb, and is non handed.  We stock the aluminum finish, but also have the dark bronze finish, it just might take an extra day or so.  We ship the 1331-JUO.

The Detex ECL-230D-PH Alarmed Exit Device is a battery operated, rugged deadbolt panic device, and is UL-Listed Panic Hardware for 36" to 48" doors. The steel paddle is photo-luminescent sign providing managed security and a 100 decibel alarm for secondary exits. The device features a single point 1" dead bolt, attack resistant design withstands over 2200 pounds of outside pull force, and is non handed. Locking and unlocking the dead bolt always arms and disarms the alarm. Rim Cylinder is not included.

The Falcon SC71 Door Closer used to go by the Doromatic SC71. This is a higher quality door closer at a more affordable price. This closer offers adjustable closing, latching and back check speeds, along with adjustable spring tension. It has the ability to be mounted on the push, pull or top jamb and is non handed. This closer is considered a Grade 1 closer, which is the highest grade you can get. The hole spacing is 2-3/8” x 6-3/4”, which is the same hole spacing as the Norton 7500 and Yale 4400 door closers. We ship the SC71 Rw/PA

The Detex ECL-230D Alarmed Exit Device is a battery operated, rugged deadbolt panic device. The steel paddle is photo-luminescent sign providing managed security and a 100 decibel alarm for secondary exits. The device features a single point 1" dead bolt, attack resistant design withstands over 2200 pounds of outside pull force and is non handed. Locking and unlocking the dead bolt always arms and disarms the alarm.  Rim Cylinder is not included.

If you have a door that requires Panic Hardware, then use the ECL-230D-PH

International 7100 Concealed Vertical Rod Device

Modern flat touch bar Concealed Vertical Rod Device Panic exit device. This series offers durability, safety and meets the security demand and access control needs of today. Series 7300 Rim Panic exit devices are used with Narrow, Medium and Wide aluminum door and Hollow Metal and Wood Door applications. Series 7300 is non-handed, Field Reversible for LHRB or RHRB doors. Outside Unlatching and Dogging by Cylinder Key or Dogging by Hex Key in Touch Bar. Standard Units for 36” and 48” in widths (cut bar to fit). Can be used on 30” wide doors.

International 5530S Surface Vertical Rod Device-Light Duty

All devices are non-handed design
Auxiliary guarded latch deadlocks latch bolt automtically locks when the door is closed
High shock-resistant latching mechanical design or protection from vandalism
All inside components are made of high rust-resistant alloy or heavy electroplated steel

Standard 36”: Device length is 33 15/32” (850mm) for 3’ door use, with a standard push bar.
Long 48”: Device length is 44 3/4” (1137mm) for 4’ door use, with long push bar.

Standard vertical rod accommodates 7’ or 8’ doors

We offer the aluminum and dark bronze finish online, the polished brass and stainless steel finishes are available.

The Von Duprin 55EO Rim Exit Device is used primarily on aluminum framed glass doors, otherwise known as Narrow Stile Doors.   It is one of the most heavy duty cross bar devices made, and has been in production since at least the 1970's.  It will fit on Stile widths of 1-3/4", and ships with all the mounting screws, dog key and the 1409 Surface Strike.  The device is also non handed.

Simplicity
• Engineered with minimum components and maintenance-free
• Modular design allows for phased component installation. Chassis assembly can be mounted separately to secure the door during construction
• Retrofits to all applications
• One chassis design to accept all available functions/trims
Durability
• Reinforced cast (ZA) alloy chassis – exceptional strength and durability. Withstands 2X more static load forces compared to a stamped steel chassis
• Endures over 4 times the ANSI/BHMA A156.3 2001 Grade 1 cycle testing standard
• Non-handed rim; reversible vertical rod
• Solid stainless steel latch. Meets UL panic test requirements without roller strikes which compromise strength and durability
• Three year warranty
